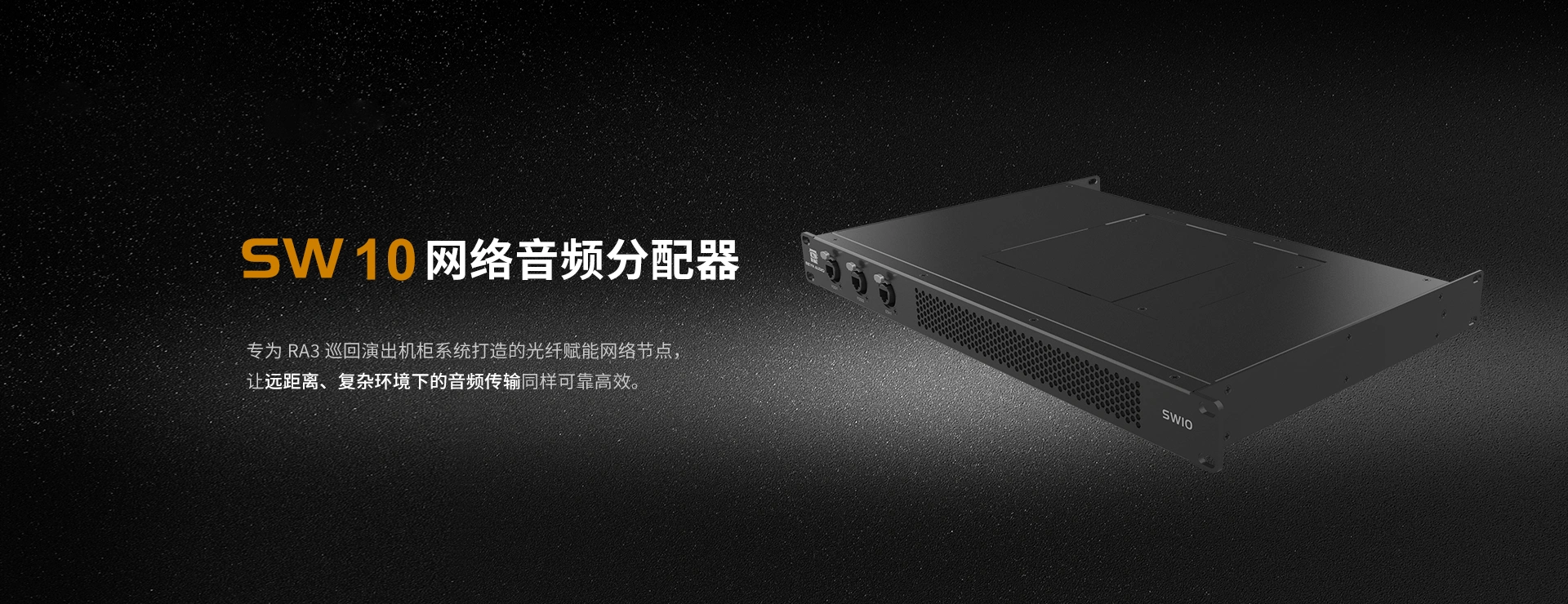

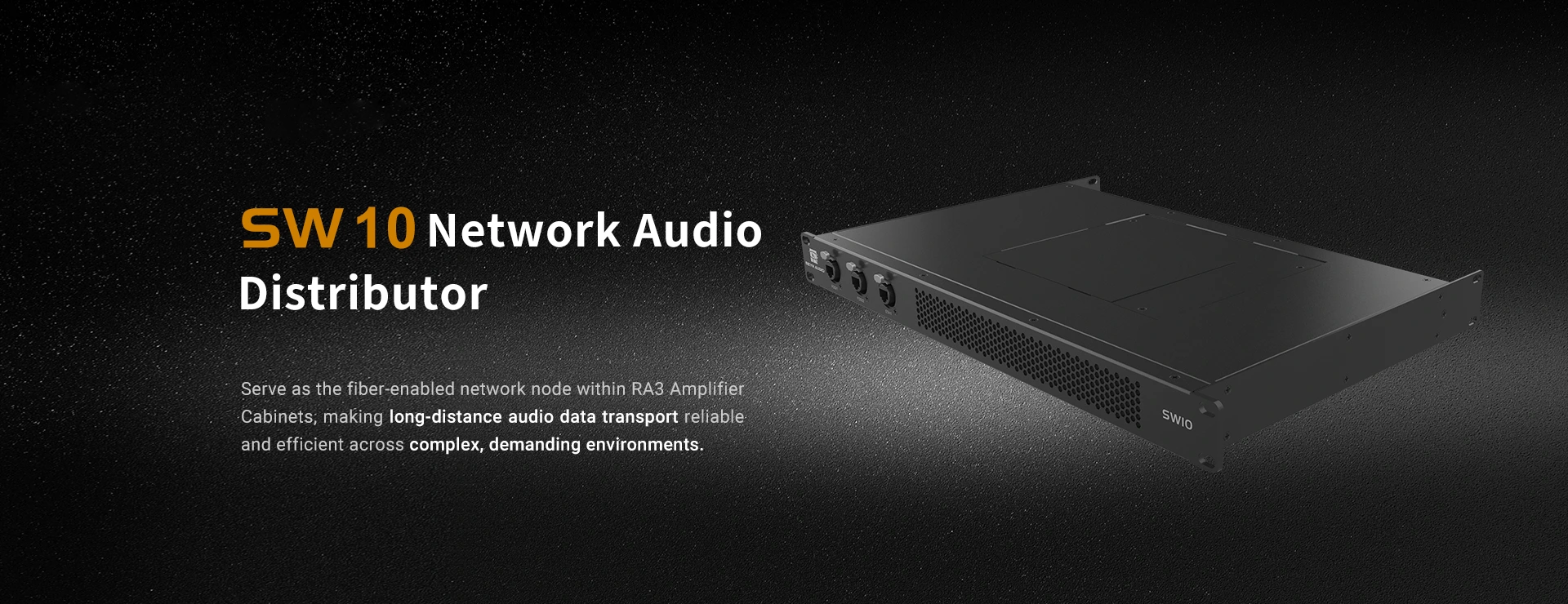

SW10 High-Performance Network Distribution Switch | The Dedicated Fiber-Enabled Node for RA3 Amplifier Cabinets
Transmission Performance: Fiber Optical Connectivity, Superior Immunity to Interference
SW10 Position the SW10 as the high-performance network switch for RA3 Amplifier Cabinets, pairing eight heavy-duty Neutrik EtherCON™ network connectors with two Neutrik® reinforced multi-mode LC optical connectors.
Supply a massive 336Gbps switching capacity while fully supporting professional audio network management features including Dante QoS priority queuing, IGMP snooping, and link aggregation to guarantee unblocked, low-latency multi-channel audio streaming.
Expand system connectivity via fiber-optic links, enabling RA3 Amplifier Cabinets to interface seamlessly into backbone networks across long distances or high-interference environments to reinforce network transmission integrity.
Physical Architecture: Industrial-Grade Build, Versatile Multi-Scenario Adaptation
SW10 Build with an industrial-grade reinforced chassis and ruggedized connectors to withstand outdoor touring productions and large venue fixed installations, resisting mechanical vibration, dust ingress, and thermal fluctuations.
Combine fiber-optic and Ethernet connectivity to adapt to system architectures of varying scales and scenarios, aligning with core network node requirements for major permanent installations.
Deployment & System Integration: Large-Scale Project Backbone, Multi-System Coordination
SW10 Anchor major fixed installations and large production tours by operating as the transmission core for RA3 systems or as an aggregation switch for the backbone network, establishing long-distance connections across multiple racks and subsystems.
Interconnect alongside companion RA3 Amplifier Cabinets, power distribution units, and signal panels to assemble a stadium-wide professional audio network, satisfying high-standard operational demands in major installations and touring productions.
Technical Specification
Power Input and Output
- 100-240VAC，50/60 Hz
Maximum allowed range
- 85-264VAC，50/60 Hz
Power Consumption
-
≤7.0W (Static Power)
≤12.0W (Full Load Power)
Network Connectivity
- 8个Neutrik EtherCON™ connectors (1 front panel, 7 rear panel)2 Neutrik waterproof and ruggedized multimode dual-core LC optical ports
Mains Connection
- IEC 6,020 C14 inlet, fused, with integrated power switch.
Switch Capacity
- 336Gbps
Forwarding Rate
- 96Mpps
Control and Management Software
- REYN AUDIO & H3C Switch Configuration Management Tool (Network Port)
IGMP Setting
- IGMP Version Settings, Time Settings, Query Settings
QoS Settings
- Dante Priority
Link Aggregation Settings
- Any two link aggregations
Basic Account Settings
- Query Function, Password Settings, IP Settings
Operating Temperature
- -40℃~70℃
Net Weight
- 2.8kg kg (6.2 lbs)
Product Code
- 12120100208817
Dimensions (W x H x D) mm
-
483x317x44
(19.0"x12.5"x1.7")
