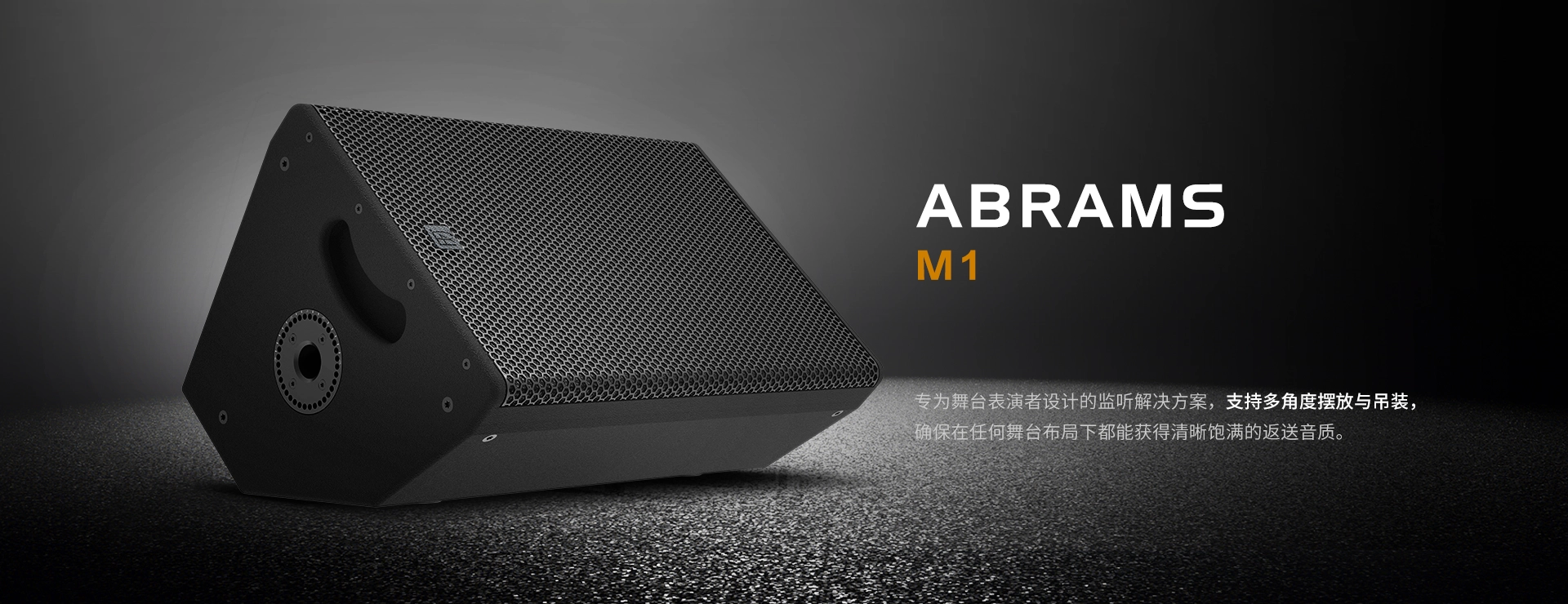

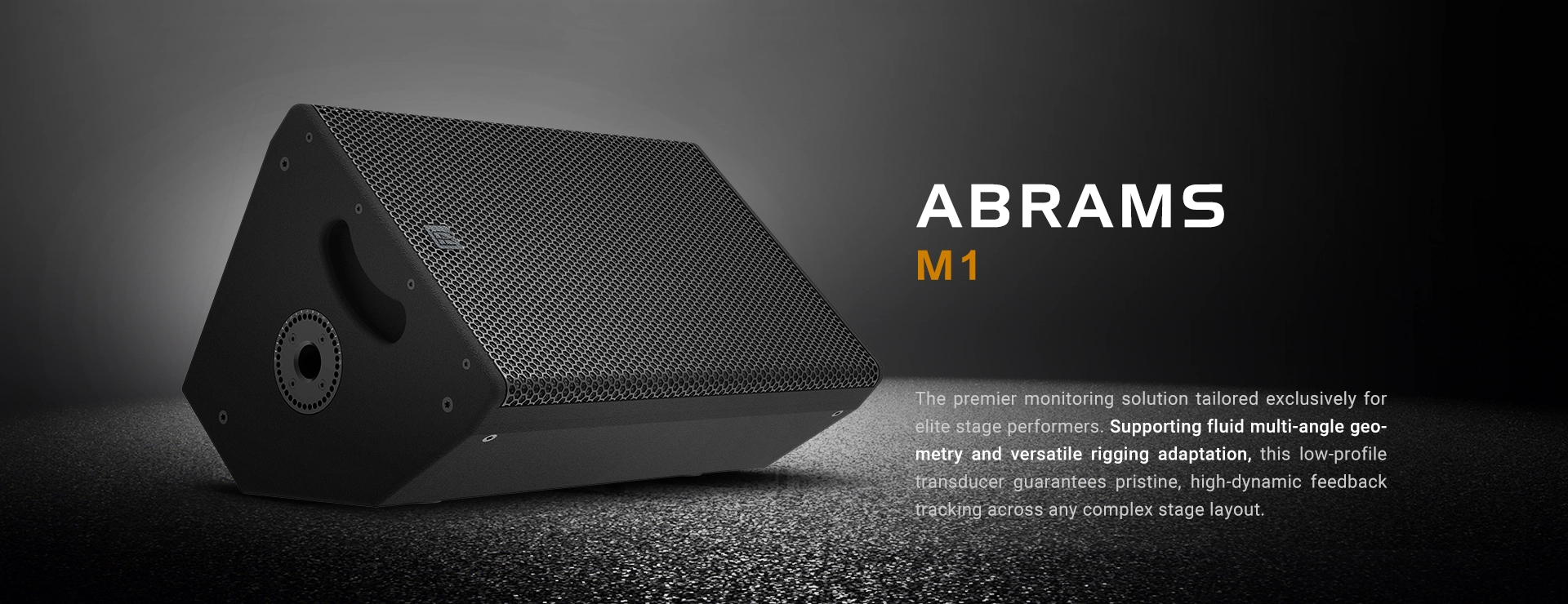

M1 High-Performance Two-Way Stage Monitor | The Acoustic Core of Professional Stage Telemetry

Acoustic Design: Intelligibility Priority, Scalable Full-Range Architecture

M1 The acoustic matrix couples a high-excursion 15-inch LF transducer with a 3-inch diaphragm HF compression driver, managed by a precision internal crossover network and a rotatable constant-directivity horn to mandate total frequency control. This physical synchronization delivers deep, authoritative mid-bass and razor-sharp high-frequency definition with an absolute zero-distortion crossover transition.

Maintaining a highly controlled 80°×50° coverage pattern permits seamless optimization according to complex stage layouts, ensuring every performer commands a uniform, phase-coherent monitoring field. Generating a massive peak SPL of 134 dB ensures that critical vocal and instrumental cues slice through extreme stage noise floors with uncompromised transient sharpness.

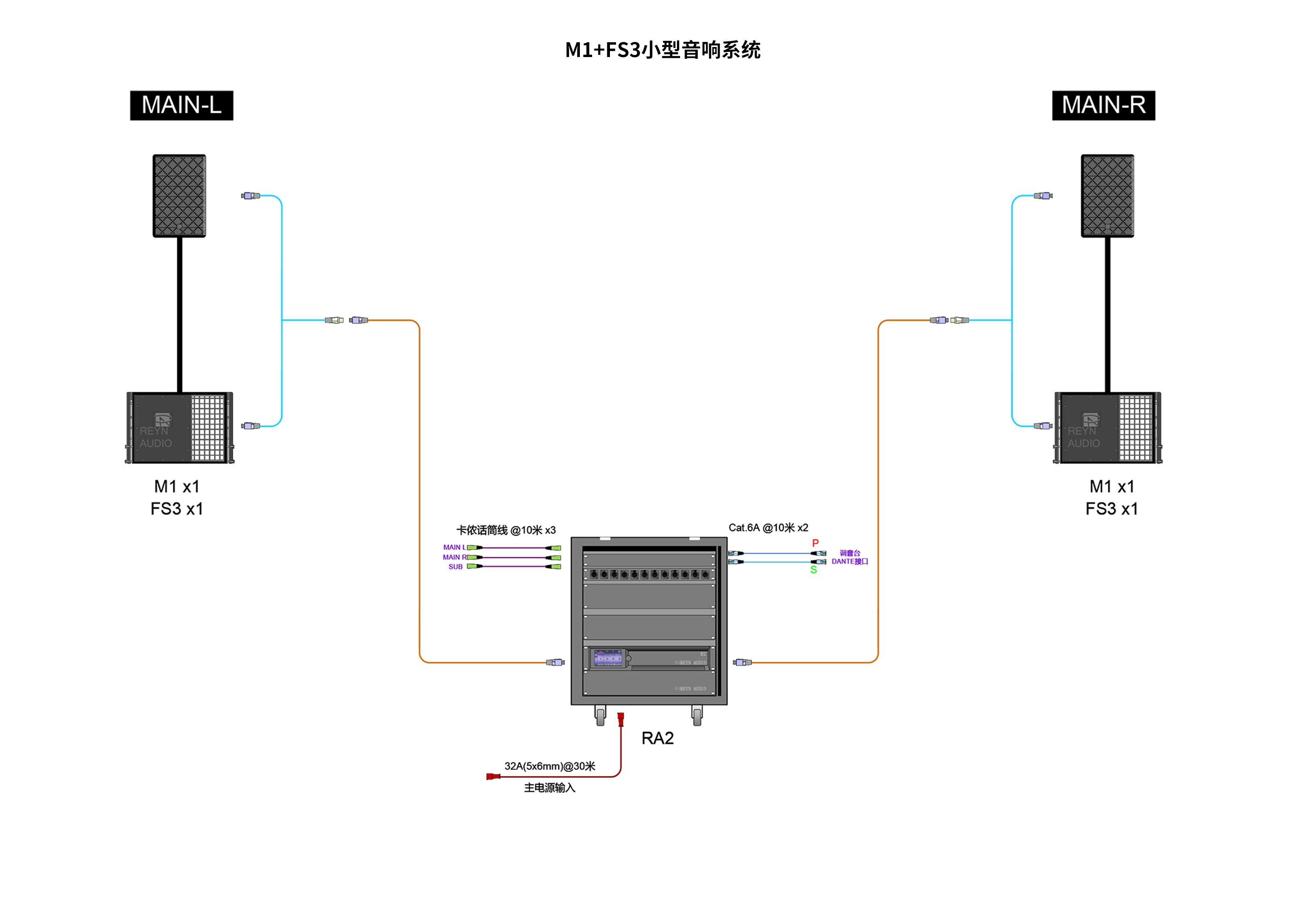

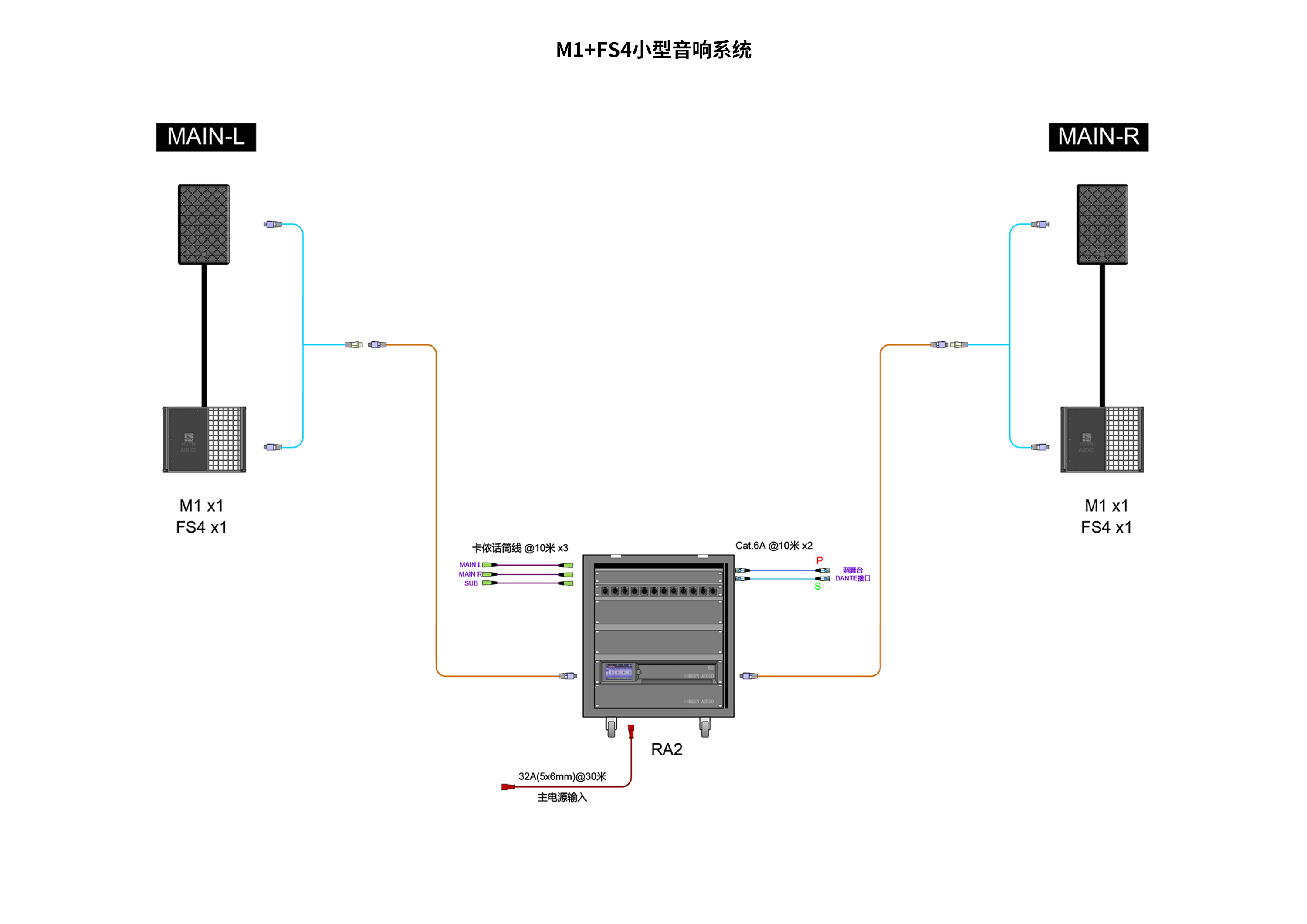

Spanning a linear frequency response from 55Hz–18kHz locks in absolute systemic compatibility. Operating flawlessly as a dedicated low-profile stage monitor, the cabinet scales effortlessly into a standalone full-range Front-of-House (FOH) solution for mid-to-small scale spaces. Coupling the element with FS3 or FS4 subwoofers completes a high-dynamic three-way topology, mastering everything from live concert dynamics to premium entertainment playback across multi-angle placement options.

Structural Resilience: Heavy-Duty Mechanical Armor, Fluid Ergonomics

M1 Cabinet integrity is anchored by premium high-density multi-ply birch, coated in an advanced, wear-resistant polyurea finish that provides exceptional UV defense and high-impact collision protection to withstand aggressive long-term touring schedules.

The front enclosure features a rigid structural steel grille to block debris and protect internal components, backed by an acoustically transparent, hydrophobic textile backing that repels moisture without introducing acoustic attenuation.

Integrating flush-mount ergonomic handles along each side panel, paired with additional auxiliary handles at the rear, this design layout facilitates frictionless multi-crew logistics, loading, and installation flexibility.

Field Rigging: Scalable Mounting Architecture, Enterprise Infrastructure

M1 Integrating a dedicated rigging frame supports precise multi-angle horizontal and vertical adjustments, alongside single-point suspension and pole-mount options. This architectural flexibility permits instantaneous adaptation across stage monitoring arrays, wall-mount vectors, or ground-stacked footprints for permanent or touring layouts.

The connection panel utilizes a recessed ergonomic layout to eliminate physical impact damage on tour. Equipped with industry-standard SpeakON® NLT4 M receptacles, the wiring interface enforces absolute signal purity and a locked-in, failure-defiant connection.

M1 Optimized strictly for elite monitoring tracking, this platform excels across high-end theaters, Livehouses, multi-function halls, premier clubs, and luxury KTV environments. Whether managing real-time artist feedback, speech reinforcement, or high-SPL music reproduction, it delivers uncompromised mechanical and acoustic stability.
