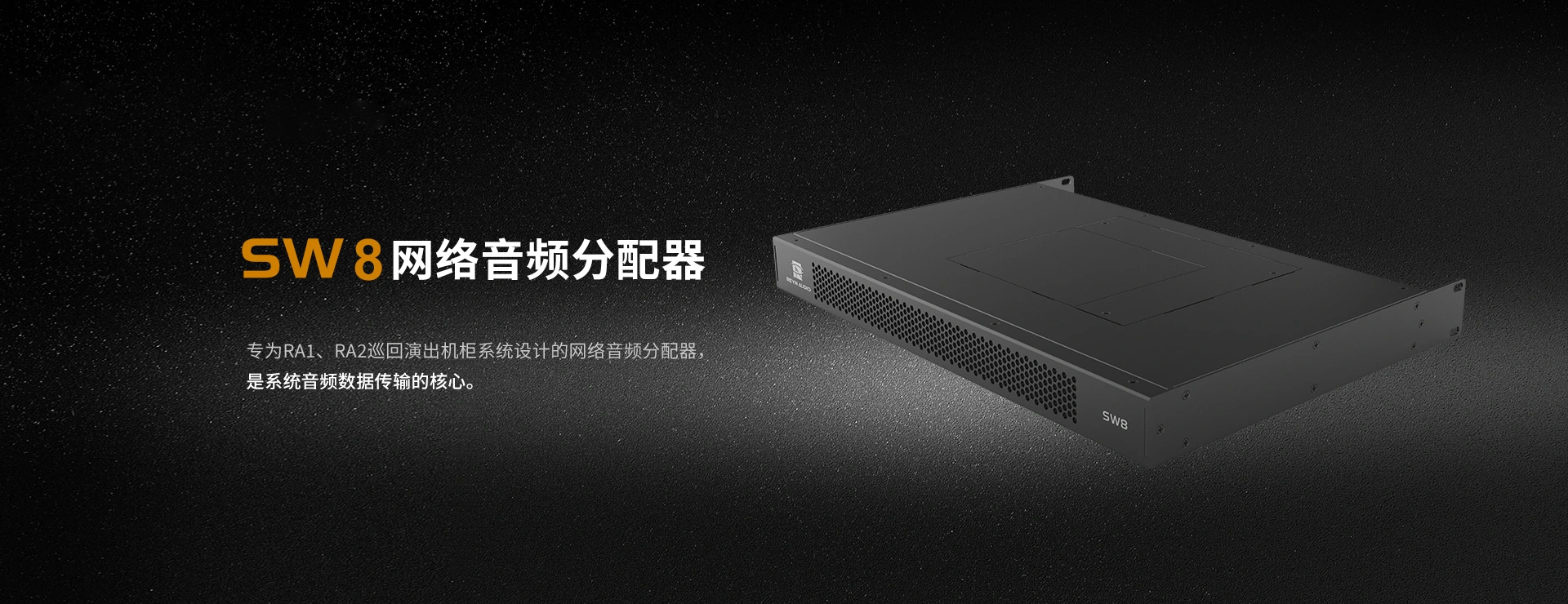

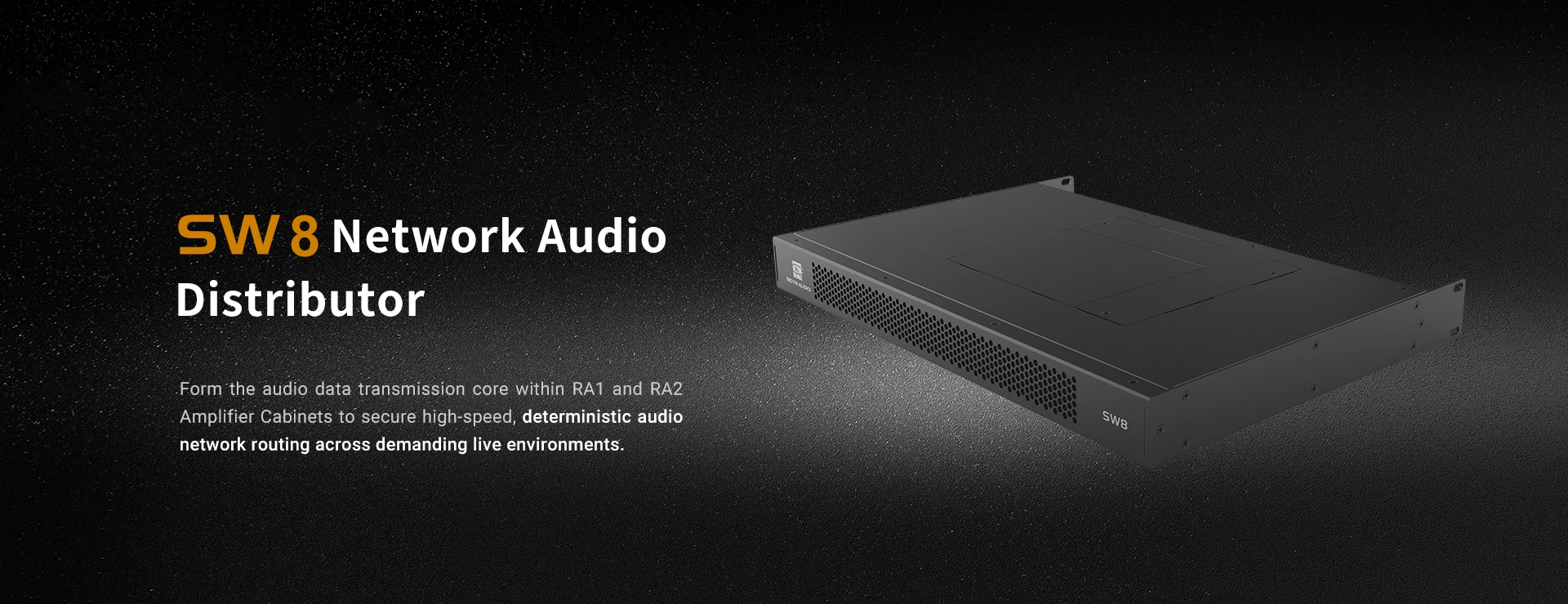

SW8 Network Distribution Switch | The Dedicated Audio Transport Core for RA1/RA2 Amplifier Cabinets
Transmission Performance: Low-Latency Transport, High Operational Reliability
SW8 Position the SW8 as the central network audio data transport hub within RA1 and RA2 Amplifier Cabinets to withstand rigorous production conditions.
Equip eight heavy-duty Neutrik EtherCON™ network connectors alongside a massive 336Gbps switching capacity, supporting professional network features including Dante QOS priority queuing, IGMP snooping and link aggregation to guarantee unblocked, low-latency multi-channel audio streaming.
Execute advanced network protocol optimization to maintain uncompressed signal integrity across complex system topologies, supplying an unshakeable network audio backbone for live productions.
Physical Architecture: Wide Operating Range, Worldwide Compatibility
SW8 Incorporate a universal wide-range power supply input alongside an extended operating temperature tolerance, operating reliably across fixed installations and mobile touring setups globally.
Reinforce the chassis with industrial-grade connectors to withstand mechanical vibration and electromagnetic interference, sustaining continuous operations during demanding touring and outdoor stadium deployments to lower system failure risks.
Deployment & System Integration: Rack Integration Core, Standard System Element

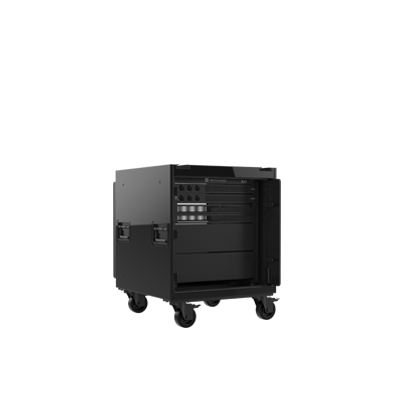

SW8 Anchor RA1 and RA2 Amplifier Cabinets across touring productions, large stadium installations, and mobile outdoor events, serving as the essential network transport backbone.
Combine alongside companion power distribution units, signal panels, and network switches to assemble a complete professional audio network ecosystem, satisfying high-standard reinforcement demands for mid-to-large scale productions and venues.
Technical Specification
Power Input and Output
- 100-240VAC，50/60 Hz
Maximum allowed range
- 85-264VAC，50/60 Hz
Power Consumption
-
≤7.0W (Static Power)
≤12.0W (Full Load Power)
Network Connectivity
- 8个Neutrik EtherCON™ connectors
Mains Connection
- IEC 6,020 C14 inlet, fused, with integrated power switch.
Switch Capacity
- 336Gbps
Forwarding Rate
- 96Mpps
Control and Management Software
- REYN AUDIO & H3C Switch Configuration Management Tool (Network Port)
IGMP Setting
- IGMP Version Settings, Time Settings, Query Settings
QoS Settings
- Dante Priority
Link Aggregation Settings
- Any two link aggregations
Basic Account Settings
- Query Function, Password Settings, IP Settings
Operating Temperature
- -40℃~70℃
Net Weight
- 2.7kg kg (6.0 lbs)
Product Code
- 12120000209648
Dimensions (W x H x D) mm
-
442x317x44
(17.4"×12.4"×1.7")
