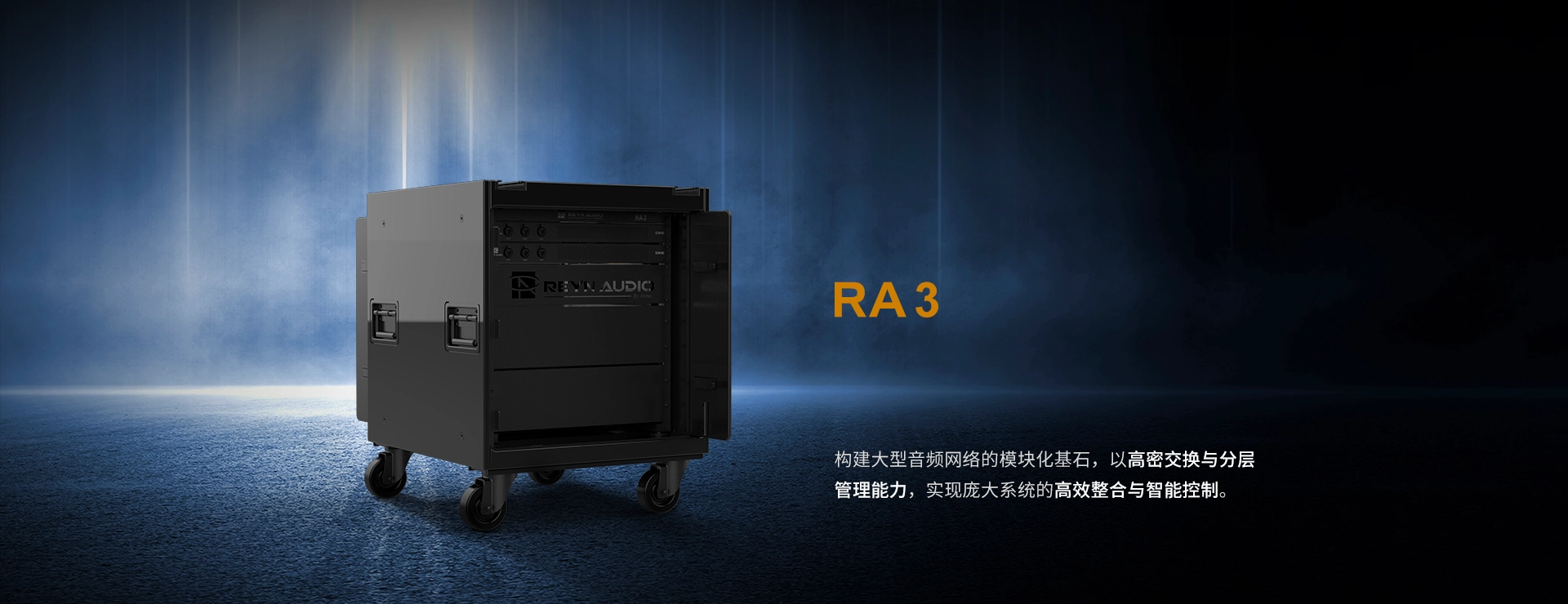

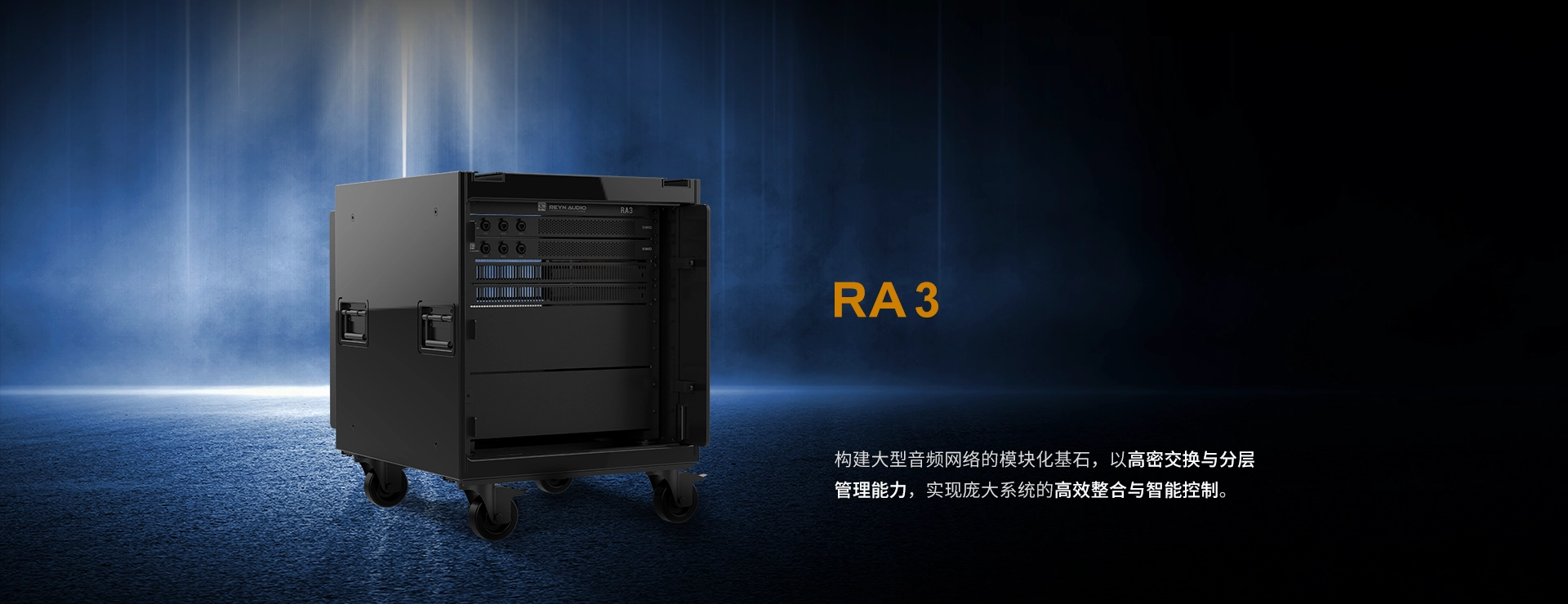

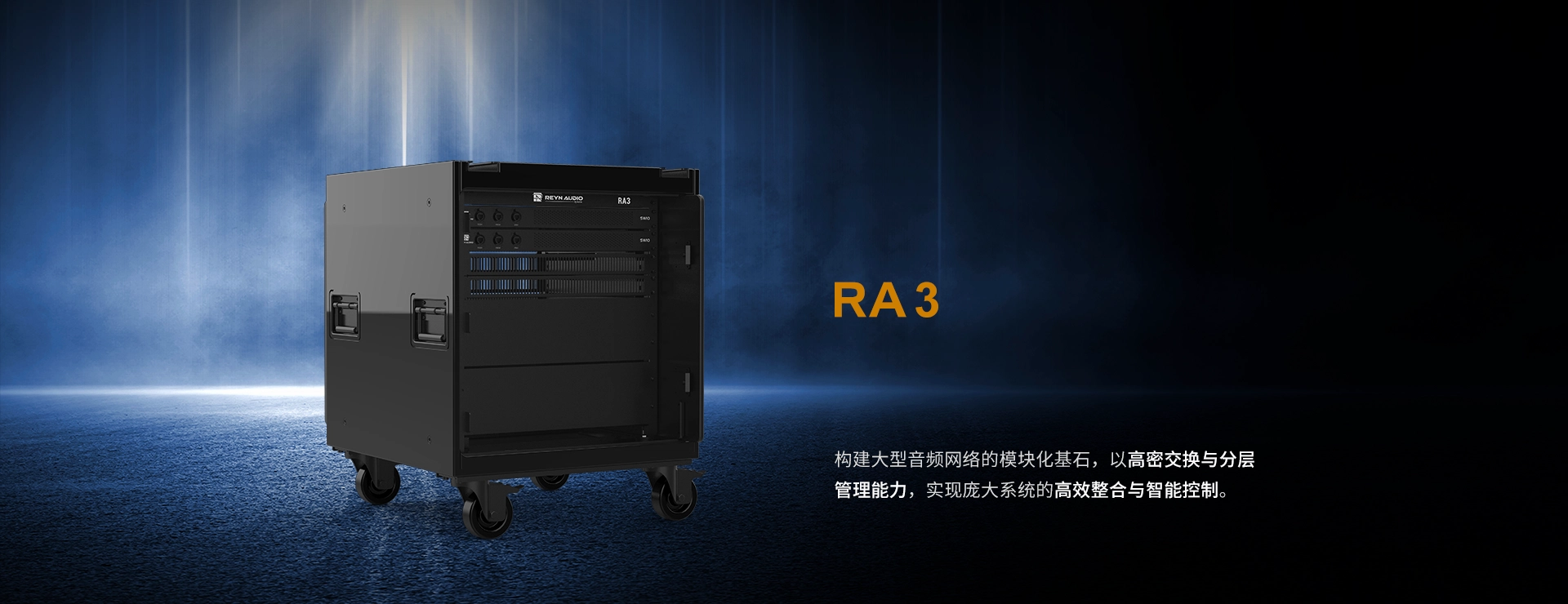

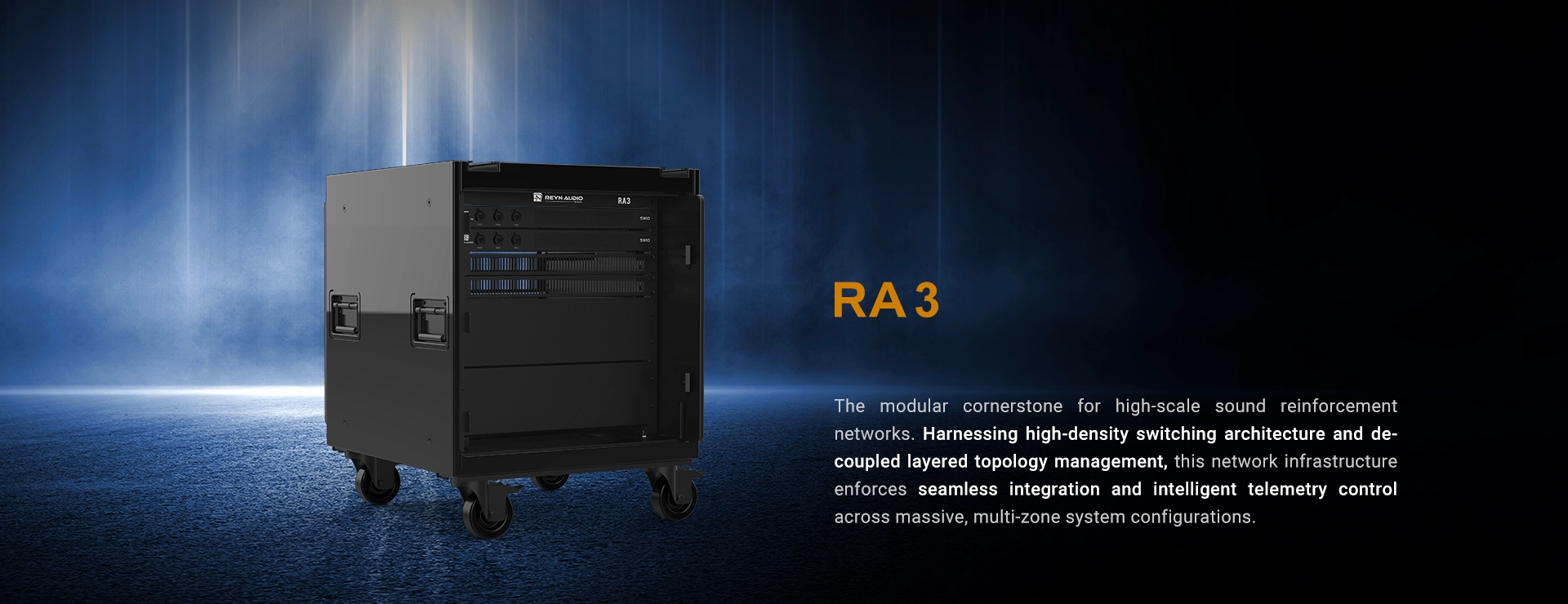

Reyn Audio RA 3 Network & Utility Rack
Dominating high-scale show network engineering within a highly integrated 11U mainframe architecture. Consolidating premium network switching and professional utility storage into a centralized footprint, this system enforces systemic network planning and layered topology management, standing as the high-efficiency synergy partner to the RA2 amplifier.
Core Architecture: High Scalability, Tactical Storage Utility
Consolidating mission-critical network assets and utility management within a single 11U enclosure footprint:
-
Equipped standard with two independent switches, each delivering 8 RJ45 ports and 2 optical ports for foundational network routing. The architecture scales seamlessly up to four independent switches, easily conquering the intricate multi-vlan backbone demands of high-scale system deployments.
-
Integrating two dedicated 3U utility drawers tailored specifically for short-distance network cabling. This design mandates standardized storage and friction-free access, eradicating cable entanglement and maximizing onsite handling efficiency.
Enforcing native Dante network audio redundancy across dual-stream routings, the digital infrastructure locks in an uncompromised fail-safe barrier. This ensures instantaneous backup switching without acoustic dropout, guaranteeing zero signal interruption to keep the entire sound reinforcement matrix running flawlessly.
Topology Engineering: Layered Decoupling, Fluid Network Logic
Operating as a dedicated network management hub, the platform adapts with absolute scalability alongside the RA2 system.
Executing synergistic combinations streamlines the comprehensive blueprinting of high-scale sound systems. By physically decoupling power amplification, signal distribution, and network control into distinct, structured layers, this architecture clarifies complex system logic, simplifies real-time telemetry oversight, and drastically mitigates troubleshooting bottlenecks for front-of-house engineers.
Touring Resilience: Shock-Absorbing Matrix, Global Cross-Rental Ready
Constructed with an internal heavy-duty dampening suspension system, the frame matrix effectively neutralizes transient transport shocks and continuous mechanical vibrations. This heavy-duty armor isolates sensitive electronic components, mitigating onsite fault risks induced by aggressive transit wear to prolong the global operational lifecycle of the assets.
Equipped with a universal, multi-phase global voltage input interface, the system seamlessly conforms to international power grid standards. This electrical versatility facilitates smooth cross-rental workflows and rapid inventory dispatch across the global Reyn Audio partner network.
Technical Specification
Material
- Polyethylene, cold-rolled steel external structure, Full birch AB fine-grained polymer doors
ETH (Dante®)
- 2 independent switches, each with 8 reinforced and lockable RJ45 sockets (CAT5e standard electrical ports), and 2 Neutrik waterproof and reinforced multimode dualpin LC optical ports
AC Mains Input
- 16A - IEC 60,309 (1P+N+GND) with a 1.5 - meter cable Chinese standard 16A plug
Mains Link
- 10A - IEC 60,309 (1P+N+GND) sockets, 8 positions
AC Output for SW10
- 2 power cords with cloverleaf plugs
Net Weight
- 115 kg (253.5 lbs)
Product Code
- 12122300200001
Dimensions (W x H x D) mm
-
585x747x620
(23.0"x29.4"x24.4")
