Overview

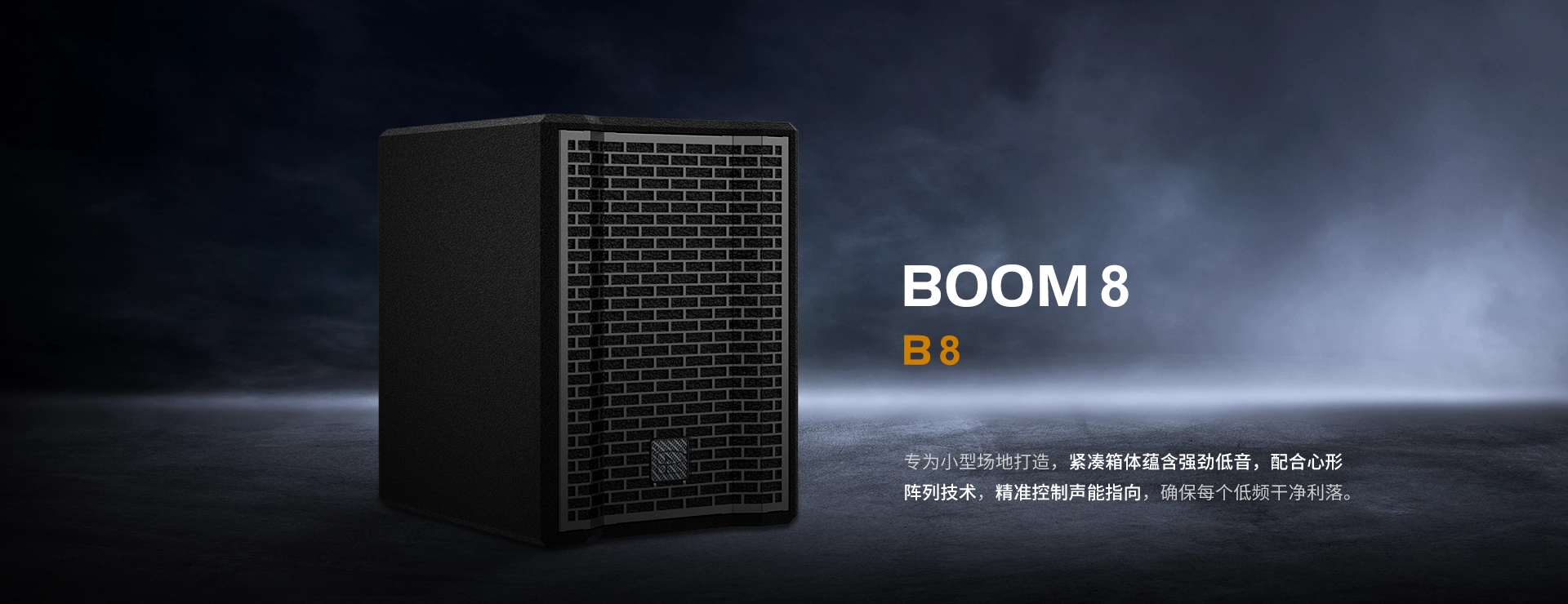

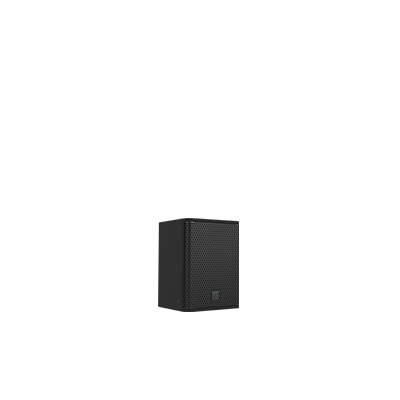

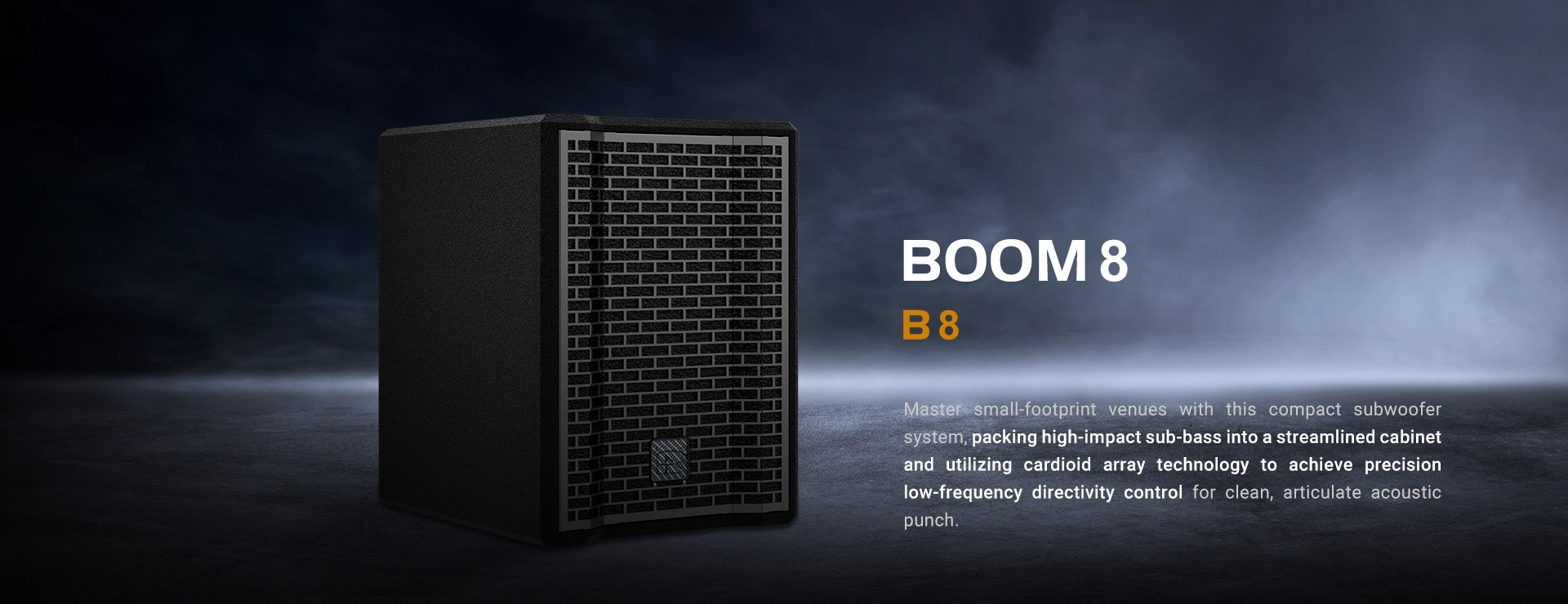

B8 High-Performance Subwoofer | The Ideal Sub-Bass Choice for Precision Reinforcement
Acoustic Design: Compact Form Factor, Massive Output, Precision Soundfield Control
B8 Integrate a custom-developed 8-inch long-excursion transducer capable of handling a 700 W music power capacity, delivering robust sub-bass energy from an ultra-compact enclosure.
Ensure long-term mechanical reliability under continuous thermal loads using a waterproof cone and triple-roll surround geometry.
Housing a high-flux neodymium magnet assembly and dual-spider suspension within a bass-reflex acoustic architecture, the driver expands linear displacement to execute sharp transient response and dynamic low-frequency realism.
Build cardioid subwoofer arrays in multiples of three enclosures by physically reversing one cabinet to face rearward and recalling matching amplifier DSP cardioid presets. Active directivity control suppresses rearward low-frequency radiation, lowering environmental reflection interference and concentrating sub-bass into the audience plane for improved soundfield definition.
Structural Integrity: Heavy-Duty Protection, Versatile Deployment
B8 Construct the cabinet using high-density multi-ply birch plywood to combine mechanical rigidity with acoustic damping, suppressing internal resonance. A tough black PU wear-resistant coating covers the outer chassis, providing impact resistance across diverse indoor performance spaces.
Protect internal components without sacrificing acoustic efficiency via a reinforced steel front grille with custom internal ribs. Oversized perforations reduce airflow resistance and port turbulence noise, eliminating unwanted mechanical vibration artifacts even at extreme SPL.
Application & System Integration: Broad Adaptability, Superior System Synergy
B8 Apply across small-to-medium professional reinforcement scenarios, including event centers, theaters, music clubs, performing arts halls, lounge bars, and high-end KTVs. Power small live concerts, interactive parties, and indoor entertainment audio setups with full-bodied low-frequency vitality.
Pair seamlessly alongside Reyn Audio R16, R8, RX15, RA5, RX8, and RA8 full-range enclosures under matched factory DSP presets, enhancing soundfield coverage and system integrity to convey nuanced, layered musical experiences through complete system synergy.
Technical Specification
AES Power Handling
- 350W
Program Power
- 700W
Low-frequency Limit (-10 dB)
- 45Hz
Nominal Impedance
- 8 ohm
Transducers
- 8" neodymium
Acoustic Modes
- Bass-reflex
Pin Assignment
- 1+/1- (LF) ,2+/2- (Link)
Nominal Directivity (-6 dB)
- standard or cardioid
Connectors
- 2x4-points Speakon®
Splay Angles
- Square Enclosure, Fixed Angle
Rigging Hardware
- Stacked on the ground, without hanging parts
Cabinet Coating
- All-birch plywood with black polyurea wear-resistant finish
IP Rating
- IP55
Rigging Points
- M8
Maximum SPL
- 115 dB
Sensitivity (1 W / 1 m)
- 87 dB
Dimensions (W x H x D) mm
-
240x350x365 mm
(9.4"x13.8"x14.4")
Net Weight
- 10 kg (22.0 lbs)
Product Code
- 12320700207048
Download
| Download | |||
|
B8 User Manual
updated: 2026-08-10
|
2.51 MB | ||
|
B8 Suggested Configuration
updated: 2026-08-12
|
49.61 KB | ||
|
B8 2D CAD Drawing
updated: 2026-03-23
|
258.08 KB | ||
|
B8 2D CAD Drawing
updated: 2026-03-23
|
rar | 48.79 KB | |
|
B8 3D CAD Model
updated: 2026-05-08
|
rar | 723.59 KB | |
|
B8 SketchUp
updated: 2026-05-08
|
rar | 476.70 KB | |
|
Product Warranty Terms & Conditions
updated: 2026-08-15
|
130.77 KB | ||
|
B8 Declaration of Conformity
updated: 2026-03-11
|
72.82 KB | ||
|
Product Weather Protection
updated: 2025-12-27
|
400.75 KB |
