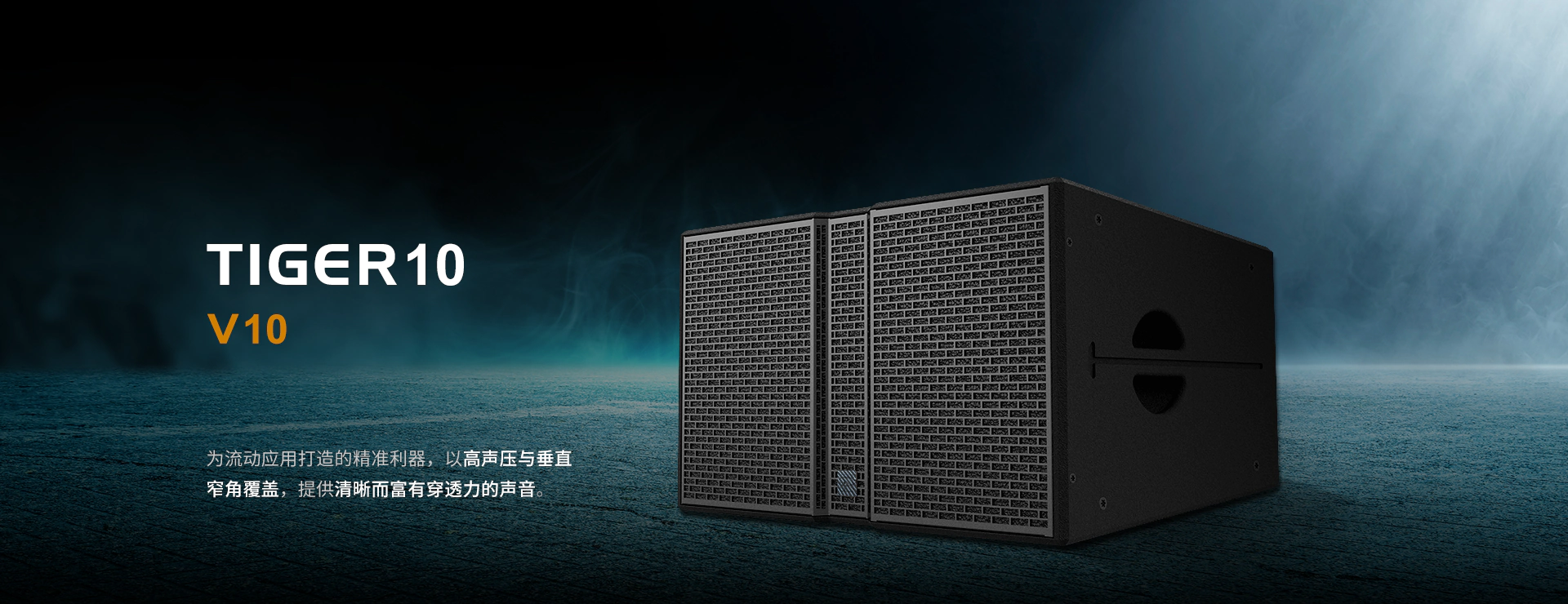

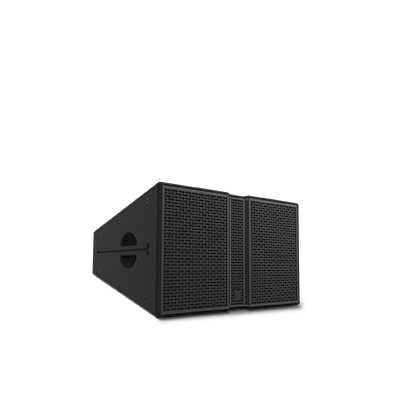

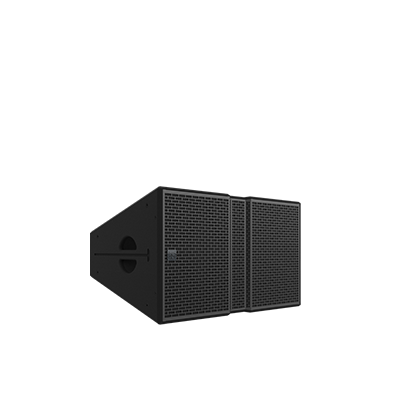

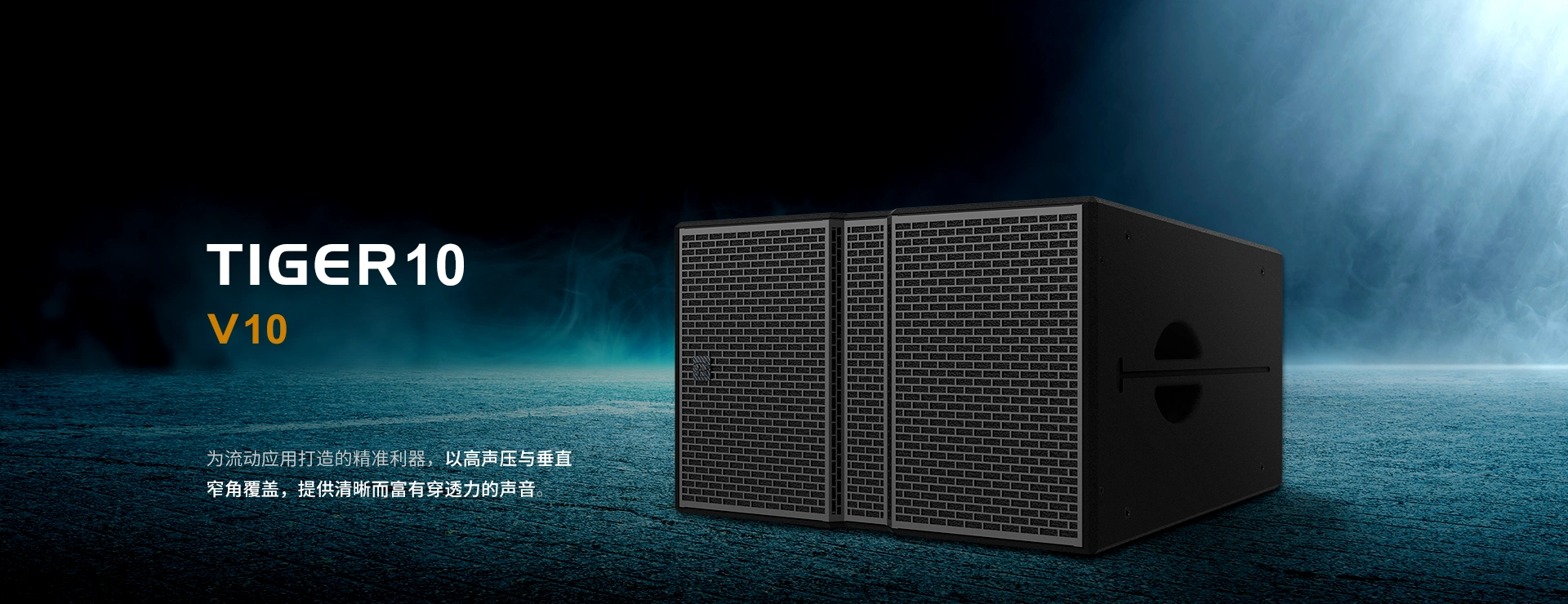

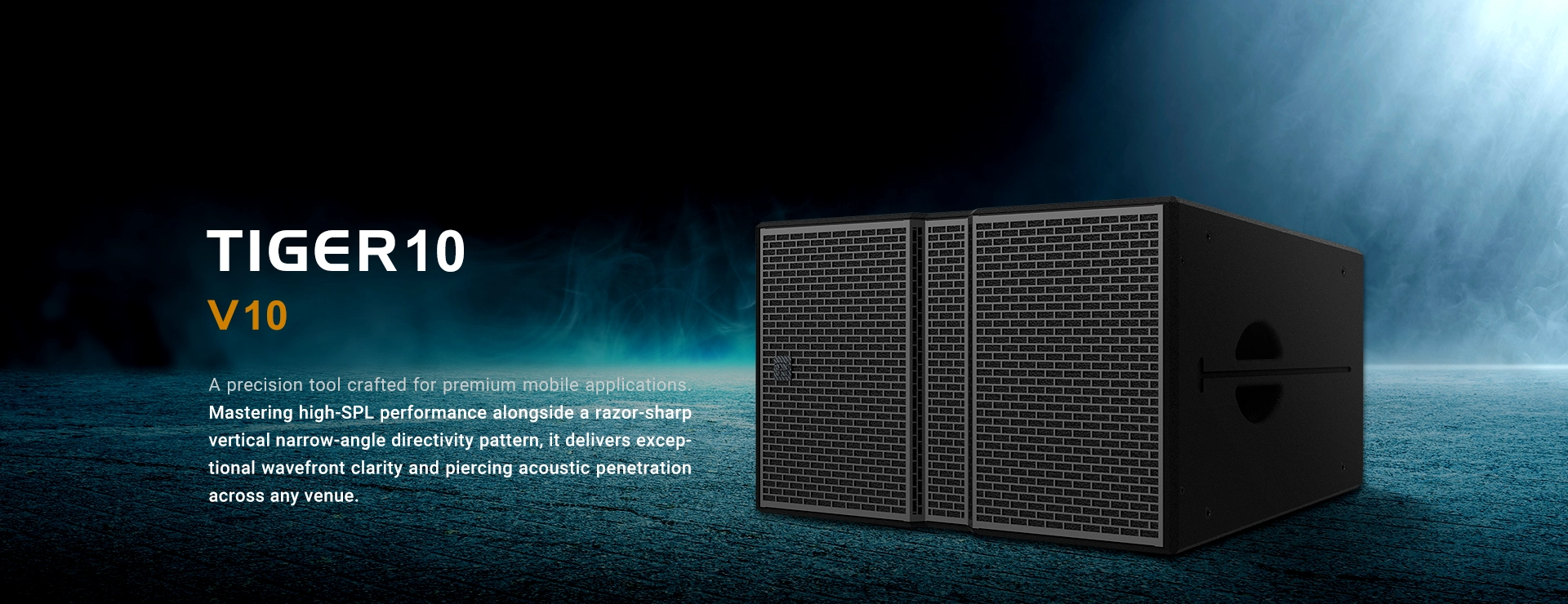

V10 High-Performance Two-Way Multi-Purpose Loudspeaker | Professional Acoustic Engine
V10 Integrating an advanced neodymium motor system, the V10 merges elite acoustic performance with seamless operational versatility, executing uncompromised stability and textbook linear response across premium speech reinforcement and high-SPL music reproduction.
Acoustic Design: Surgical Directivity, High-Fidelity Linear Reproduction
V10 The electromechanical core pairs a high-efficiency 14-inch LF transducer with a 3-inch diaphragm HF compression driver to form a high-output two-way architecture, establishing a wide linear frequency response from 45 Hz to 18 kHz to fully encapsulate deep low-end weight and crystalline high-frequency air.
Utilizing a highly 110° × 10° (Horizontal × Vertical) dispersion envelope dictates absolute wavefront control, dictating acoustic energy precisely into the audience profile while mitigating destructive boundary reflections and unwanted spill.Generating a massive peak SPL of 135 dB ensures this scalable asset handles medium-to-large scale arena configurations with effortless dynamic headroom.
Structural Resilience: Heavy-Duty Mechanical Armor, System Compatibility
V10 Cabinet metrics are anchored by high-density multi-ply birch, balancing extreme structural rigidity with optimized internal acoustic dampening to neutralize cabinet standing waves and secure absolute signal purity. A premium black polyurea outer shield combined with a heavy-duty structural steel front grille forms a dual-layer defensive armor—deflecting mechanical high-impact wear across hostile deployment environments.
Flush-mount ergonomic handles along each side panel streamline local transit and precise axis adjustments. Internal acoustic transducers are reinforced via high-precision mechanical metal bracing directly to the main framework, locking in structural reliability and performance consistency over long-term high-duty tour cycles.
Field Rigging: Scalable Mounting Architecture, Universal Adaptation
V10 Machined M8 rigging tracks integrated on the top, bottom, and side panels ensure complete compatibility with the V-series rigging infrastructure, supporting complex multi-angle orientations in both horizontal and vertical vectors, alongside single-point suspension arrays to conquer complex venue physical boundaries.
The connection interface utilizes a recessed rear panel to prevent structural shear damage on the road. Housing professional-grade Speakon® NLT4 M connector, this routing hub enforces pristine signal transmission and a locked-in, failure-defiant connection to eliminate external EMI noise.
V10 Operating flawlessly as a standalone full-range line source, the element integrates natively into complex distributed sound reinforcement networks. Coupling the matrix with QS、GS series subwoofers extends low-frequency extension and dynamic scale, satisfying the absolute strict standard of both acoustic telemetry and ultimate venue utility.
Technical Specification
AES Power Handling
- LF : 700W
- HF : 110W
Program Power
- LF : 1400W
- HF : 220W
Nominal Impedance
- 8 ohm
Transducers
- LF : 1x14" neodymium
- HF : 1x3" neodymium
Acoustic Modes
- LF: Bass-reflex
- HF: Waveguide
Pin Assignment
- 1+/1-(INPUT) ,2+/2- (Link)
Nominal Directivity (-6 dB)
- Horizontal: (110°)
- Vertical: (10°)
Connectors
- 2x4-points Speakon®
Splay Angles
- 10° Fixed Trapezoidal Angle
Rigging Hardware
- Optional dedicated vertical hanger and dedicated horizontal mounting brackets
Cabinet Coating
- All-birch plywood with black polyurea wear-resistant finish
IP Rating
- IP55
Rigging Points
- M8
Bandwidth
- 45 Hz - 18 kHz
Maximum SPL
- LF : 134 dB
- HF : 135 dB
Sensitivity (1 W / 1 m)
- LF : 99 dB
- HF : 108.5 dB
Dimensions (W x H x D) mm
-
714x423x508 mm
(28.1"x16.7"x20")
Net Weight
- 35 kg (77.1 lbs)
Product Code
- 12322300207781
