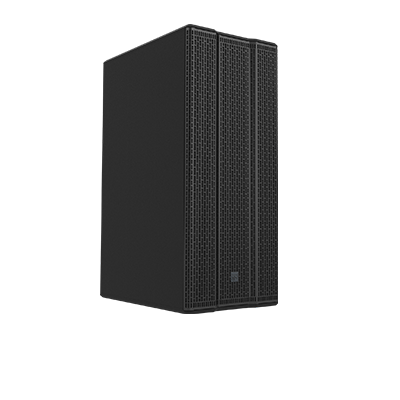

RX12 High-Performance Three-Way Loudspeaker | The Benchmark Paragon of Three-Way Versatility

Acoustic Architecture: Tri-Amped Precision, Symmetric Reinforcement

RX12The electro-acoustic configuration integrates twin 12-inch low-frequency transducers arranged in an axisymmetric layout, a dedicated 8-inch mid-frequency transducer, and a 3-inch high-frequency compression driver loaded onto a rotatable constant-directivity (CD) horn for highly flexible polar adjustment, establishing full-spectrum coverage with deep acoustic layering.

Optimized transducer topologies elevate sensitivity while dual bass-reflex venting structures extend low-end response, producing deep, authoritative bass, rich velvety mids, and crystalline, transparent high-frequency output.

Arranging all primary components symmetrically along the physical center axis achieves a constant 75° horizontal and 40° vertical dispersion pattern, projecting a homogeneous acoustic field to secure absolute tonal consistency across the listening environment.

Rigging Integration: Versatile Adaptability, Seamless Fitting

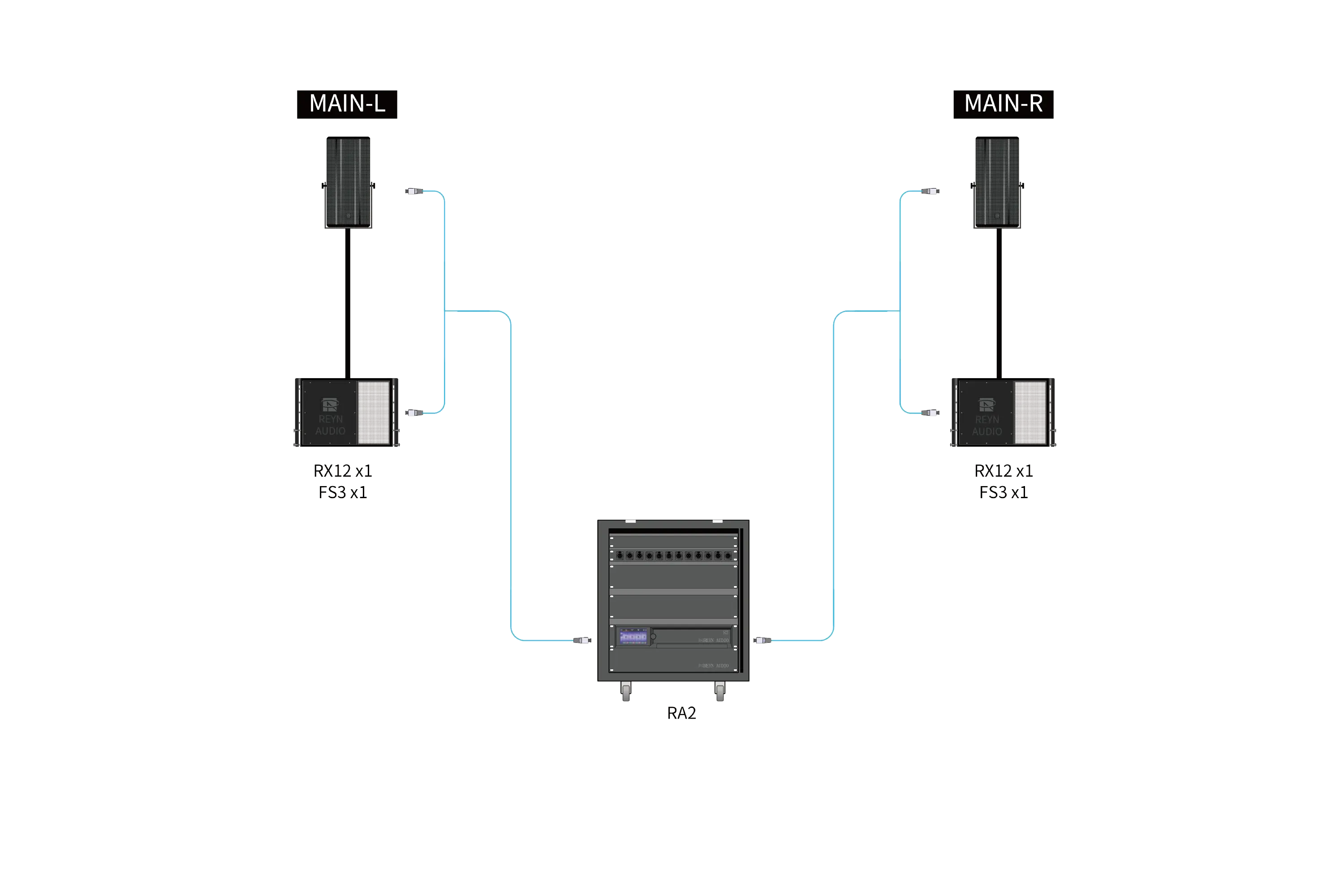

RX12 Supporting ground-stacking or suspended array integration, this system deploys rapidly without demanding invasive site modifications to match theaters, bars, and live clubs.

M8 rigging points recessed on the top, bottom, and side panels deliver complete compatibility with dedicated flying hardware, which supports vertical or horizontal multi-angle adjustments alongside single-point suspension to secure surgical targeting of the audience zone.

Structural Resilience: Comprehensive Protection, Reliable Signal Coupling

RX12 Cabinet construction utilizes high-density multi-ply birch plywood to eliminate unwanted cabinet resonance and preserve pristine acoustic purity. A heavy-duty protective metal grille provides robust dust and impact barriers, paired with a black polyurea protective coating to resist high-velocity physical impact across diverse environmental conditions.

Securing the critical internal transducers via high-precision mechanical metal bracing dampens physical displacement and vibration transmission, ensuring relentless system stability during continuous heavy-duty duty cycles.

Recessed rear panels isolate the connection interface from impact damage, housing professional-grade SpeakON® NLT4 M connectors to secure a lock-tight connection and complete electromagnetic shielding for pure, uncompromised signal transmission.
