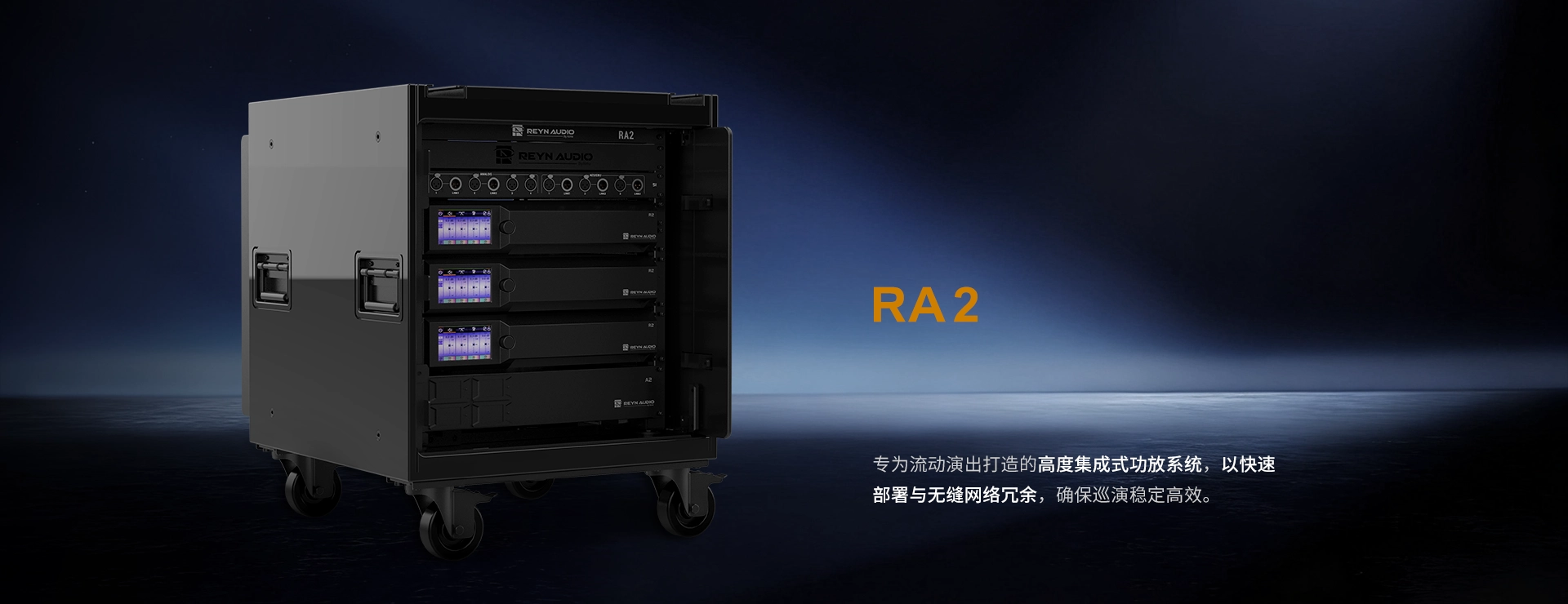

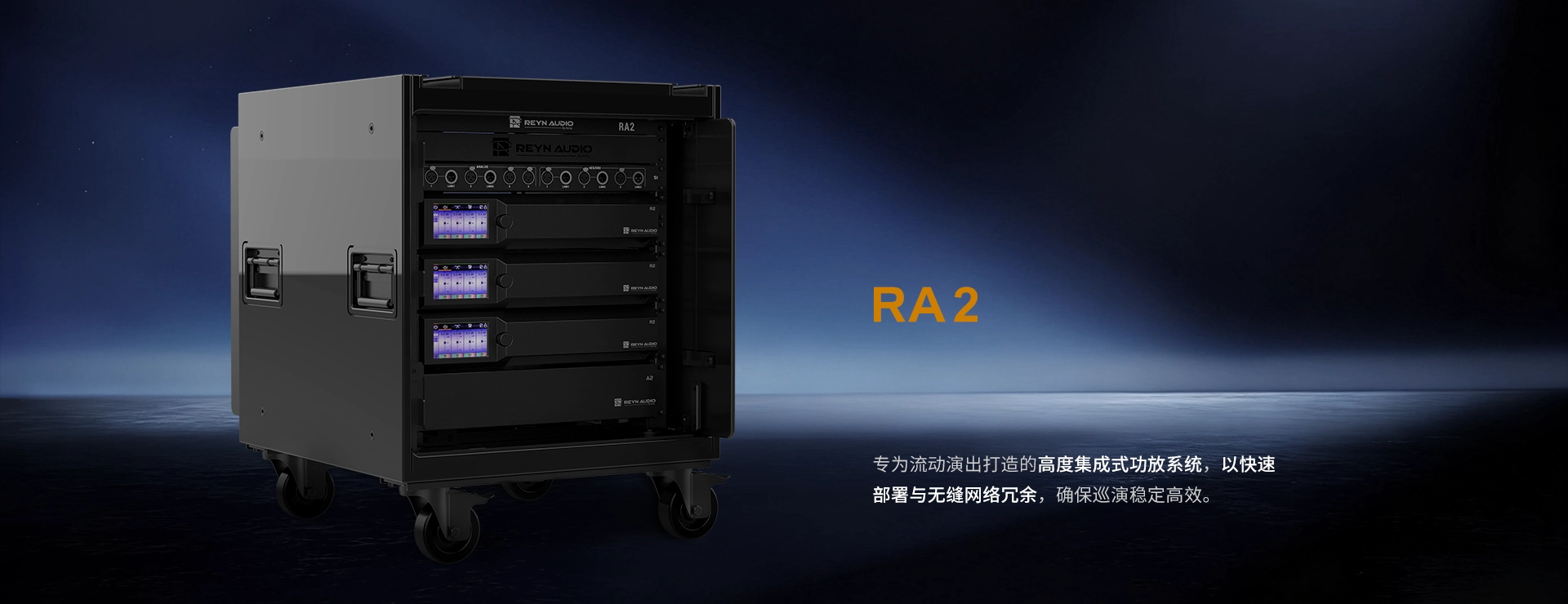

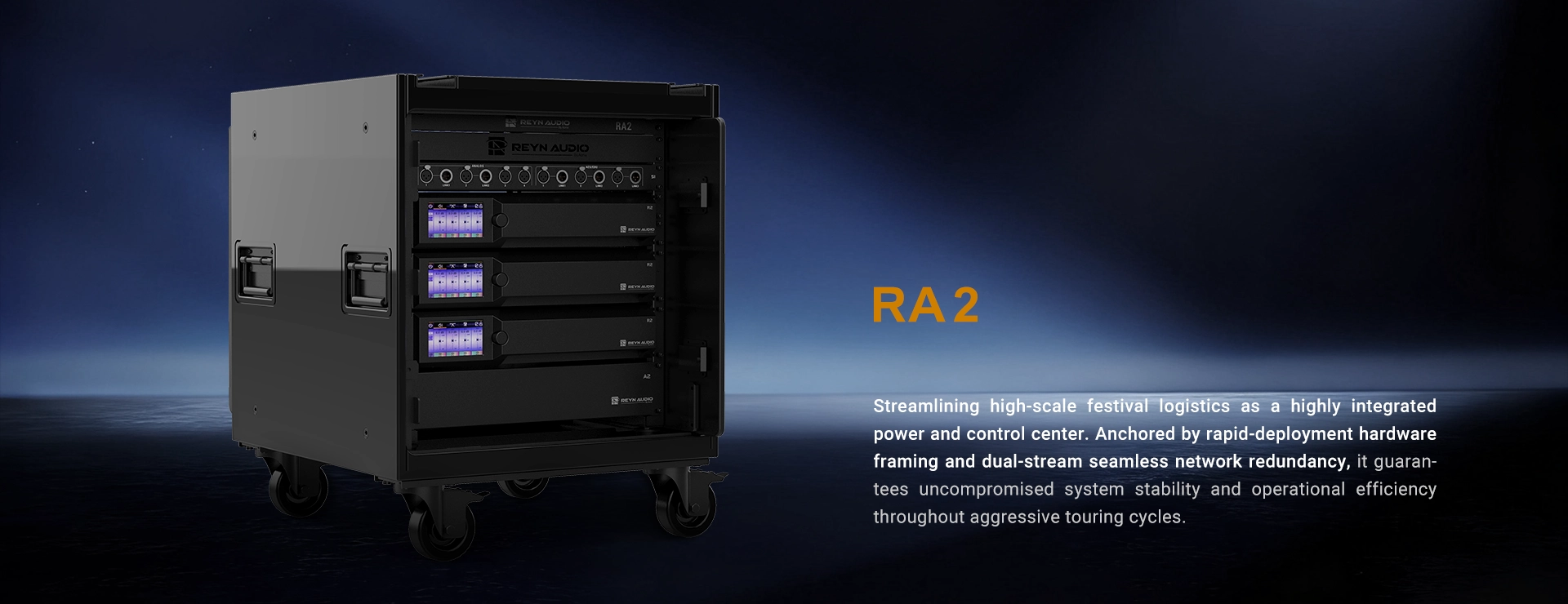

Reyn Audio RA 2 Touring Rack System
Dominating mid-to-small scale touring logistics within a highly integrated 11U mainframe architecture. Consolidating multi-channel amplification and advanced digital signal processing into an ultra-compact footprint, this plug-and-play solution eliminates onsite configuration bottlenecks to deliver seamless, high-efficiency adaptation for diverse sound reinforcement demands.
Core Architecture: Ecosystem Integration, End-to-End Signal Control
Consolidating mission-critical hardware within a single 11U mainframe architecture:
-
Housing up to three R1 or R2 amplifiers within this high-density space, the platform unleashes a balanced 12-channel output capability, engineered with ample headroom to effortlessly conquer the power demands of mid-to-small scale performances.
-
Integrating two SW8 network switches, one A2 power distribution center (featuring unified mains control coupled with two 24-pin multi-conductor speaker out panels), and one S1 signal distributor. This comprehensive topology secures full-range command across the entire link—from high-current mains routing to delicate low-latency audio processing.
Enforcing native Dante network audio redundancy across dual-stream routings, the digital infrastructure locks in an uncompromised fail-safe barrier. This ensures instantaneous backup switching without acoustic dropout, guaranteeing zero signal interruption to keep every live performance flowing flawlessly in complex live environments.
System Optimization: Rapid Deployment, Total Line Compatibility
Leveraging a multi-channel, all-in-one structural footprint, the rack architecture bypasses traditional individual unit alignment to rapidly build complete sound reinforcement configurations. Eliminating onsite hardware bridging bottlenecks, it drastically slashes load-in, cabling, and tuning times to drive rapid event-to-event turnaround efficiency.
Unifying seamlessly with the entire Reyn Audio loudspeaker ecosystem, the rack executes instantaneous factory-standardized DSP presets and line-frequency mapping. It provides a true out-of-the-box, plug-and-play experience that requires zero onsite calibration, empowering touring crews with a standardized and seamless system combination.
Touring Resilience: Shock-Absorbing Matrix, Global Cross-Rental Ready
Constructed with an internal heavy-duty dampening suspension system, the frame matrix effectively neutralizes transient transport shocks and continuous mechanical vibrations. This heavy-duty armor isolates sensitive electronic components, mitigating onsite fault risks induced by aggressive transit wear to prolong the global operational lifecycle of the assets.
Equipped with a universal, multi-phase global voltage input interface, the system seamlessly conforms to international power grid standards. This electrical versatility facilitates smooth cross-rental workflows and rapid inventory dispatch across the global Reyn Audio partner network.
Technical Specification
Audio input
- Analog、AES/EBU、Dante
Audio output
- 1 x 24-pin sockets，2 x 8-pin sockets 2 x 4-pin NL4 sockets
Mains Input/Output
- 5-pin 32A IP44 male/female connector
Integrated Amplifier Model
- R1 & R2
Max. Amplifier Count
- 3 units amplifier 1 unit S1, 2 units SW8, 1 unit A2
Material
- Polyethylene, cold-rolled steel external structure, Full birch AB fine-grained polymer doors
ETH (Dante®)
- 4 x ruggedized and lockable RJ45 connectors (2 x Primary, 2 x Secondary), CAT5e standard
AC Mains Input
- 32 A - IEC 60,309 (3P+N+GND) Integrated 1.5 m cable with waterproof male plug
Mains Link
- Main output: 32 A - IEC 60,309 (3P+N+GND) Waterproof female socket AUX Output: Single-phase universal flip-top power socket
Rigging Structures
- It can be used with the RA2 Bumper
AC Output for R1/R2 Amplifiers
- 3 x power cables, equipped with 32 A Neutrik powerCON® connectors (AMP 1&L1, AMP 2&L2, AMP 3&L3)
RA1 Protection
- 10 A Type C circuit breaker (AUX L3)
Analog Input / Output
- 4 female Neutrik® XLR3 (IN) / 2 male Neutrik® XLR3 (IN)
AES/EBU Input
- 3 x Neutrik® XLR3 female (IN) / 3 x Neutrik® XLR3 male (LINK)
Net Weight
- 160 kg (352.7 lbs)
Product Code
- 12120900200002 RA2(24芯)
Download
| Download | |||
|
Reyn Audio RA2 spec sheet
updated: 2026-06-30
|
313.44 KB | ||
|
RA2系统配件 2D CAD
updated: 2026-03-14
|
584.07 KB | ||
|
RA2系统配件 2D CAD
updated: 2026-03-14
|
rar | 570.35 KB | |
|
RA2系统配件 3D CAD
updated: 2026-05-26
|
rar | 0.98 MB | |
|
RA2系统配件 Sketchup
updated: 2026-05-26
|
rar | 831.01 KB | |
|
产品保修卡
updated: 2025-12-25
|
171.68 KB | ||
|
RA2符合性声明
updated: 2026-03-11
|
67.21 KB | ||
|
产品天气防护
updated: 2025-12-27
|
400.75 KB |

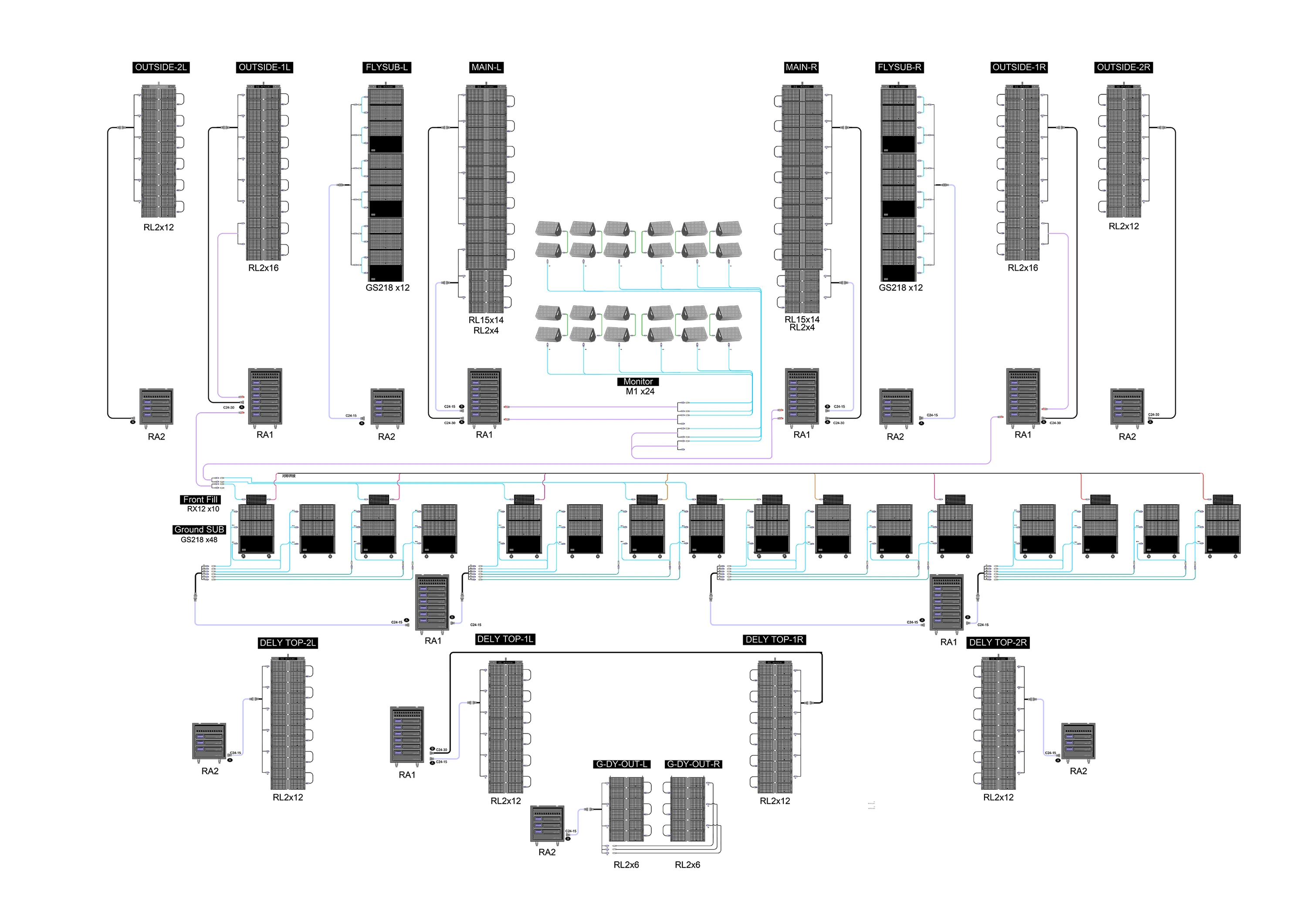

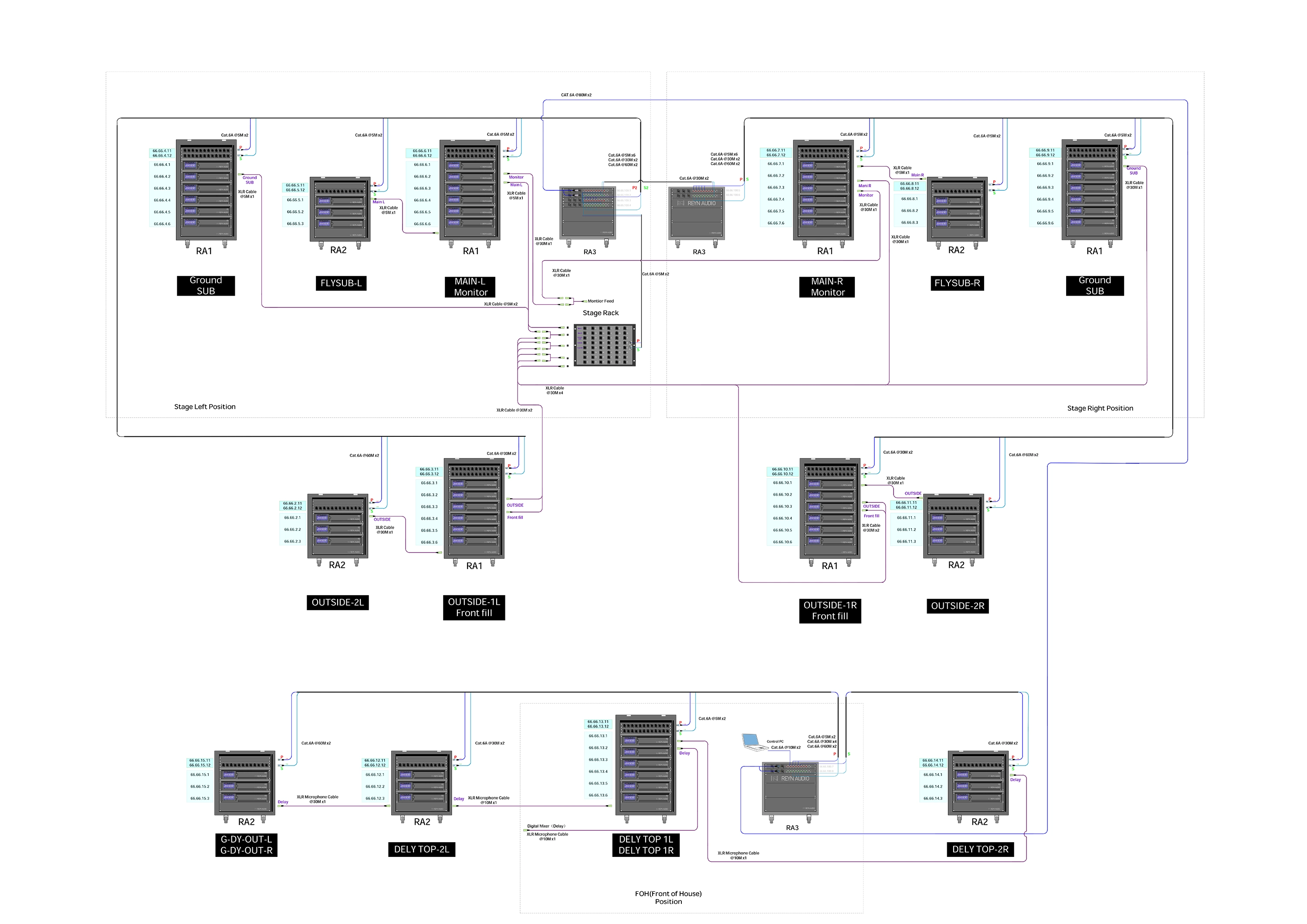

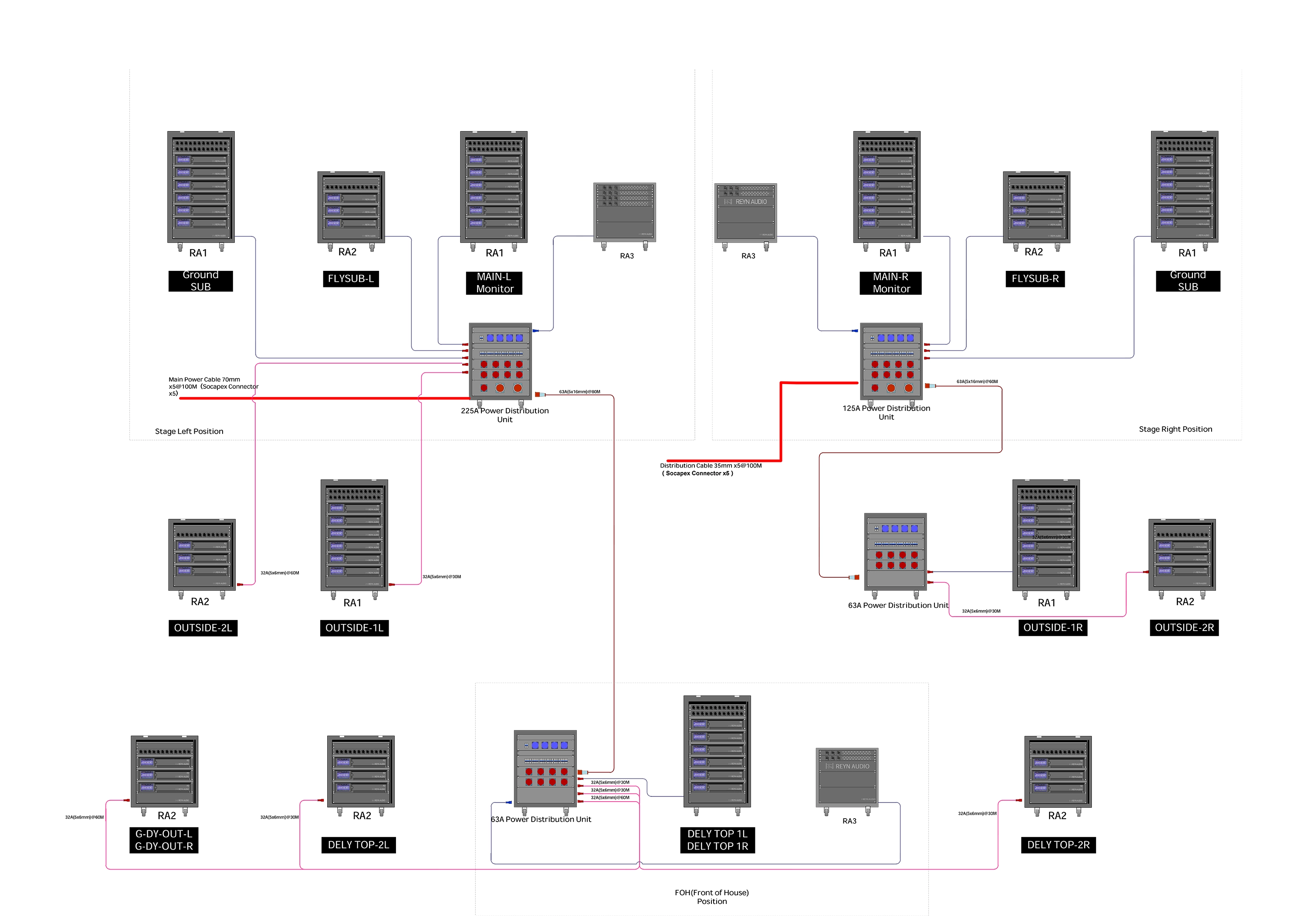

Application System
