Overview

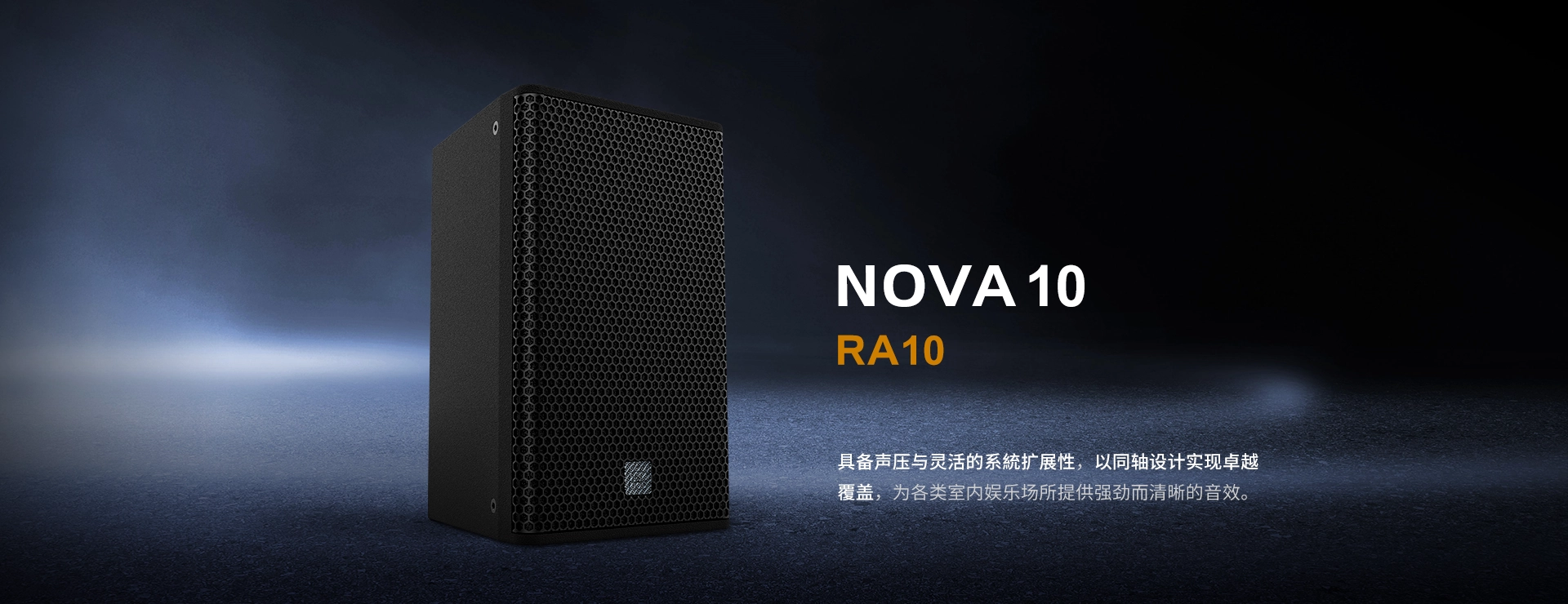

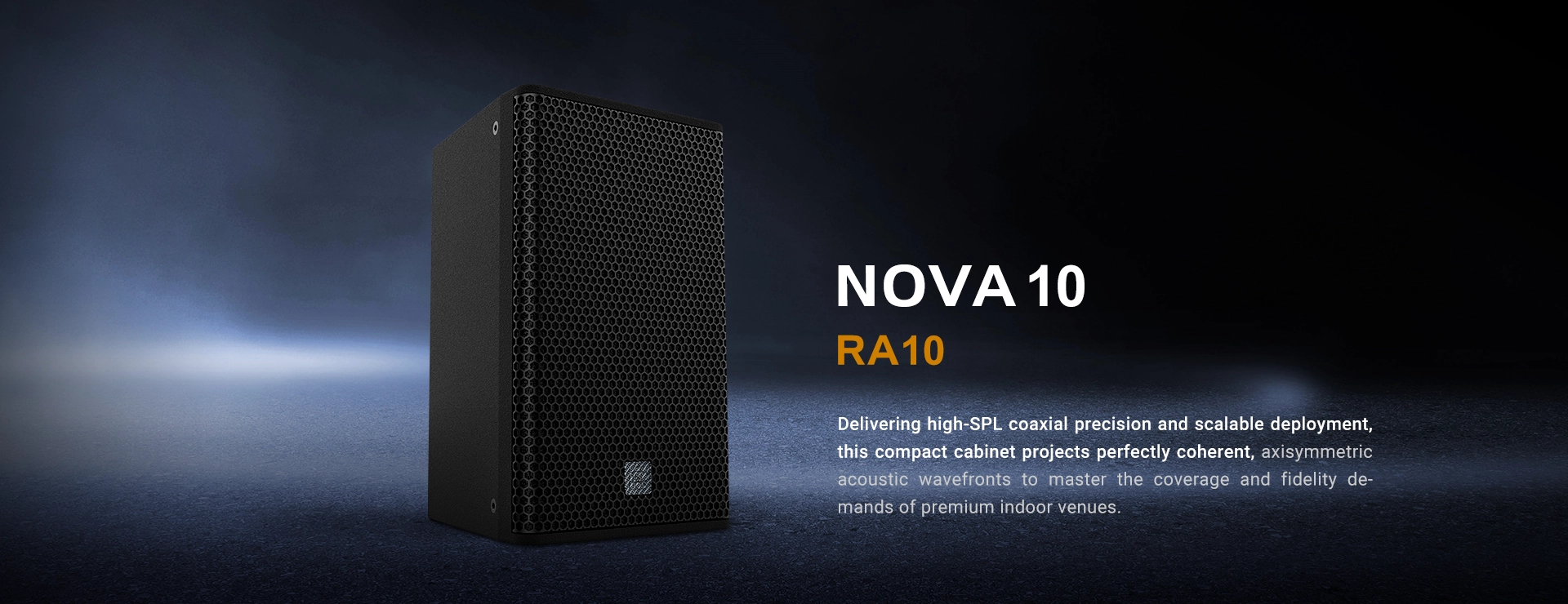

RA10 High-Performance Two-Way Coaxial Loudspeaker | Premier Sonic Choice for Professional Scenarios
Centering on an advanced coaxial topology and high-precision crossover networks balances comprehensive full-range fidelity with multi-scenario adaptation, yielding stable, world-class sound reinforcement solutions for elite professional audio applications.
Acoustic Architecture: Full-Range Fidelity, Homogeneous Coverage
RA10 The electro-acoustic package houses a 10-inch low-mid transducer and a 1.75-inch high-frequency compression driver, integrated into a unified coaxial structure and governed by an advanced passive crossover network to execute precise frequency management. This coaxial alignment actively prevents phase cancellation across crossover zones, securing a smooth, natural transition that delivers everything from a muscular low-end to crystalline, extended high frequencies with pristine detail.
Deploying an axisymmetric 70°×70° directivity pattern projects acoustic energy uniformly onto the listening plane, minimizing acoustic spill and eliminating coverage blind spots to guarantee a coherent, highly consistent auditory experience for every listener regardless of seating position.
Generating a massive peak SPL of 128 dB effortlessly masters mid-to-large scale spaces across a linear frequency response spanning 63 Hz – 18 kHz.Operating flawlessly as a standalone full-range main to anchor compact-to-medium venue requirements, the element also pairs with subwoofers such as the B218 to construct a highly dynamic three-way system, unlocking deeper low-frequency extension to reproduce rich musical micro-details and genuine live concert atmosphere.
Structural Resilience: Heavy-Duty Rigidity, All-Weather Protection
RA10 Cabinet construction utilizes high-density multi-ply birch plywood, balancing immense structural loading capacity with premium acoustic dampening properties to actively suppress cabinet resonance and secure pure, uncolored acoustic energy output.
A specialized metal grille shields internal transducers from physical impact and dust intrusion, coated with a professional black polyurea protective skin for excellent anti-corrosion and abrasion defense across high-intensity touring, semi-outdoor spaces, and demanding indoor environments, dramatically extending product lifespans while minimizing long-term maintenance costs.
Transducer assemblies are anchored securely to the internal chassis via high-precision mechanical metal bracing to reinforce global structural reliability, ensuring absolute performance stability under continuous high-duty production cycles while dramatically lowering localized maintenance overheads.
Field Deployment: Scalable Rigging, Professional System Integration
RA10 Rigging configurations feature a dedicated suspension cradle supporting multi-angle adjustments across both horizontal and vertical axes, while natively accommodating single-point flying arrays or pole-mount ground support to adapt swiftly to complex venue layouts and acoustic requirements without needing invasive site modifications.
The connection interface is recessed into the rear panel to prevent impact damage, housing professional-grade SpeakON® NLT4 M connectors to ensure uncompromised, low-resistance signal transmission and failure-defiant connectivity.
Applications scale seamlessly across premium professional sectors including theatres, assembly halls, DISCO PUBs, music clubs, performance venues, live bars, and high-tier KTV complexes. Delivering benchmark vocal clarity and detail-rich music reproduction, the RA10 fulfills diverse artistic and acoustic demands with absolute professional authority.
Technical Specification
AES Power Handling
- LF : 300
- HF : 45
Program Power
- LF : 600W
- HF : 90W
Nominal Impedance
- 8 ohm
Transducers
- LF : 1x10" neodymium
- HF : 1x1.75" neodymium
Acoustic Modes
- LF: Bass-reflex
- HF: Horn
Pin Assignment
- 1+/1-(INPUT) ,2+/2- (Link)
Nominal Directivity (-6 dB)
- Horizontal: (70°)
- Vertical: (70°)
Connectors
- 2x4-points Speakon®
Splay Angles
- Fixed 18° Trapezoidal Angle
Rigging Hardware
- Optional dedicated vertical hanger and dedicated horizontal mounting brackets
Cabinet Coating
- All-birch plywood with black polyurea wear-resistant finish
IP Rating
- IP55
Rigging Points
- M8
Bandwidth
- 63 Hz - 18 kHz
Maximum SPL
- LF : 128 dB
- HF : 125 dB
Sensitivity (1 W / 1 m)
- LF : 97 dB
- HF : 102 dB
Dimensions (W x H x D) mm
-
290x480x300 mm
(11.4"x18.9"x11.8")
Net Weight
- 11 kg (24.3 lbs)
Product Code
- 12316700208887
Download
| Download | |||
|

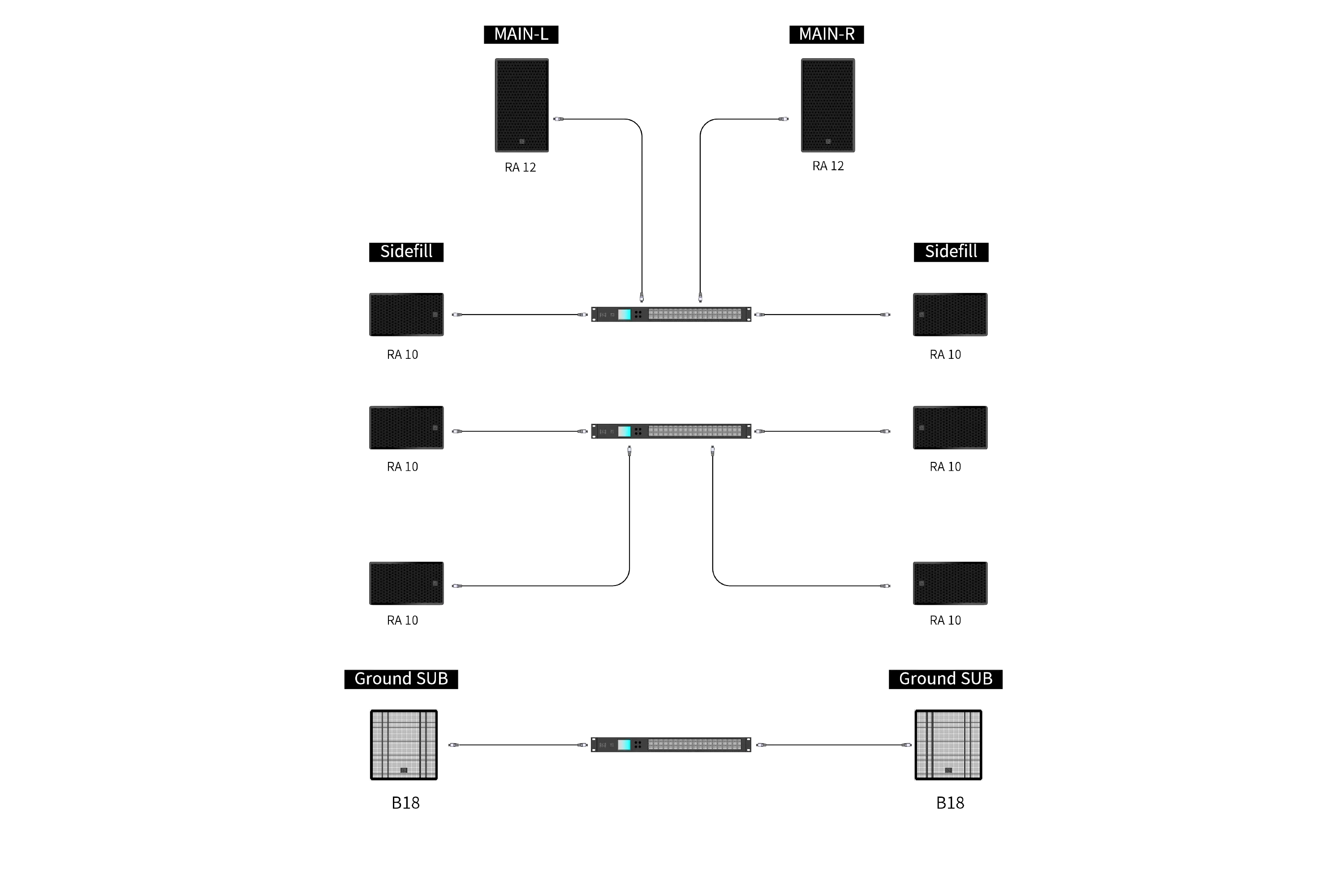

RA10系统建议图
