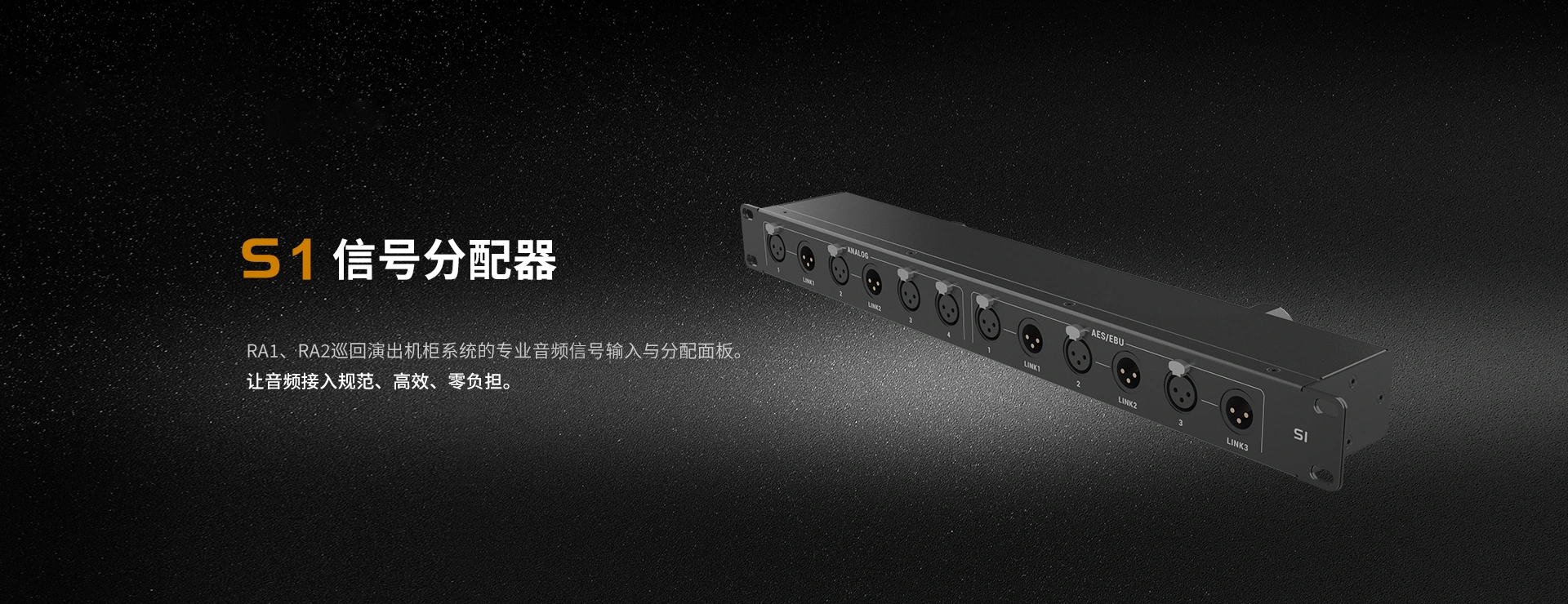

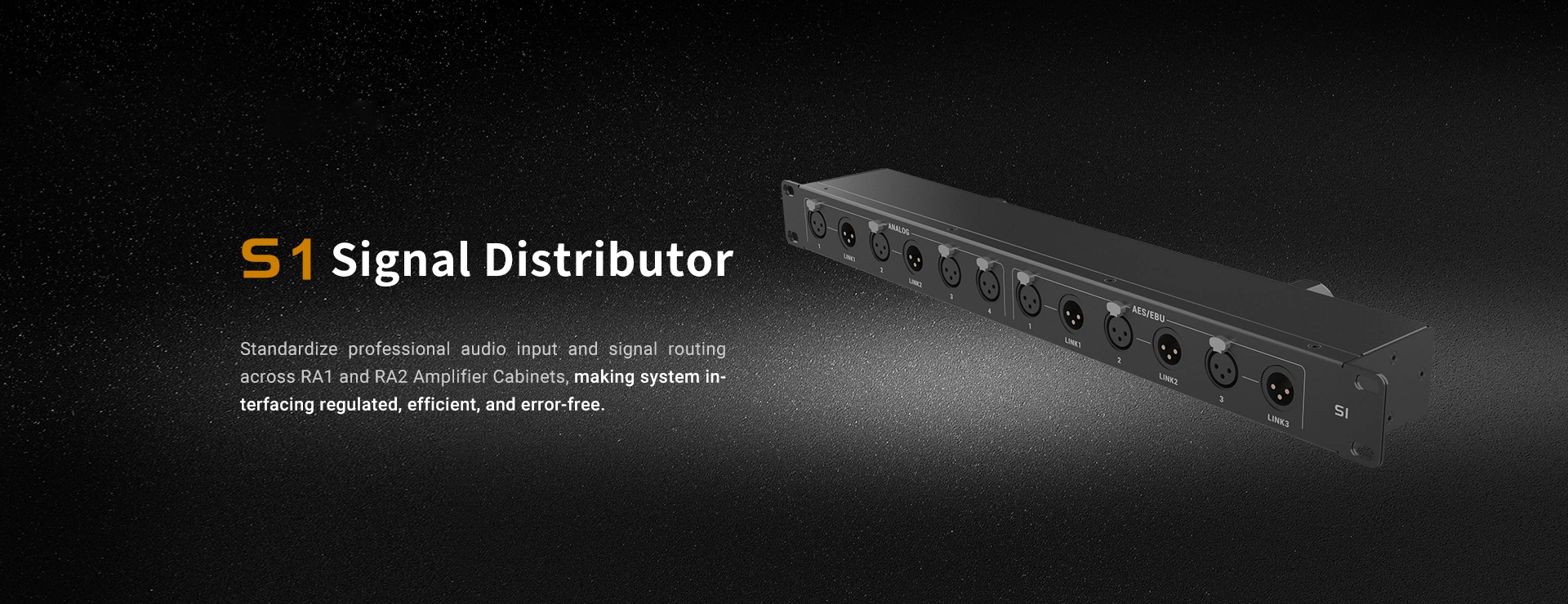

S1 Signal Input & Distribution Panel | The Dedicated Signal Hub for RA1/RA2 Amplifier Cabinets

Interfacing Performance: Multi-Channel Inputs, Lossless Signal Daisy-Chaining

S1 Position the S1 as the professional audio signal input and distribution panel within RA1 and RA2 Amplifier Cabinets.

Concentrate four analog inputs and three AES/EBU digital audio inputs on a single panel, equipping each channel with a parallel link output to enable lossless signal distribution and multi-device daisy-chaining across complex live production setups.

Implement a versatile interfacing layout to ensure uncompressed signal transmission, establishing a high-reliability input foundation that preserves precise acoustic fidelity.

Physical Architecture: Front-and-Rear Dual-Panel Design, Regulated Workflow

S1 Adopt a front-and-rear dual-panel architecture: connect external audio source equipment at the front panel, while utilizing pre-wired XLR harnesses at the rear panel for permanent internal rack cabling.

Simplify cable management during system integration to enforce clean, regulated signal interfacing, eliminating field patching errors and accelerating system maintenance.

Deployment & System Integration: Signal Core, Standard Rack Element

S1 Anchor RA1 and RA2 Amplifier Cabinets as the central signal interfacing node, delivering high-reliability, low-maintenance signal management across touring productions and fixed installations.

Combine alongside companion A1/A2 Power Distribution Centers and the SW8 Network Distribution Switch to execute standardized management from initial signal input down to amplifier output, securing the system signal transport infrastructure.
