RX14 Large-Scale Line Source System | The Performance Benchmark for Wide-Area Reinforcement

Acoustic Design: Symmetric Coplanar Topology, Precision Wavefront Coherence

RX14 The structural architecture utilizes a fully symmetric coplanar acoustic layout, deploying dual 14-inch neodymium LF transducers in a bipolar arrangement flanking a centrally mounted coaxial MF/HF driver. This physical positioning locks in natural inter-band frequency transition while drastically minimizing phase interference across the crossover zones.

Integrating a custom enterprise-grade B&C coaxial compression driver-featuring a 4-inch MF voice coil coupled with a 2.5-inch HF voice coil—the assembly extends mid-low frequency reproduction bandwidth and secures rigorous off-axis coherence to optimize polar response and dynamic headroom. The matching 14-inch LF components are optimized for extreme high-efficiency power handling to supercharge low-frequency impact.

Sustaining a constant directivity distribution of 80° horizontal by 60° vertical, the rotatable constant-directivity (CD) horn enforces powerful long-throw high-frequency penetration. Combined with the dual 14-inch LF infrastructure, the system commands a wide linear coverage spanning 45 Hz to 18 kHz , delivering high-fidelity vocal transparency and authoritative mid-low frequency chest-thumping impact with consistent, high-resolution texture.

Structural Resilience: Heavy-Duty Mechanical Armor, Fluid Ergonomics

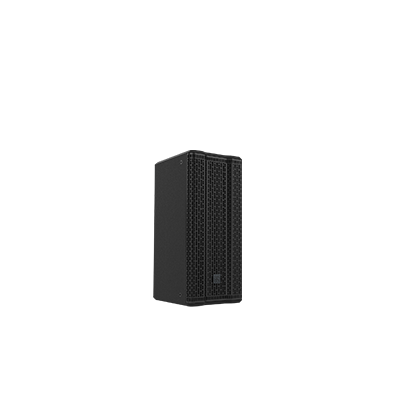

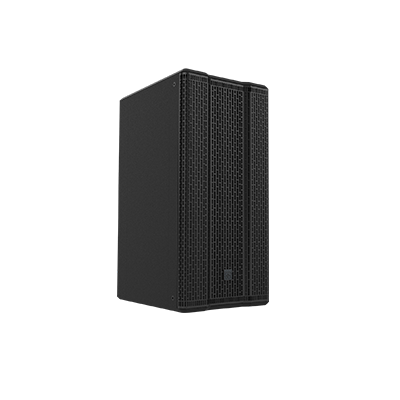

RX14 Cabinet integrity is anchored by premium high-density multi-ply birch, coated in an advanced, wear-resistant polyurea finish that provides exceptional UV defense and high-impact collision protection to withstand aggressive long-term touring schedules.

The front enclosure features a rigid structural steel grille to block debris and protect internal components, backed by an acoustically transparent, hydrophobic textile backing that repels moisture without introducing acoustic attenuation.

Integrating flush-mount ergonomic handles along each side panel, paired with additional auxiliary handles at the rear, this design layout facilitates frictionless multi-crew logistics, loading, and installation flexibility.

Field Application: High-Capacity Arena Adaptation, Scalable Systemic Link

RX14 Deploying precise horizontal control and extensive wavefront throw capabilities renders this system ideally suited for high-capacity indoor configurations, including convention centers, sports arenas, theaters, and large civic halls, seamlessly meeting the definition of crystalline speech and musical clarity for massive crowds.

Coupling with the QS218 subwoofer system extends low-frequency extension and system-wide Sound Pressure Levels (SPL). This synergy empowers deployment in larger-scale venues, maximizing the dynamic range, transient impact, and comprehensive acoustic footprint of the entire system network.
