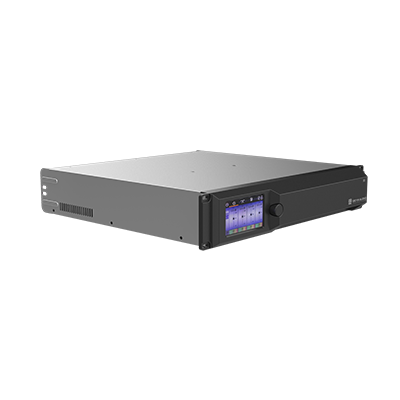

R1
TD Output
4-channel high-performance amplifier with DSP
Pin Functions TD Output PFC 95V-265V
Max. Output Power 2300W@8Ω
4400W@4Ω
5000W@2Ω
Input Signal Analog
AES/EBU
Dante
DSP Powerful MCU and ADI Audio ADSP-21569
Control Software TURANDOT
More
Images
R2
TD output
4-channel high-performance amplifier with DSP
Pin Functions TD Output PFC 95V-265V
Max. Output Power 1300W@8Ω
2100W@4Ω
2500W@2Ω
Input Signal Analog
AES/EBU
Dante
DSP Powerful MCU and ADI Audio ADSP-21569
Control Software TURANDOT
More
Images
Y1
D Output
2-channel amplifier with DSP
Topology SPS & Class D
Max. Output Power 2 x 1200W@8Ω
2 x 1800W@4Ω
1 x 3600W@8Ω
Digital Audio Signal Analog
Digital Signal Processor ADI Audio DSP
Net Weight 5.4 kg (11.9 lbs)
More
Images
Y2
D Output
2-channel amplifier with DSP
Topology SPS & Class D
Max. Output Power 4 x 800W@8Ω
4 x 1200W@4Ω
2 x 1800W@8Ω
Digital Audio Signal Analog
Digital Signal Processor ADI Audio DSP
Net Weight 5.4 kg (11.9 lbs)
More
Images

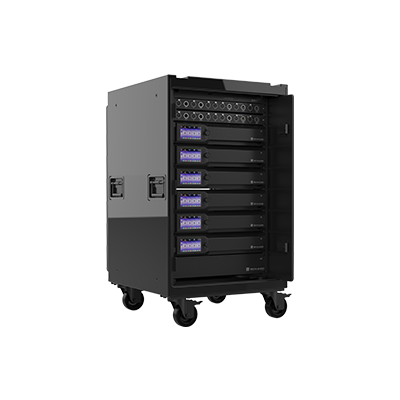

RA1
Amplifier Cabinets
Audio Signal input Analog, AES/EBU, Dante
Audio Signal output 2 x 24-pin sockets, 4 x 8-pin sockets
Power Input 5-pin 32A waterproof male connector
Amplifier models can be included R1 & R2
The maximum number of amplifiers that can be included 6 units amplifier
2 units S1, 2 units SW8, 1 unit A1
More
Images

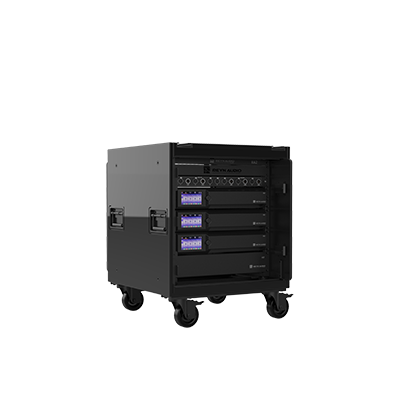

RA2
Amplifier Cabinets
Audio Signal input Analog
AES/EBU
Dante
Audio Signal output 1 x 24-pin socket
2 x 8-pin sockets
2 x NL4 connectors
Power Input 5-pin 32A waterproof male connector
5-pin 32A waterproof female socket
Amplifier models can be included R1 & R2
The maximum number of amplifiers that can be included 3 units amplifier
1 unit S1, 2 units SW8, 1 unit A2
More
Images

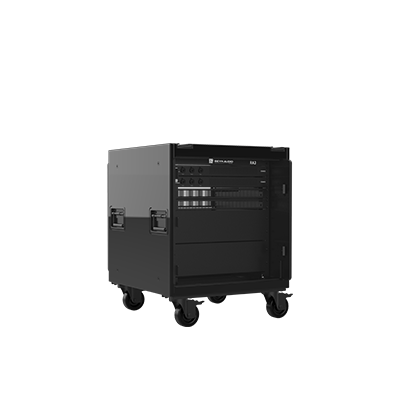

RA3

Power Input and Output 88-pin international socket
16A plug 2.5 square millimeters2-meter cable
4000w
Drawers 2 x 3U storage drawers (for storingshort network cables)
Switcher 2 units SW10 (Maximum expansion to 4 units)
