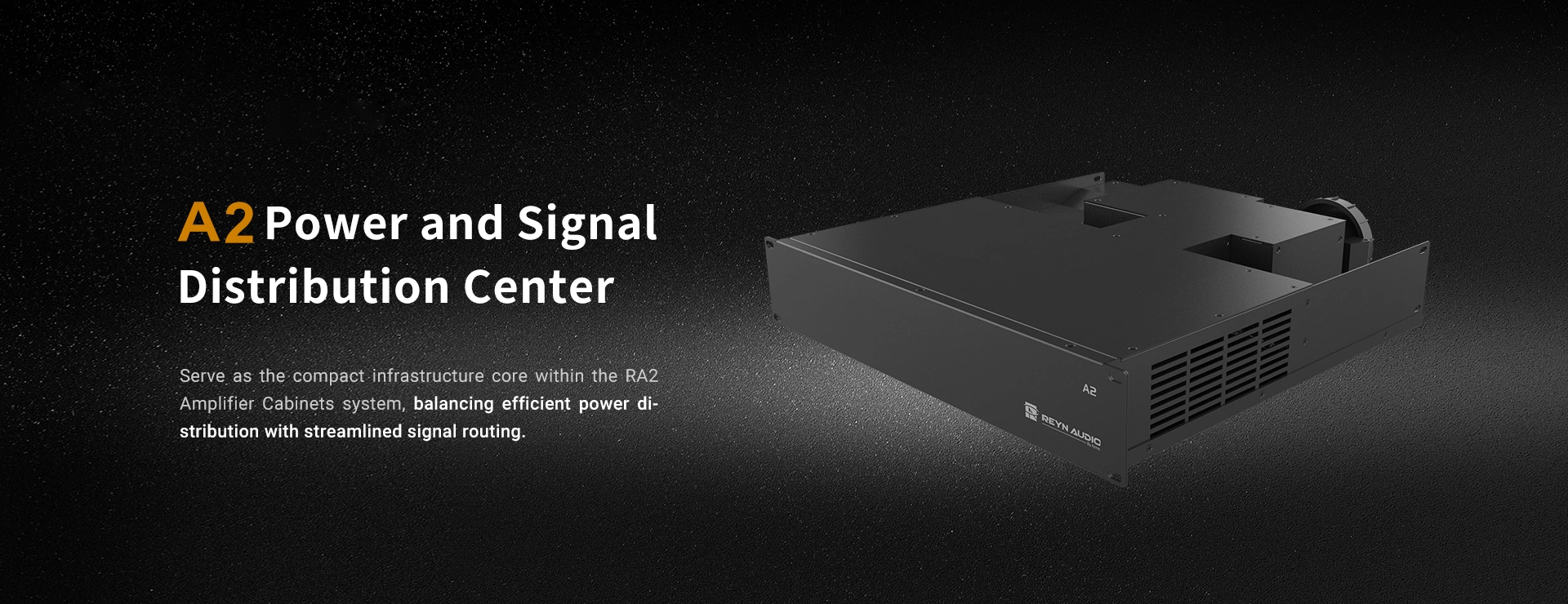

A2 Power & Signal Distribution Center | The Compact Infrastructure Hub for RA2 Amplifier Cabinets
Power Distribution: Efficient Allocation, Flexible Daisy-Chaining
A2 Position the A2 as the dedicated compact power and signal distribution hub for RA2 Amplifier Cabinets.
Distribute a three-phase AC mains supply into three 32A high-current powerCON® outlets while providing a secondary IEC output to support daisy-chaining power into an adjacent cabinet. An integrated, protected auxiliary AC output supplies dedicated power to network hardware such as switches.
Enforce stable electrical delivery across small-to-medium systems to enable flexible capacity expansion and mitigate power supply failures during live productions.
Physical Architecture: Integrated Design, Streamlined Workflow
A2 Integrate standardized multi-pin audio input connectors and output sockets to pre-wire signal lines between amplified controllers and processors, drastically simplifying internal rack cabling.
Consolidate power distribution and signal routing into a compact, single-chassis housing to achieve high-reliability central management for small-to-medium deployments, maintaining clean internal rack layouts and fast maintenance access.
Deployment & System Integration: Mid-Scale Core, Versatile Topology
A2 Anchor RA2 Amplifier Cabinets across small-to-medium fixed installations, mobile touring setups, and live event productions, managing centralized power and signal routing.
Combine alongside the S1 Signal Panel and SW8 Network Distribution Switch to build complete RA2 Amplifier Cabinets setups, executing standardized power and signal management to satisfy high-reliability requirements in production environments.
Technical Specification
Loudspeaker outputs
-
1 x 24-pin multipin connectors
（24-pin：AMP1， AMP2，AMP3）
2 x NL8 connectors
（8-pin：AMP1，AMP2）
2 x NL4 connectors
（4-pin：AMP3）
Amplifier connection
- 6 x NL4 pigtails for amplifier channel connection
Power supply (EU)
- 3/N/PE 380 - 415V/220-240V~50Hz 32A per phase male connector
AC Input / Link Output (EU)
- 3/N/PE 380 - 415V/220-240V~50Hz 32 A - IEC 60,309 female connectors (3P+N+E)
AUX output (EU)
- 220Vac/110VAc 50Hz/60Hz Max: 4A
Protection
- 10 A Type C circuit breaker (AUX L3)
R1、R2 amplifier power outputs
-
3 x mains cables with 32 A Neutrik powerCON®connectors.
(AMP 1&L1, AMP 2&L2, AMP 3&L3)
SW8 power outputs
- 2 x IEC 60,320-1 C13 female connectors (AUX L3)
Product Code
- 12121300209609
Dimensions (W x H x D) mm
-
482x514x88
(19.0"x20.2"x3.5")
