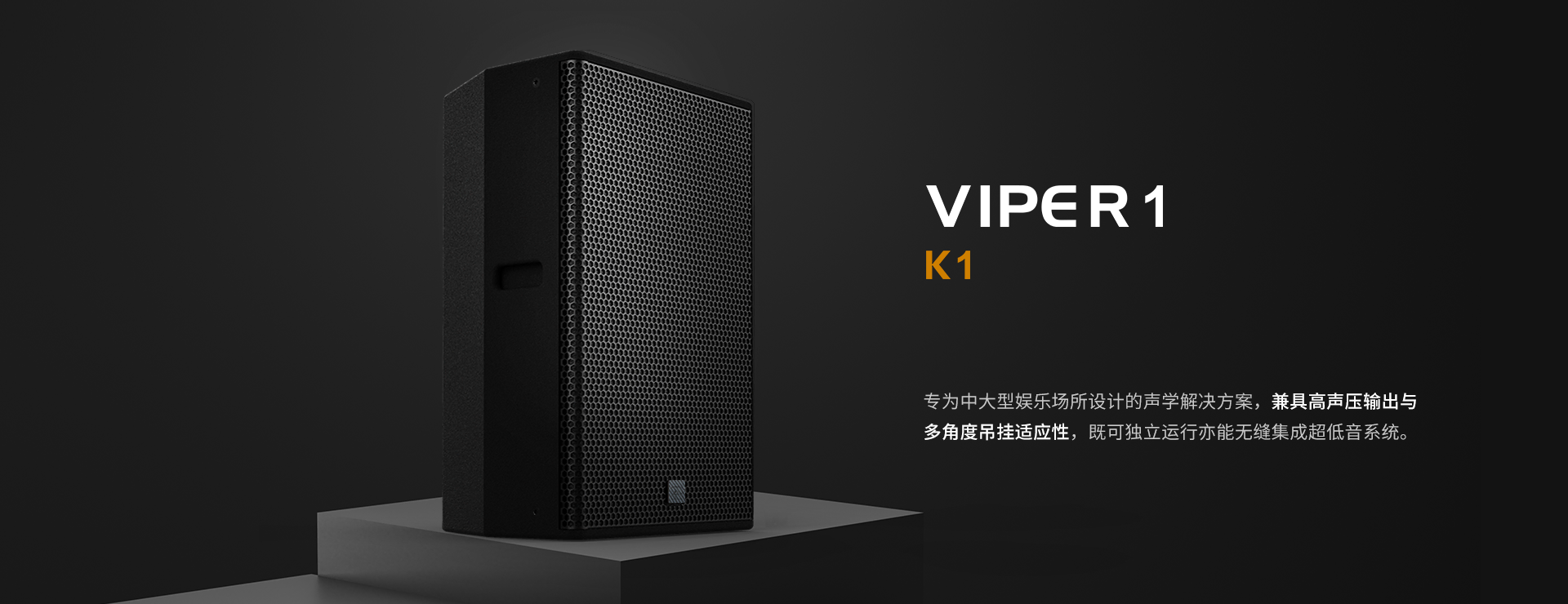

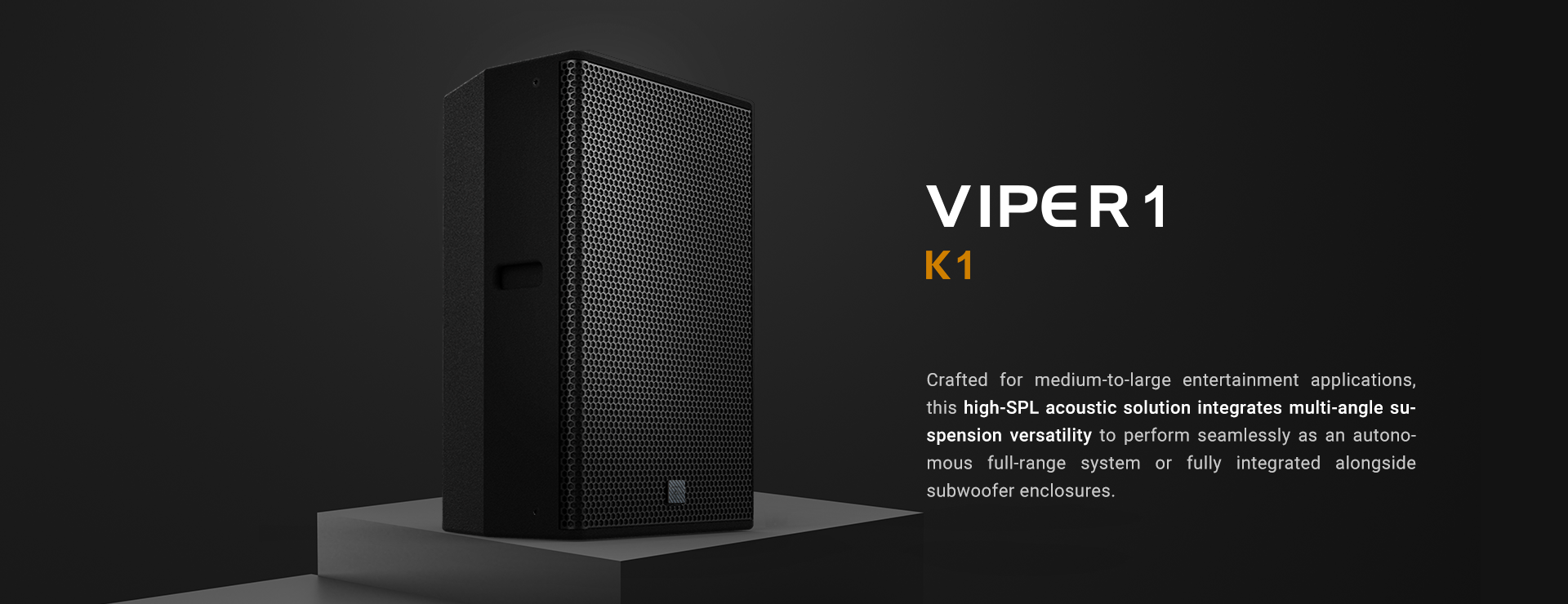

K1 High-Performance Two-Way Loudspeaker | The Full-Range Acoustic Core for Professional Venues
Acoustic Design: Precision Control, Wide-Band Coverage
K1 Integrating a high-excursion 15-inch low-frequency transducer and a 1.7-inch high-frequency compression driver, the electro-acoustic architecture combines a precision crossover topology with optimized waveguide design to enforce meticulous frequency management. Deep, authoritative low-mids merge smoothly into crystalline high frequencies, ensuring seamless inter-band transitions while eliminating distortion.
Maintaining a controlled 90°×60° dispersion pattern concentrates acoustic energy precisely into the audience geometry, securing consistent sound pressure level (SPL) and pristine clarity from the central listening axis to the venue boundaries to eliminate coverage drop-offs.
Generating a formidable peak SPL of 132 dB across a wide 45 Hz–18 kHz frequency bandwidth, this enclosure offers expansive application versatility. Operating autonomously as a high-output full-range solution or paired with K18 / K218 subwoofers in a 3-way system preset, it further extends low-frequency headroom to effortless handle speech reinforcement, live vocals, and demanding electronic dance music.
Structural Integrity: Solid Craftsmanship, Total Enclosure Protection
K1 Constructed from high-density multi-ply birch plywood, the cabinet provides structural rigidity alongside ideal acoustic damping to suppress enclosure resonance and withstand the physical impact of daily transport.
A heavy-duty steel grille guards the front face against dust and physical impacts, while a tough black polyurea protective coating provides exceptional corrosion and wear resistance, enabling reliable long-term operation in semi-outdoor environments and lowering lifecycle maintenance costs.
Internal transducers couple securely to the chassis via precision-machined metal hardware, managing mechanical displacement under maximum excursion to preserve uncompromised audio consistency during extended high-output operation.
Deployment Versatility: Flexible Rigging, Broad Application Adaptability
K1 Supporting horizontal and vertical multi-angle positioning via a dedicated rigging bracket, this enclosure also accommodates single-point suspension or ground-stacked setups to rapidly adapt to diverse venue architectures.
Recessed rear connection panels safeguard the interface from accidental impact, hosting professional SpeakON® NLT4 M connectors to ensure ultra-pure signal path integrity and lock-tight contact reliability.
Applicable across theaters, auditoriums, Livehouses, performing arts halls, high-end KTVs, and clubs, this system delivers uncompromising, rock-solid acoustic performance whether executing high-intelligibility speech, detail-rich live performances, or high-dynamic DJ sets.
Technical Specification
AES Power Handling
- LF : 500
- HF : 60
Program Power
- LF : 1000W
- HF : 120W
Nominal Impedance
- 6 ohm
Transducers
- LF : 1x15" neodymium
- HF : 1x1.7" neodymium
Acoustic Modes
- LF: Bass-reflex
- HF: CD Horn
Pin Assignment
- 1+/1-(INPUT) ,2+/2- (Link)
Nominal Directivity (-6 dB)
- Horizontal: (90°)
- Vertical: (60°)
Connectors
- 2x4-points Speakon®
Splay Angles
- Fixed angle
Rigging Hardware
- Optional dedicated vertical hanger and dedicated horizontal mounting brackets
Cabinet Coating
- All-birch plywood with black polyurea wear-resistant finish
IP Rating
- IP55
Rigging Points
- M8
Bandwidth
- 45 Hz - 18 kHz
Maximum SPL
- LF : 131 dB
- HF : 132 dB
Sensitivity (1 W / 1 m)
- LF : 98 dB
- HF : 108.5 dB
Dimensions (W x H x D) mm
-
414x704x370 mm
(16.3"x27.7"x14.6")
Net Weight
- 27 kg (59.5 lbs)
Product Code
- 12323600208904
Download
| Download | |||
|
K1指向性图/频率响应曲线
updated: 2026-05-08
|
353.97 KB | ||
|

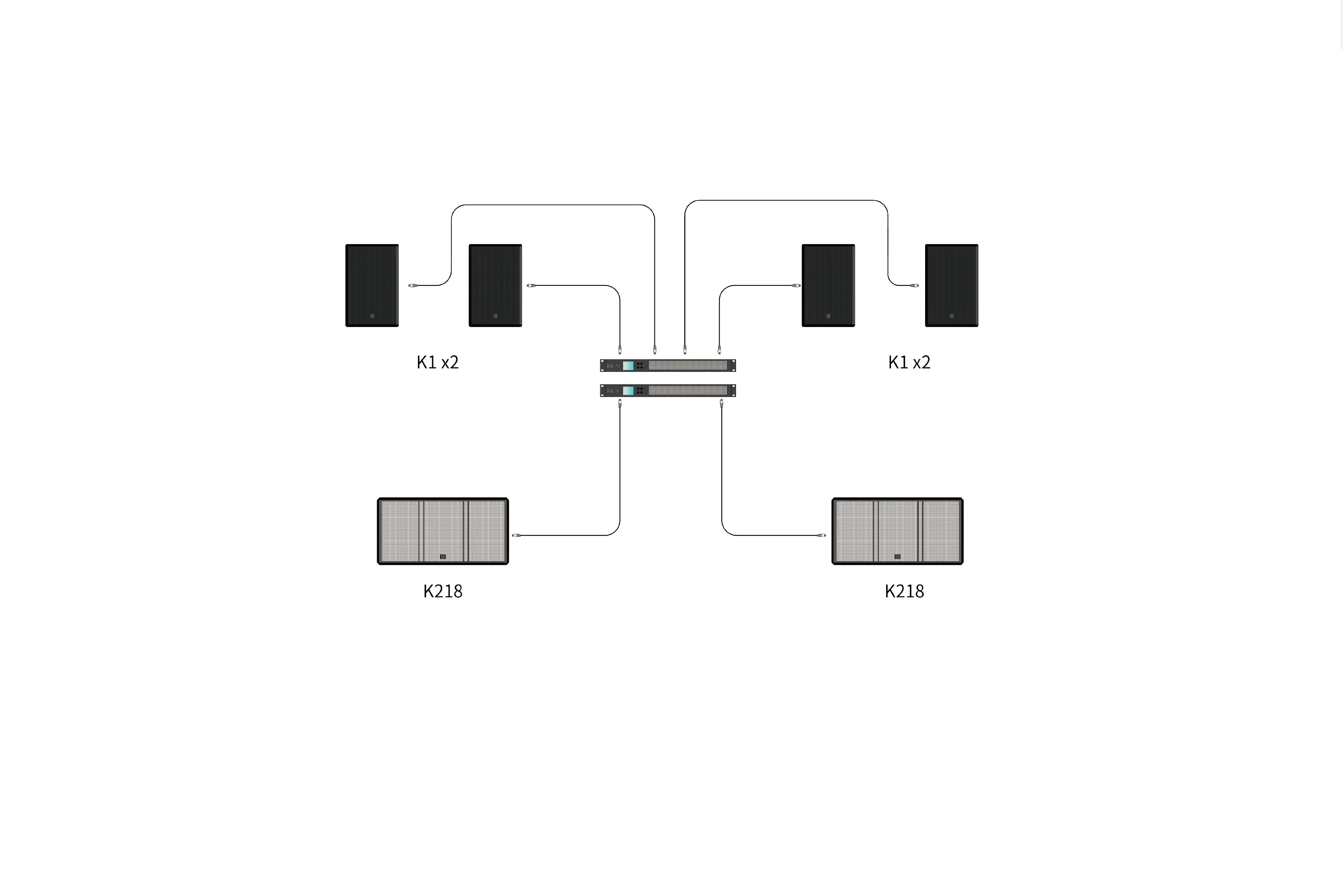

K1系统建议图
updated: 2026-04-03
|
861.10 KB | ||
|
K1系统 2D CAD
updated: 2026-03-19
|
643.60 KB | ||
|
K1系统 2D CAD
updated: 2026-03-19
|
rar | 597.82 KB | |
|
K1系统 3D CAD
updated: 2026-05-08
|
rar | 524.24 KB | |
|
K1系统 Sketchup
updated: 2026-05-08
|
rar | 437.42 KB | |
|
产品保修卡
updated: 2025-12-25
|
171.68 KB | ||
|
产品天气防护
updated: 2025-12-27
|
400.75 KB |
