Overview

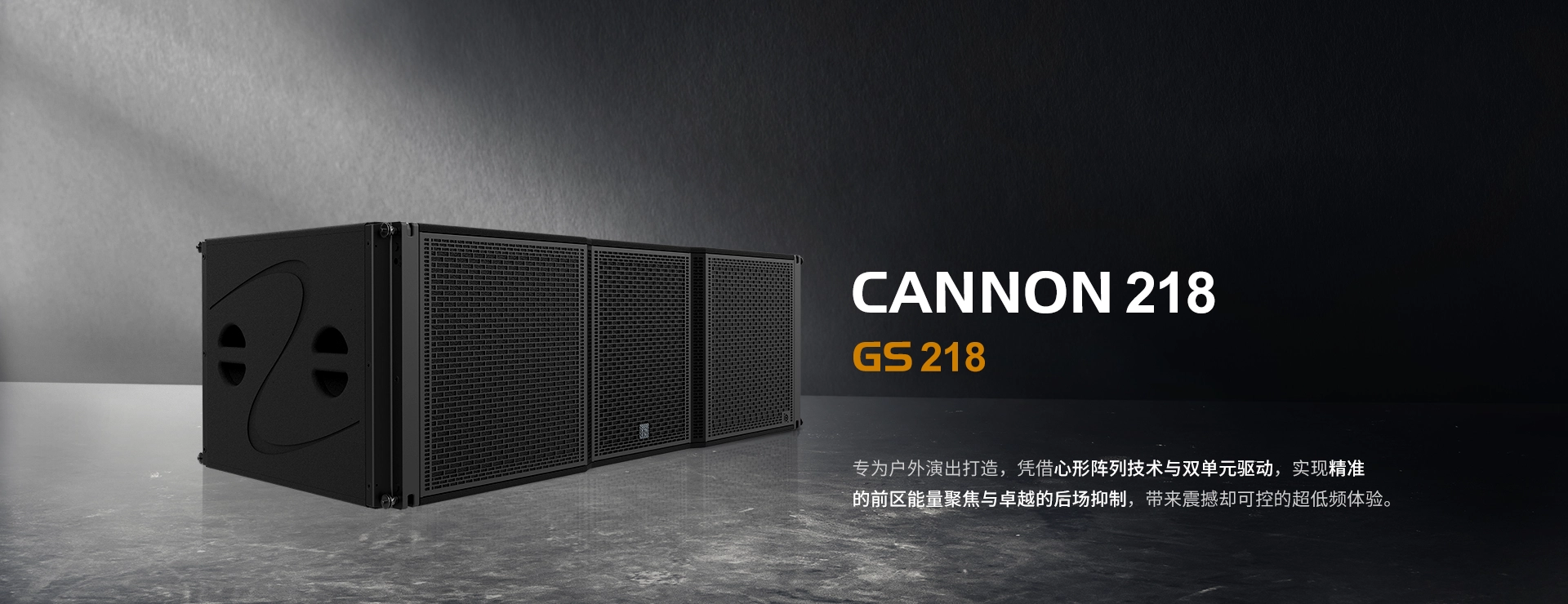

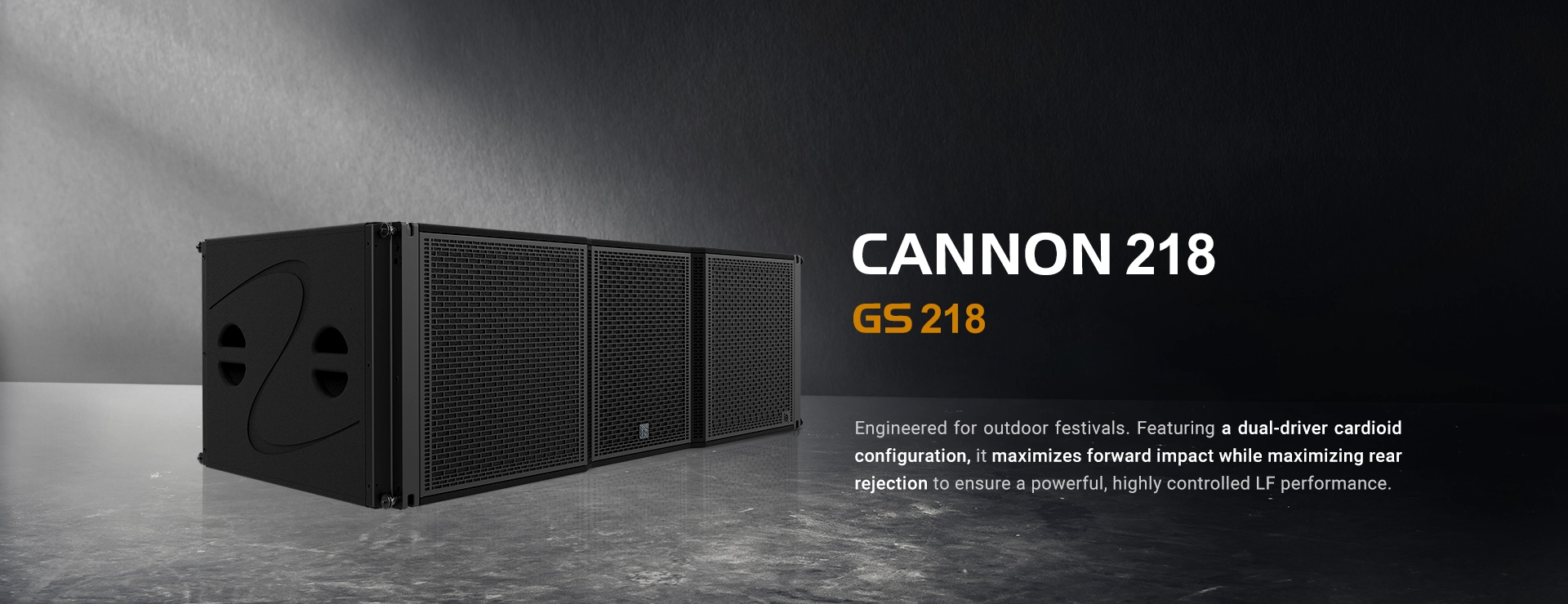

GS218 Subwoofer | High-Output Low-Frequency Contour for Open-Air Arenas
Dominating large-scale open-air applications. Grounded in crushing low-frequency output and comprehensive environmental resilience, this enclosure fuses extreme mechanical durability with agile rigging flexibility to stand as the definitive low-end solution for premium festivals.
Acoustic Design: Crushing Headroom, Preset-Driven Cardioid Control
GS218 Housing dual 18-inch weather-resistant transducers developed in exclusive synergy with B&C Italy, each armed with a 4-inch voice coil,GS218 unleashes an extraordinary 5,600 W of music power. This high-velocity low-end impact is tailor-made to conquer the acoustic demands of massive outdoor open-air spaces.
Integrating a premium neodymium motor system with a dual-spider mechanical suspension, the transducer geometry guarantees maximum linear excursion. Backed by proprietary real-time excursion and thermal protection algorithms within the amplified controller, this architecture delivers lightning-fast transient response and uncompromised low-frequency dynamics, eradicating intermodulation mud to recreate a dense, commanding, and visceral low-end contour.
Deploying elements in groups of three (or multiples of three) enables the execution of an advanced cardioid array. By reversing one physical enclosure and calling up the dedicated amplified controller DSP presets, the integrated system enforces absolute directivity beam-steering—drastically extinguishing stage-rear low-frequency energy while mitigating noise pollution in surrounding environments.
Rigging & Durability: Tactical Fortification, Agile Stacking
GS218 Crafted from high-density multi-ply birch plywood and coupled with a captive aluminum-magnesium alloy fast-lock rigging system, the cabinet balances extreme structural sovereignty with weight-optimized efficiency.It effortlessly defies aggressive transport shocks while streamlining rapid transition between flown arrays and ground-stacked configurations.
Coated in a heavy-duty black PU anti-wear finish, the physical armor remains impervious to the most punishing outdoor conditions. The reinforced metal grille features a custom geometric rib structure with high-aperture perforation, neutralizing air-turbulence port noise and mechanical resonance to guarantee absolute low-frequency purity.
Ergonomic, flush-mounted handles trace the perimeter for fluid mechanical handling. Top-panel alignment recesses interlock flawlessly with high-friction bottom feet to secure stable stacking matrixes, while auxiliary side glides facilitate both horizontal and vertical positioning to adapt seamlessly to any venue footprint.
Applications & Ecosystem: Universal Scalability, System-Wide Coherence
Harnessing elite low-end headroom and touring-grade environmental sealing,GS218 adapts across a diverse spectrum of indoor and outdoor applications—from massive music festivals and stadium concerts to premier Livehouses and high-end entertainment venues—cementing its role as the acoustic foundation of large-scale systems.
Acoustic synergy defines its compatibility with the comprehensive Reyn Audio product line (encompassing RL1、RL2、RL3、RX12 elements). Scaling seamlessly with any configuration, it elevates the entire system's spatial texturing and dynamic performance to deliver professional-grade, cohesive synchronization.
Technical Specification
AES Power Handling
- 2800
Program Power
- 5,600W
Low-frequency Limit (-10 dB)
- 25Hz(-10dB)
Nominal Impedance
- 4 ohm
Transducers
- 2x18" neodymium
Acoustic Modes
- Bass-reflex
Pin Assignment
- 1+/1- (LF) ,2+/2- (Link)
Nominal Directivity (-6 dB)
- standard or cardioid
Connectors
- 2x4-points Speakon®
Splay Angles
- 0° 2°
Rigging Hardware
- Integrated aluminum-magnesium alloy rigging with specialized outdoor powder coating
Cabinet Coating
- All-birch plywood with black polyurea wear-resistant finish
IP Rating
- IP55
Maximum SPL
- 143 dB
Dimensions (W x H x D) mm
-
1361x500x750 mm
(53.6"x19.7"x29.5")
Net Weight
- 82 kg (180.8 lbs)
Product Code
- 12319400208140
Download
| Download | |||
|
Reyn Audio GS218 spec sheet
updated: 2026-06-30
|
493.03 KB | ||
|
Reyn Audio GS128 spec sheet
updated: 2026-06-30
|
493.03 KB | ||
|
GS218产品说明书
updated: 2026-03-11
|
29.17 MB | ||
|
GS218配件使用说明书
updated: 2026-03-11
|
10.21 MB | ||
|

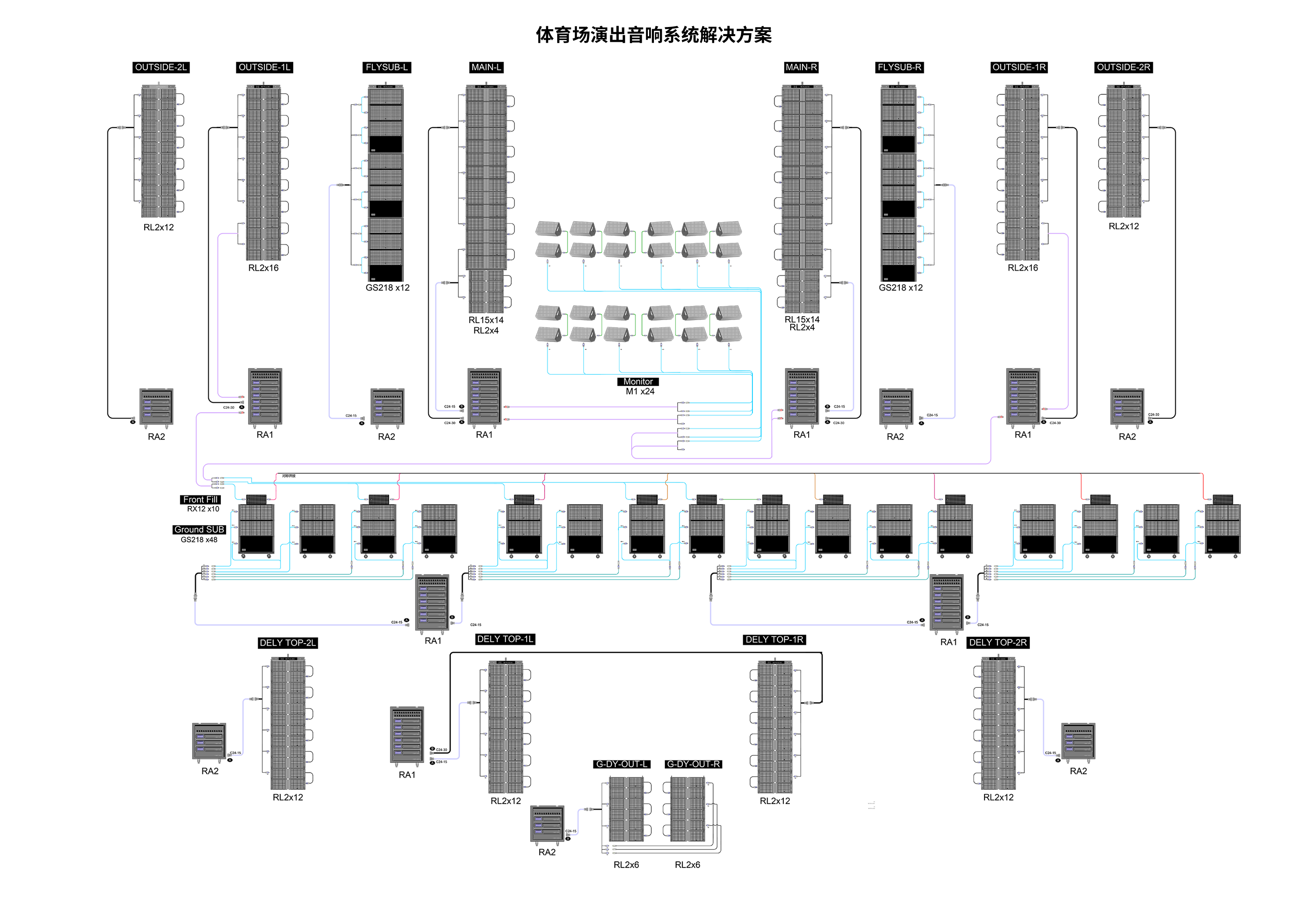

GS218系统建议图
updated: 2026-04-03
|
4.56 MB | ||
|
GS218系统配件 2D CAD
updated: 2026-03-11
|
1.60 MB | ||
|
GS218系统配件 2D CAD
updated: 2026-03-02
|
rar | 3.09 MB | |
|
GS218系统配件 3D CAD
updated: 2026-03-03
|
rar | 2.04 MB | |
|
GS218系统配件 Sketchup
updated: 2026-03-03
|
rar | 1.49 MB | |
|
GS218 Revit BIM file
updated: 2026-07-06
|
rar | 0.96 MB | |
|
GS218载重测试报告
updated: 2026-01-30
|
958.91 KB | ||
|
产品保修卡
updated: 2025-12-25
|
171.68 KB | ||
|
GS218符合性声明
updated: 2026-01-30
|
72.63 KB | ||
|
产品天气防护
updated: 2025-12-27
|
400.75 KB |
