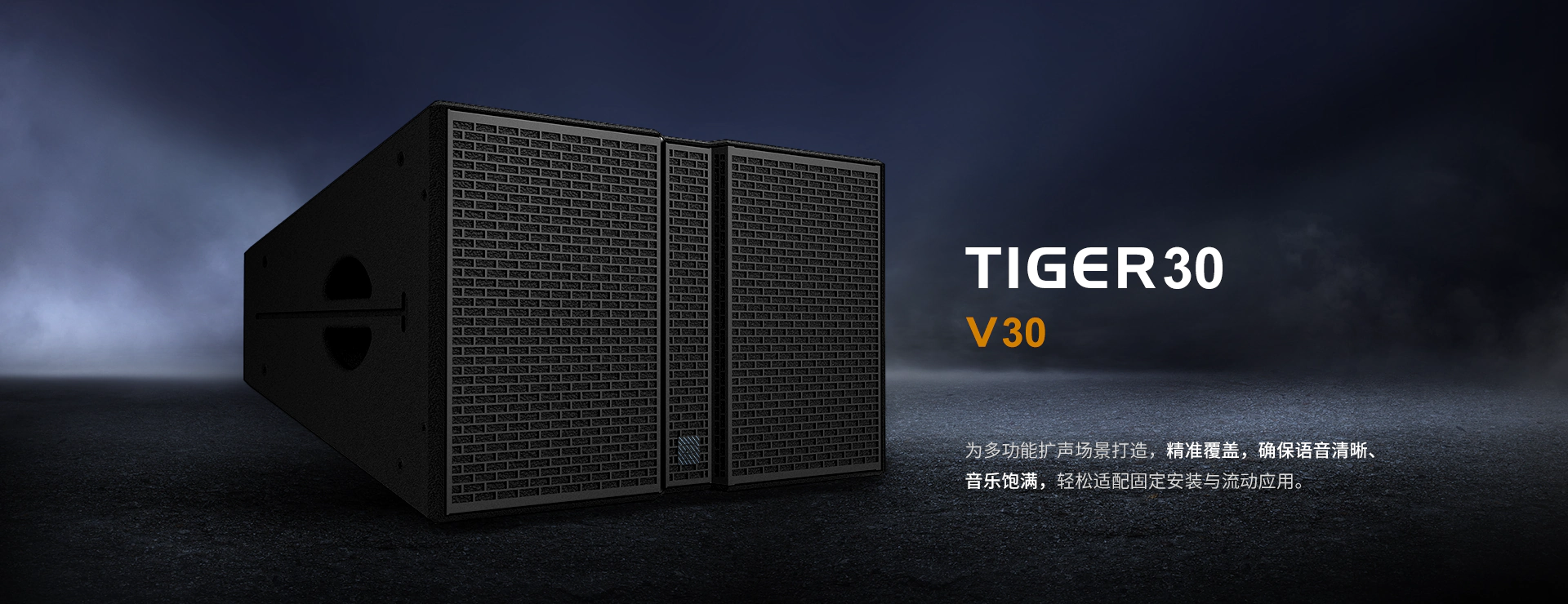

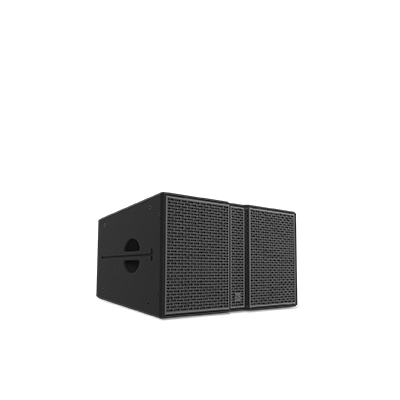

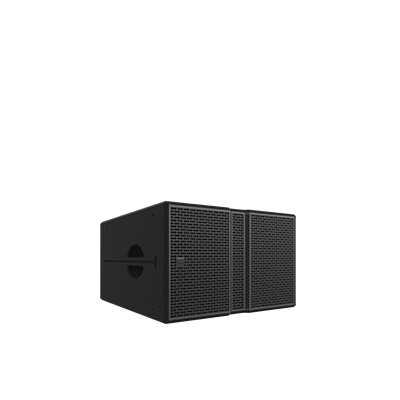

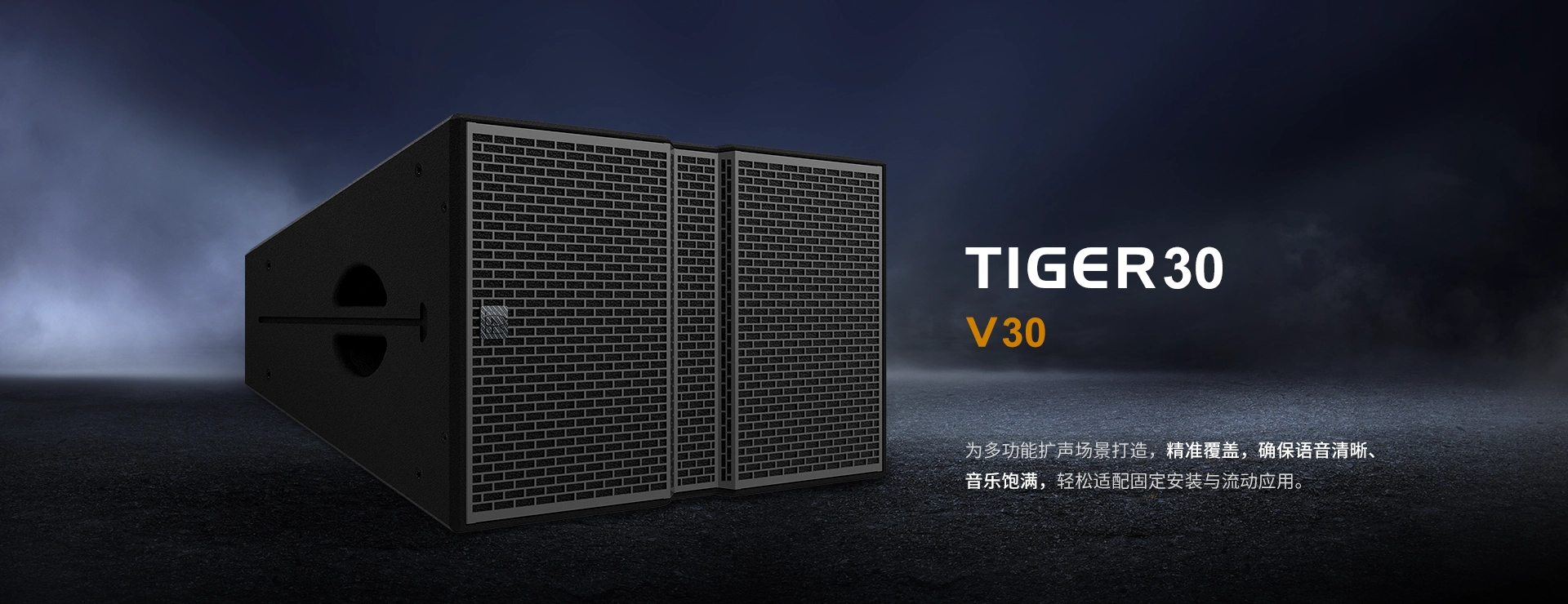

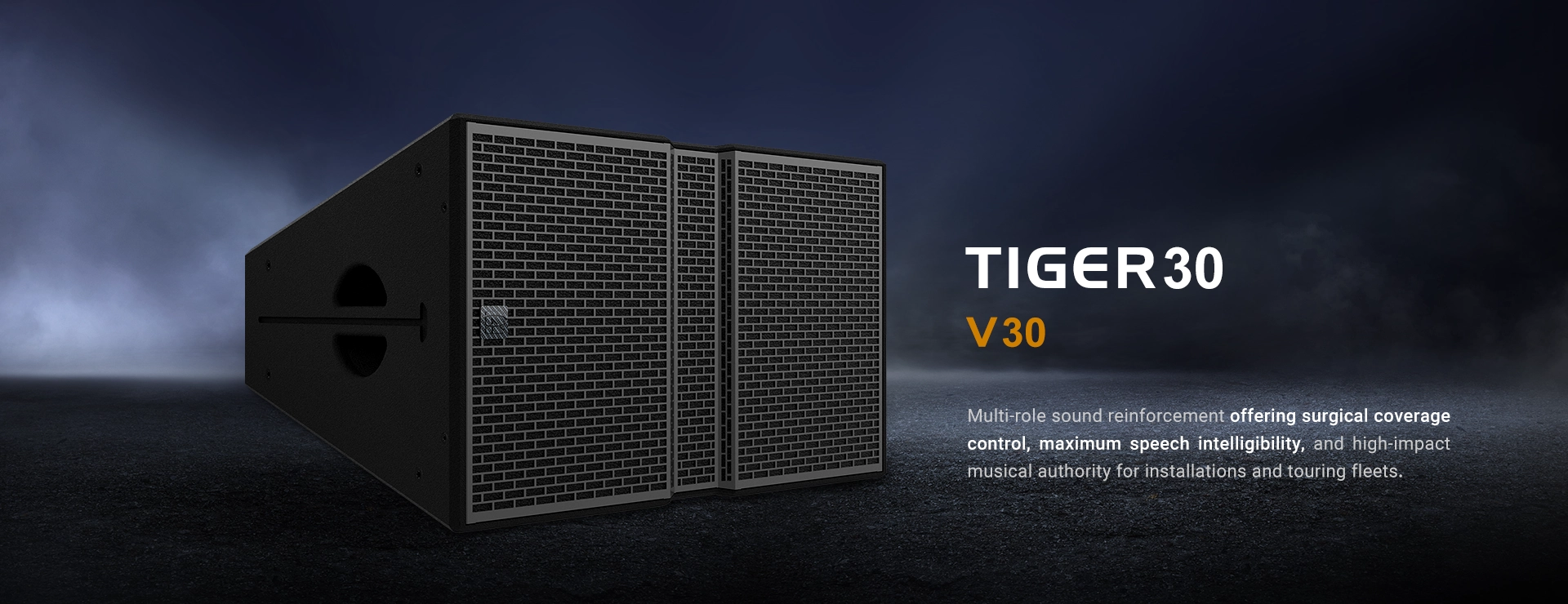

V30 High-Performance Two-Way Multi-Purpose Loudspeaker | The Reliable Benchmark for Professional Applications
Acoustic Design: Balanced Sonic Architecture, Precision Wavefront Delivery
V30 Harnessing an advanced neodymium motor system, the V30 balances premium acoustic performance with variable scenario adaptation, executing precise vocal tracking and rich musical micro-details whether operating as a standalone element or integrated into large-scale distributed architectures.
V30 The physical core integrates a 14-inch mid-bass transducer and a 3-inch diaphragm HF compression driver into a high-efficiency two-way matrix, defining a wide linear frequency response from 45Hz-18kHz to encapsulate complete audio bandwidth from deep low-end punch to transparent high-frequency air.
Utilizing a precise 110° × 30° (Horizontal × Vertical) coverage envelope generates perfectly homogeneous sonic distribution across the entire listening plane, guaranteeing an uncompromised, coherent auditory signature at every seat. Generating a massive peak SPL of 135 dB masters the strict headroom demands of medium-to-large scale spaces, preserving absolute clarity and dynamic impact across both vocal delivery and high-SPL music reproduction.
Structural Resilience: Multi-Dimensional Rigidity, Comprehensive Asset Armor
V30 Cabinet metrics are anchored by high-density multi-ply birch, balancing superior structural loading capacity with optimized internal acoustic dampening to suppress cabinet standing waves and ground the acoustic signal in pure stability. The front enclosure utilizes a rigid structural steel grille to cushion internal transducers against physical impacts, shielded by an advanced black polyurea outer skin for high-impact protection across multi-environment deployments.
Flush-mount ergonomic handles along each side panel streamline local transit and physical axis positioning. Internal electroacoustic components are reinforced via high-precision mechanical metal bracing anchored directly to the chassis frame, locking in structural reliability and performance consistency over years of continuous high-duty production cycles.
Field Rigging: Scalable Mounting Architecture, Omnidirectional Coverage
V30 Machined M8 rigging tracks integrated on the top, bottom, and side panels lock in native compatibility with the V-series rigging infrastructure, supporting complex multi-angle orientations across both horizontal and vertical vectors, or single-point suspension arrays to quick-adapt to complex physical boundaries. The connection interface features a recessed rear panel to eliminate structural shear damage on the road, housing professional-grade Speakon NLT4 M connnector to secure frictionless plug-and-play handling and failure-defiant transmission.
V30 Excelling across premium speech reinforcement and high-fidelity music reproduction, the cabinet operates flawlessly as a standalone full-range line source or natively integrated into extensive distributed network configurations. Coupling the matrix with QS、GS series subwoofers supercharges low-frequency weight and transient scale, fully satisfying high-definition playback demands while bridging professional acoustic telemetry with ultimate utility.
Technical Specification
AES Power Handling
- LF : 700W
- HF : 110W
Program Power
- LF : 1400W
- HF : 220W
Nominal Impedance
- 8 ohm
Transducers
- LF : 1x14" neodymium
- HF : 1x3" neodymium
Acoustic Modes
- LF: Bass-reflex
- HF: Waveguide-horn
Pin Assignment
- 1+/1-(INPUT) ,2+/2- (Link)
Nominal Directivity (-6 dB)
- Horizontal: (110°)
- Vertical: (30°)
Connectors
- 2x4-points Speakon®
Splay Angles
- 30° Fixed Trapezoidal Angle
Rigging Hardware
- Optional dedicated vertical hanger and dedicated horizontal mounting brackets
Cabinet Coating
- All-birch plywood with black polyurea wear-resistant finish
IP Rating
- IP55
Rigging Points
- M8
Bandwidth
- 45 Hz - 18 kHz
Maximum SPL
- LF : 134 dB
- HF : 135 dB
Sensitivity (1 W / 1 m)
- LF : 99 dB
- HF : 108.5 dB
Dimensions (W x H x D) mm
-
714x437x493 mm
(28.1"x17.2"x19.4")
Net Weight
- 31 kg (68.3 lbs)
Product Code
- 12322400207782
