RL15 Flagship Large-Format Sound Reinforcement | Delivering Monumental Arena-Scale Live Experiences
Acoustic Performance: Precision Coverage and Supreme Fidelity

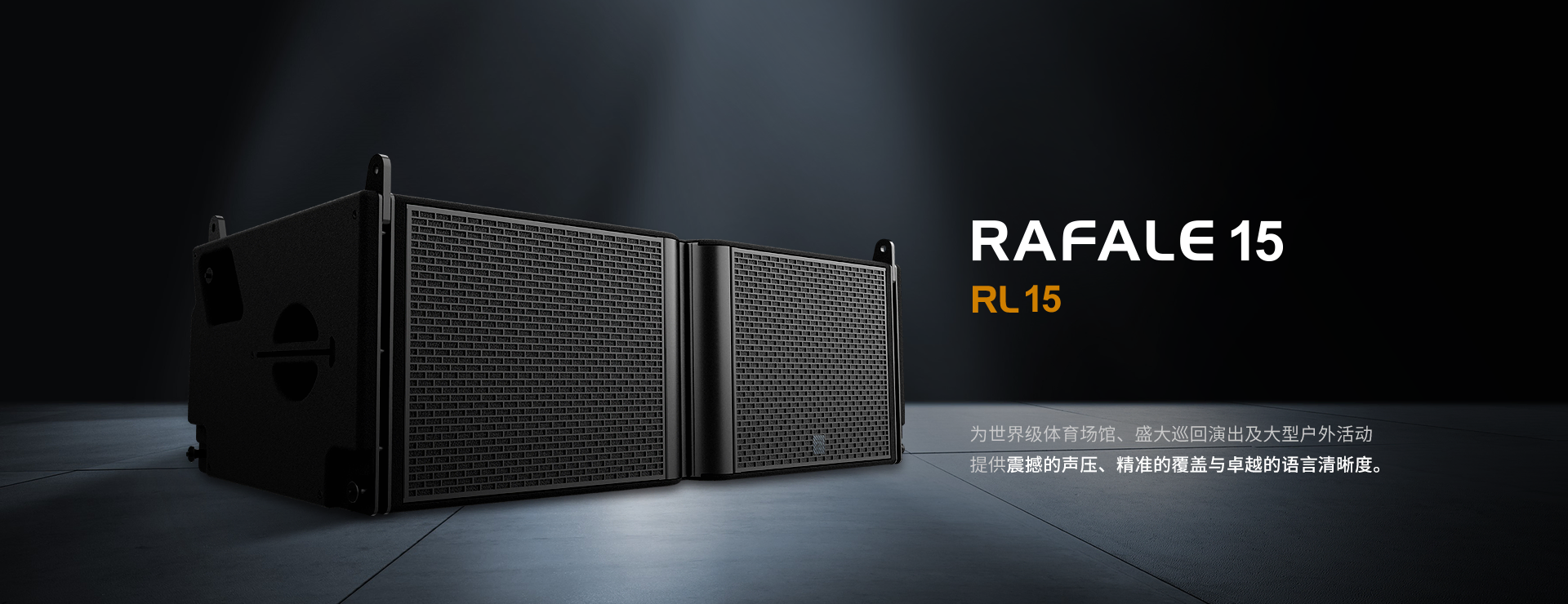

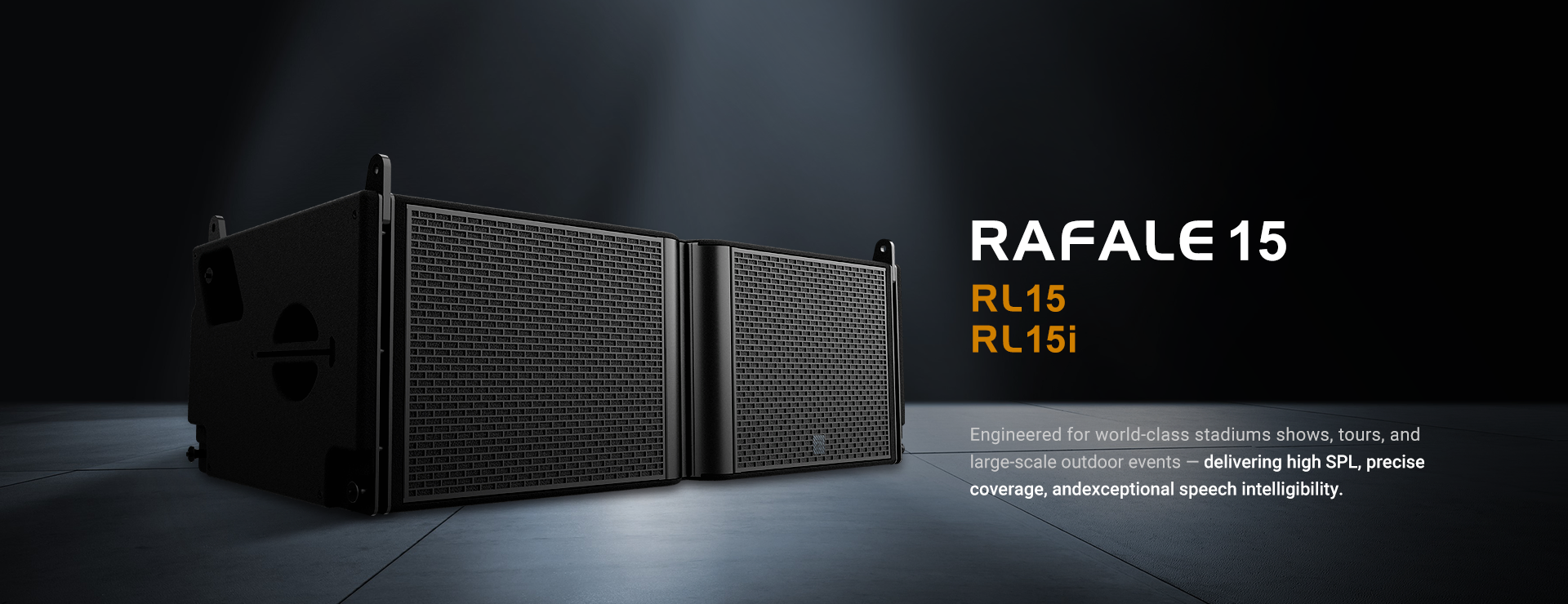

RL15/RL15i The RL15/RL15i is a large-format line array loudspeaker engineered for stadium-scale sound reinforcement, supporting flown vertical columns of up to 24 enclosures. It features constant directivity behavior selectable at 70°, 90°, or 110° horizontally to achieve precise coverage across the designated audience area.
The enclosure utilizes a fully symmetrical acoustic architecture: dual 15" neodymium LF drivers are positioned on the flanks in a dipolar arrangement. A central coaxial section houses a horn-loaded 10" MF driver and three HF compression drivers (1.4" exit, 3" voice coil) coupled to dedicated line source waveguides.
This advanced design allows the wavefronts to couple seamlessly in the vertical plane, delivering exceptionally natural vocal presence and a powerful, tight low-end down to 35 Hz. Maintaining supreme acoustic fidelity across a broad 35 Hz – 20 kHz bandwidth, the system ensures uniform and controllable sound distribution tailored to diverse venue geometry.
Construction & Durability: Efficient Rigging and Field-Ready Resilience
RL15/RL15i is constructed with an integrated stainless-steel and aluminum alloy framework，The touring-specific RL15 features an advanced quick-rigging system with pre-defined angle setups, significantly accelerating array assembly and deployment. The splay angles between cabinets can be adjusted with pinpoint precision from 0° to 5° to perfectly adapt to any venue’s acoustic profile.
The cabinet is crafted from high-density Baltic birch plywood and protected by a weather-proof and impact-resistant polyurea finish, engineered to withstand the rigors of long-term touring. For comprehensive component protection, the front features a rigid metal grille backed by an acoustically transparent, water-repellent fabric. Ergonomic handles are seamlessly integrated into the side and rear panels to optimize handling efficiency.
Application & Expansion: Scalable Versatility and High-Power Headroom

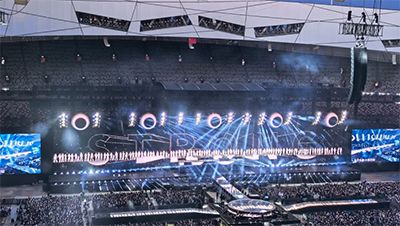

Integrating multiple patented technologies, the RL15/RL15i delivers flawless sonic performance, making it the premier choice for fixed installations in stadium complexes, arenas, theaters, and civic centers, as well as high-intensity temporary touring applications.
When paired with the GS218 subwoofer, the system extends low-frequency headroom and maximizes maximum SPL capability, easily conquering the most demanding mega-venue sound reinforcement requirements.
Technical Specification
AES Power Handling
- LF : 1400
- HMF: 400
Program Power
- LF : 2800W
- HMF : 800W
Nominal Impedance
- LF : 4 ohm
- HMF : 8 ohm
Transducers
- LF : 2x15”neodymium
- MF : 1x10”neodymium
- HF : 3x3" neodymium compression driver
Acoustic Modes
- LF: Bass-reflex
- MF: Horn-loaded
- HF: Waveguide-horn
Pin Assignment
- 1+/1- (LF) ,2+/2- (MHF)
Nominal Directivity (-6 dB)
- Horizontal: ( 70° 90° 110°)
- Vertical: (Dependent on the number of enclosures and array curvature.)
Connectors
- 2x4-points Speakon® ,1xLink cable
Splay Angles
- 0° 1° 2° 3° 4° 5°
Rigging Hardware
- High-grade stainless steel with specialized outdoor powder coating
Cabinet Coating
- All-birch plywood with black polyurea wear-resistant finish
IP Rating
- IP55
Frequency Response
- 35 Hz - 20 kHz
Maximum SPL
- 149 dB
Cabinet dimension（WxHxD）
-
RL15:1366x487x562 mm (53.8"x19.1"x22.1")RL15i:1340x487x562 mm (52.8"x19.2"x22.1")
Net Weight
-
RL15:98 kg (216.1 lbs)RL15i:97 kg (213.8 lbs)
Article number
-
RL15:12316000209624RL15i:12316000209625
