Overview

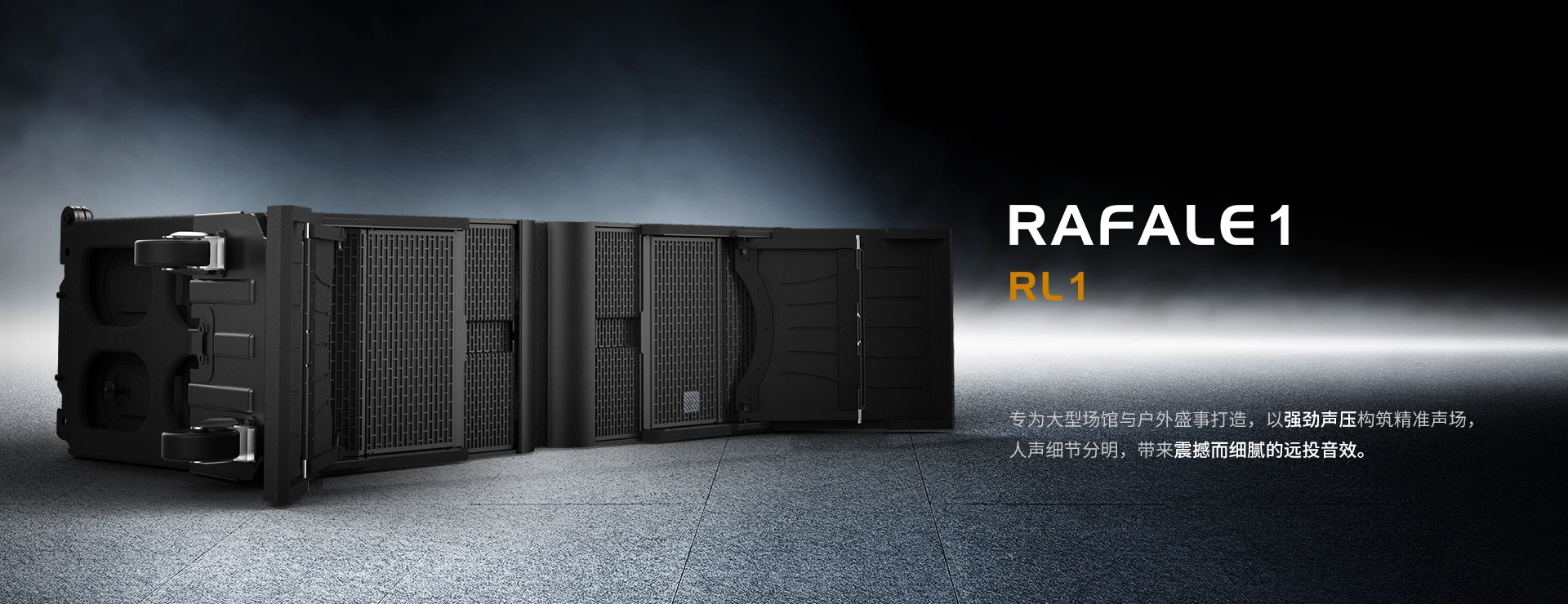

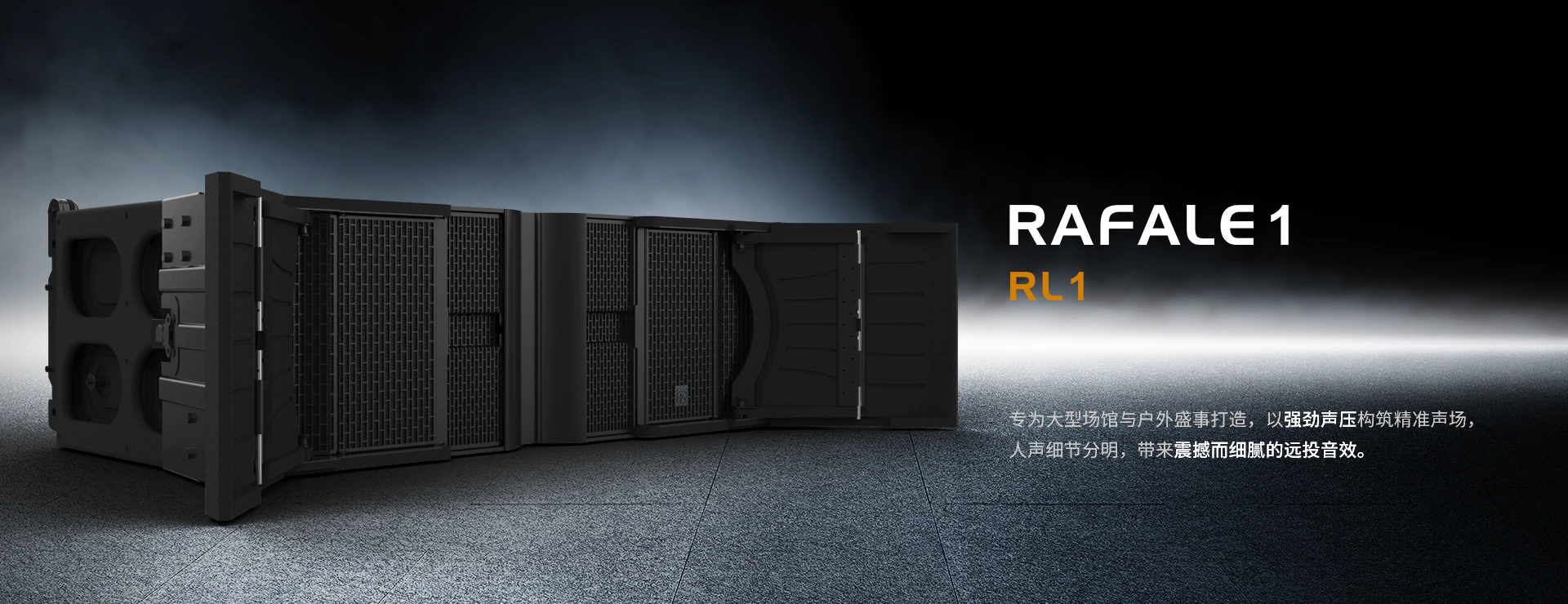

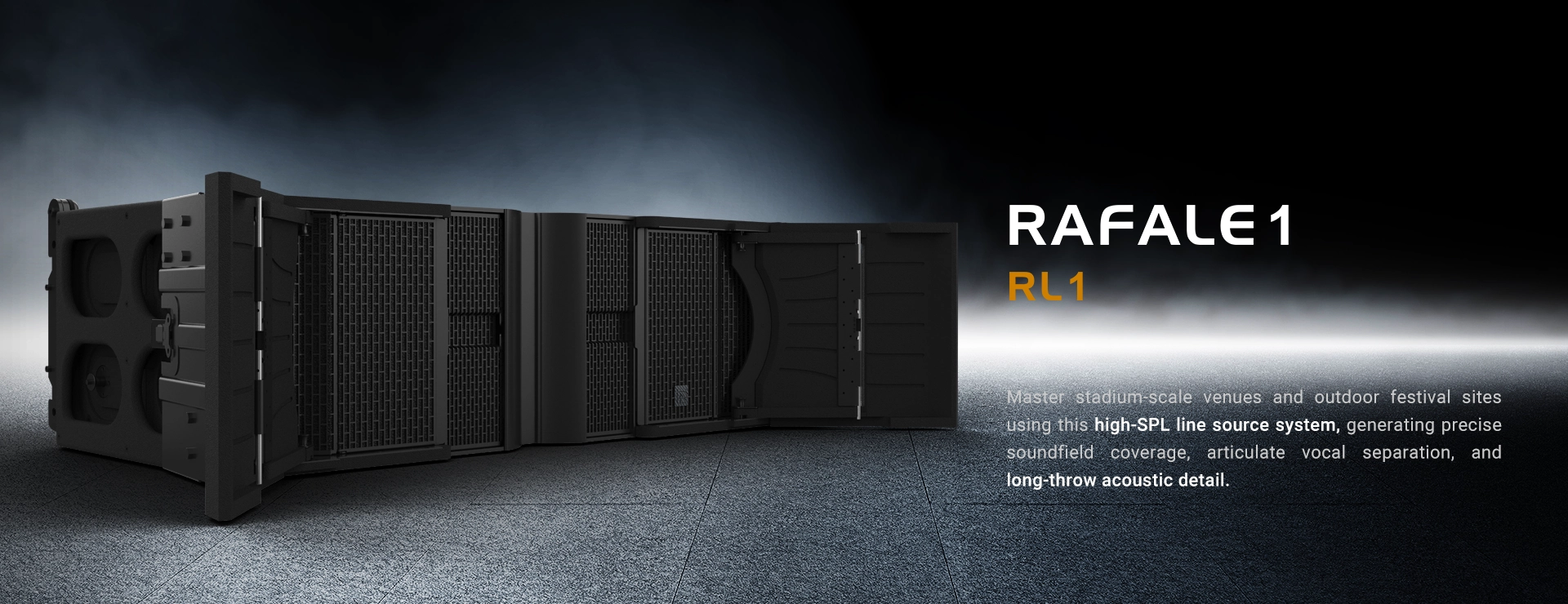

RL1 Large Format Line Array | The Benchmark for Large-Scale Sound Reinforcement
Acoustic Design: Precision Directivity, Acoustic Fidelity
RL1 Support vertical array configurations of up to 24 enclosures while enforcing 90°–110° horizontal directivity pattern, achieving complete audience coverage while eliminating acoustic shadow zones.
Implement a 3-way electro-acoustic architecture: two high-power 12-inch low-frequency transducers supply deep sub-bass impact with extended excursion; four 6.5-inch mid-frequency transducers reproduce vocal nuances with natural clarity; and two custom B&C 3-inch high-frequency compression drivers couple with a precision waveguide to form a coherent planar wave generator for transparent HF throw.
RL1 Preserve flat frequency response across a wide 35Hz–20KHz bandwidth to ensure soundfield stability, extended long-throw projection, and dynamic signal fidelity across varied venue scales.
Structural Protection & Hardware: Fast Rigging Workflow, All-Weather Endurance
RL1 Integrate a flush stainless-steel rigging system supporting preset inter-enclosure angles, maintaining full mechanical compatibility alongside M1 systems and RL1 SUB subwoofers Provide multi-step angular adjustments from 0° to 5° to streamline array assembly and accelerate field deployment.
Construct the enclosure using multi-ply birch plywood finished in high-grade polyurea coating, providing high UV and impact resistance to withstand rigorous outdoor touring environments. Protect front drivers with a rigid metal grille backed by an acoustically transparent, water-resistant fabric to seal out moisture, while integrating ergonomic side and rear handles for transport and maneuvering.
Deployment & Integration: Multi-Scenario Adaptability, System Expansion
RL1 Embody patented acoustic and mechanical innovations to deliver uncompromised sound quality across arenas, stadiums, theaters, and convention centers, while meeting heavy-duty mobile touring demands.
Flown alongside RL1 SUB subwoofers under dedicated factory DSP presets to extend low-frequency bandwidth and soundfield coverage, handling large-scale sound reinforcement challenges.
Technical Specification
AES Power Handling
- LF1 : 1,000
- LF2 : LF1000
- MF : MF800
- HF : 220
Program Power
- LF1: 2000W
- LF2 : 2000W
- MF : 800W
- HF : 440W
Nominal Impedance
- LF1 : 8 ohm
- LF2 : 8 ohm
- MF : 8 ohm
- HF : 8 ohm
Transducers
- LF : 2x12" neodymium
- MF : 4x6.5" neodymium
- HF : 2x3" neodymium
Acoustic Modes
- LF: Bass-reflex
- MF: Horn-loaded
- HF: Waveguide
Pin Assignment
- 1+/1- (LF1) , 2+/2- (LF2),3+/3- (MF) ,4+/4- (HF) )
Nominal Directivity (-6 dB)
- Horizontal: (90° -110°)
- Vertical: (Dependent on the number of enclosures and array curvature.)
Connectors
- 2x4-points Speakon® ,1xLink cable
Splay Angles
- 0° 0.5° 1° 1.5° 2° 2.5° 3° 4° 5°
Rigging Hardware
- High-grade stainless steel with specialized outdoor powder coating
Cabinet Coating
- All-birch plywood with black polyurea wear-resistant finish
IP Rating
- IP55
Bandwidth
- 35 Hz - 20 kHz
Maximum SPL
- 147 dB
Dimensions (W x H x D) mm
-
1178x390x587 mm
(46.4"x15.4"x23.1")
Net Weight
- 102 kg (224.9 lbs)
Product Code
- 12313100214799
