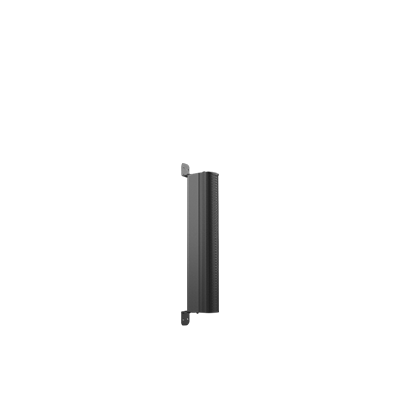

R16 Modular Line Source Loudspeaker | The Professional Acoustic Choice for Indoor Speech Reinforcement
Acoustic Design: Prioritizing Speech Intelligibility, Supporting Full-Range Extension
R16 Optimize internal electro-acoustic alignment specifically for indoor speech reinforcement, drastically boosting speech clarity and acoustic penetration to ensure every audience member—from front to rear row, center to corner—captures articulate speech details for high-demand information transmission scenarios.
Combine alongside dedicated subwoofers via factory DSP presets to establish a complete full-range system, enhancing music playback with rich sub-bass extension and acoustic layering while preserving speech articulation to handle speech-plus-music hybrid applications.
Structural Integrity: All-Metal Chassis, Compact Deployment
R16 Construct the enclosure using an all-metal physical chassis to deliver structural stability and impact resistance, standing up to everyday transportation and environmental variations in indoor installations to ensure sustained long-term operation and lower maintenance overhead
Embrace a compact physical form factor to streamline integration into architectural interiors, satisfying acoustic coverage demands while preserving spatial aesthetics and practical usability.
Deployment & Integration: Modular Arraying, Versatile Scenario Coverage
R16 Build modular vertical line sources using multiple R16 enclosures, allowing operators to scale array dimensions according to venue size and audience capacity to achieve precision energy coverage. Combine alongside R8 line source modules under unified factory presets to complement soundfield coverage and throw distance, deploying highly adaptable systems without complex structural retrofits to save installation and tuning overhead.
R16 Apply across medium-to-large indoor spaces including auditoriums, transportation hubs, shopping malls, gymnasiums, and houses of worship. Deliver articulate, efficient communication for conferencing, public address, and educational lecturing.
Technical Specification
AES Power Handling
- 216
Program Power
- 432W
Nominal Impedance
- 32 ohm
Transducers
- 16x2.5" neodymium
Acoustic Modes
- Bass-reflex
Pin Assignment
- 1+/1-(INPUT) ,2+/2- (Link)
Nominal Directivity (-6 dB)
- Horizontal: (130° )
- Vertical: (20° )
Connectors
- Screw CONN.(4x2.54mm）
Splay Angles
- Trapezoidal Enclosure, Fixed Angle
Rigging Hardware
- Optional dedicated rigging and mounting hardware
Cabinet Coating
- Heavy-duty magnesium-aluminum alloy chassis with powder-coated finish (Available in Black, Gold, or White)
IP Rating
- IP55
Rigging Points
- M4
Bandwidth
- 180 Hz - 18 kHz
Maximum SPL
- MHF: 129 dB
Sensitivity (1 W / 1 m)
- 87 dB
Dimensions (W x H x D) mm
-
75x1058x132 mm
(3.0"x41.7"x5.2")
Net Weight
- 5.5 kg (12.1 lbs)
Product Code
- 12320200207477
