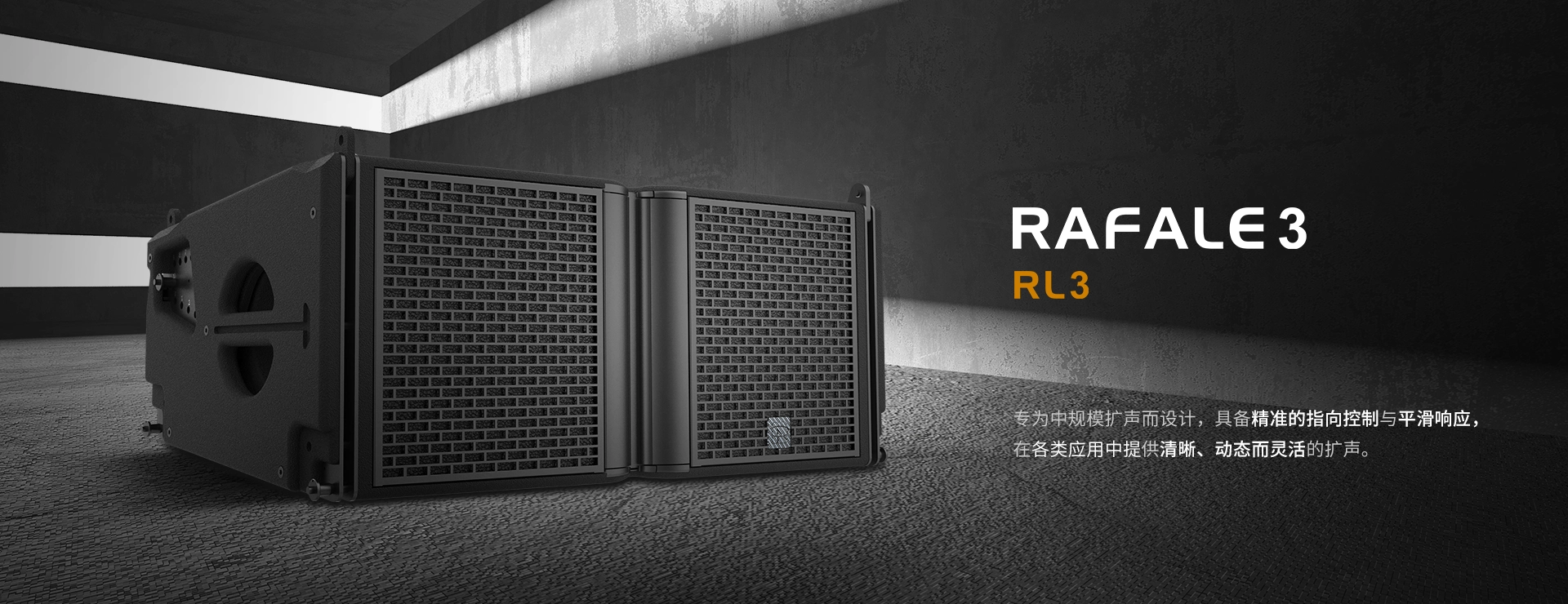

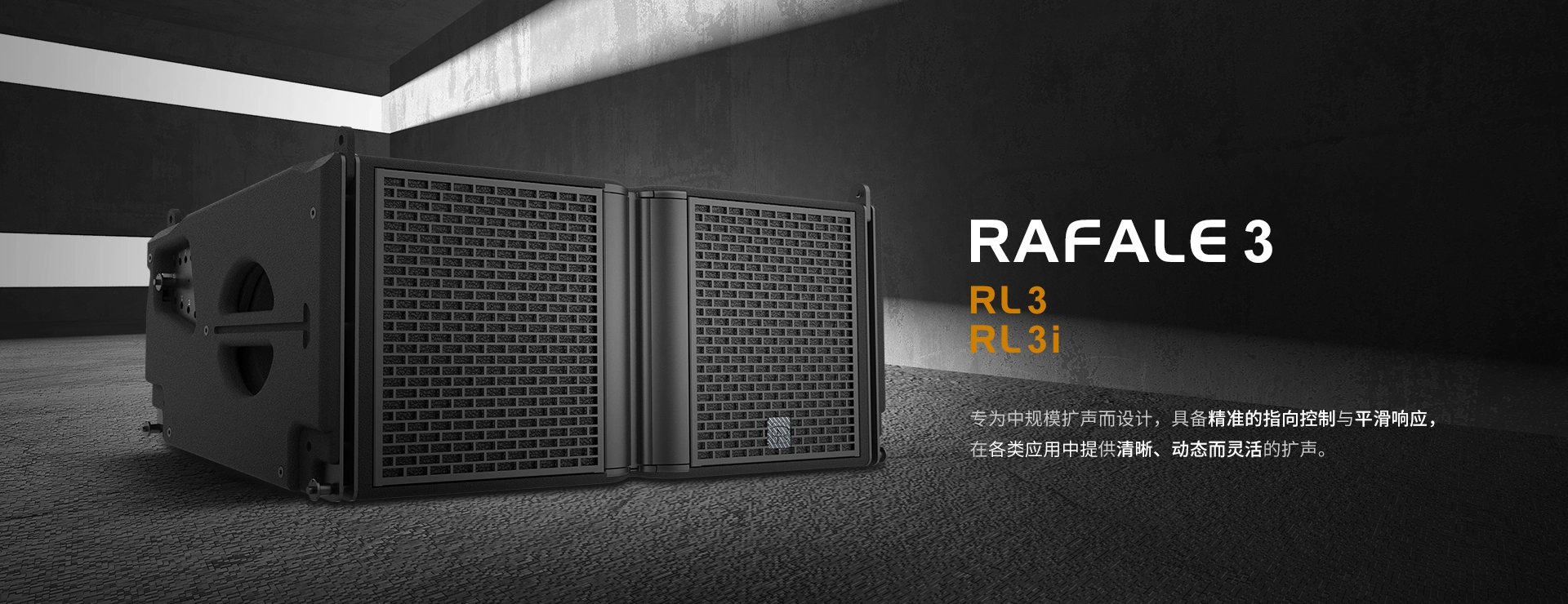

RL3/RL3i Line Array System | The Definitive Choice for Mid-Scale Sound Reinforcement
Acoustics & Performance: Precision Control, Compact Powerhouse
Purpose-built for mid-scale sound reinforcement scenarios,the RL3/RL3i serves as the ultra-reliable solution for mid-to-large-scale line array applications. Delivering exceptional acoustic performance, the system maintains a perfectly linear frequency response even over long throw distances, effortlessly combining extraordinary dynamic bandwidth with commanding headroom. Its defining edge lies in a compact, lightweight footprint paired with supreme directivity control, allowing seamless adaptation to diverse venue requirements.
The acoustic architecture utilizes a 3-way hybrid bi-amplified topology design, featuring active external crossovers for the LF/MF sections and an integrated passive network between the MF/HF components to guarantee pristine, uncolored sonic reproduction. Housed within a fully symmetrical geometric layout, dual 10-inch neodymium LF drivers are arranged in a bipolar configuration to provide deep, impactful, and solid low-end punch. Coaxially integrated at the center is a horn-loaded 8-inch MF transducer, alongside dual HF compression drivers featuring 1-inch throats, 2-inch voice coils, and dedicated line-source waveguides.
These specialized line-source waveguides facilitate seamless acoustic coupling to generate a coherent, vertical wavefront. This enables a flexible 90°-110° horizontal constant directivity dispersion, maintaining precise pattern control down to an impressive 250 Hz..
Rigging & Durability: Streamlined Workflow, All-Weather Resilience
RL3/RL3i Deployable as a highly flexible standalone system, the RL3/RL3i also integrates seamlessly with larger systems like the RL15. It acts as the perfect down-fill, out-fill, or delay solution, matching them flawlessly in acoustic voicing, dynamic headroom, and coverage profiles.
The system incorporates an integrated stainless-steel and aluminum-magnesium alloy splay rigging system. Fully recessed into the enclosure, this hardware drastically accelerates onsite load-in speeds. Inter-enclosure splay angles adjust flexibly from 0° to 10° in 1° increments , enabling ultra-precise acoustic shaping to match predicted venue geometry.
Constructed entirely from premium marine-grade birch plywood the enclosure is coated in a high-grade polyurea finish, providing exceptional impact resistance and UV protection , to easily withstand the punishing realities of continuous outdoor touring.For ultimate component protection, the front features a rigid metal grille backed with an acoustically transparent, water-resistant fabric that blocks moisture without compromising high-frequency transparency. Ergonomic recessed handles on the side panels ensure smooth, effortless logistics and handling.
Applications & Ecosystem: Scalable Versatility, Seamless Expansion
Packing multiple proprietary acoustic patents,the RL3/RL3i guarantees flawless line-array performance across premium fixed installations—including arenas, stadiums, theaters, and convention centers—as well as high-profile mobile touring applications.

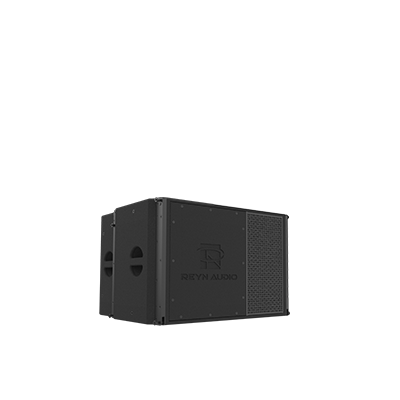

Integrating the system with the RL3 SUB flying subwoofer further extends the usable system bandwidth and low-frequency headroom, effortlessly scaling up to conquer the most demanding venue profiles.
Technical Specification
AES Power Handling
- LF : 800
- HMF: 250
Program Power
- LF : 1600W
- HMF : 500W
Nominal Impedance
- LF : 8 ohm
- HMF : 16 ohm
Transducers
- LF : 2x10" neodymium
- MF : 1x8" neodymium
- HF : 2x2" neodymium
Acoustic Modes
- LF: Bass-reflex
- MF: Horn-loaded
- HF: Waveguide
Pin Assignment
- 1+/1- (LF) ,2+/2- (MHF)
Nominal Directivity (-6 dB)
- Horizontal: (90 ° ,110°)
- Vertical: ( Dependent on the number of enclosures and array curvature.)
Connectors
- 2x4-points Speakon®
Splay Angles
- 0° 1° 2° 3° 4° 5° 6° 7° 8° 9° 10°
Rigging Hardware
- High-grade stainless steel with specialized outdoor powder coating
Cabinet Coating
- All-birch plywood with black polyurea wear-resistant finish
IP Rating
- IP55
Bandwidth
- 55 Hz - 20 kHz
Maximum SPL
- 142 dB
Cabinet dimension（WxHxD）
-
RL3:774x347x459 mm (30.5"x13.7"x18.1")RL3i:762x347x459 mm (30.0"x13.7"x18.1")
Net Weight
-
RL3:44 kg (97.0 lbs)RL3i:44 kg (97.0 lbs)
Article number
-
RL3:12316100208141RL3i:12316100208142
Download
| Download | |||
|
Reyn Audio RL3 spec sheet
updated: 2026-04-30
|
419.51 KB | ||
|
Reyn Audio RL3 spec sheet
updated: 2026-06-30
|
419.63 KB | ||
|
RL3产品说明书
updated: 2026-06-04
|
32.66 MB | ||
|
RL3系统建议图
updated: 2026-04-14
|
5.85 MB | ||
|
RL3指向性图/频率响应曲线
updated: 2026-04-30
|
821.29 KB | ||
|
RL3配件使用说明书
updated: 2026-03-30
|
9.90 MB | ||
|
RL3 Revit BIM file
updated: 2026-07-06
|
rar | 1.58 MB | |
|
RL3系统配件 2D CAD
updated: 2026-03-11
|
2.30 MB | ||
|
RL3系统配件 2D CAD
updated: 2026-02-28
|
rar | 3.25 MB | |
|
RL3系统配件 3D CAD
updated: 2026-01-09
|
rar | 1.09 MB | |
|
RL3系统配件 Sketchup
updated: 2026-01-09
|
rar | 1.86 MB | |
|
RL3载重测试报告
updated: 2026-02-26
|
rar | 1.59 MB | |
|
RL3 Ease
updated: 2026-01-05
|
rar | 3.43 MB | |
|
产品保修卡
updated: 2025-12-25
|
171.68 KB | ||
|
RL3符合性声明
updated: 2026-01-08
|
72.66 KB | ||
|
产品天气防护
updated: 2025-12-27
|
400.75 KB |

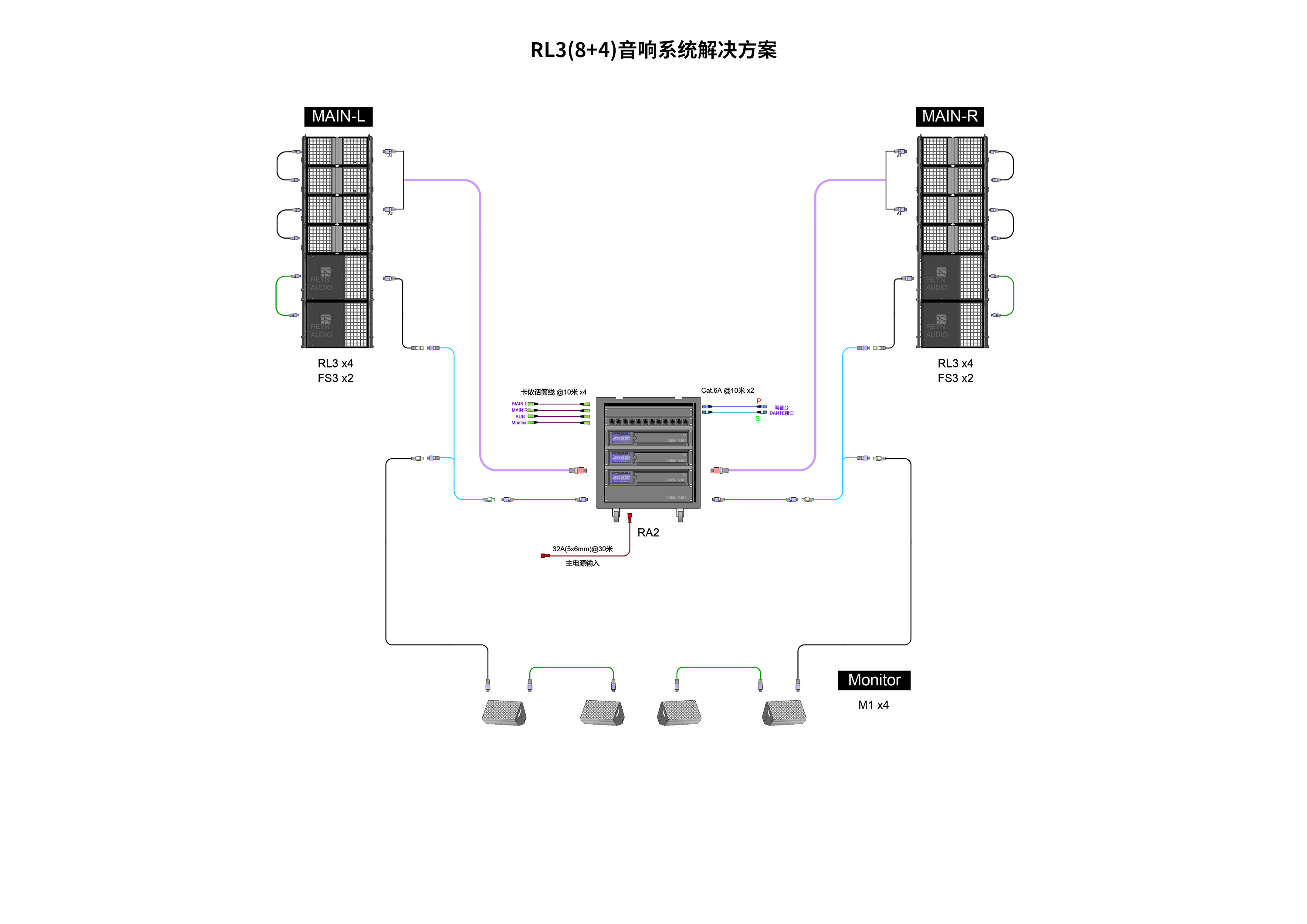

Application System
