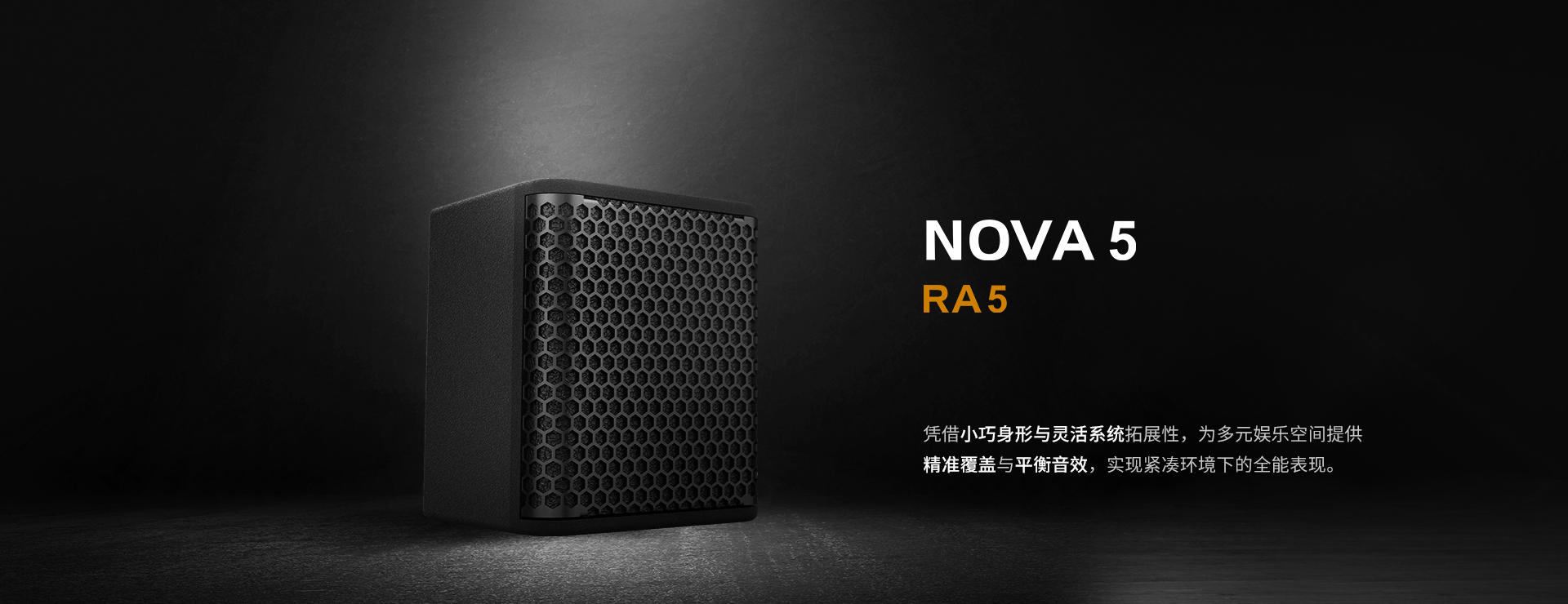

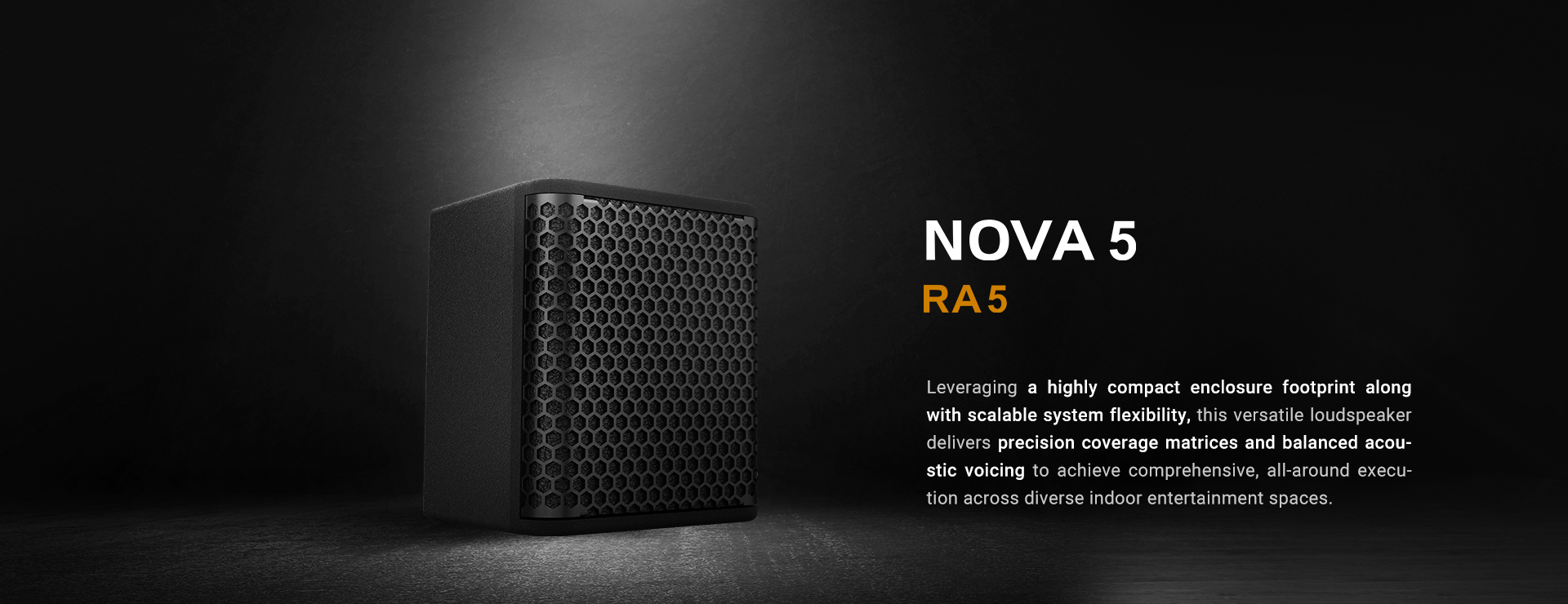

RA5 High-Performance Two-Way Coaxial Loudspeaker | Compact Form Factor, Precision Sound Field
Acoustic Architecture: Coaxial Integration, Homogeneous Coverage
RA5 The electro-acoustic package combines a 5-inch low-frequency transducer with a 1.75-inch high-frequency compression driver, utilizing a unified coaxial topology and a precision passive crossover network to function as a single virtual point source. Generating a warm, velvety low-mid profile balances seamlessly with crystalline, transparent high frequencies, executing natural inter-band phase transitions to completely eradicate phase distortion and lock in surgical sonic imaging.
Deploying an axisymmetric 80°×80° wide directivity pattern projects acoustic energy uniformly onto the listening zone, eliminating localized SPL variance to guarantee a highly coherent tonal balance and identical sound quality across all audience seats for an immersive auditory experience.
Achieving a peak SPL of 121 dB is optimized specifically for small-to-medium deployment scales across a linear frequency response spanning from 100 Hz to 18 kHz. Operating flawlessly as an independent high-definition full-range system, the cabinet also integrates natively with subwoofers such as the B218 or B8 to construct a highly articulate three-way system, supplementing massive low-end headroom to master application profiles from corporate speech and ambient background tracks to premium music reproduction.
Structural Resilience: Compact Rigidity, Relentless Asset Longevity
RA5 Cabinet construction utilizes high-density multi-ply birch plywood, balancing immense structural stability with premium acoustic dampening parameters to suppress unwanted cabinet resonance and secure pure, uncolored acoustic output.
A robust metal grille shields the internal components from mechanical impact, coated with a professional black polyurea protective skin for superior anti-corrosion and abrasion defense across high-humidity and high-frequency deployment environments, ensuring consistent hardware uptime while minimizing long-term field maintenance costs.
Transducer assemblies are anchored securely via internal metal componentry calculated to high-precision engineering metrics, actively absorbing and neutralizing mechanical vibrations to lock in premium sound quality during high-volume playback while vastly elevating long-term operational durability.
Field Deployment: Scalable Rigging, Plug-and-Play Integration
RA5 Rigging options feature a dedicated suspension cradle supporting multi-angle adjustments across both horizontal and vertical axes, alongside native compatibility with single-point flying arrays or pole-mount infrastructure to adapt swiftly to complex installation spaces and achieve precision sound field targeting.
Recessed connection interfaces protect the professional-grade SpeakON® NLT4 M connectors from physical impact, delivering pure, low-resistance signal transmission and failure-defiant operational reliability.
RA5 Applications scale seamlessly across premium sectors including theatres, music lounges, clubs, and high-tier KTV complexes Delivering benchmark stability under unified system tuning, the RA5 masters high-definition speech broadcasts, detail-rich vocal performances, and light music playback with absolute professional authority.
Technical Specification
AES Power Handling
- LF : 150
- HF : 30
Program Power
- LF : 300W
- HF : 60W
Nominal Impedance
- 16 ohm
Transducers
- LF : 1x5" neodymium
- HF : 1x1.75" neodymium
Acoustic Modes
- LF: Bass-reflex
- HF: Horn
Pin Assignment
- 1+/1-(INPUT) ,2+/2- (Link)
Nominal Directivity (-6 dB)
- Horizontal: (80°)
- Vertical: (80° )
Connectors
- Screw CONN.(4x2.54mm）
Splay Angles
- Fixed 18° Trapezoidal Angle
Rigging Hardware
- Optional dedicated vertical hanger and dedicated horizontal mounting brackets
Cabinet Coating
- All-birch plywood with black polyurea wear-resistant finish
IP Rating
- IP55
Rigging Points
- M8
Bandwidth
- 100 Hz - 18 kHz
Maximum SPL
- LF : 112 dB
- HF : 121 dB
Sensitivity (1 W / 1 m)
- LF : 91 dB
- HF : 100 dB
Dimensions (W x H x D) mm
-
170x200x170 mm
(6.7"x7.9"x6.7")
Net Weight
- 3 kg (6.6 lbs)
Product Code
- 12321000207136
