Technical Specification

Product Name

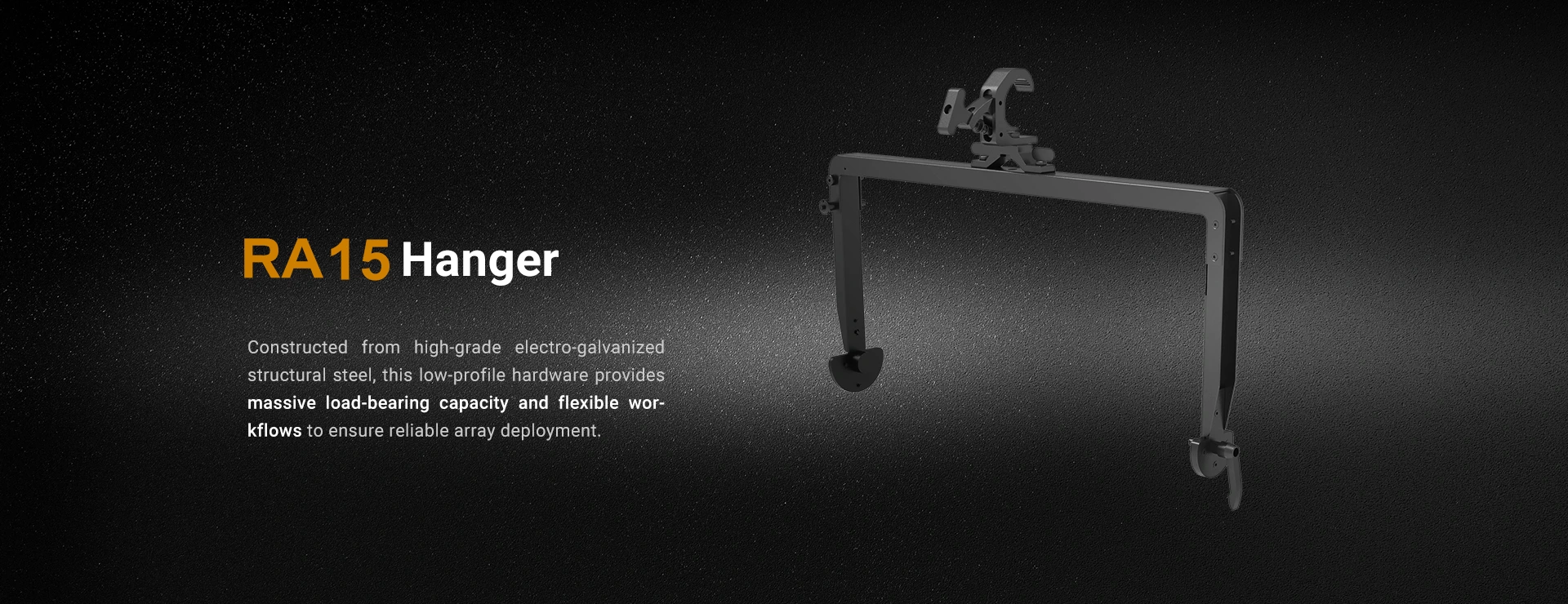

  • RA15 Hanger

Applicable Series

  • RA15

Specifications

  • The maximum load is one RA15

Rigging Material

  • Hardware Composition: Electro-galvanized structural steel plate chassis integrated with high-grade aluminum clamp fixtures.

Surface Treatment

  • Surface Metallurgy: Matte-black baked enamel coating on the main body;
    High-gloss vibratory anodized black plating on the coupling clamps.

Dimensions (W x H x D)

  • 741×371×88 mm
    (29.1"x14.6"x3.5")

Net Weight (N.W.)

  • 5 kg (11 lbs)

Product Code

  • RA15 Bumper (Adjustable Angle Version): 63583885
    RA15 Bumper (Fixed Angle Version): 12314800206462

Technical Specification

Product Name

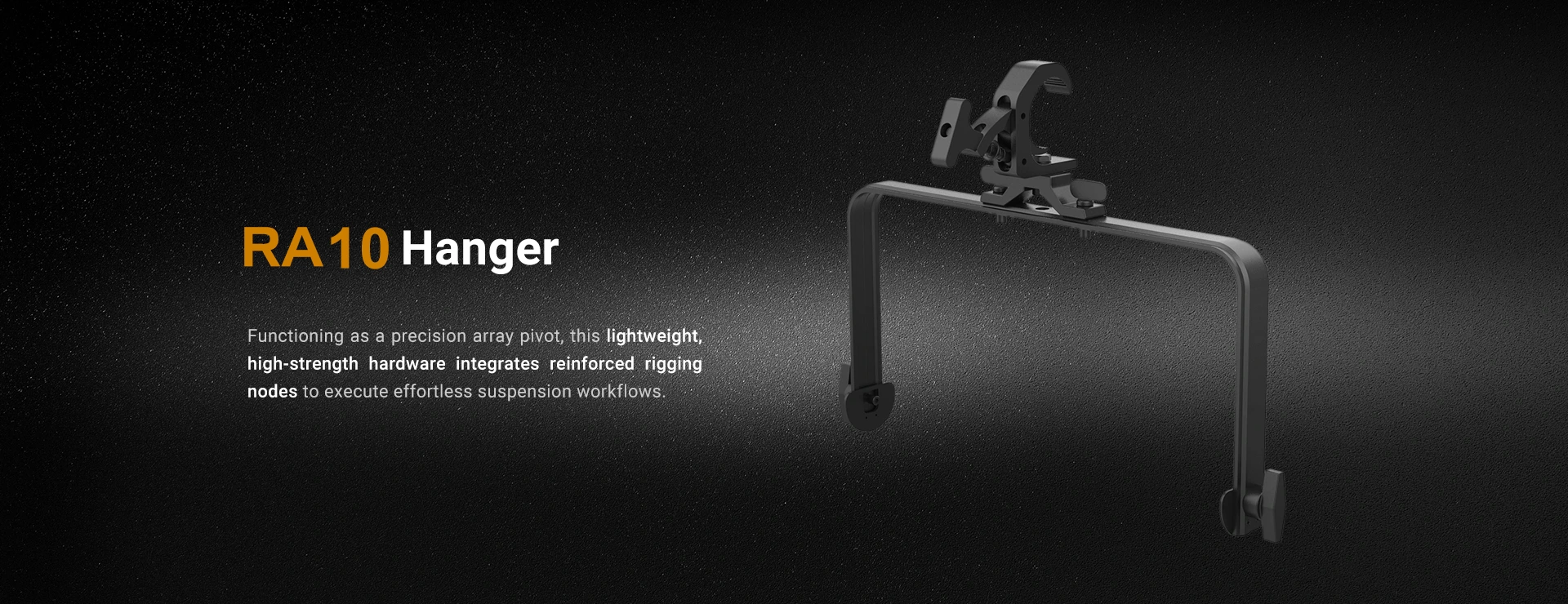

  • RA10 Hanger

Applicable Series

  • RA10

Specifications

  • The maximum load is one RA10

Rigging Material

  • Hardware Composition: Electro-galvanized structural steel plate chassis integrated with high-grade aluminum clamp fixtures.

Surface Treatment

  • Surface Metallurgy: Matte-black baked enamel coating on the main body;
    High-gloss vibratory anodized black plating on the coupling clamps.

Dimensions (W x H x D)

  • 508×266×70 mm
    (20.0"x10.5"x2.8")

Net Weight (N.W.)

  • 2 kg (4.4 lbs)

Product Code

  • 12316700200002

Technical Specification

Product Name

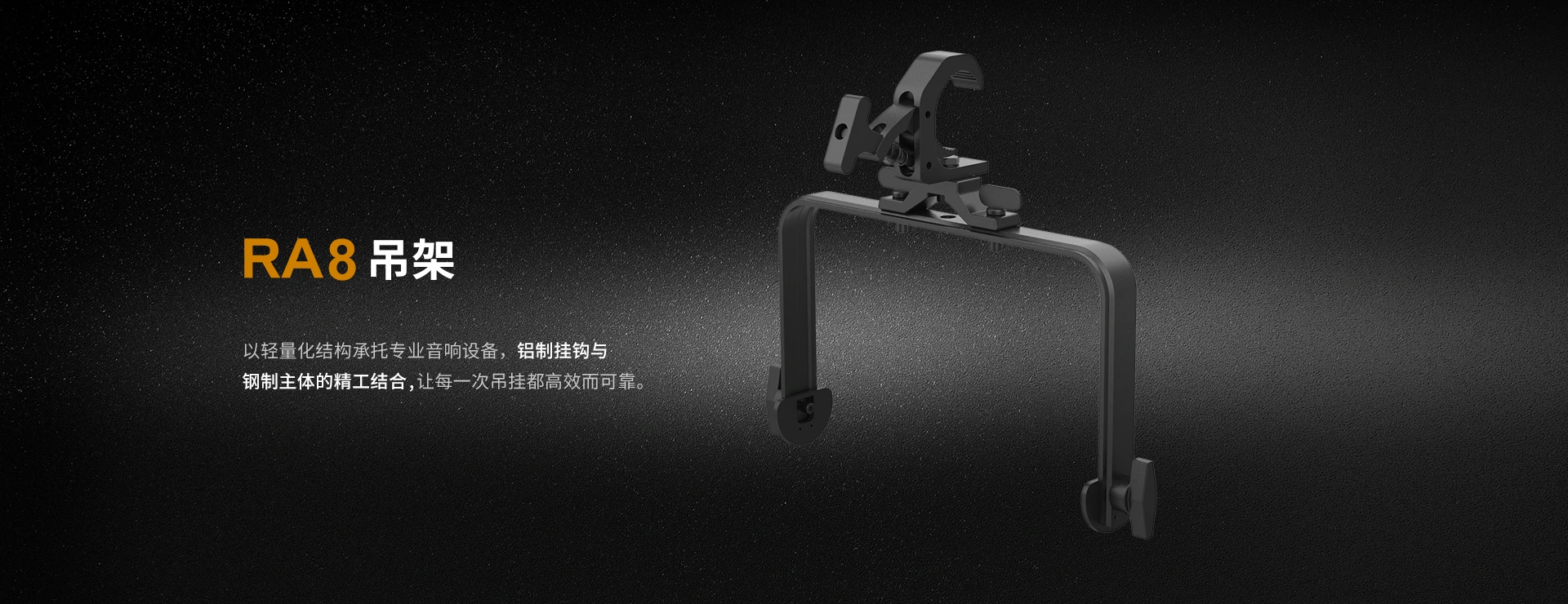

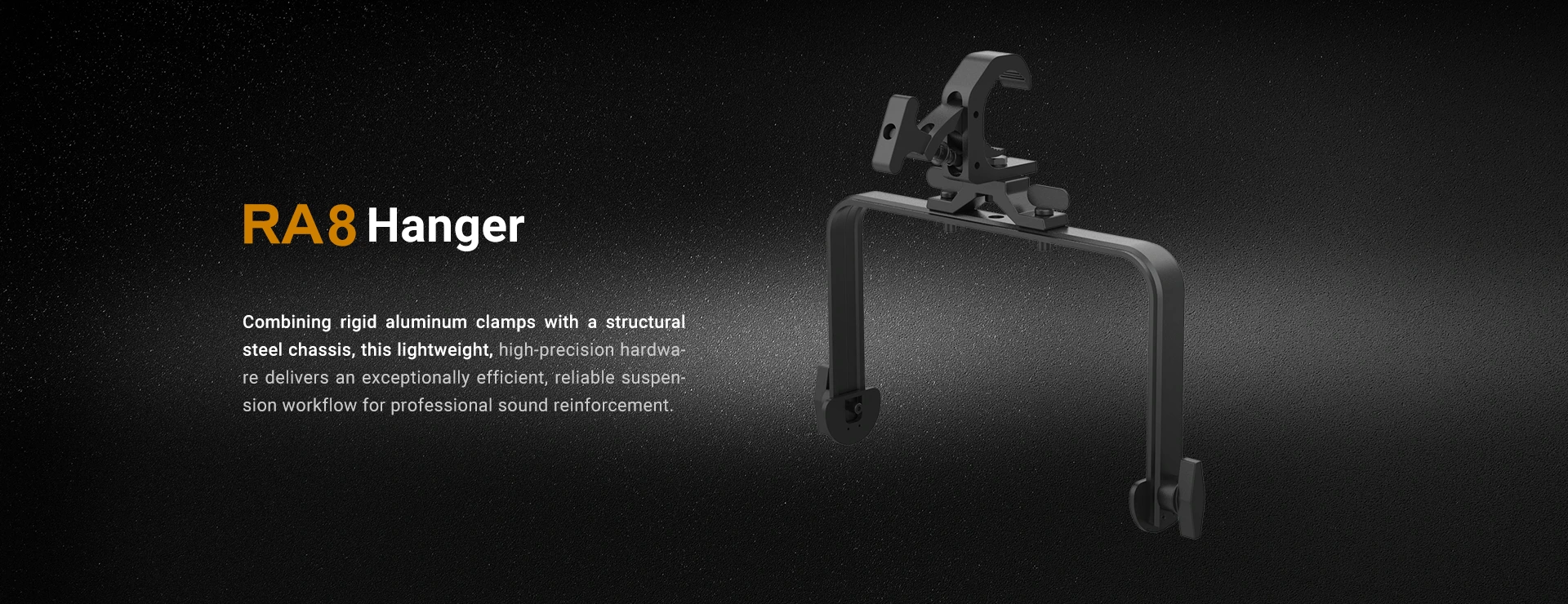

  • RA8 Hanger

Applicable Series

  • RA8

Specifications

  • The maximum load is one RA8

Rigging Material

  • Hardware Composition: Electro-galvanized structural steel plate chassis integrated with high-grade aluminum clamp fixtures.

Surface Treatment

  • Surface Metallurgy: Matte-black baked enamel coating on the main body;
    High-gloss vibratory anodized black plating on the coupling clamps.

Dimensions (W x H x D)

  • 378×236×70 mm
    (14.9"x9.3"x2.8")

Net Weight (N.W.)

  • 4 kg (8.8 lbs)

Product Code

  • 12318400206221

Technical Specification

Product Name

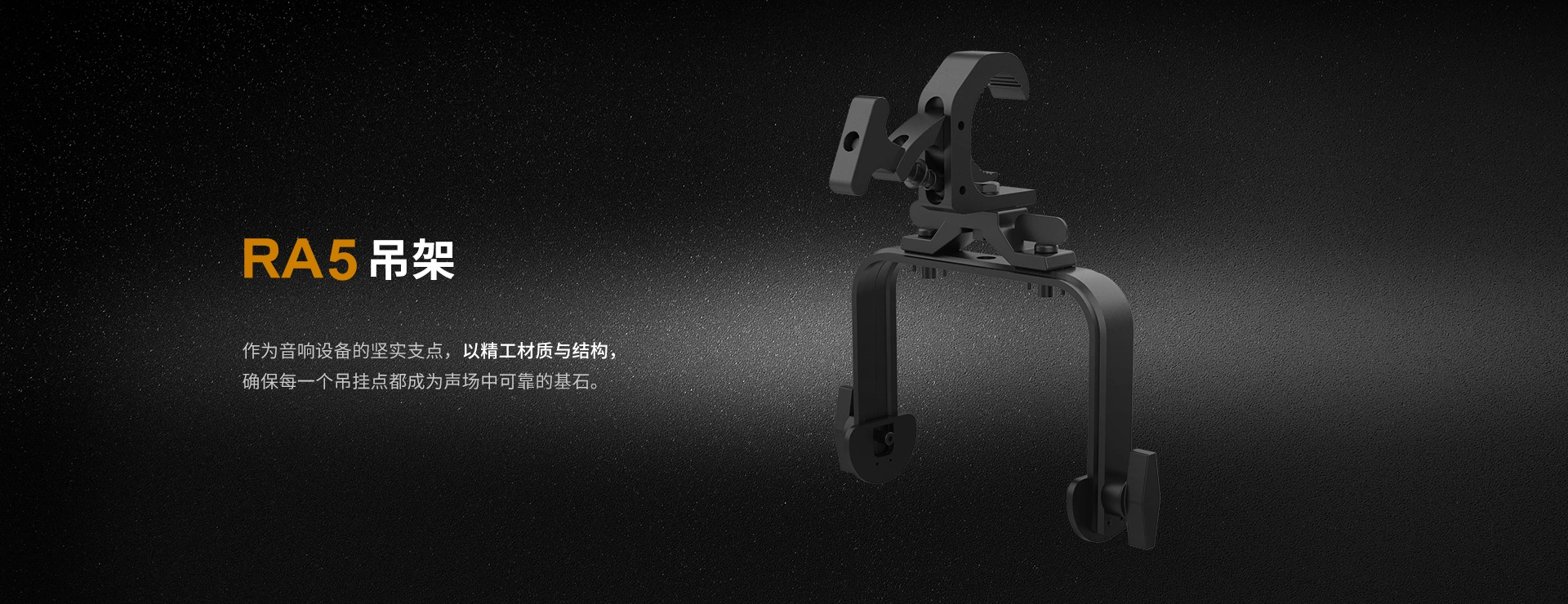

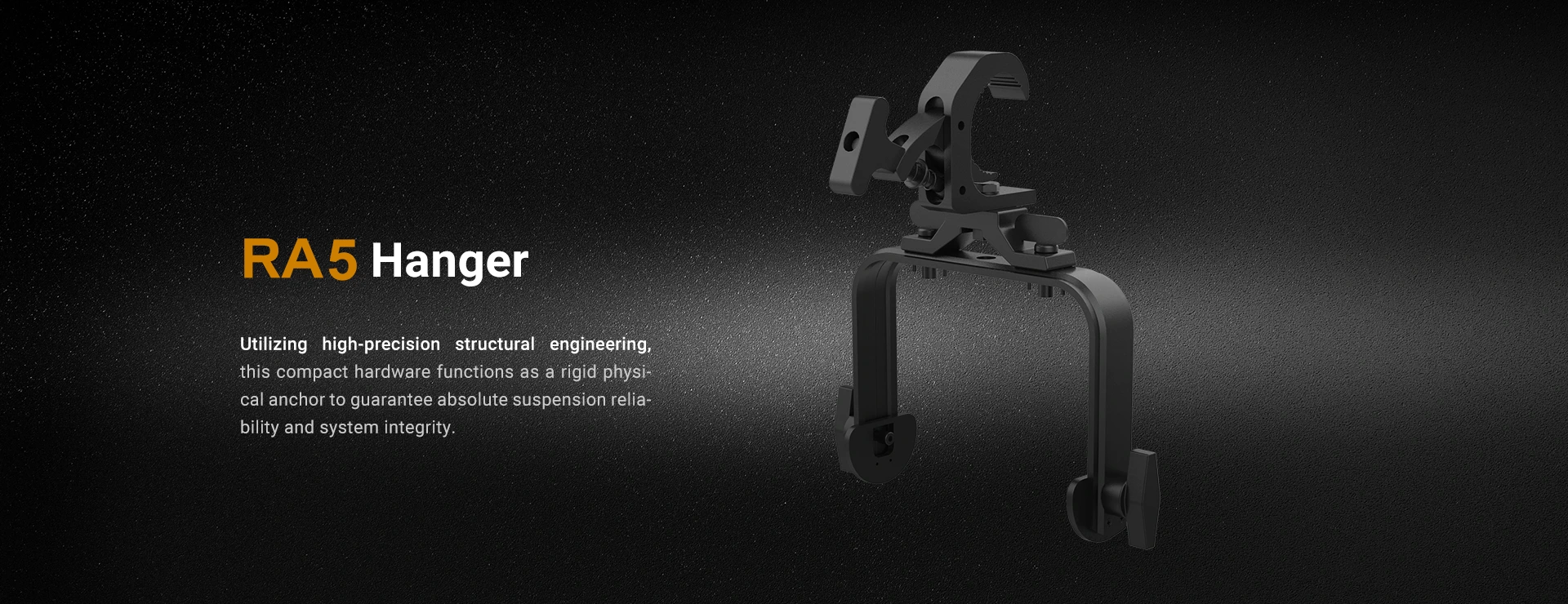

  • RA5 Hanger

Applicable Series

  • RA5

Specifications

  • The maximum load is one RA5

Rigging Material

  • Birch-faced combi-core plywood.

Surface Treatment

  • Black, fine-textured two-component polyurea finish.

Dimensions (W x H x D)

  • 230×174×70 mm
    (9.1"x6.9"x2.8")

Net Weight (N.W.)

  • RA5 Hanger (Omega Bracket Version): 3 kg (6.6 lbs)
    RA5 Hanger (Standard Version): 0.5kg (1.1 lbs)

Product Code

  • RA5 Hanger (Omega Bracket Version): 12318300206220
    RA5 Hanger (Standard Version): 12318300206217
