Overview

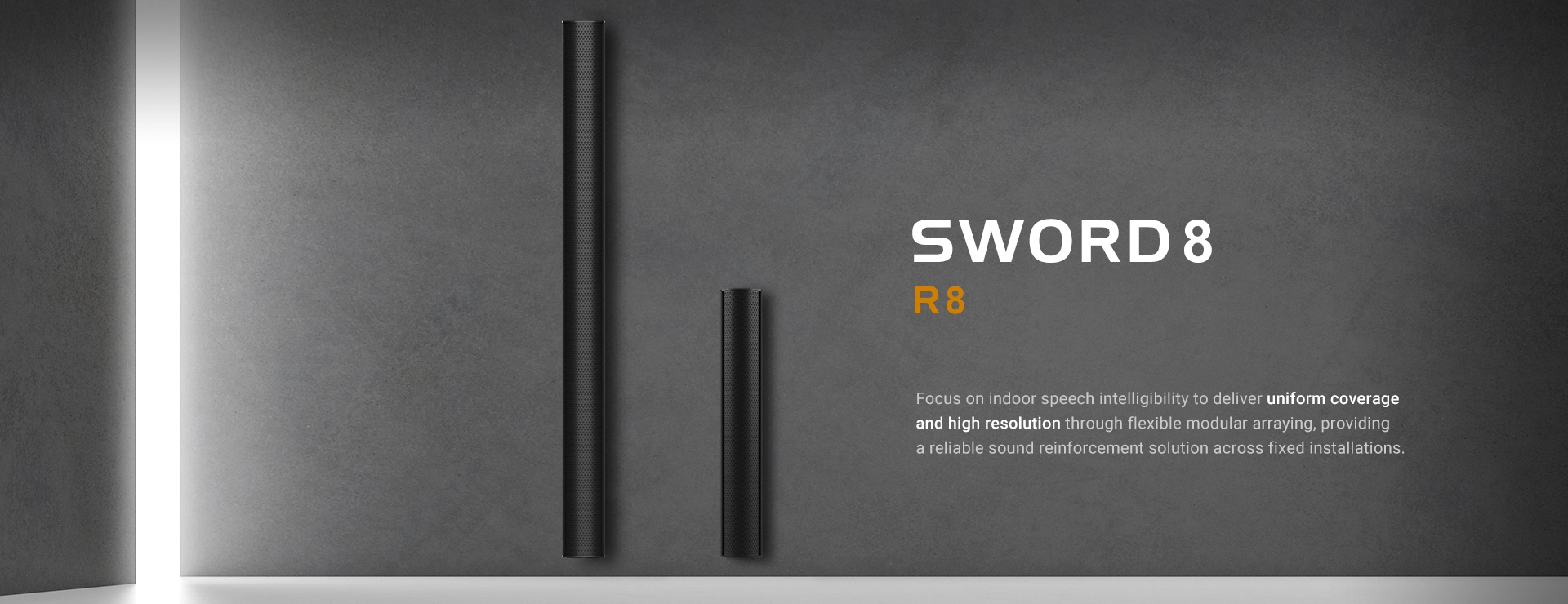

R8 Modular Line Source Loudspeaker | The Precise Acoustic Choice for Indoor Speech Reinforcement
Acoustic Design: Prioritizing Speech Intelligibility, Supporting Full-Range Extension
R8 Optimize the internal electro-acoustic topology specifically for indoor speech reinforcement, drastically boosting speech clarity and STI (Speech Transmission Index) ratings to ensure articulate message delivery for every audience member.
Combine alongside dedicated subwoofers via factory DSP presets to build a high-definition full-range system, expanding musical reproduction bandwidth while preserving superior speech articulation to manage speech-plus-music hybrid application scenarios.
Structural Integrity: All-Metal Chassis, Compact Deployment
R8 Construct the enclosure using an all-metal chassis to ensure high mechanical firmness and impact resistance, adapting to long-term deployment across diverse indoor environments.
Maintain a compact, lightweight physical profile to streamline architectural integration without disrupting venue aesthetics, making it suitable for space-sensitive and aesthetic-demanding projects.
Deployment & Integration: Modular Arraying, Versatile Scenario Coverage
R8 Build vertical line sources using multiple R8 units to scale acoustic output based on venue dimension, gaining precise vertical pattern control to maximize throw distance and SPL uniformity. Combine alongside R16 line source modules to construct complete reinforcement architectures capable of managing complex indoor acoustic spaces.
R8 Apply across medium-to-large indoor spaces including auditoriums, transportation hubs, shopping malls, gymnasiums, and houses of worship. Serve as the ideal reinforcement choice for conferencing, public address, and educational lecturing.
Technical Specification
AES Power Handling
- 108
Program Power
- 216W
Nominal Impedance
- 64 ohm
Transducers
- 8x2.5" neodymium
Acoustic Modes
- Bass-reflex
Pin Assignment
- 1+/1-(INPUT) ,2+/2- (Link)
Nominal Directivity (-6 dB)
- Horizontal: (130°)
- Vertical: (20°)
Connectors
- Screw CONN.(4x2.54mm）
Splay Angles
- Trapezoidal Enclosure, Fixed Angle
Rigging Hardware
- Optional dedicated rigging and mounting hardware
Cabinet Coating
- Heavy-duty magnesium-aluminum alloy chassis with powder-coated finish (Available in Black, Gold, or White)
IP Rating
- IP55
Rigging Points
- M4
Bandwidth
- 180 Hz - 16 kHz
Maximum SPL
- MHF: 123 dB
Sensitivity (1 W / 1 m)
- 87 dB
Dimensions (W x H x D) mm
-
75x583x132 mm
(3.0"x23.0x5.2")
Net Weight
- 3 kg (6.6 lbs)
Product Code
- 12320100207478
Download
| Download | |||
|
R8 Directivity / Frequency Response
updated: 2026-05-08
|
412.93 KB | ||
|
R8 Suggested Configuration
updated: 2026-08-12
|
51.10 KB | ||
|
R8 2D CAD Drawing
updated: 2026-05-11
|
954.98 KB | ||
|
R8 2D CAD Drawing
updated: 2026-05-11
|
rar | 975.19 KB | |
|
R8 3D CAD Model
updated: 2026-05-12
|
rar | 287.02 KB | |
|
R8 SketchUp
updated: 2026-05-12
|
rar | 295.22 KB | |
|
Product Warranty Terms & Conditions
updated: 2026-08-15
|
130.77 KB | ||
|
R8 Declaration of Conformity
updated: 2026-03-11
|
72.77 KB | ||
|
Product Weather Protection
updated: 2025-12-27
|
400.75 KB |
