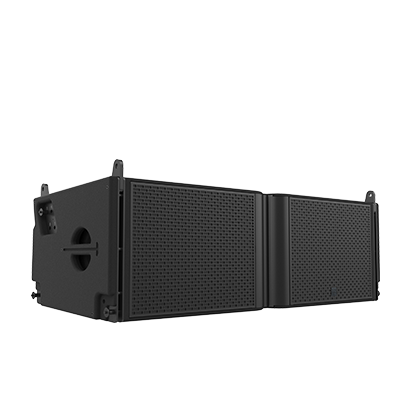

RAFALE15
RL15
Large Line Array Speaker
Dual 15" 3-way enclosure, Bi-amplified (passive MF/HF crossover)
Dual 15" 3-way enclosure, Bi-amplified (passive MF/HF crossover)
Bandwidth (-10dB) 35 Hz - 20 kHz
Maximum SPL 149 dB
Transducers 2 x 15"
1 x 10"
3 x 3"
1 x 10"
3 x 3"
Directivity H 70° 90° 110°
V 5°
V 5°
Weight 98 kg (216.1 lbs)

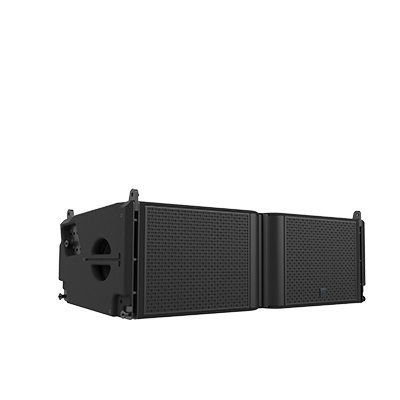

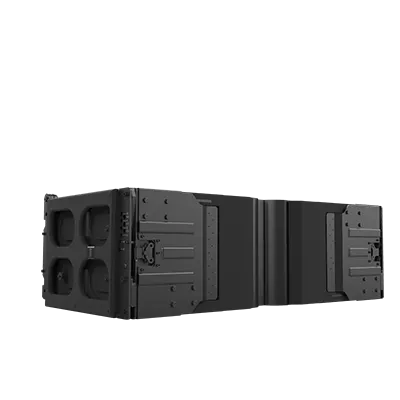

RAFALE1
RL1
Large Line Array Speaker
Dual 12" 3-way active enclosure, quad-amplified (discrete dual LF)
Dual 12" 3-way active enclosure, quad-amplified (discrete dual LF)
Bandwidth (-10 dB) 35 Hz - 20 kHz
Maximum SPL 147 dB
Transducers 2 x 12"
4 x 6.5"
2 x 3"
4 x 6.5"
2 x 3"
Directivity H 90° 110°
V 5°
V 5°
Weight 102 kg (224.9 lbs)

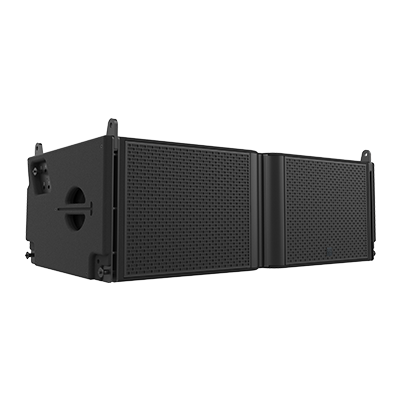

RAFALE2
RL2
Large Line Array Speaker
Dual 12" 3-way enclosure, Bi-amplified (passive MF/HF crossover)
Dual 12" 3-way enclosure, Bi-amplified (passive MF/HF crossover)
Bandwidth (-10 dB) 40 Hz - 20 kHz
Maximum SPL 147 dB
Transducers 2 x 12"
1 x 10"
2 x 3"
1 x 10"
2 x 3"
Directivity H 70° 90° 110°
V 8°
V 8°
Weight 71 kg (156.5 lbs)

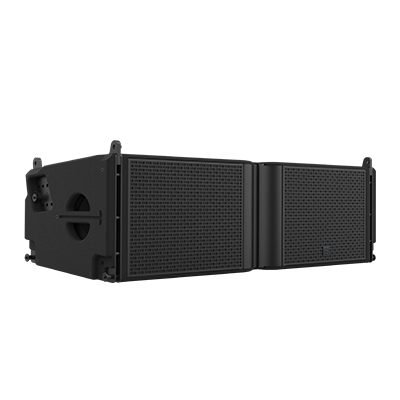

RAFALE3
RL3
Medium Line Array Speaker
Dual 10" 3-way enclosure, Bi-amplified (passive MF/HF crossover)
Dual 10" 3-way enclosure, Bi-amplified (passive MF/HF crossover)
Bandwidth (-5 dB) 55 Hz - 20 kHz
Maximum SPL 142 dB
Transducers 2 x 10"
1 x 8"
2 x 2"
1 x 8"
2 x 2"
Directivity H 90° 110°
V 10°
V 10°
Weight 44 kg (97 lbs)

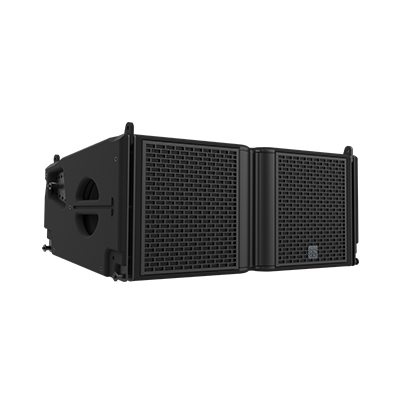

RAFALE4
RL4
Compact Line Array Speaker
Dual 8" 2-way passive enclosure (built-in crossover)
Dual 8" 2-way passive enclosure (built-in crossover)
Bandwidth (-5 dB) 60 Hz - 20 kHz
Maximum SPL 139 dB
Transducers 2 x 8"
1 x 3"
1 x 3"
Directivity H 90° 110°
V 10°
V 10°
Weight 20 kg (44.1 lbs)
