SW8
Network Audio Distributor
Power Input and Output 100-240VAC, 50/60 Hz
Power Consumption ≤7.0W (Static Power)
≤12.0W (Full Load Power)
≤12.0W (Full Load Power)
Operating Temperature -40°C ~ 70°C
Switch Capacity 336 Gbps
Net Weight 2.7 kg (6 lbs)
SW10
Network Audio Distributor
Power Input and Output 100-240VAC, 50/60 Hz
Power Consumption ≤7.0W (Static Power)
≤12.0W (Full Load Power)
≤12.0W (Full Load Power)
Operating Temperature -40°C ~ 70°C
Switch Capacity 336 Gbps
Net Weight 2.8 kg (6.2 lbs)
S1
Signal Distributor
Dimensions
(W x H x D) mm 483x101x44
(19.0" x 4.0" x 1.7")
(W x H x D) mm 483x101x44
(19.0" x 4.0" x 1.7")
A1
Power and signal distribution center
Power Supply (EU) 3/N/PE 380-415V / 220-240V ~ 50Hz 32A per phase male connector
AUX Output (EU) 220VAC / 110VAC 50Hz/60Hz Max: 4 A
Protection 10 A Type C circuit breaker (AUX L3)
Loudspeaker Outputs 2 x 24-pin multipin connectors 4 x NL8 connectors
Amplifier Connection 12 x NL4 pigtails for amplifier channel connection
A2
Power and signal distribution center
Power Supply (EU) 3/N/PE 380-415V / 220-240V ~ 50Hz 32A per phase male connector
AUX Output (EU) 220VAC / 110VAC 50Hz/60Hz Max: 4A
Protection 10 A Type C circuit breaker (AUX L3)
Loudspeaker Outputs 1 x 24-pin multipin connector
2 x NL8 connectors
2 x NL4 connectors
2 x NL8 connectors
2 x NL4 connectors
Amplifier Connection 6 x NL4 pigtails for amplifier channel connection

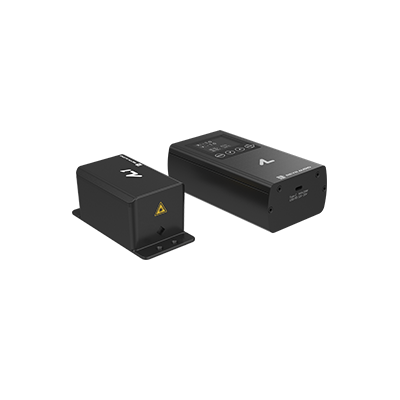

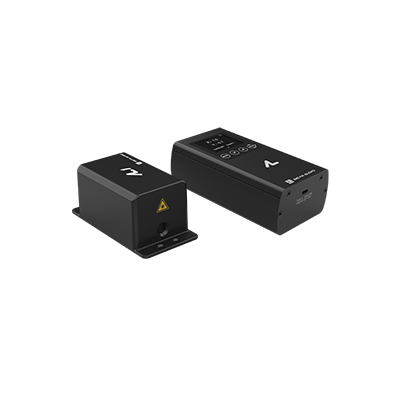

AL AL1
AL Intelligent Management Terminal AL1 Sensor
Laser Type Class 3B Green Visible Laser
Projection Distance 250 m
Capacity 2,200 mAh
Temperature Awareness Built-in Temp and Humidity Sensor
Weight 0.42 kg (AL)
0.44 kg (AL1)
0.44 kg (AL1)

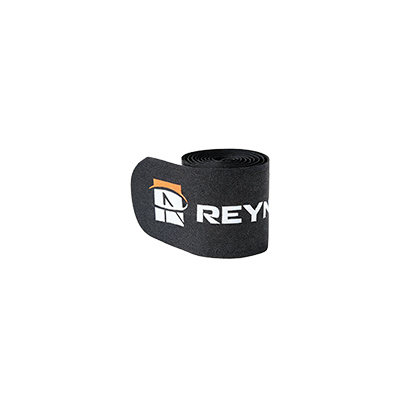

Cable Tie
Material Black Nylon (Durable & Tear Resistant)
Type Cable Strap
Size (Small) 420 x 30 mm
(16.5" x 1.2")
(16.5" x 1.2")
Size (Large) 1000 x 50 mm
(39.4" x 2.0")
(39.4" x 2.0")
