Technical Specification

Product Name

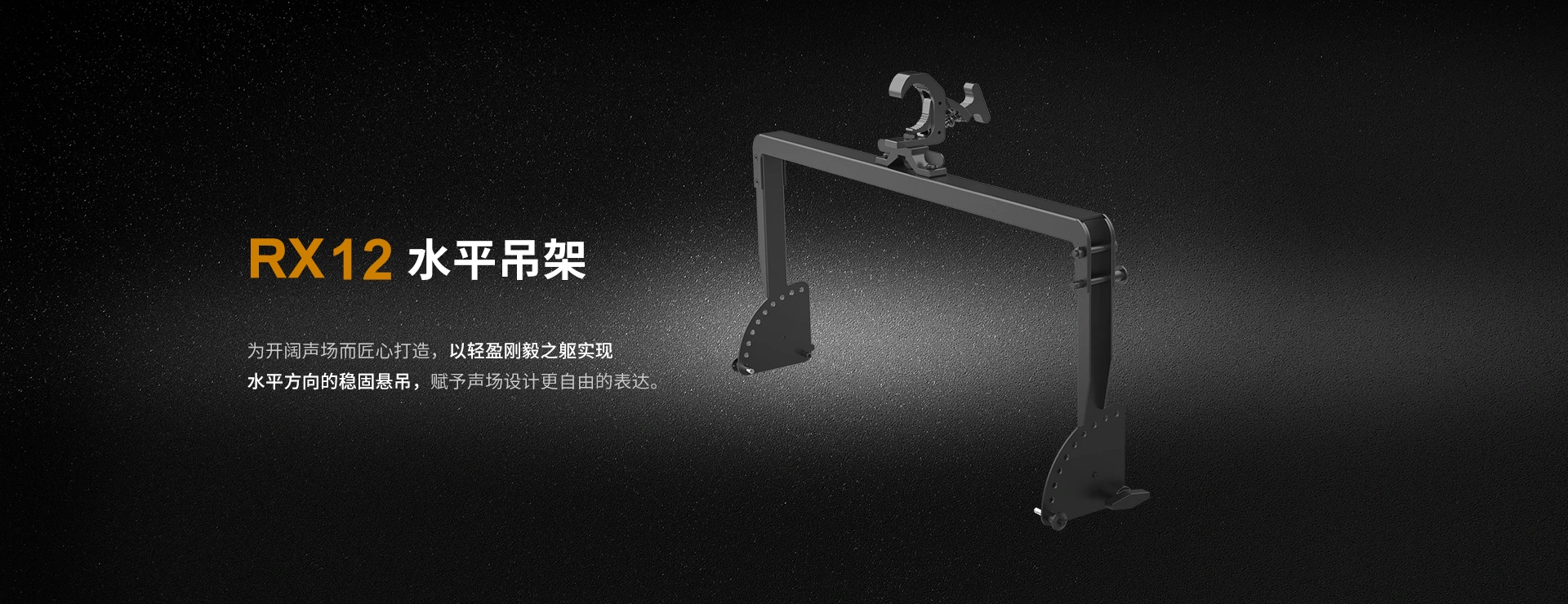

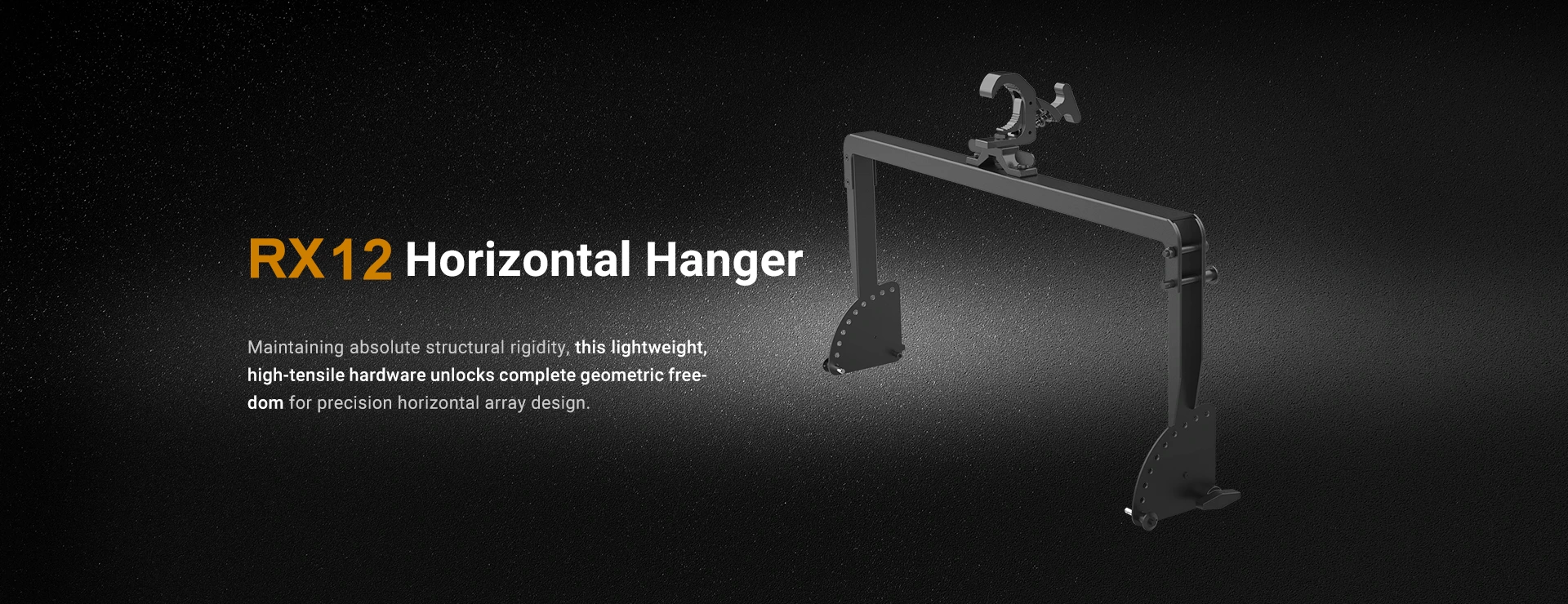

  • RX12 Horizontal Hanger

Applicable Series

  • RX12

Specifications

  • The maximum load is one RX12

Rigging Material

  • Hardware Composition: Structural hot-rolled steel plate chassis integrated with high-grade aluminum clamp fixtures.

Surface Treatment

  • Surface Metallurgy: Matte-black baked enamel coating on the main body;
    High-gloss vibratory anodized black plating on the coupling clamps.

Dimensions (W x H x D)

  • 816×531×139 mm
    (32.1"x20.9"x5.5")

Net Weight (N.W.)

  • 4 kg (8.8 lbs)

Product Code

  • 63584217

Technical Specification

Product Name

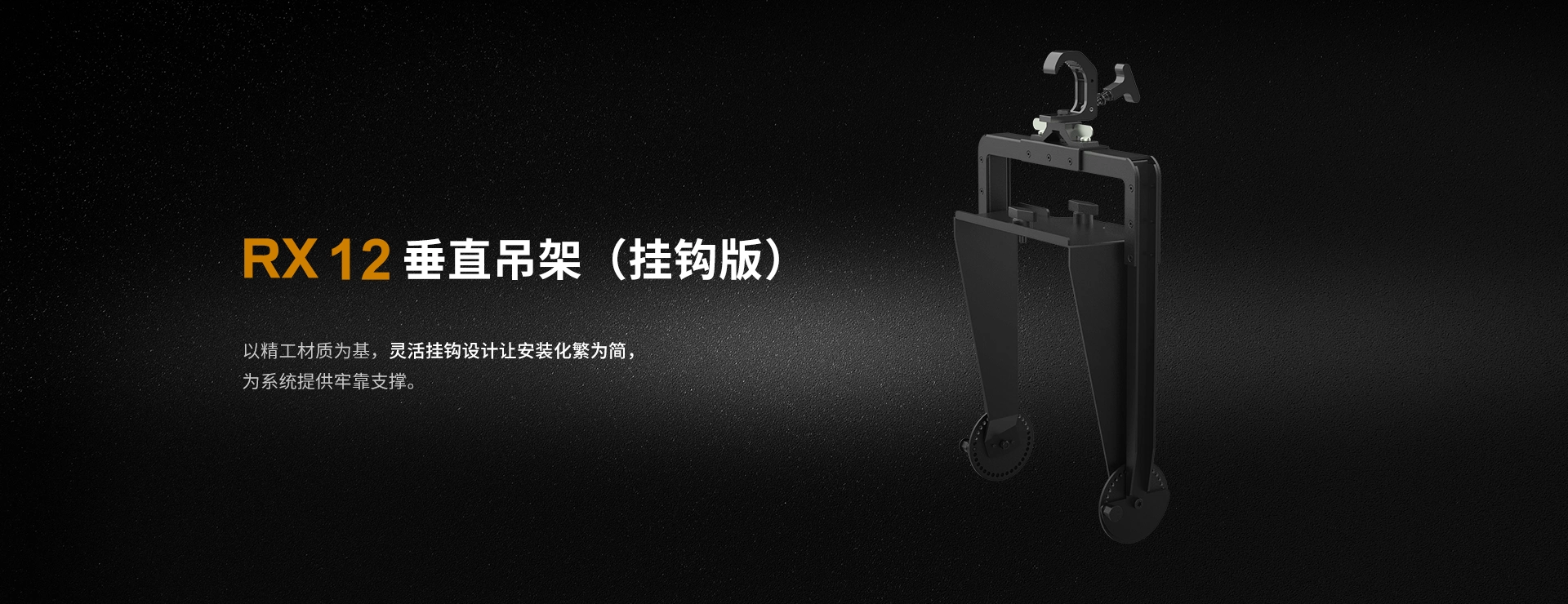

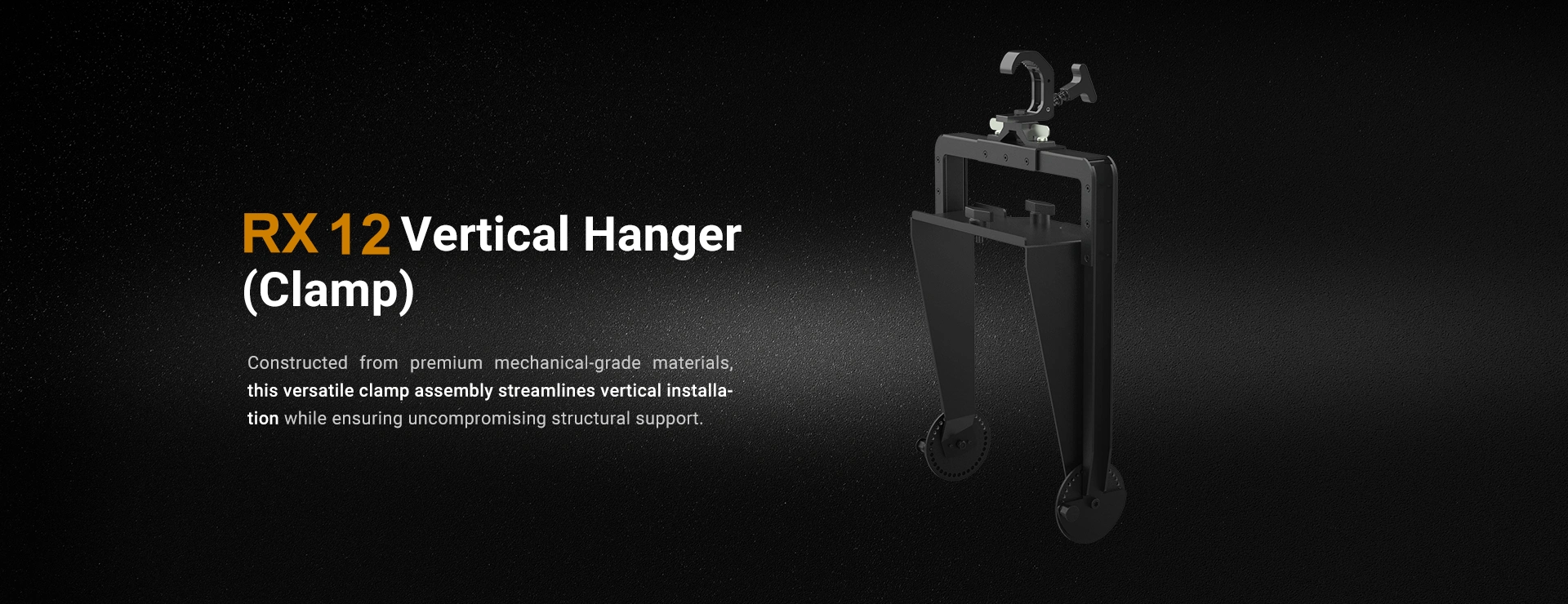

  • RX12 Vertical Hanger (Clamp)

Applicable Series

  • RX12

Specifications

  • The maximum load is one RX12

Rigging Material

  • Hardware Composition: Structural hot-rolled steel plate chassis integrated with high-grade aluminum clamp fixtures.

Surface Treatment

  • Surface Metallurgy: Matte-black baked enamel coating on the main body;
    High-gloss vibratory anodized black plating on the coupling clamps.

Dimensions (W x H x D)

  • 403×569×159 mm
    (15.9"x22.4"x6.3")

Net Weight (N.W.)

  • 9 kg (19.8 lbs)

Product Code

  • 63584215

Technical Specification

Product Name

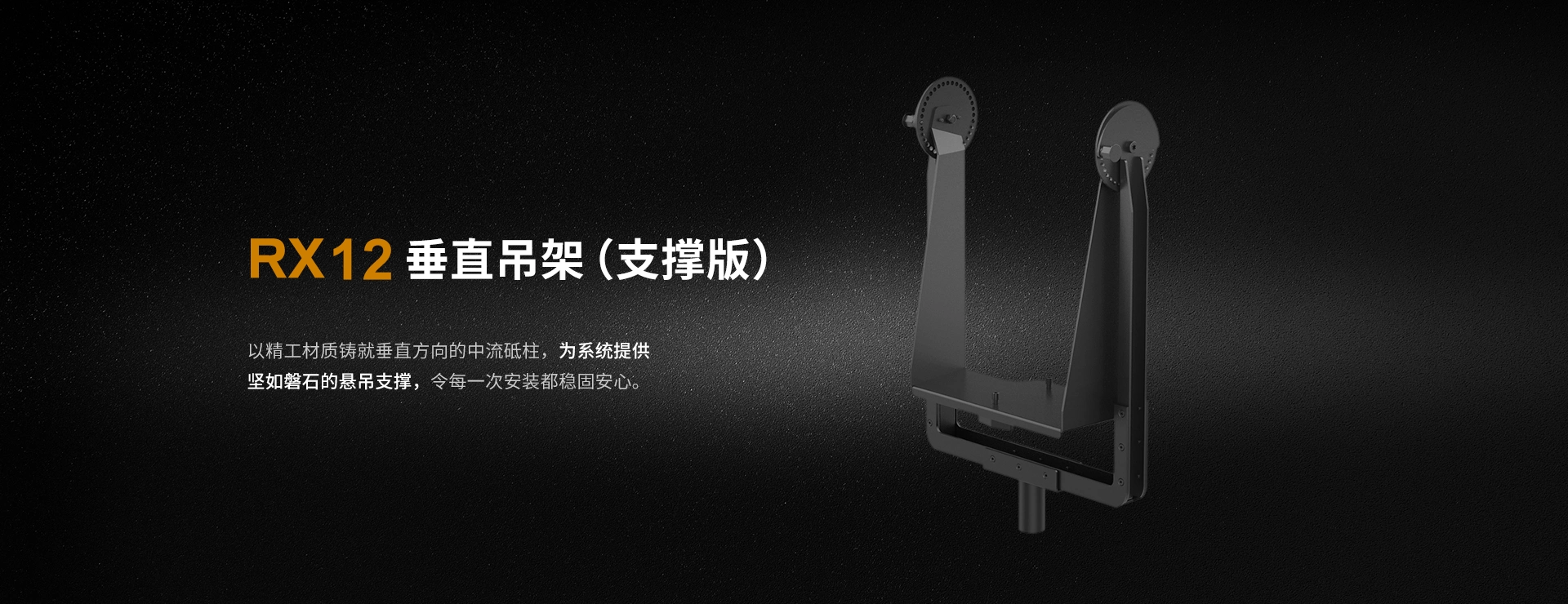

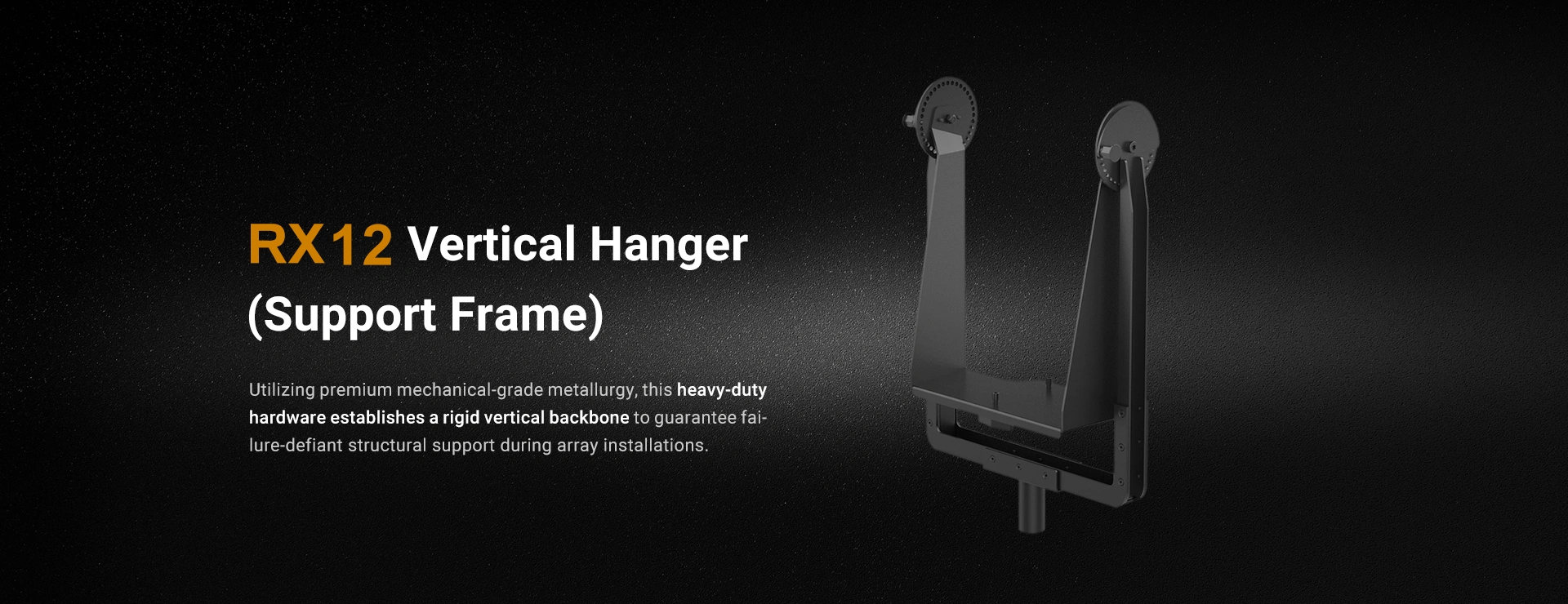

  • RX12 Vertical Hanger (Support frame)

Applicable Series

  • RX12

Specifications

  • The maximum load is one RX12

Rigging Material

  • Hardware Composition: Structural hot-rolled steel plate chassis integrated with high-grade aluminum clamp fixtures.

Surface Treatment

  • Surface Metallurgy: Matte-black baked enamel coating on the main body;
    High-gloss vibratory anodized black plating on the coupling clamps.

Dimensions (W x H x D)

  • 403×652×159 mm
    (15.9"x25.7"x6.3")

Net Weight (N.W.)

  • 9 kg (19.8 lbs)

Product Code

  • 63584298

Technical Specification

Product Name

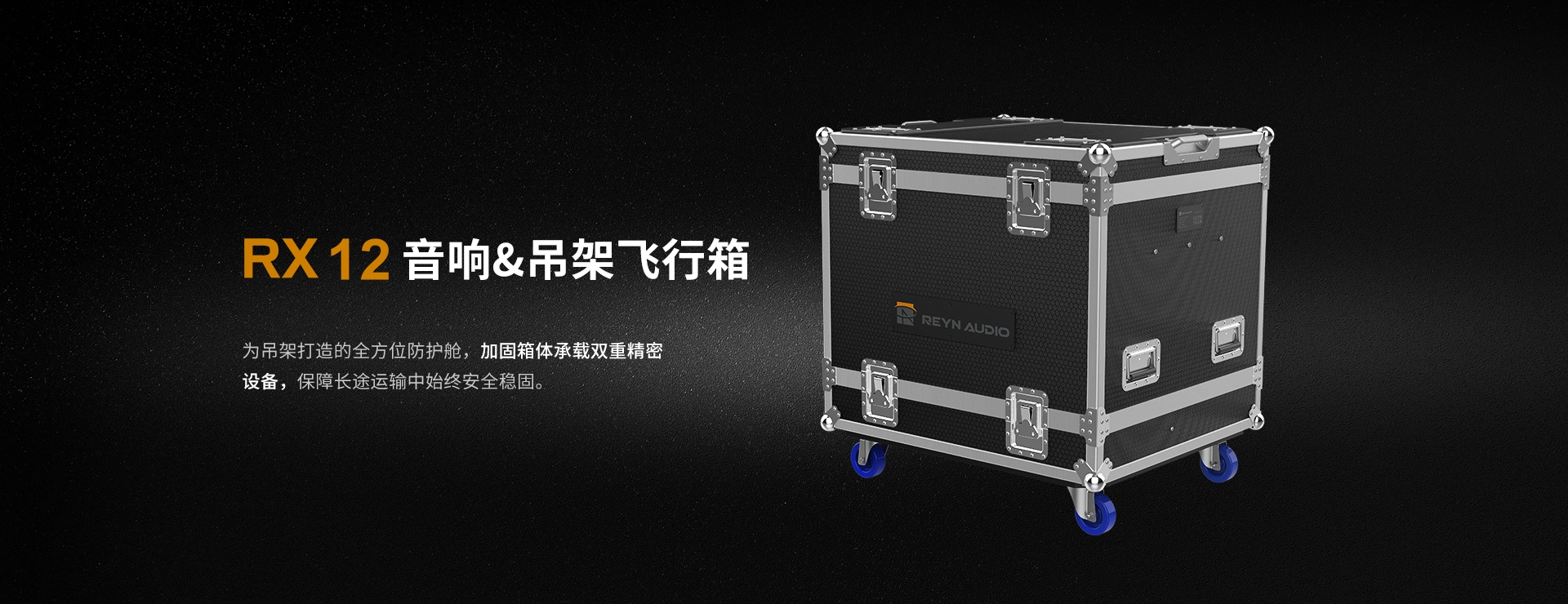

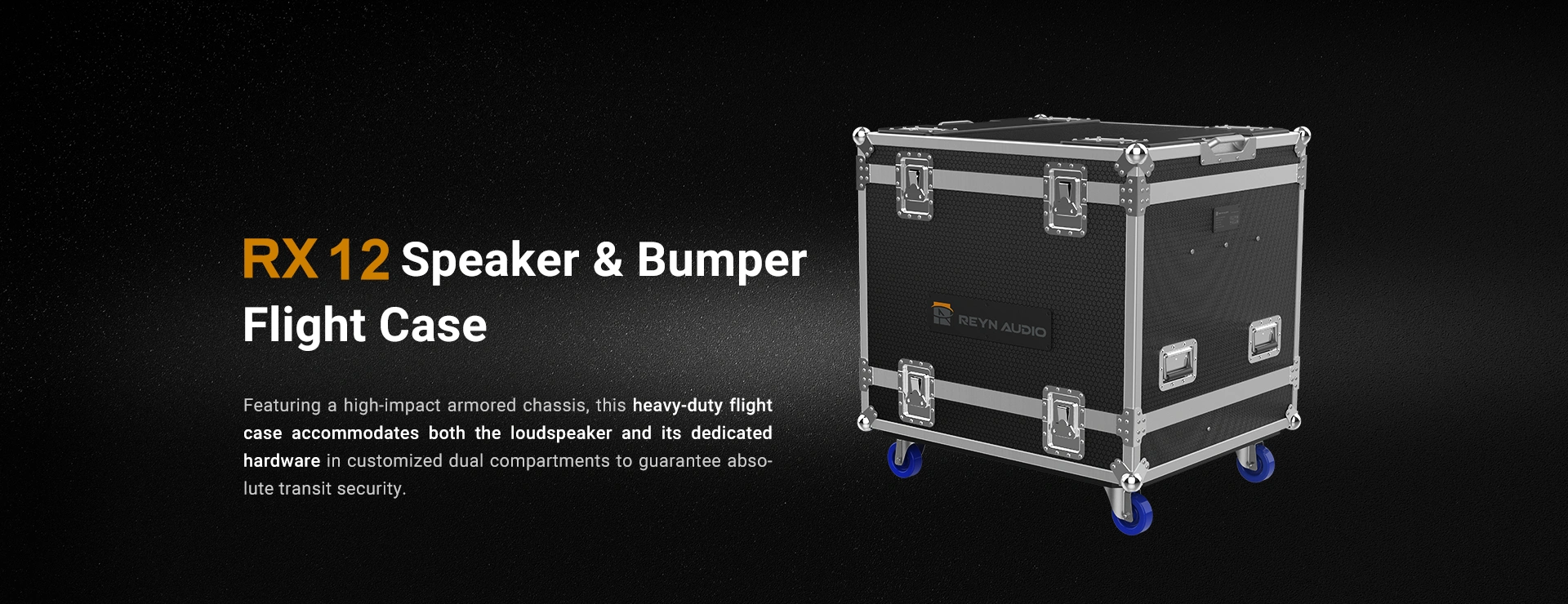

  • RX12 Speaker & Hanger Flight Case

Applicable Series

  • RX12

Specifications

  • 4 pieces RX12 and 2 pieces RX12 hanger

Dimensions (W x H x D)

  • 900x780x950 mm
    (35.4"x30.7"x37.4")

Net Weight (N.W.)

  • 61 kg (134.5 lbs)

Gross Weight (G.W.)

  • 140 kg (308.6 lbs)

Product Code

  • 3205028064

Technical Specification

Product Name

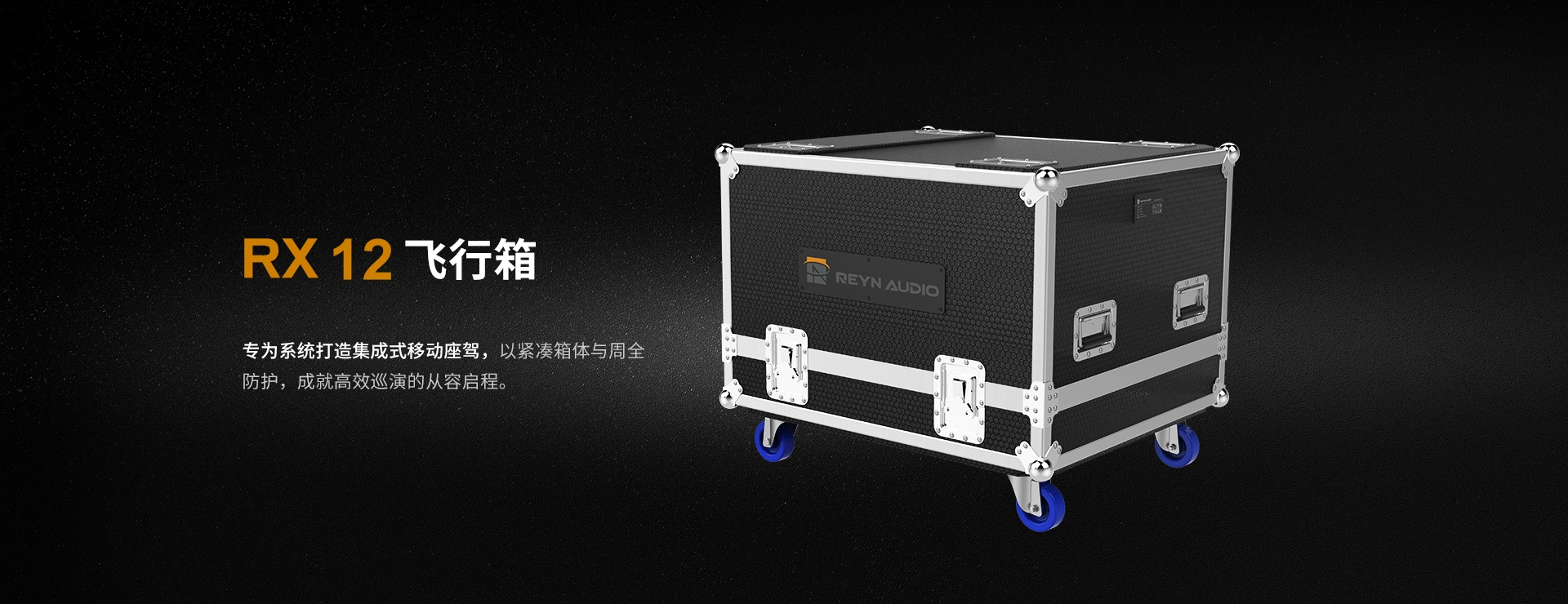

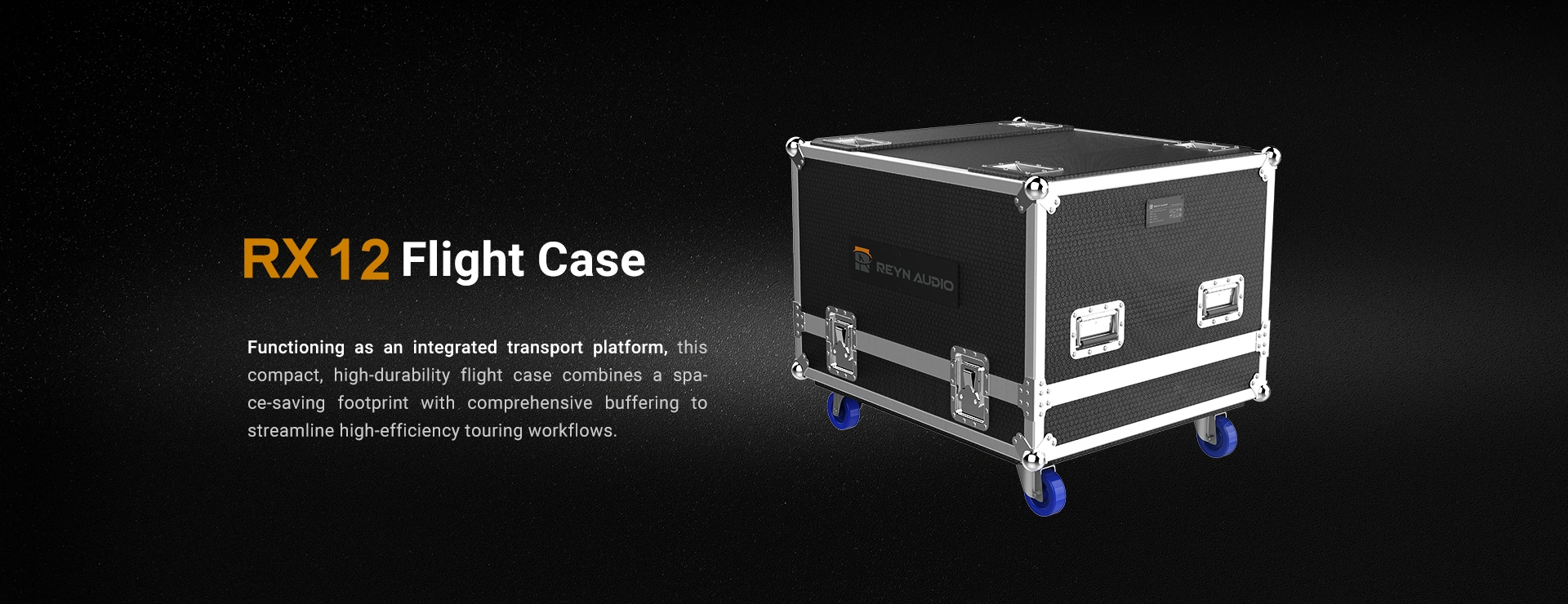

  • RX12 Flight Case

Applicable Series

  • RX12

Specifications

  • 2 in 1

Dimensions (W x H x D)

  • 900x780x750 mm
    (35.4"x30.7"x29.5")

Net Weight (N.W.)

  • 46 kg （101.4 lbs）

Gross Weight (G.W.)

  • 122 kg (269.0 lbs)

Product Code

  • 3205028063
