Technical Specification

Product Name

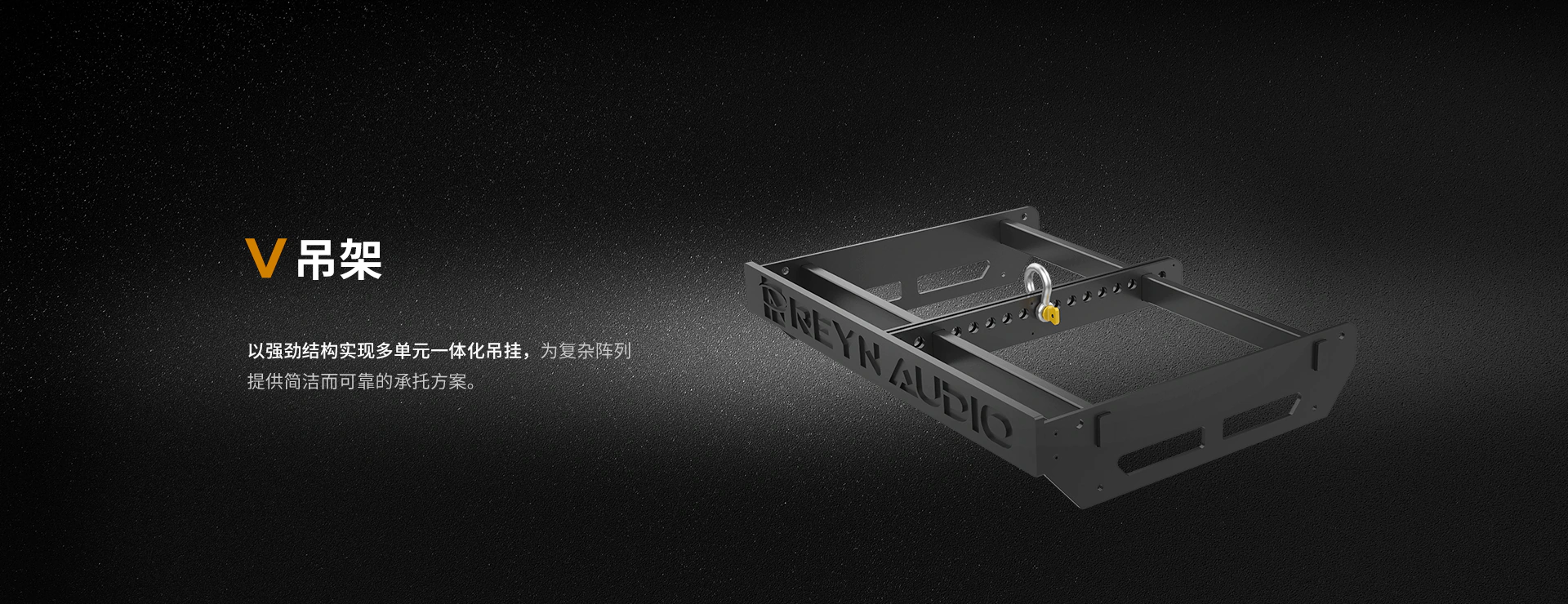

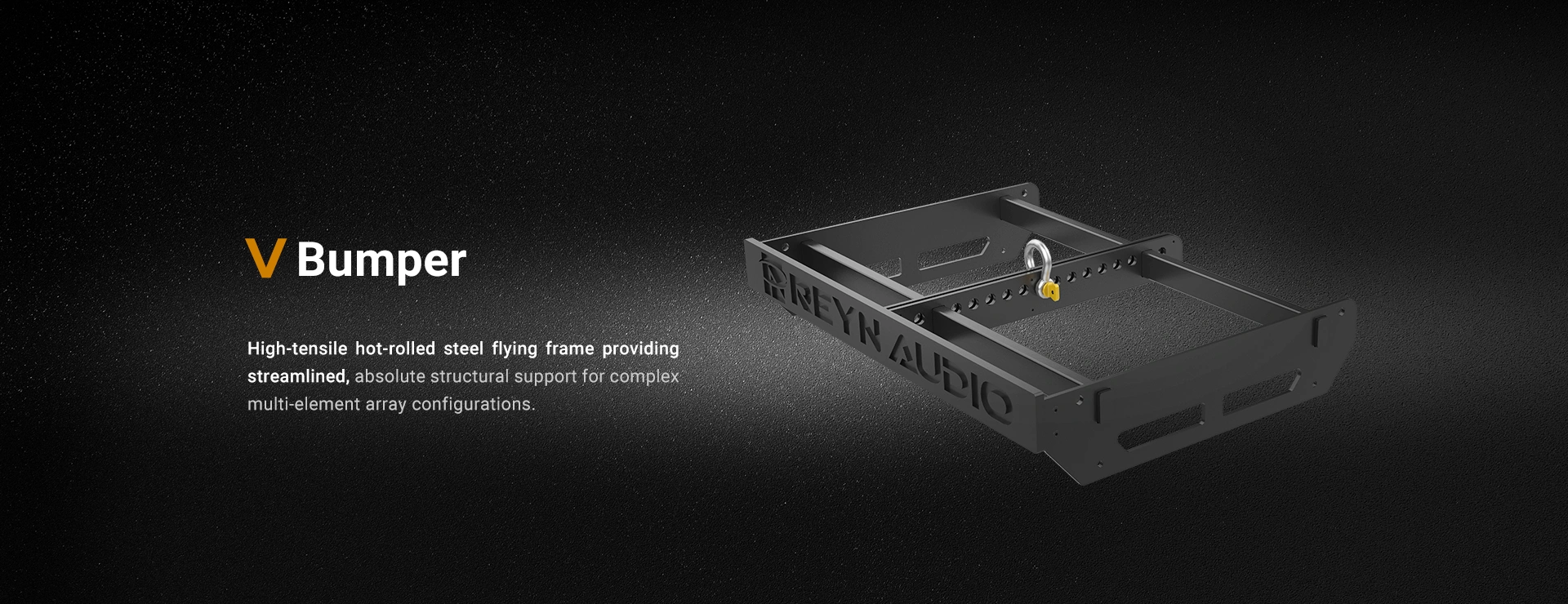

  • V Bumper

Applicable Series

  • V10、V30

Specifications

  • The maximum load is four V10/ V30

Rigging Material

  • Main Structural: hot-rolled steel.

Surface Treatment

  • Black matte-textured powder coating with 10-year outdoor rating.

Dimensions (W x H x D)

  • 740×520×137 mm
    （29.1"x20.5"x5.4")

Net Weight (N.W.)

  • 12 kg（26.5 lbs）

Accessories

  • 3/4Shackle：3002001924

Product Code

  • 12322300207864

Technical Specification

Product Name

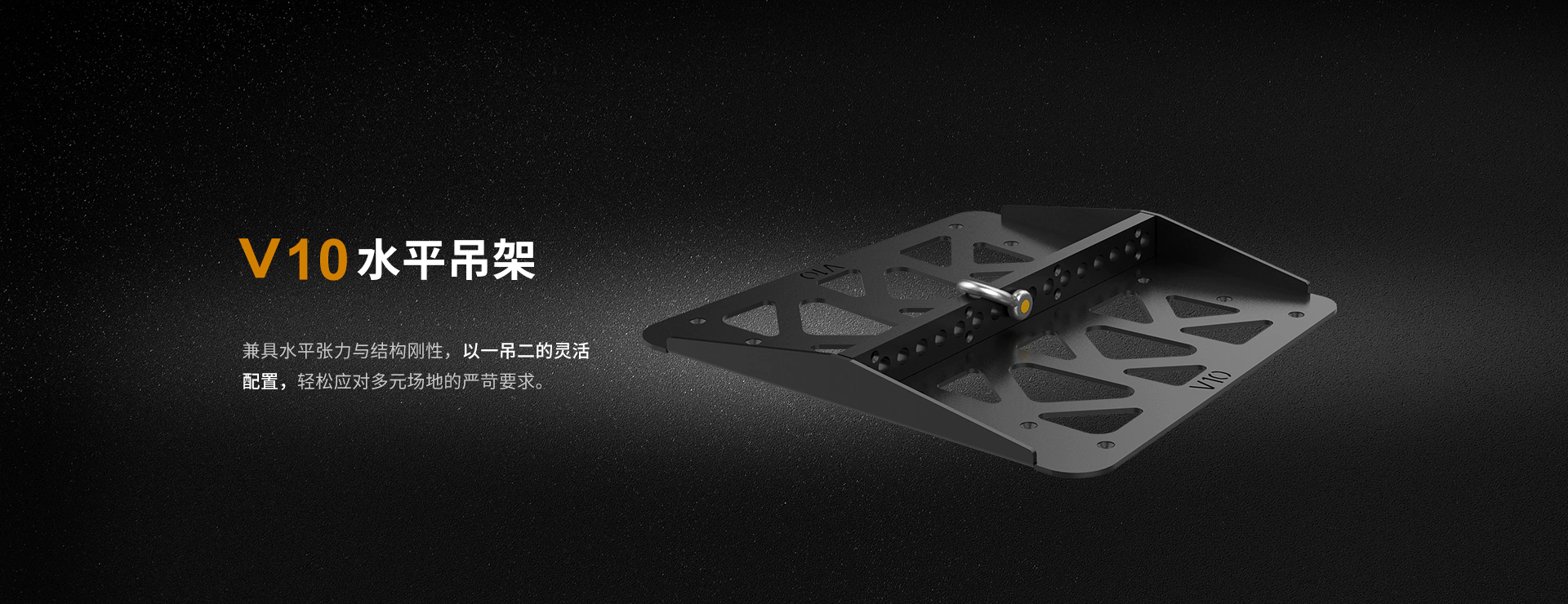

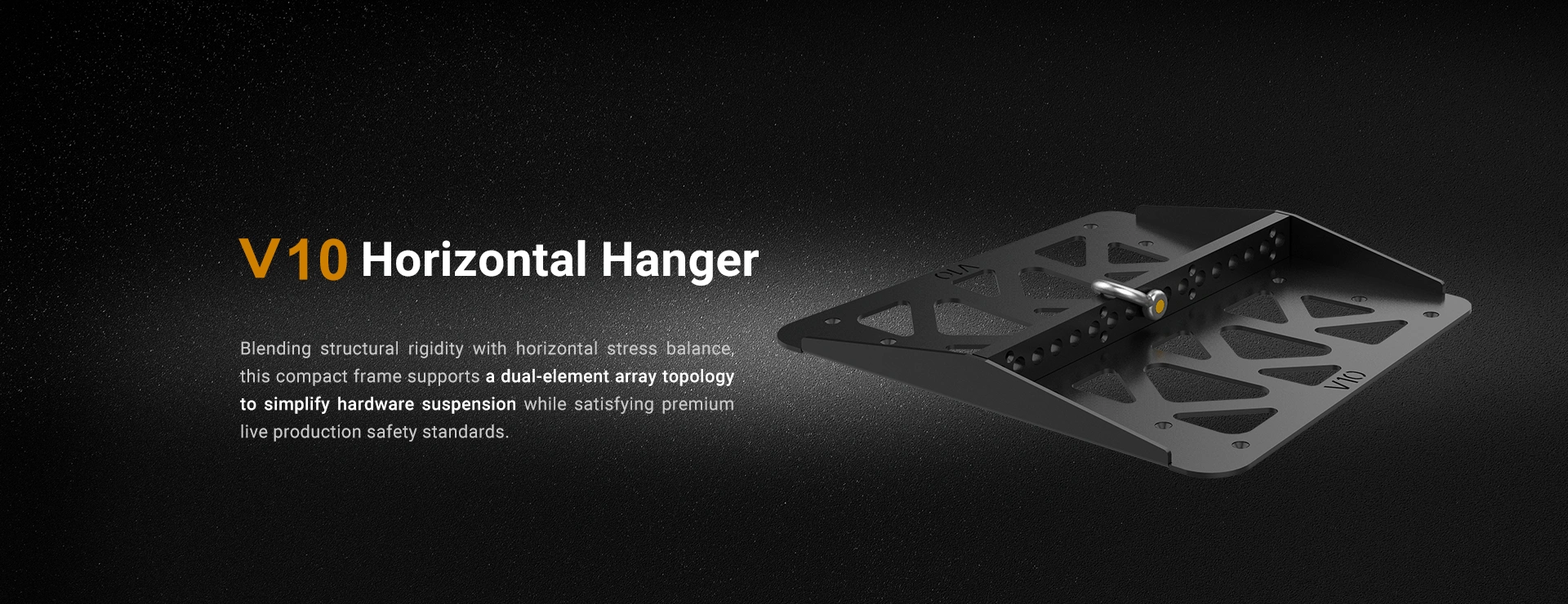

  • V10 Horizontal Hanger

Applicable Series

  • V10

Specifications

  • The maximum load is two V10

Rigging Material

  • Main Structural: hot-rolled steel.

Surface Treatment

  • Black matte-textured powder coating.

Dimensions (W x H x D)

  • 553×490×65 mm
    (21.8"x19.3"x2.6")

Net Weight (N.W.)

  • 10 kg (22 lbs)

Product Code

  • 12322300208080

Technical Specification

Product Name

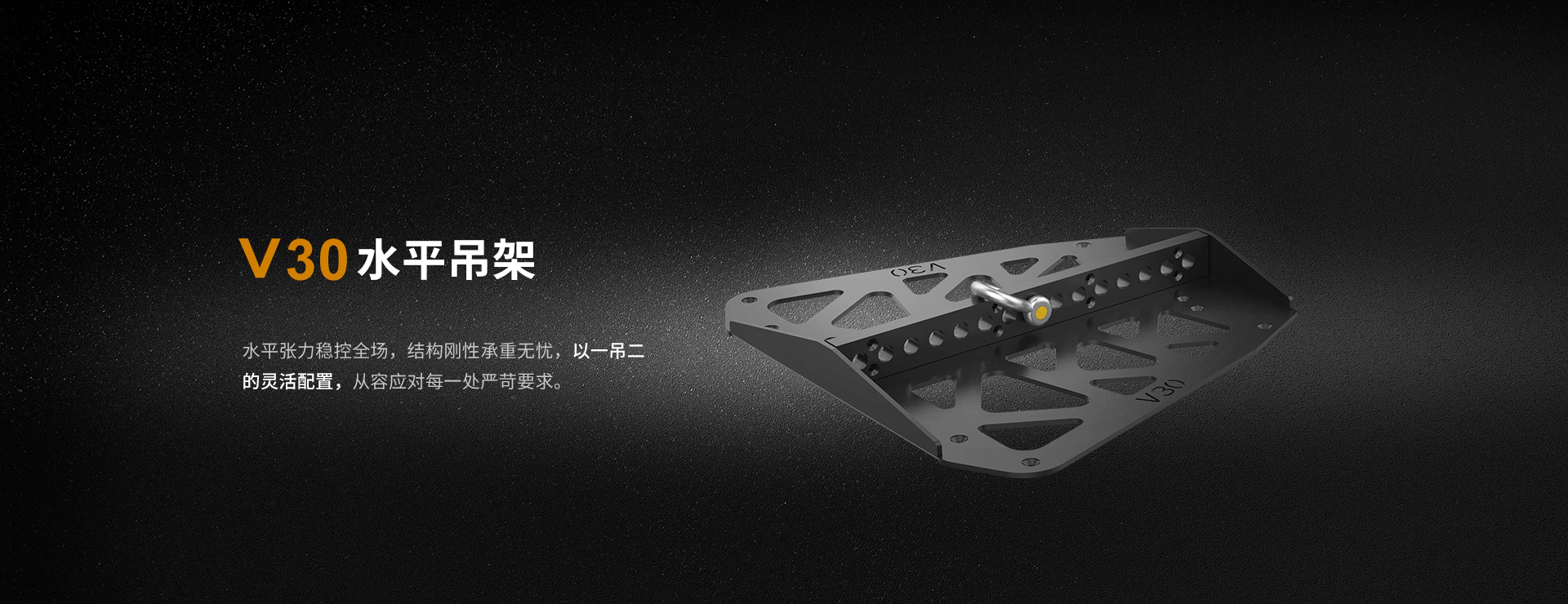

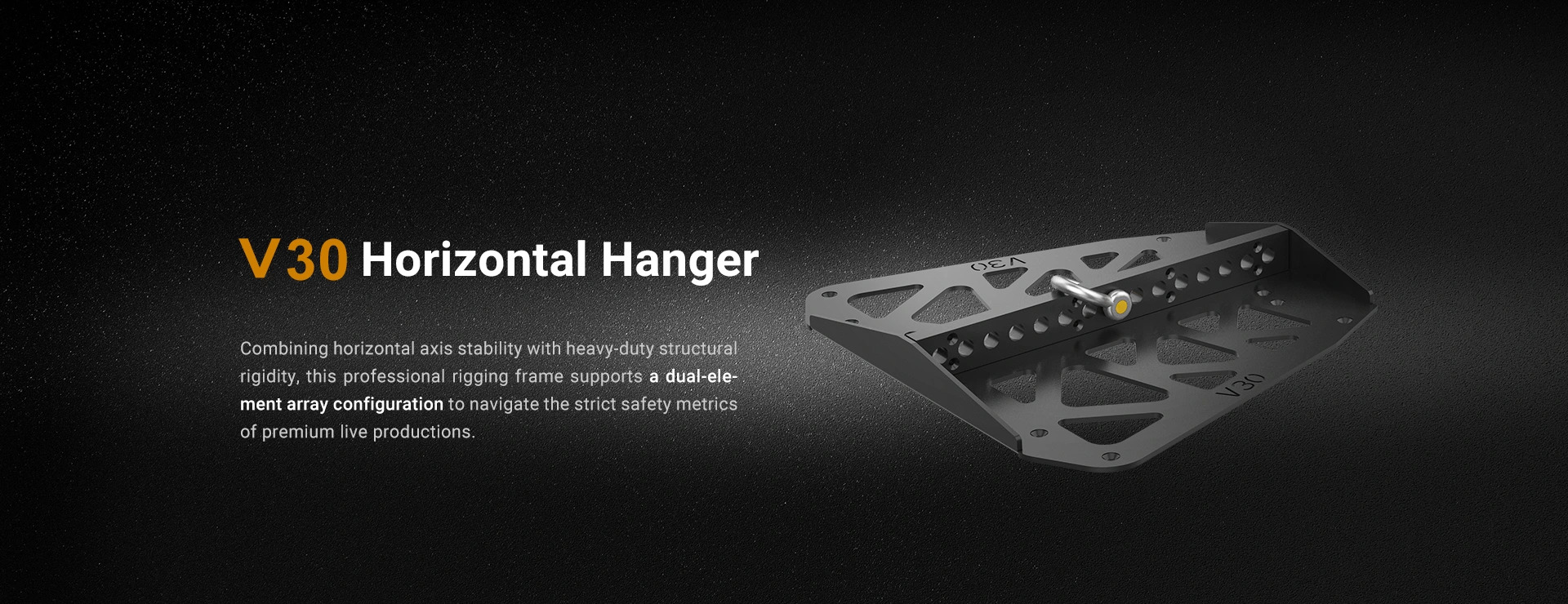

  • V30 Horizontal Hanger

Applicable Series

  • V30

Specifications

  • The maximum load is two V10

Rigging Material

  • Main Structural: hot-rolled steel.

Surface Treatment

  • Black matte-textured powder coating.

Dimensions (W x H x D)

  • 523×457×65mm

Net Weight (N.W.)

  • 8 kg（17.6lbs）

Product Code

  • 12322400208081

Technical Specification

Product Name

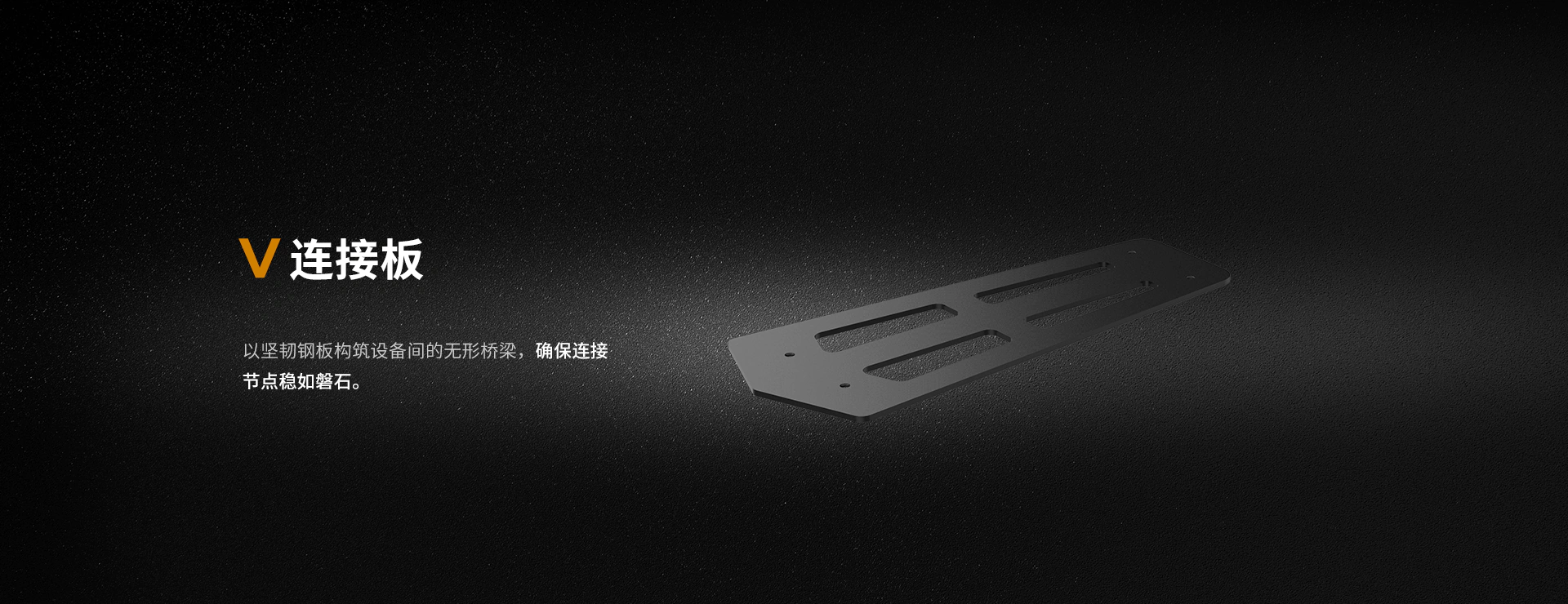

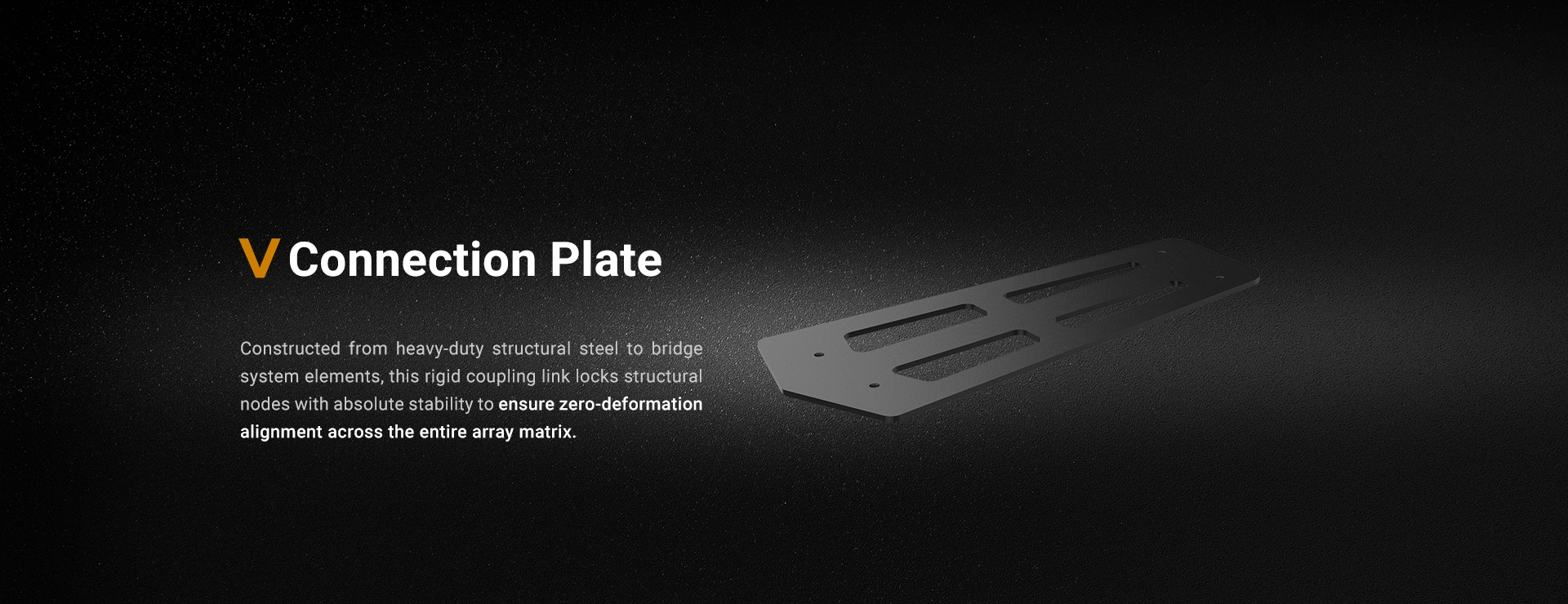

  • V Connection Plate

Applicable Series

  • V10、V30

Specifications

  • Max load: 2x splay plates linking two V10/V30

Rigging Material

  • Main Structural: hot-rolled steel.

Surface Treatment

  • Black matte-textured powder coating.

Dimensions (W x H x D)

  • 459×179×5 mm
    (18.0"x7.0"x0.2")

Net Weight (N.W.)

  • 2 kg（4.4 lbs）

Product Code

  • 12322300208080
