S series 1-to-2 speaker signal cable | Professional Audio Output Expansion

Designed as a universal audio connectivity solution, the S Series seamlessly adapts to mobile touring and multi-scenario applications, delivering reliable signal integrity and dependable support for system expansion.

System Integration: Universal Compatibility & Streamlined Workflow

  • Utilize industry-standard XLR connectors to ensure broad compatibility across all analog professional audio equipment.

  • By expanding system output terminals without requiring extra signal sources.

  • This cable drastically simplifies setup workflows and enables rapid multi-channel link deployment.

Signal Preservation: Pristine Transmission & Braided Shielding

  • Minimize signal attenuation along the transmission path to preserve absolute audio transparency and dynamic accuracy.

  • Featuring an internal high-density braided shield, the cable precision-suppresses low-frequency electromagnetic interference, eliminating background noise floor and stray hum.

Touring Durability: Heavy-Duty Components & IP40 Protection

  • Combine industry-proven NEUTRIK connectors with EUROCABLE high-flex jacket architecture.

  • Achieving outstanding mechanical durability and effortless coiling.

  • Equipped with IP40-rated interface protection against dust ingress, this rugged assembly easily withstands frequent mobile handling and demanding live production environments.

Technical Specification

Product Name:S-1F-2×0.6M

Product Code

  • 3017013510

Length

  • 0.8 m

Input Connector

Brand

  • NEUTRIK

Model

  • NC3FXX

Contact Resistance

  • ≤3mΩ

Main Voltage

  • <50V

Cable O.D. (mm)

  • 3.5-8

Lifetime

  • >1,0 insertion/removal cycles

Contact Plating

  • 2 µm Ag

Wire Gauge

  • Maximum 2.5mm²

Temperature Range

  • -30℃ to 80℃

Flame Retardancy

  • UL 94 V-0

IP Rating

  • IP40

Output Connector

Brand

  • NEUTRIK

Model

  • NC3MXX

Contact Resistance

  • ≤3mΩ

Main Voltage

  • <50V

Cable O.D. (mm)

  • 3.5-8

Lifetime

  • >1,0 insertion/removal cycles

Contact Plating

  • 2 µm Ag

Wire Gauge

  • Maximum 2.5mm²

Temperature Range

  • -30℃ to 80℃

Flame Retardancy

  • UL 94 V-0

IP Rating

  • IP40

Audio Signal Cable

Brand

  • EUROCABLE

Model

  • LK02N6E

Number of Conductors

  • 2

Stranding

  • 30

Cross-Section (mm²)

  • 0.22

Conductor Material

  • Flexible Electrolytic Copper

IP Rating

  • IP40

Max. Conductor DCR

  • 78 ohm/km

Capacitance: Cond. / Shield

  • 150 pF/m

Capacitance: Cond. / Cond.

  • 75 pF/m

Shielding Material

  • Spiral Electrolytic Copper

Shielding Type

  • Braided Shield

Flame Retardancy

  • UL 94 V-0

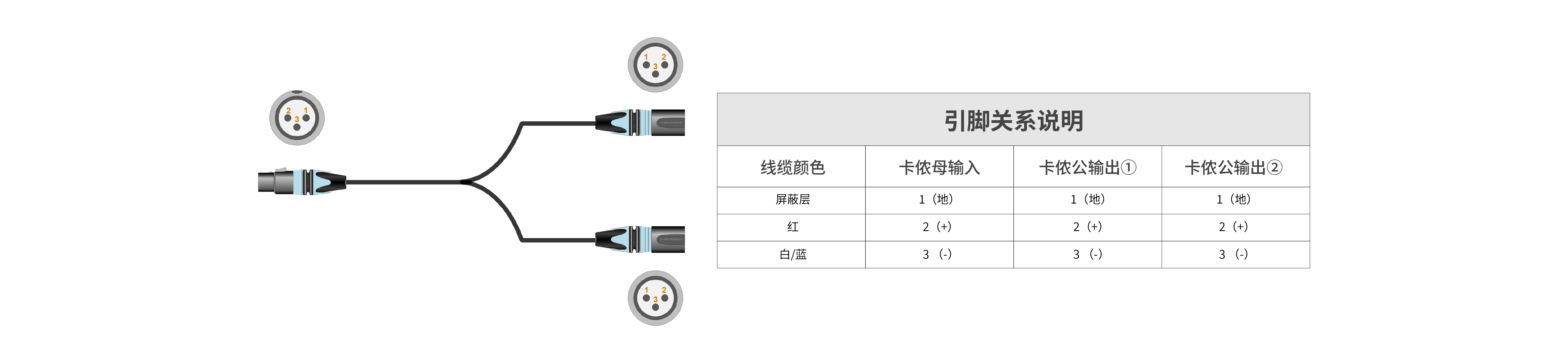

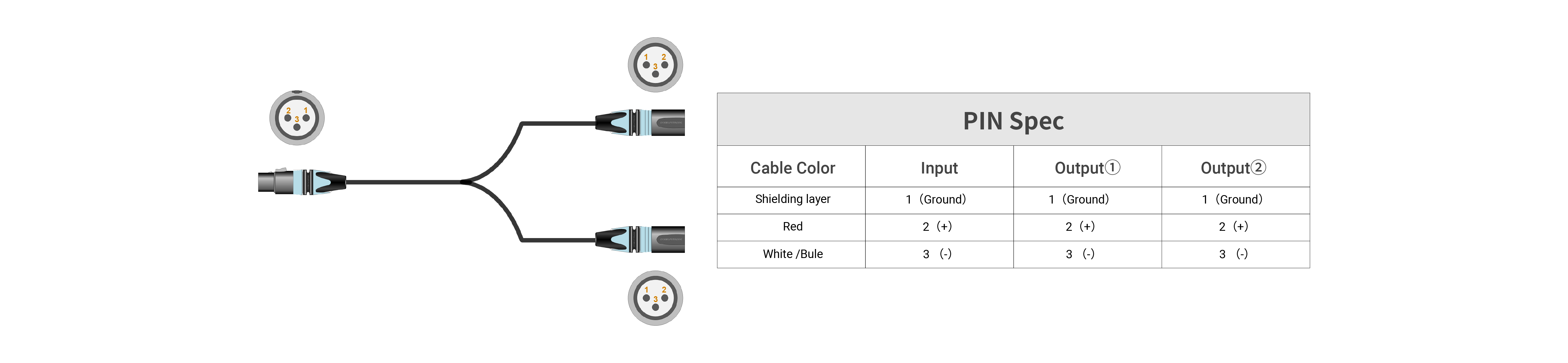

Pinout Diagram
