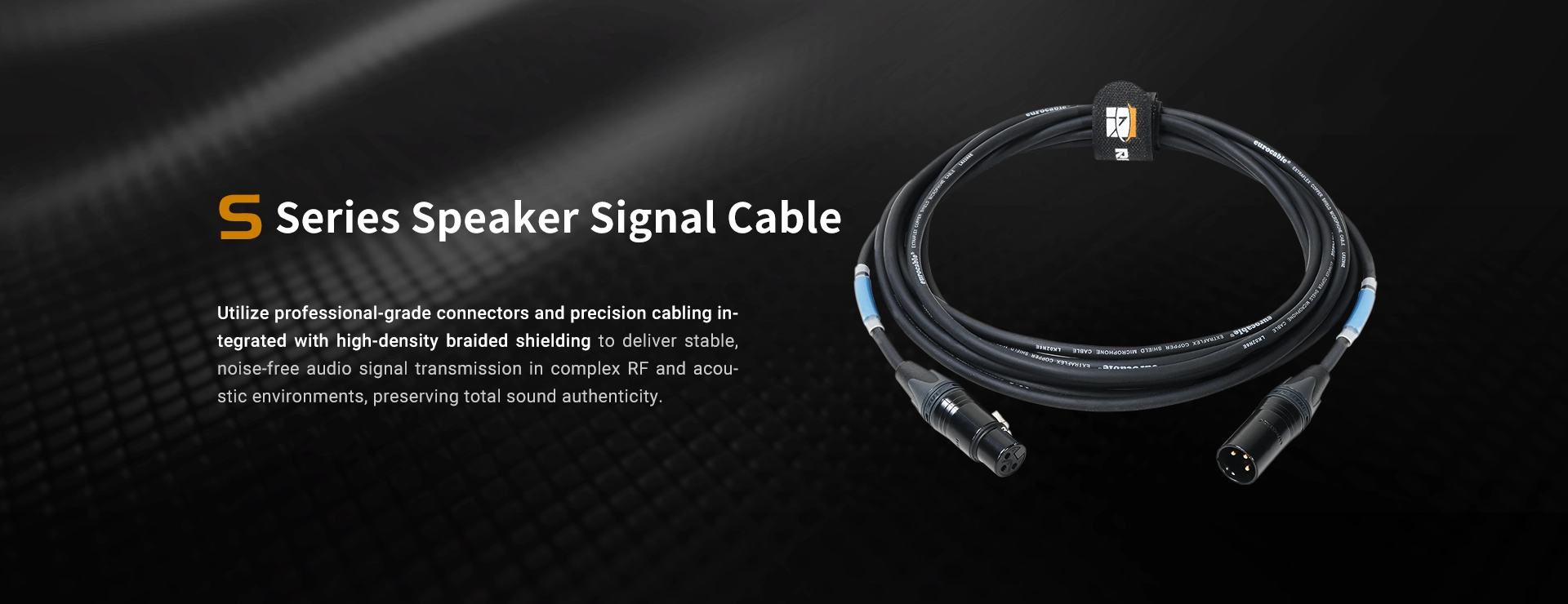

S series speaker signal cable | The Backbone of Professional Connectivity

Engineered as a universal connectivity foundation, the S Series delivers ultra-stable, intuitive interconnection support to streamline the deployment of any professional audio infrastructure.

System Interconnection: Standard Compatibility & Rapid Deployment

  • Incorporate industry-standard XLR connectors to ensure universal compatibility across all analog professional audio gear.

  • Enabling direct, adaptor-free routing between microphones, mixing consoles, and amplified controllers, this cable drastically simplifies system architecture and accelerates site setup workflows.

Touring Resilience: Premium Components & Flexible Handling

  • Combine industry-proven NEUTRIK connectors with EUROCABLE high-flex jacket architecture to deliver exceptional mechanical resilience and effortless coiling.

  • Purpose-built for high-frequency mobile handling, this rugged cable easily withstands the demanding workloads of live touring environments.

Signal Preservation: Precision Shielding & Minimum Loss

Feature an internal high-density braided shield that precision-suppresses low-frequency electromagnetic interference, significantly reducing background noise floor and stray hum. The optimized conductor topology minimizes signal attenuation, ensuring uncompromised transmission purity across the full audio spectrum.

Environmental Protection: IP40 Protection for Live Applications

Equipped with an IP40-rated interface structure, the cable assembly effectively seals out common dust and particle hazards in demanding operational conditions. Safeguards reliable signal delivery across diverse production environments, establishing the S Series as a universal benchmark for professional connectivity.

Technical Specification

Product Name:S-5

Product Code

  • 3017039104

Length

  • 5 m

Input Connector

Brand

  • NEUTRIK

Model

  • NC3FXX-B

Contact Resistance

  • ≤3mΩ

Main Voltage

  • <50V

Cable O.D. (mm)

  • 3.5-8

Lifetime

  • >1,0 insertion/removal cycles

Contact Plating

  • 0.2 μm gold-plated hard alloy, exceeding 2 μm nickel

Wire Gauge

  • Maximum 2.5mm²

Temperature Range

  • -30℃ to 80℃

Flame Retardancy

  • UL 94V-0

IP Rating

  • IP40

Output Connector

Brand

  • NEUTRIK

Model

  • NC3MXX-B

Contact Resistance

  • ≤3mΩ

Main Voltage

  • <50V

Cable O.D. (mm)

  • 3.5-8

Lifetime

  • >1,0 insertion/removal cycles

Contact Plating

  • 0.2 μm gold-plated hard alloy, exceeding 2 μm nickel

Wire Gauge

  • Maximum 2.5mm²

Temperature Range

  • -30℃ to 80℃

Flame Retardancy

  • UL 94V-0

IP Rating

  • IP40

Audio Signal Cable

Brand

  • EUROCABLE

Model

  • LK02N6E

Number of Conductors

  • 2

Stranding

  • 30

Cross-Section (mm²)

  • 0.22

Conductor Material

  • Flexible Electrolytic Copper

IP Rating

  • IP40

Max. Conductor DCR

  • 78ohm/ km

Capacitance: Cond. / Cond.

  • 75pF/m

Capacitance: Cond. / Shield

  • 150pF/m

Shielding Material

  • Spiral Electrolytic Copper

Flame Retardancy

  • UL 94V-0

Shielding Type

  • Braided Shield

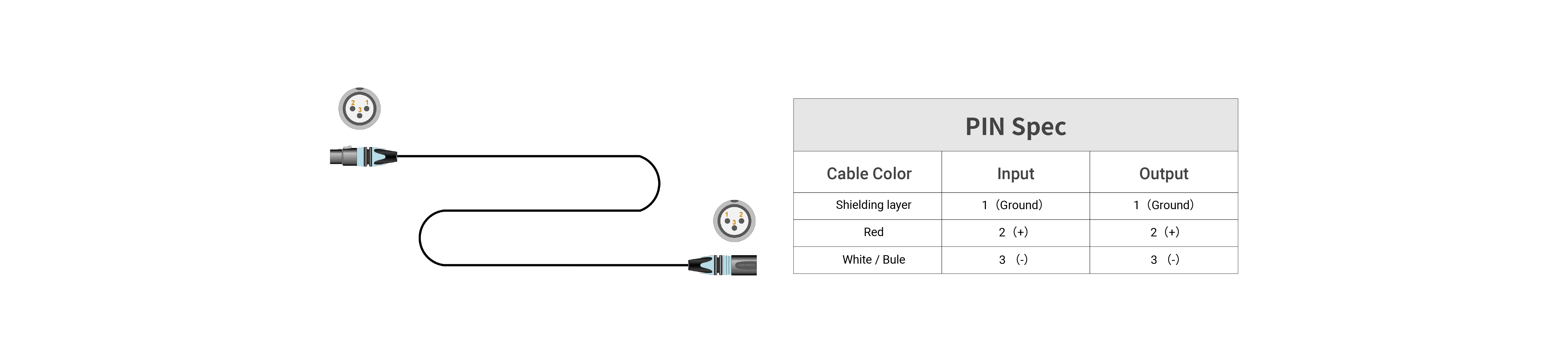

Pinout Diagram
