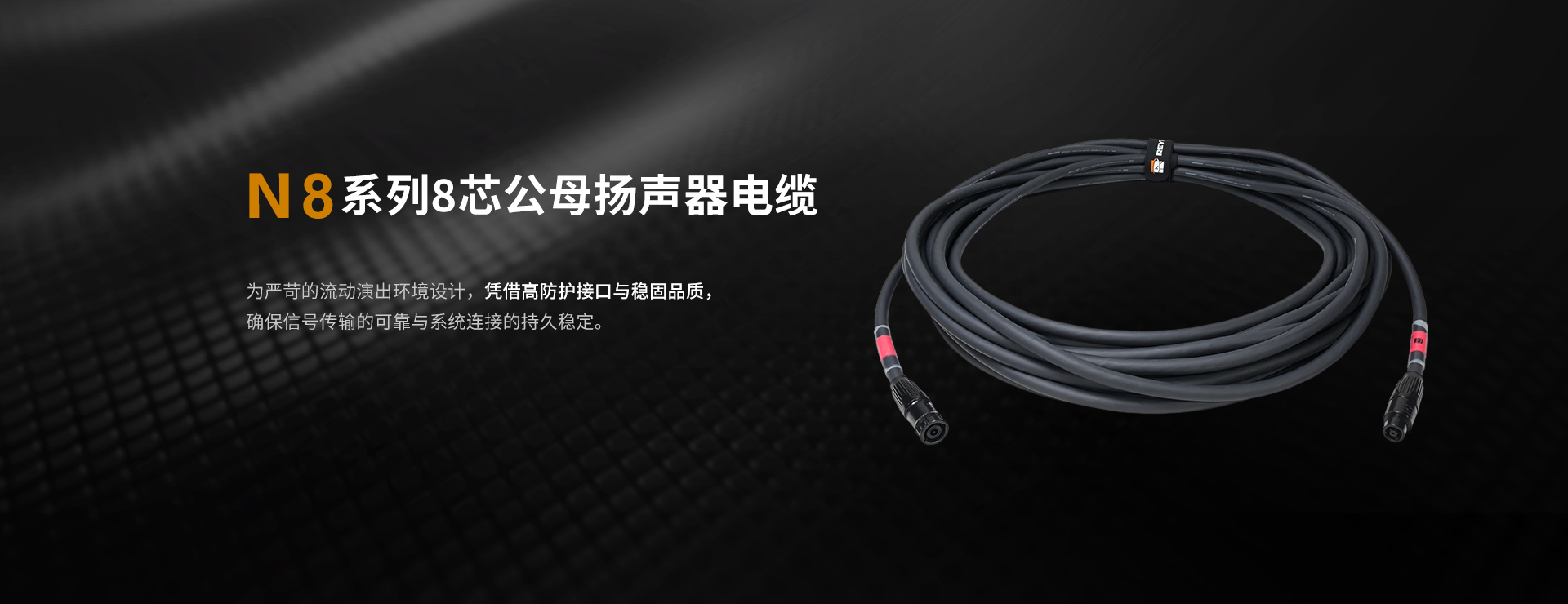

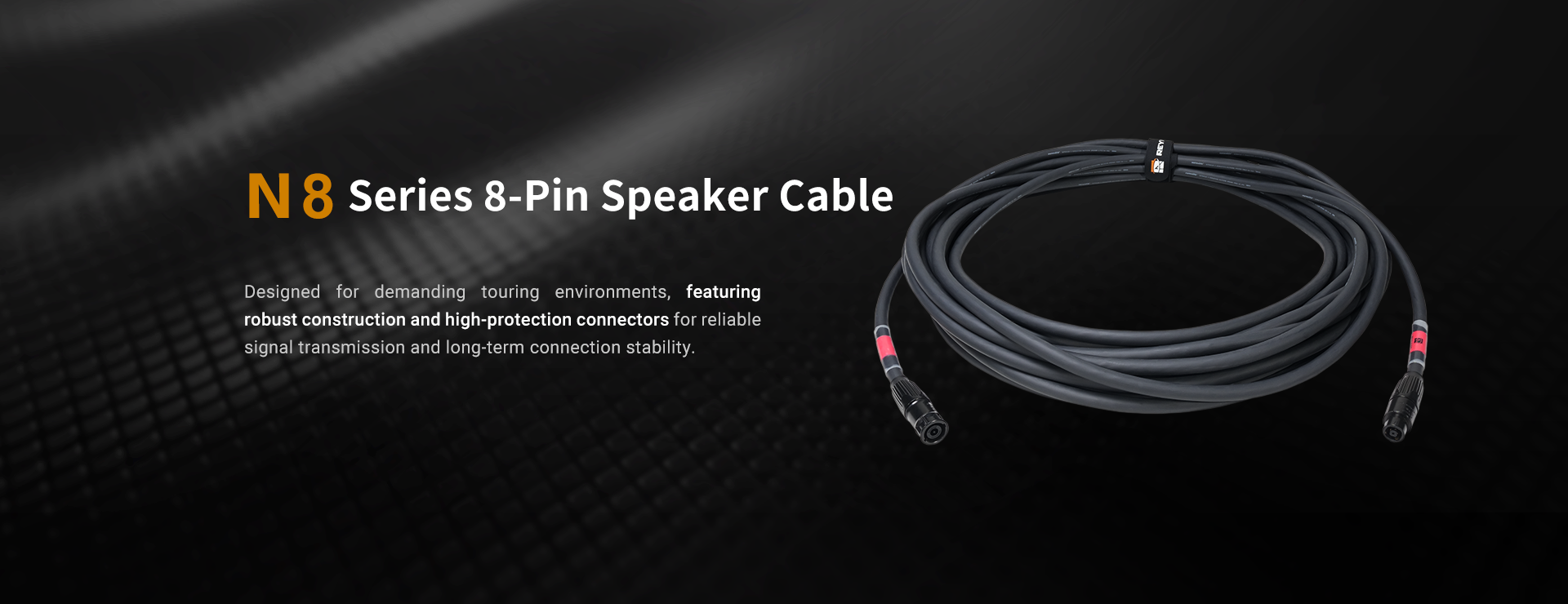

N8 Series 8-Pin Speaker Cable | Reliable Extension for Professional Touring Systems

Designed for seamless integration with REYN AUDIO systems and efficient touring deployment, providing flexible compatibility across multiple devices for fast connections without changing cables.

Simplified Setup, Greater System Flexibility

Expands the application possibilities of 8-pin cabling and amplifier systems, increasing configuration flexibility and adapting easily to changing venues and production requirements.

Precision Compatibility, Clean Signal Transmission

Fitted with high-quality NEUTRIK connectors and EUROCABLE cable, precisely matched to RA2 amplifier cabinets requirements for reliable connections and clean, accurate audio transmission.

Enhanced Protection for Reliable Performance

IP50-rated connectors provide dependable protection against the demands of complex and challenging live production environments.

Versatile Compatibility for Reliable Touring Performance

Whether optimizing connection layouts, adapting to different production applications, or expanding systems across multiple devices, the N8 series 8-pin speaker cable provides reliable connectivity for touring system configurations.

Technical Specification

Product Name:N8F-30M

Product Code

  • 3017005834

Length

  • 30 m

Input Connector

Brand

  • NEUTRIK

Model

  • NLT8FXX-BAG

Contact Resistance

  • ≤2mΩ

Dielectric Strength

  • 1.5 kVac

Cable O.D. (mm)

  • 8-20

Contacts

  • Copper alloy

Contact Plating

  • Silver-plated

Lifetime

  • Typically rated for 5,000 insertion cycles

Insulation Resistance (MΩ/km)

  • >0.1GQ (Initial Value)

Temperature Range

  • -30℃ to 80 ℃

IP Rating

  • IP50

Output Connector

Brand

  • NEUTRIK

Model

  • NLT8MXX-BAG

Contact Resistance

  • ≤2mΩ

Dielectric Strength

  • 1.5 kVac

Cable O.D. (mm)

  • 8-20

Number of Contacts

  • 8

Contacts

  • Copper alloy

Contact Plating

  • Silver-plated

Lifetime

  • Typically rated for 5,000 insertion cycles

Insulation Resistance (MΩ/km)

  • > 0.1GQ (Initial Value)

Temperature Range

  • -30 ℃ to 80 ℃

IP Rating

  • IP50

8-pin speaker cable

Brand

  • EUROCABLE

Model

  • LK08N40

Number of Cores

  • 8

Cable O.D. (mm)

  • 16

Conductor Material

  • Flexible electrolytic copper

Cross-Section (mm²)

  • 4

Signal Type

  • Analogue signal

Min.Operating Temperature

  • -20

Max.Operating Temperature

  • 70

Weight (kg/100m)

  • 143.8
Pinout Diagram
