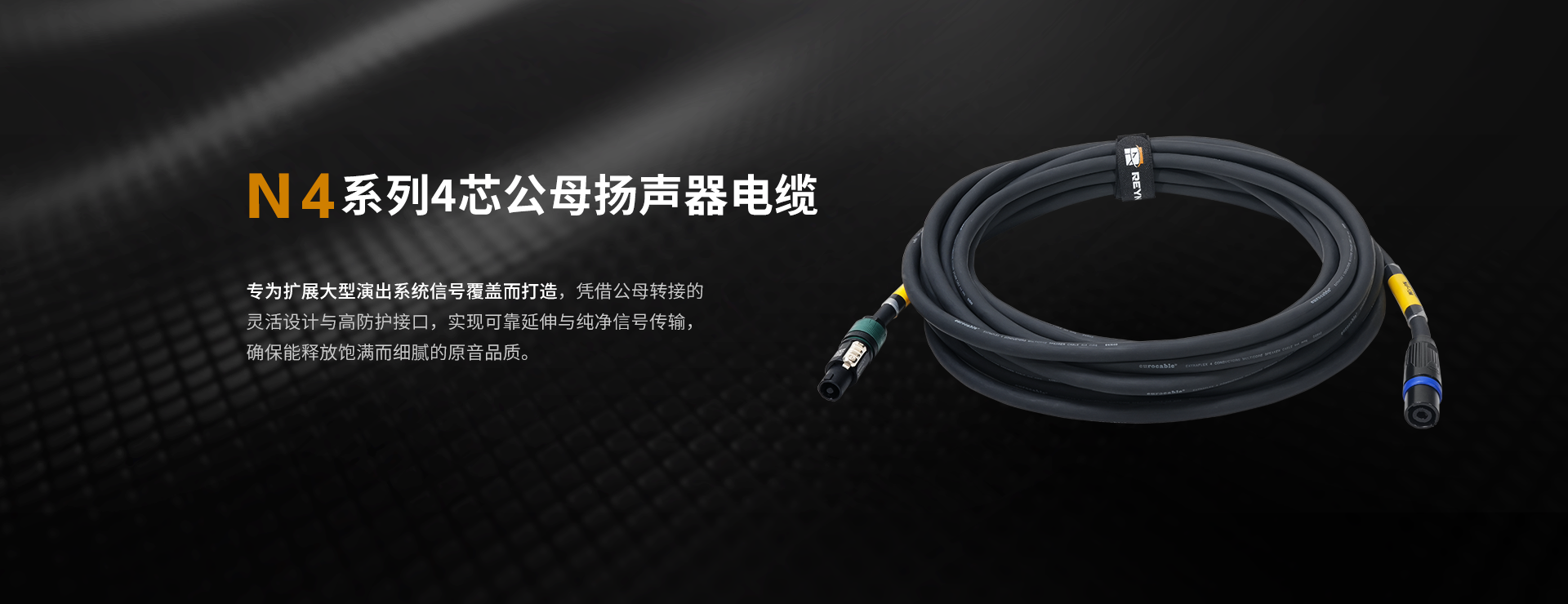

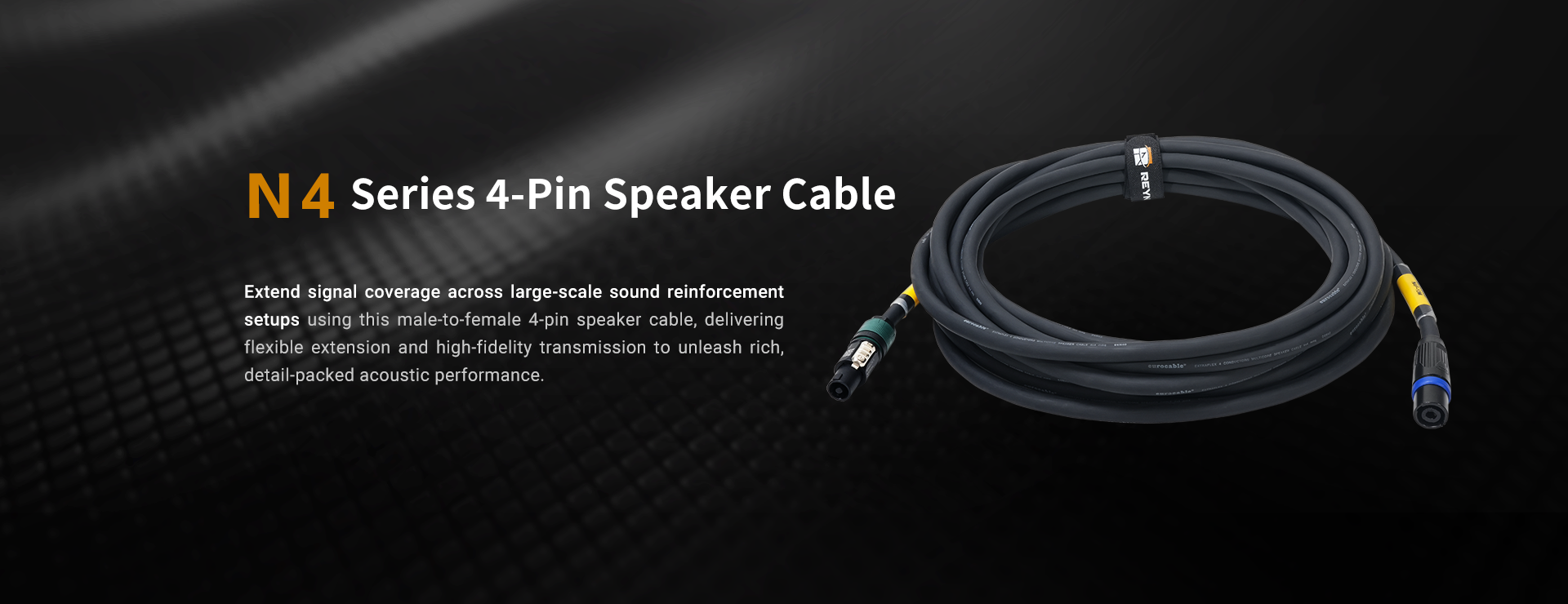

N4 Series 4-Pin Speaker Cable | Reliable Range Extension for Pro Audio Systems

Expand system connectivity across complex large-scale event deployments through an optimized male-to-female interconnect design.

Integrated Male-to-Female Design for Versatile Signal Extension

  • Incorporate a male-to-female connector configuration to pair seamlessly with standard 4-pin speaker cables, extending transmission distance with absolute precision.

  • Adapt effortlessly to complex equipment layouts across arena-scale concerts, elevating setup flexibility and deployment efficiency in the field.

High-Quality Construction for Withstanding Harsh Environments

  • Terminate both ends with genuine NEUTRIK connectors and EUROCABLE professional cabling to establish an uncompromising physical foundation directly at the connection source.

  • Provide IP54 and IP20 protection ratings across respective ends to withstand challenging venue environments, guaranteeing interference-free operation under harsh conditions.

High-Fidelity Transmission, Reproducing Pure Sound Quality

Preserve absolute signal purity across extended cable runs, using high-fidelity signal transfer to unlock full loudspeaker acoustic potential for layered, detail-rich sonic reproduction.

End-to-End System Matching for Optimized Signal Routing

Match exact connection parameters between amplified controller racks and loudspeaker enclosures to ensure precise end-to-end integration, delivering a reliable solution for expanding connection reach and optimizing signal routing.

Technical Specification

Product Name:N4F-10M

Product Code

  • 3017005830

Length

  • 10 m

Input Connector

Brand

  • NEUTRIK

Model

  • NLT4MXX-BAG

Contact Resistance

  • ≤2mΩ

Dielectric Strength

  • 2.8kVac

Cable O.D. (mm)

  • 10-16

Number of Contacts

  • 4

Contacts

  • Copper alloy

Contact Plating

  • Silver-plated

Lifetime

  • Typically rated for 5,000 insertion cycles

Temperature Range

  • -33℃ to 80℃

Insulation Resistance (MΩ/km)

  • >10GQ (Initial Value)

IP Rating

  • IP54

Output Connector

Brand

  • NEUTRIK

Model

  • NL4FXX-W-L

Contact Resistance

  • ≤2mΩ

Dielectric Strength

  • 2.8kVac

Cable O.D. (mm)

  • 10-16

Number of Contacts

  • 4

Contacts

  • Copper alloy

Contact Plating

  • Silver-plated

Lifetime

  • Typically rated for 5,000 insertion cycles

Temperature Range

  • -33℃ to 80℃

Insulation Resistance (MΩ/km)

  • >10GQ (Initial Value)

IP Rating

  • IP20

4-pin speaker cable

Brand

  • EUROCABLE

Model

  • LK04N40

Number of Cores

  • 4

Jacket Color

  • Black

Cable O.D. (mm)

  • 13.2

Conductor Material

  • Flexible electrolytic copper

Cross-Section (mm²)

  • 4

Signal Type

  • Analogue signal

Min.Operating Temperature

  • -20℃

Max.Operating Temperature

  • 70℃

Weight (kg/100m)

  • 30.8
Pinout Diagram
