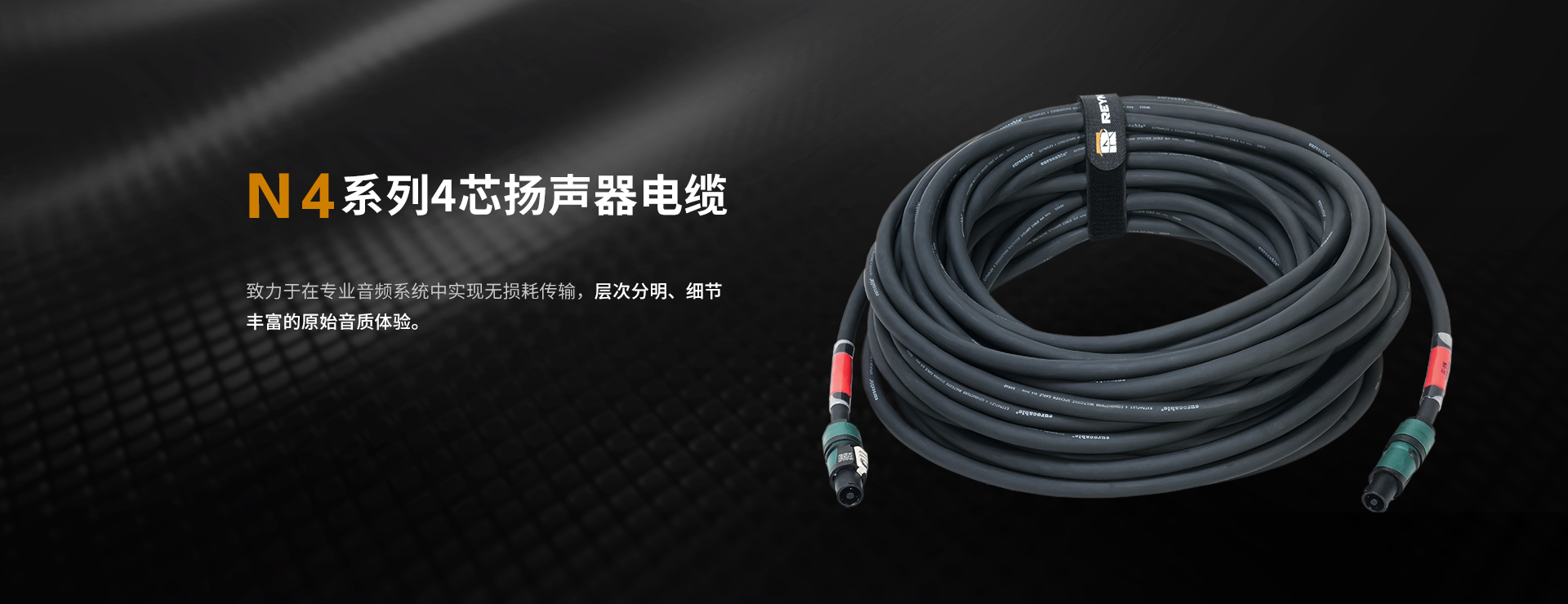

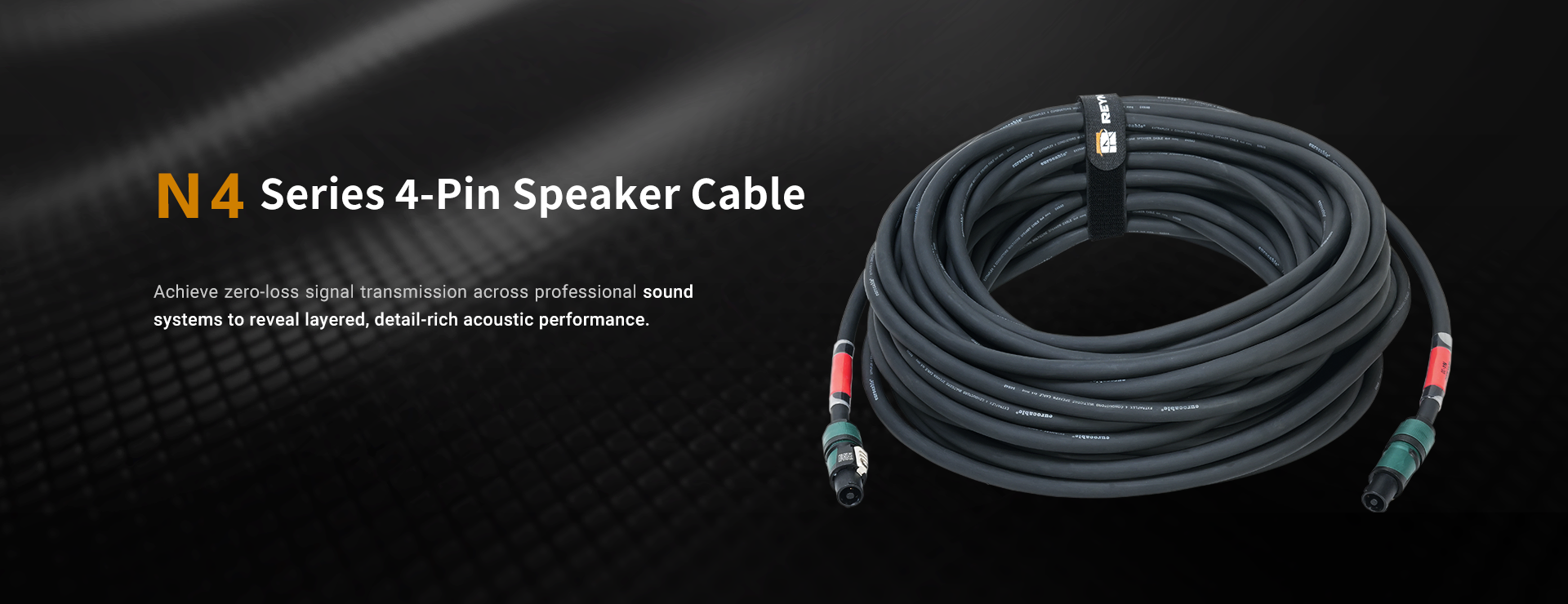

N4 Series 4-Pin Speaker Cable | Reliable Interconnect Systems for Pro Audio

Master demanding mobile touring environments using this 4-pin speaker cable, satisfying rigorous field requirements for system reliability and signal fidelity.

Premium Hardware, Heavy-Duty Durability

  • Terminate both ends with genuine NEUTRIK connectors and EUROCABLE professional cabling to establish a solid physical foundation directly at the connection source.

  • Combine a highly flexible, kink-resistant cable jacket with effortless coiling characteristics to elevate handling convenience and long-term mechanical durability during field deployment.

Rugged Protection, Environmental Resilience

Provide IP20-rated interface protection to resist dust ingress and fluid splashes, safeguarding continuous equipment operation throughout mobile touring productions.

High-Fidelity Transmission, Pure Acoustic Reproduction

  • Focus on zero-loss signal transmission to preserve absolute source purity.

  • Unlock total acoustic potential across the loudspeaker system through high-fidelity transfer, presenting clear layering, rich detail, and transparent sonic texture across the venue.

Precise Compatibility, Professional Choice

Match the exact connection requirements between amplified controller cabinet and loudspeaker enclosures to streamline full-scenario system integration, establishing a stable, mission-critical Pro Audio infrastructure.

Technical Specification

Product Name:N4-30

Product Code

  • 3017005825

Length

  • 30 m

Input / Output Connector

Brand

  • NEUTRIK

Model

  • NL4FXX-W-L

Contact Resistance

  • ≤2mΩ

Dielectric Strength

  • 2.8kVac

Cable O.D. (mm)

  • 10-16

Number of Contacts

  • 4

Contacts

  • Copper alloy

Contact Plating

  • Silver-plated

Lifetime

  • Typically rated for 5,000 insertion cycles

Temperature Range

  • -33℃ to 80℃

Insulation Resistance (MΩ/km)

  • >10GQ (Initial Value)

IP Rating

  • IP20

4-pin speaker cable

Brand

  • EUROCABLE

Model

  • LK04N40

Number of Cores

  • 4

Jacket Color

  • Black

Cable O.D. (mm)

  • 13.2

Conductor Material

  • Flexible electrolytic copper

Cross-Section (mm²)

  • 4

Signal Type

  • Analogue signal

Min.Operating Temperature

  • -20℃

Max.Operating Temperature

  • 70℃

Weight (kg/100m)

  • 30.8

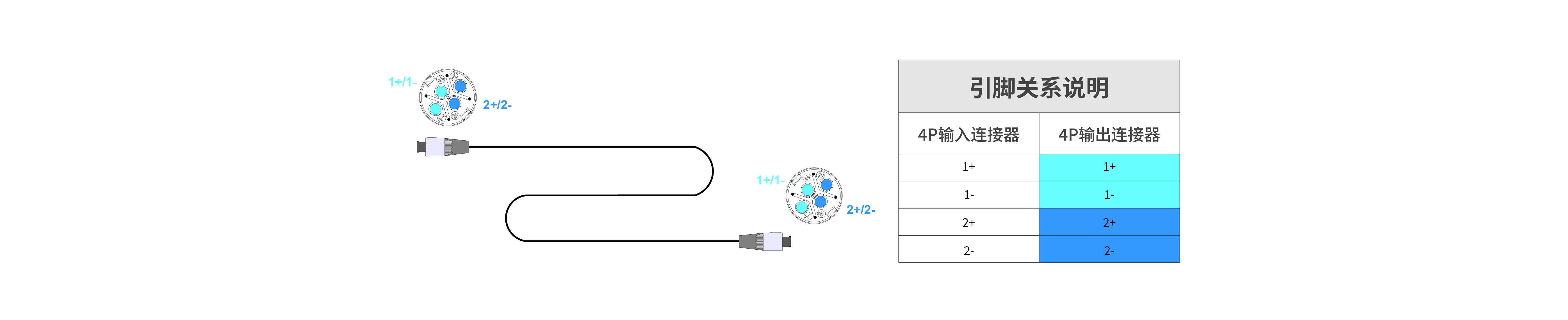

Pinout Diagram
