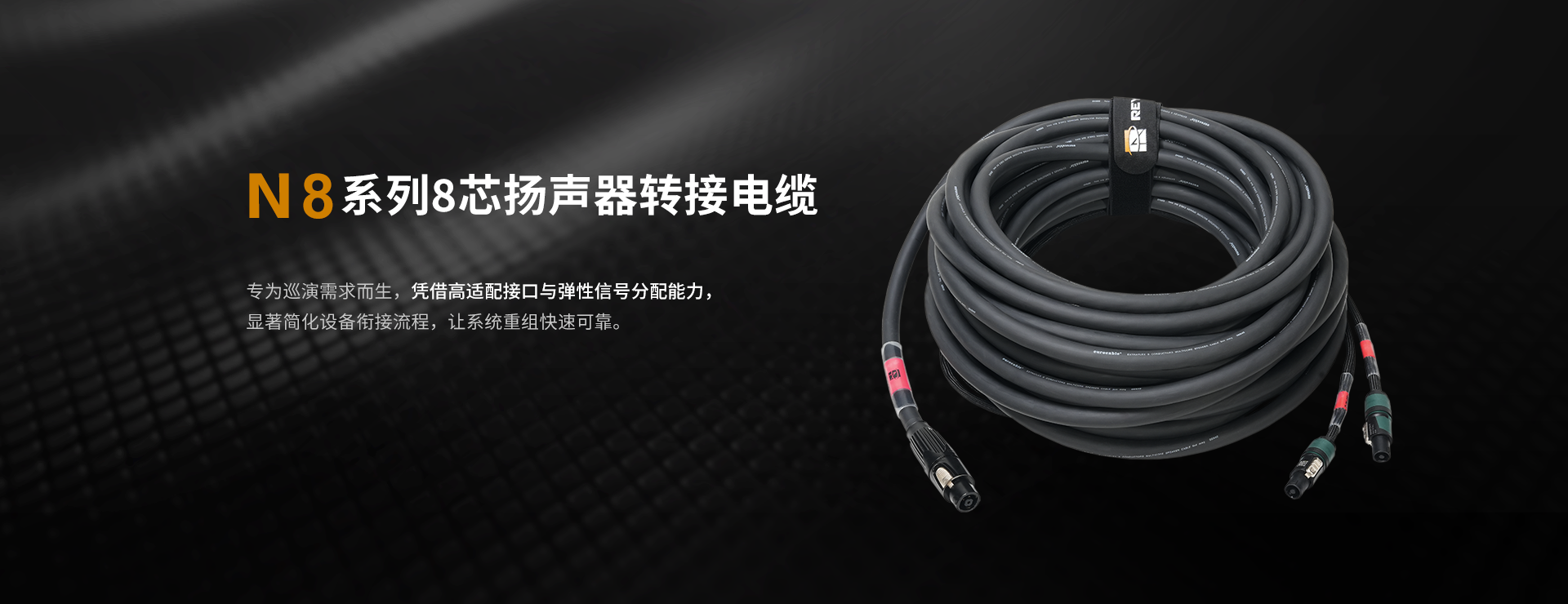

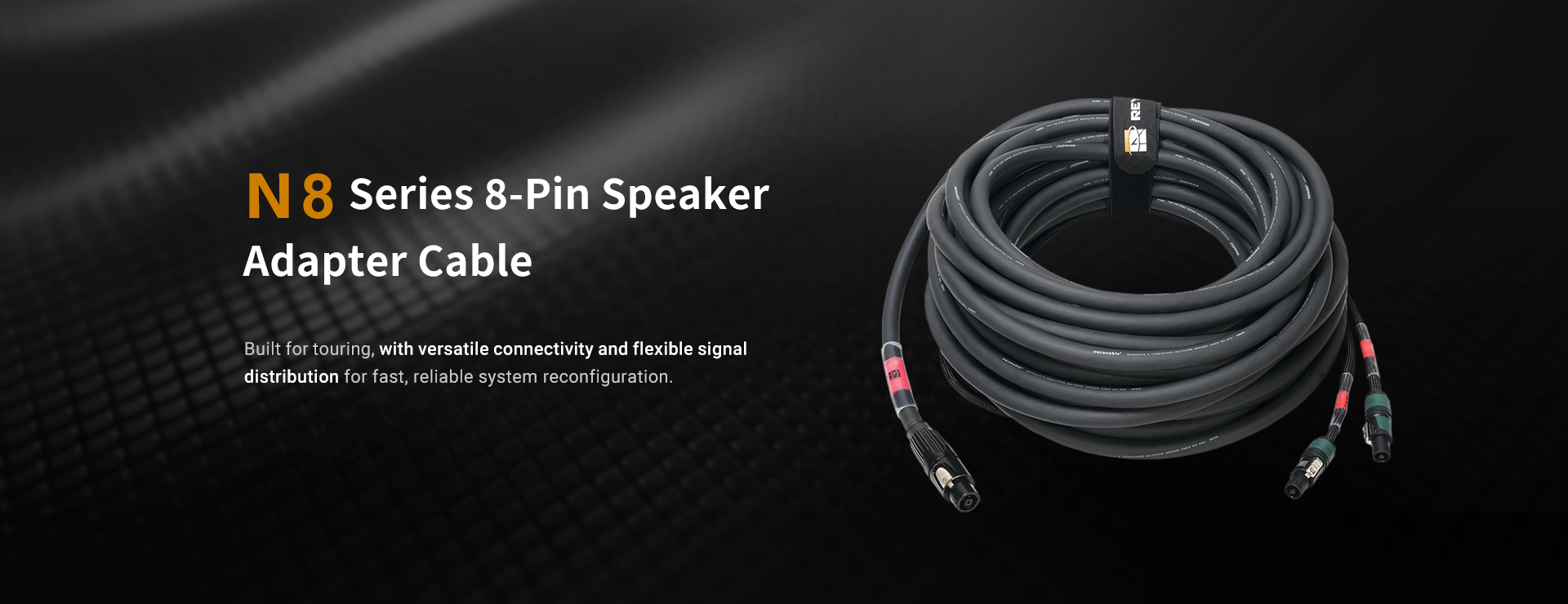

N8 Series 8-Pin Speaker Adapter Cable | Flexible Connectivity for Touring Systems

Designed for seamless integration with REYN AUDIO systems, enabling flexible connections without frequent cable changes.

Simplify Complex Setups, Expand System Possibilities

Easy to connect and quick to deploy, the cable simplifies equipment interconnection and adds flexibility to touring system configurations. It expands the application possibilities of 8-pin cabling and amplifier systems, making it easier to adapt configurations to different venues and production requirements.

Precision Compatibility, Expanded Connectivity

  • System Compatibility: Precisely matched to REYN AUDIO RA2 amplifier cabinets for seamless system integration.

  • Enhanced Connectivity: Overcomes the conventional “one-to-one” connection limitations of four-pin speaker cables.

  • System Versatility: Greater freedom in equipment combinations, opening up more connection possibilities.

Reliable Construction for Demanding Environments

  • Premium Components: Fitted with high-quality NEUTRIK connectors and EUROCABLE cable.

  • Performance Assurance: High-quality components ensure reliable signal transmission and help preserve clean, accurate audio.

  • Environmental Protection: IP50- and IP20-rated connectors provide dependable protection in a range of operating environments.

Versatile Applications, Built for Touring

Whether optimizing connection layouts, adapting to different applications, or enabling multi-device expansion and efficient signal distribution, the N8 series 8-pin speaker adapter cable provides a versatile connectivity solution for touring systems.

Technical Specification

Product Name:N8-2x4M 30

Product Code

  • 3017005831

Length

  • 30 m

Input Connector

Brand

  • NEUTRIK

Model

  • NLT8FXX-BAG

Contact Resistance

  • ≤2mΩ

Dielectric Strength

  • 1.5kVac

Cable O.D. (mm)

  • 8-20

Number of Contacts

  • 8

Contacts

  • Copper alloy

Contact Plating

  • Silver-plate

Lifetime

  • Typically rated for 5,000 insertion cycles

Temperature Range

  • -30℃ to 80 ℃

Insulation Resistance (MΩ/km)

  • >0.1GQ (Initial Value)

IP Rating

  • IP50

Output Connector

Brand

  • NEUTRIK

Model

  • NL4FXX-W-L

Contact Resistance

  • ≤2mΩ

Dielectric Strength

  • 2.8kVac

Cable O.D. (mm)

  • 10-16

Number of Contacts

  • 4

Contacts

  • Copper alloy

Contact Plating

  • Silver-plated

Lifetime

  • Typically rated for 5,000 insertion cycles

Temperature Range

  • -30℃ to 80℃

Insulation Resistance (MΩ/km)

  • >10GQ (Initial Value)

IP Rating

  • IP20

8-pin speaker adapter cable

Brand

  • EUROCABLE

Model

  • LK08N40

Number of Cores

  • 8

Cable O.D. (mm)

  • 16

Conductor Material

  • Flexible electrolytic copper

Cross-Section (mm²)

  • 4

Signal Type

  • Analogue signal

Min.Operating Temperature

  • -20℃

Max.Operating Temperature

  • 70℃

Weight (kg/100m)

  • 143.8

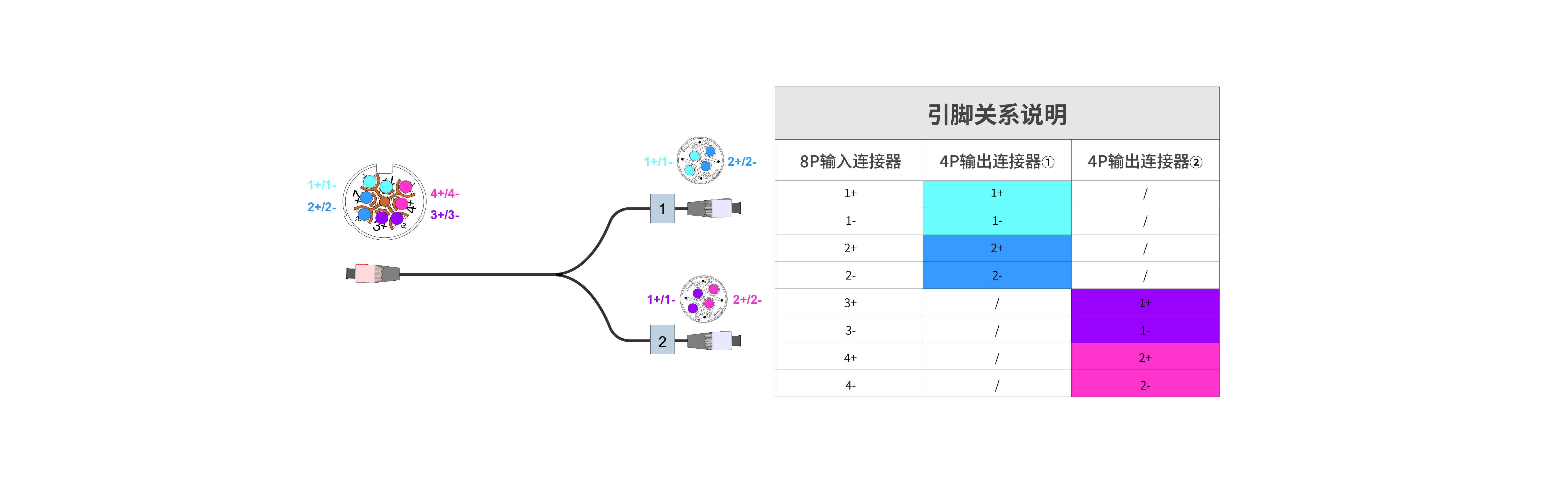

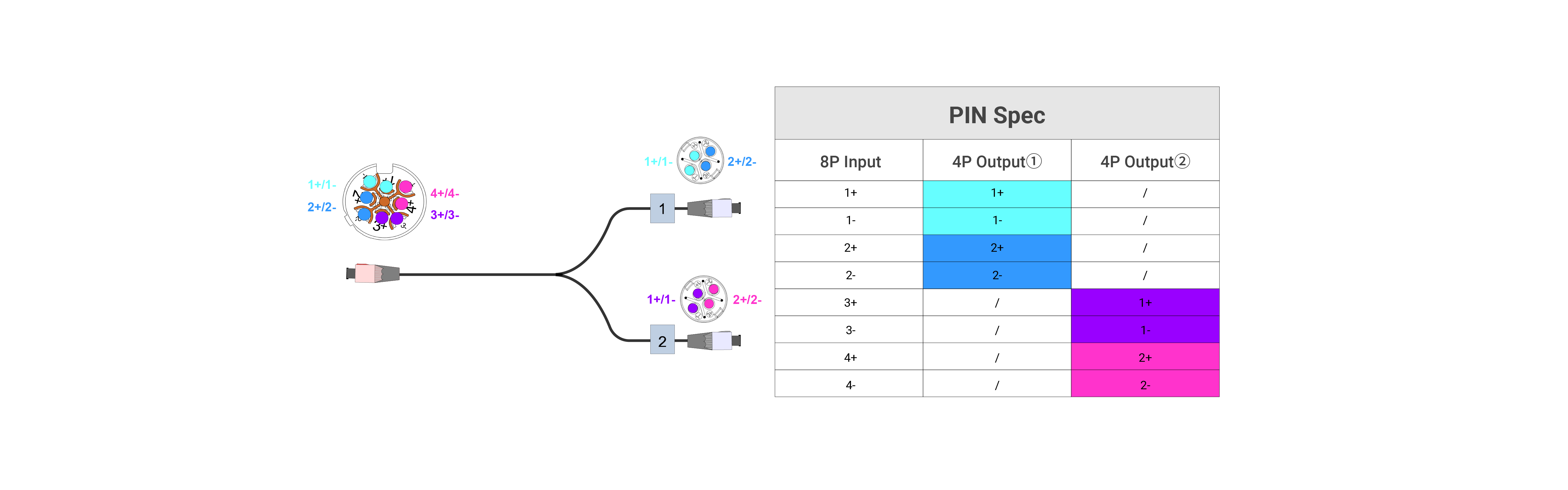

Pinout Diagram
