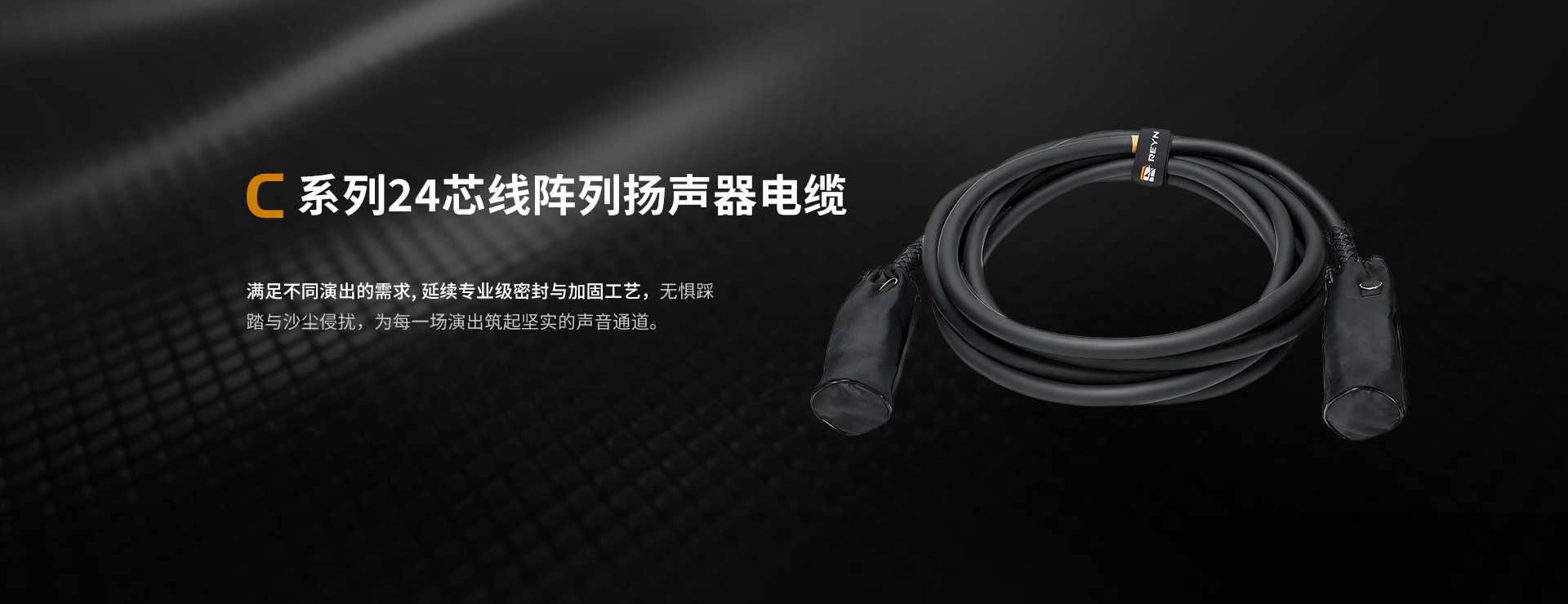

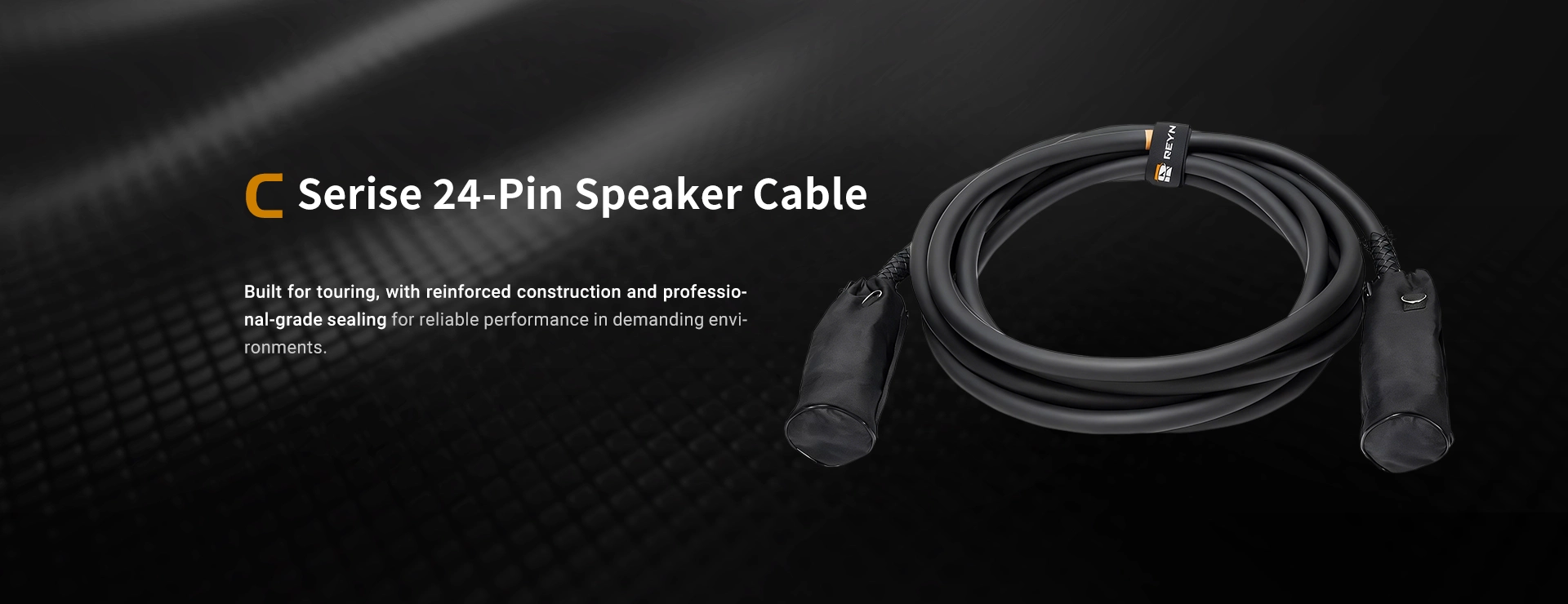

C Series 24-Pin Speaker Cable | Built for Reliable Touring Connections

Exclusively developed for REYN AUDIO RA2 amplifier cabinets, delivering seamless system integration and reliable, stable signal transmission.

Premium Cable Construction for Reliable Signal Transmission

Built around high-quality 4mm² EUROCABLE conductors for excellent conductivity and low signal loss, helping preserve clean, accurate audio. LK connectors are fitted at both ends for low contact resistance and long service life, while precision-engineered connections ensure consistent performance in demanding professional audio applications.

Touring-Grade Durability for Demanding Environments

  • Metal mesh reinforcement at the cable-to-connector junction increases pull resistance and helps prevent loosening or damage caused by frequent handling, deployment, and storage.

  • Highly flexible yet durable, the cable withstands repeated pulling while remaining easy to coil and store, helping speed up setup and teardown.

  • Protective boots and strain-relief sleeves, combined with a PG36 strain-relief design, metal protective covers, and braided mesh, provide multi-layer protection. External forces are distributed away from the cable-to-connector junction, helping extend service life.

IP68 Protection for All-Weather Touring

IP68-rated connectors provide dependable protection in demanding environments, making the cable well suited to touring productions, large-scale events, and other professional applications.

Technical Specification

Product Name:C24-15

Product Code

  • 3017005828

Length

  • 15 m

Input Connector

Brand

  • LK

Model

  • LKA32/25RMV

Number of Poles

  • 25

Connector type

  • Cable

Connector Size

  • 32

Shell Material

  • Aluminium

Contact Type

  • Crimp Termination

Number of Pins

  • 25

Strain Relief

  • PG 36+Metal Shielding

IP Rating

  • IP68

Output Connector

Brand

  • LK

Model

  • LKA32/25RMV

Number of Poles

  • 25

Connector type

  • Cable

Connector Size

  • 32

Shell Material

  • Aluminium

Contact Type

  • Crimp Termination

Number of Pins

  • 24

Strain Relief

  • PG 36+Metal Shielding

IP Rating

  • IP68

24-pin Speaker Cable

Brand

  • EUROCABLE

Model

  • LK24N40

Number of Cores

  • 24

Stranding

  • 128

Bending Radius

  • 10 x O.D.

Operating Temperature / DCR

  • -20°C to 70°C

Cable O.D. (mm)

  • 26.8

Strand O.D. (mm)

  • 0.193

Jacket Material

  • PVC TM2

Max. Conductor Resistance ohm/km

  • 4.95

Conductor Material

  • Flexible Electrolytic Copper

Test Voltage

  • 2,000 Vac

Nominal Jacket Thickness (mm)

  • 2

Cross-Section (mm²)

  • 4

Insulation Diameter (mm)

  • 4

Insulation Thickness(mm)

  • 0.7

Main Voltage

  • 300 Vac

Insulation Material

  • PVC
Pinout Diagram
