C Series 24-Pin Fanned-tail Speaker Cable | Efficient Connectivity for Large-Scale Line Arrays

Designed for efficient touring deployment, this component works seamlessly with C Series 24-pin speaker cables to simplify system integration and streamline large-scale line array setups.

Enhanced Protection for Demanding Touring Applications

  • Metal mesh reinforcement at the cable-to-connector junction improves strain relief, while the flexible cable construction makes handling and storage easy.

  • Protective boots and strain-relief sleeves feature an integrated PG36 strain-relief design.

  • Metal protective covers and braided mesh help distribute mechanical stress and protect the connection against the demands of live production.

Premium Components for Demanding Environments

  • Available with premium LK or NEUTRIK connectors and 4mm² EUROCABLE cable for reliable system connections.

  • Engineered for secure connections and excellent conductivity, with IP68-rated connectors for dependable environmental protection.

  • Built to deliver reliable performance across demanding touring and live production environments.

Efficient Integration, Simplified System Connectivity

Streamlines the deployment of large-scale line array systems by simplifying device interconnection and bridging interface differences between equipment, helping improve efficiency on site.

Technical Specification

Product Name:C24-6x4M

Product Code

  • 3017005827

Length

  • 4 m

Input Connector

Brand

  • LK

Model

  • LKA32/25RMV

Number of Poles

  • 25

Connector type

  • Cable

Connector Size

  • 32

Shell Material

  • Aluminium

Contact Type

  • Crimp Termination

Number of Pins

  • 24

Contact Plating

  • Gold-plated Copper

Strain Relief

  • PG 36+Metal Shielding

IP Rating

  • IP68

Output Connector

Brand

  • NEUTRIK

Model

  • NL4FXX-W-L

Contact Resistance

  • ≤2mΩ

Dielectric Strength

  • 2.8kVac

Cable O.D. (mm)

  • 10-16

Number of Contacts

  • 4

Contacts

  • Copper alloy

Contact Plating

  • Silver-plated

Lifetime

  • Typically rated for 5,0 insertion cycles

Temperature Range

  • -33℃ to 80℃

Insulation Resistance (MΩ/km)

  • >10GQ(Initial Value)

IP Rating

  • IP20

24-pin Fanned-tail speaker cable

Brand

  • EUROCABLE

Model

  • LK24N40

Number of Cores

  • 24

Stranding

  • 128

Bending Radius

  • 10 x O.D.

Operating Temperature / DCR

  • -20°C to 70°C

Cable O.D. (mm)

  • 26.8

Strand O.D. (mm)

  • 0.193

Jacket Material

  • PVC TM2

Max. Conductor Resistance ohm/km

  • 4.95

Conductor Material

  • Flexible Electrolytic Copper

Test Voltage

  • 2,000 Vac

Nominal Jacket Thickness (mm)

  • 2

Cross-Section (mm²)

  • 4

Insulation Diameter (mm)

  • 4

Insulation Thickness(mm)

  • 0.7

Main Voltage

  • 300Vac

Insulation Material

  • PVC

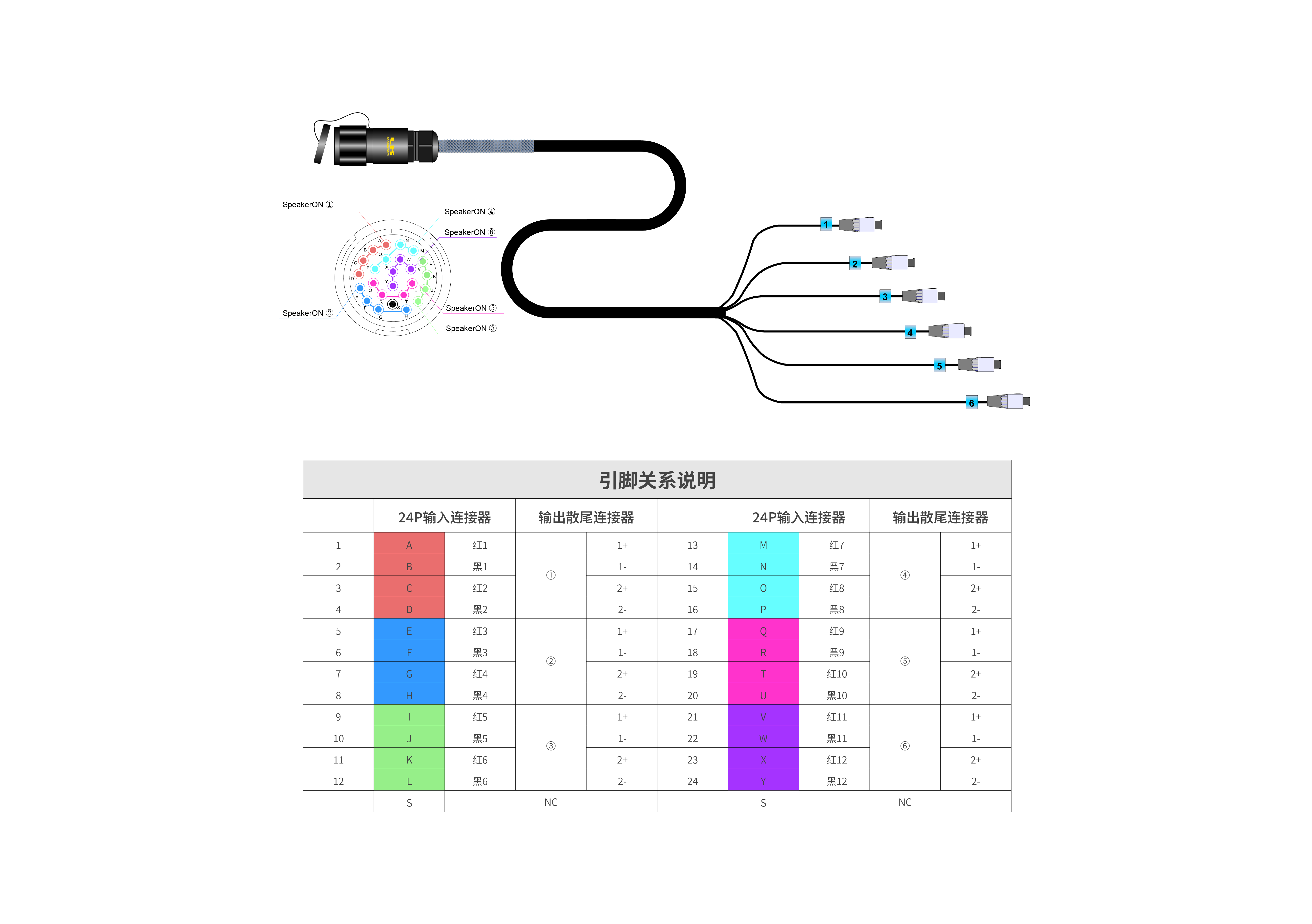

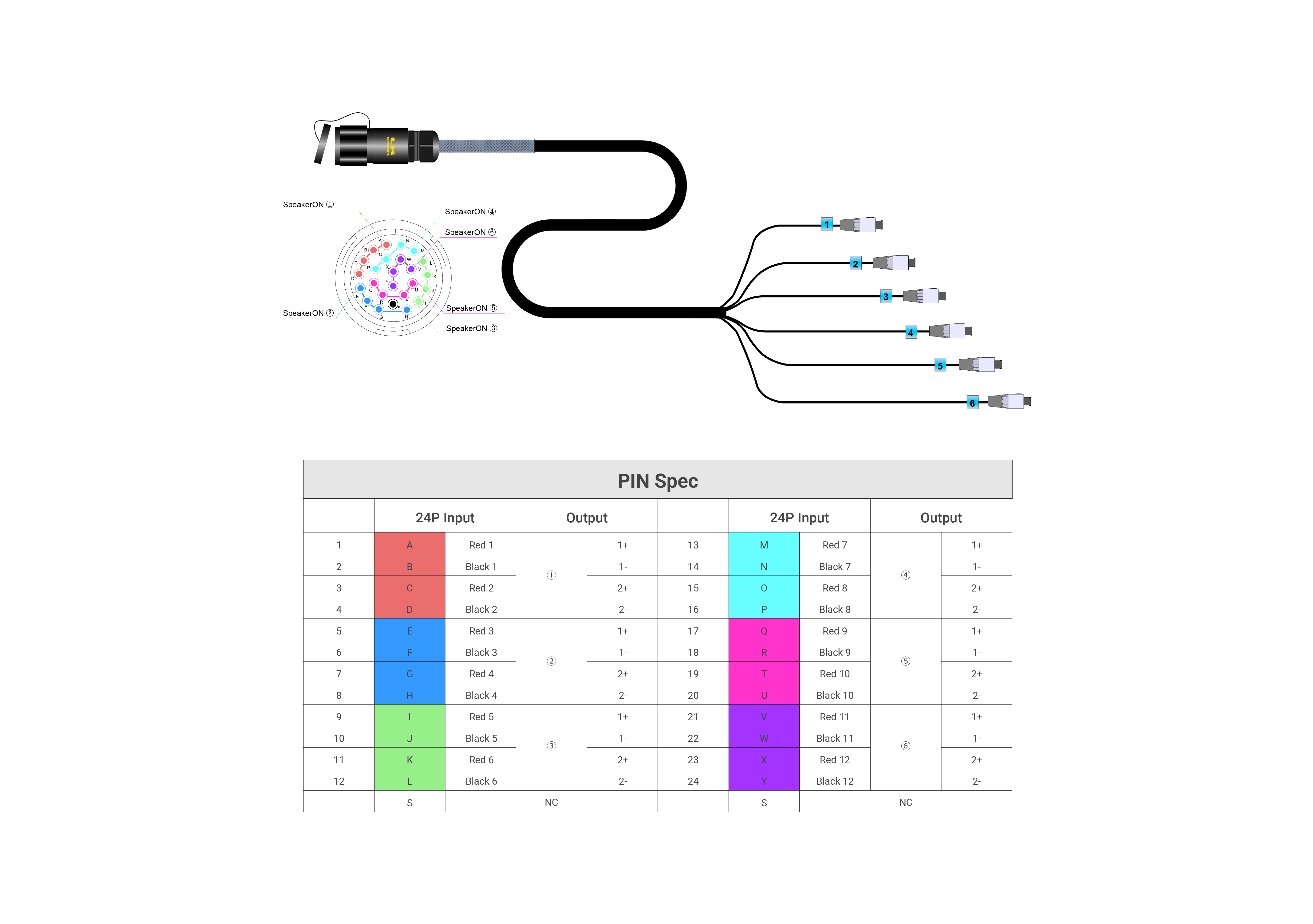

Pinout Diagram
