Technical Specification

Product Name

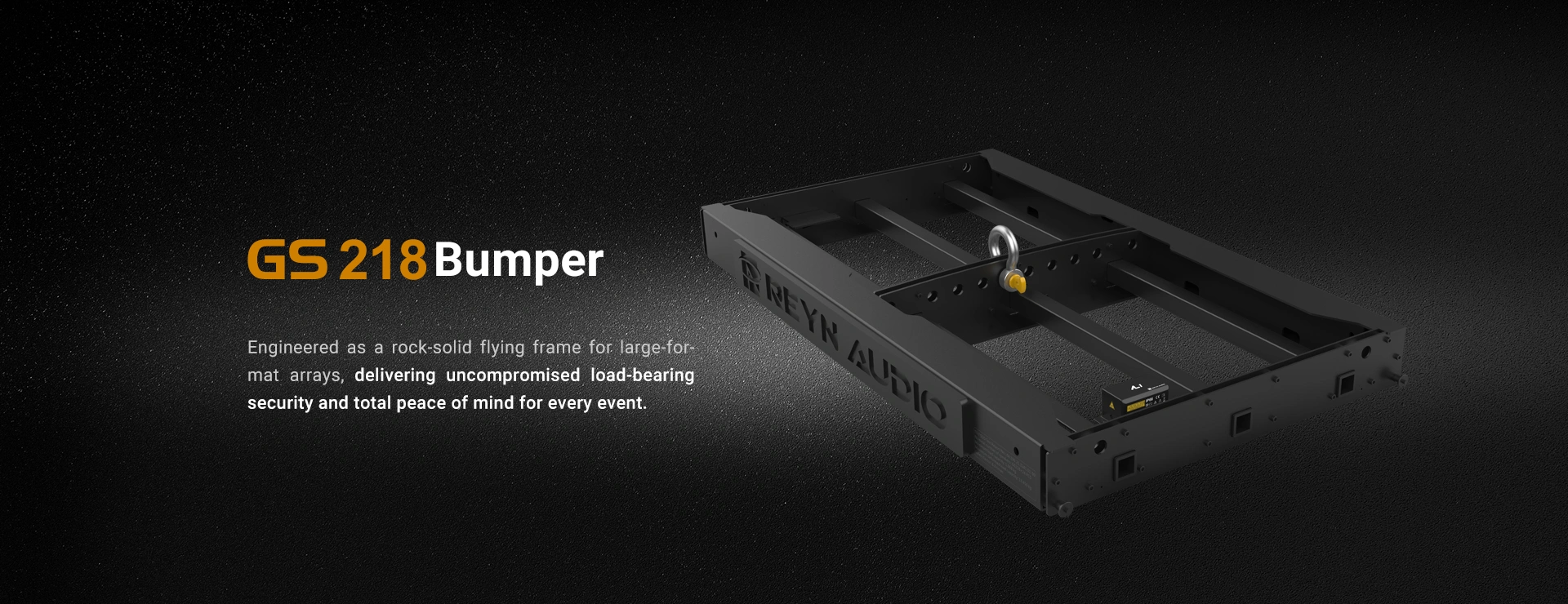

  • GS218 Bumper

Applicable Series

  • GS218

Specifications

  • Max capacity: 24 pcs GS218

Rigging Material

  • Flying frame and crossbar constructed from 304 stainless steel
    Logo plate: Birch-faced combi-core plywood

Surface Treatment

  • Black matte-textured powder coating with 10-year outdoor rating
    Logo plate: Black, fine-textured two-component polyurea finish

Dimensions (W x H x D)

  • 1343×765×145 mm
    （52.9"x30.1"x5.7″)

Net Weight (N.W.)

  • 86 kg (189 lbs)

WLL (Working Load Limit)

  • 1968 kg (4,338.7 lbs)

Accessories

  • Shackle

Safety Factor

  • 6.8 times

TÜV SÜD Test Report No.

  • 64.190.25.3241.01-00

Product Code

  • 63583902

Technical Specification

Product Name

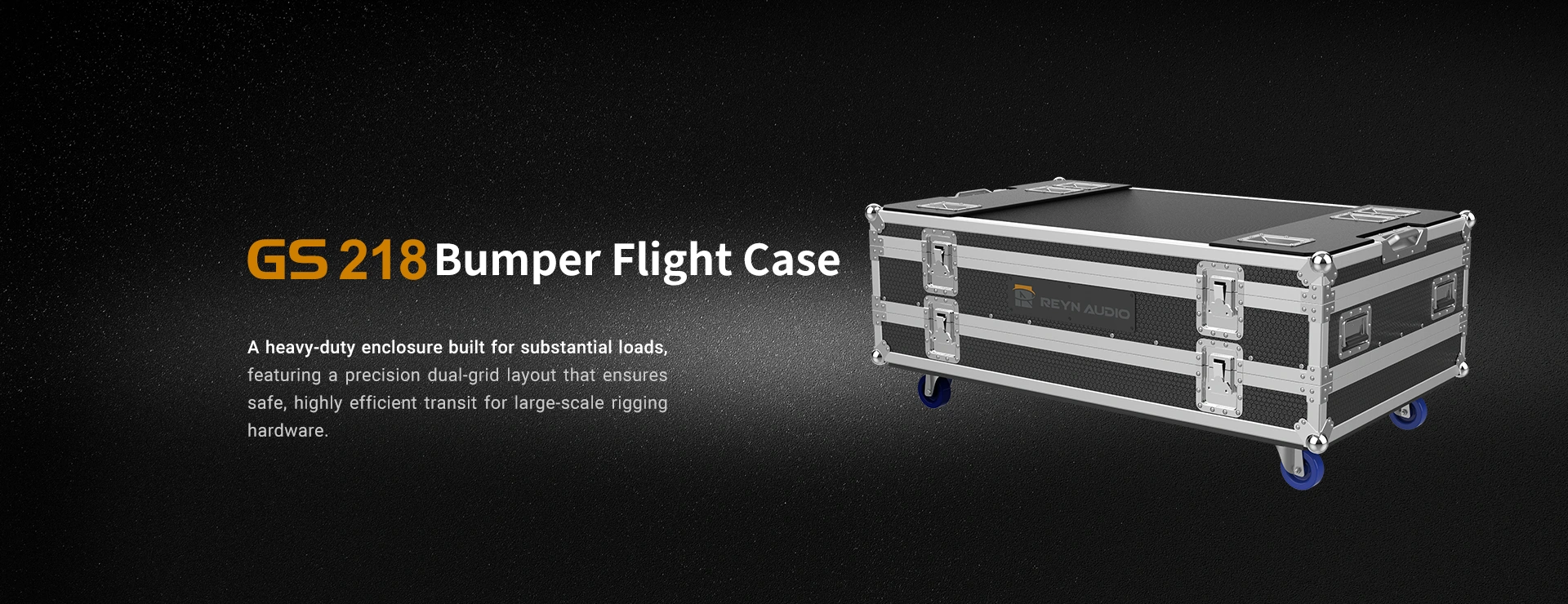

  • GS218 Bumper Flight Case

Applicable Series

  • GS218

Specifications

  • 2 GS218 Bumper

Dimensions (W x H x D)

  • 1420x840x595 mm
    (55.9"x33.0"x23.4")

Net Weight (N.W.)

  • 78 kg (171.96 lbs）

Product Code

  • 3205028050

Technical Specification

Product Name

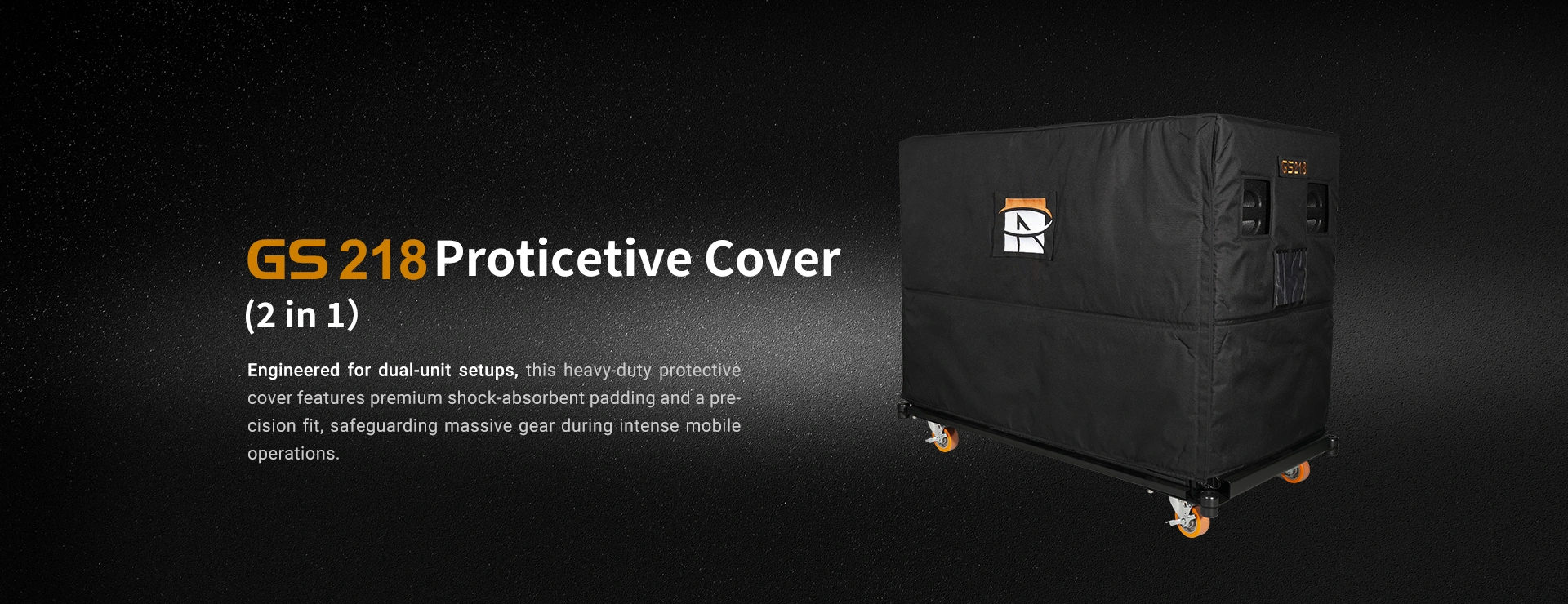

  • GS218 Protective Cover

Applicable Series

  • GS218

Specifications

  • 2 in 1

Dimensions (W x H x D)

  • 1372x762x980 mm
    (54.0"x30"x38.6")

Net Weight (N.W.)

  • 6 kg (13.2 lbs)

Product Code

  • 3202000595

Technical Specification

Product Name

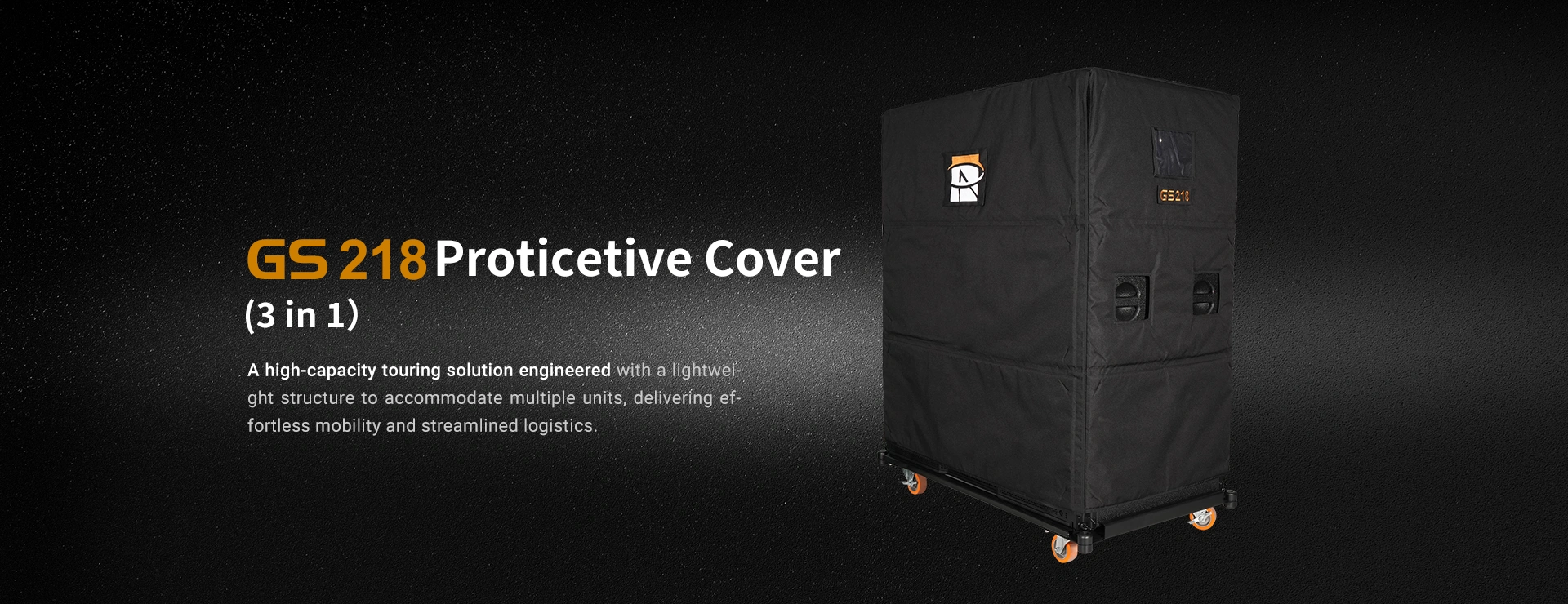

  • GS218 Protective Cover

Applicable Series

  • GS218

Specifications

  • 3 in 1

Dimensions (W x H x D)

  • 1372x762x1455 mm
    (54.0"x30"x27.3")

Net Weight (N.W.)

  • 7 kg (15.4 lbs)

Product Code

  • 3202000598

Technical Specification

Product Name

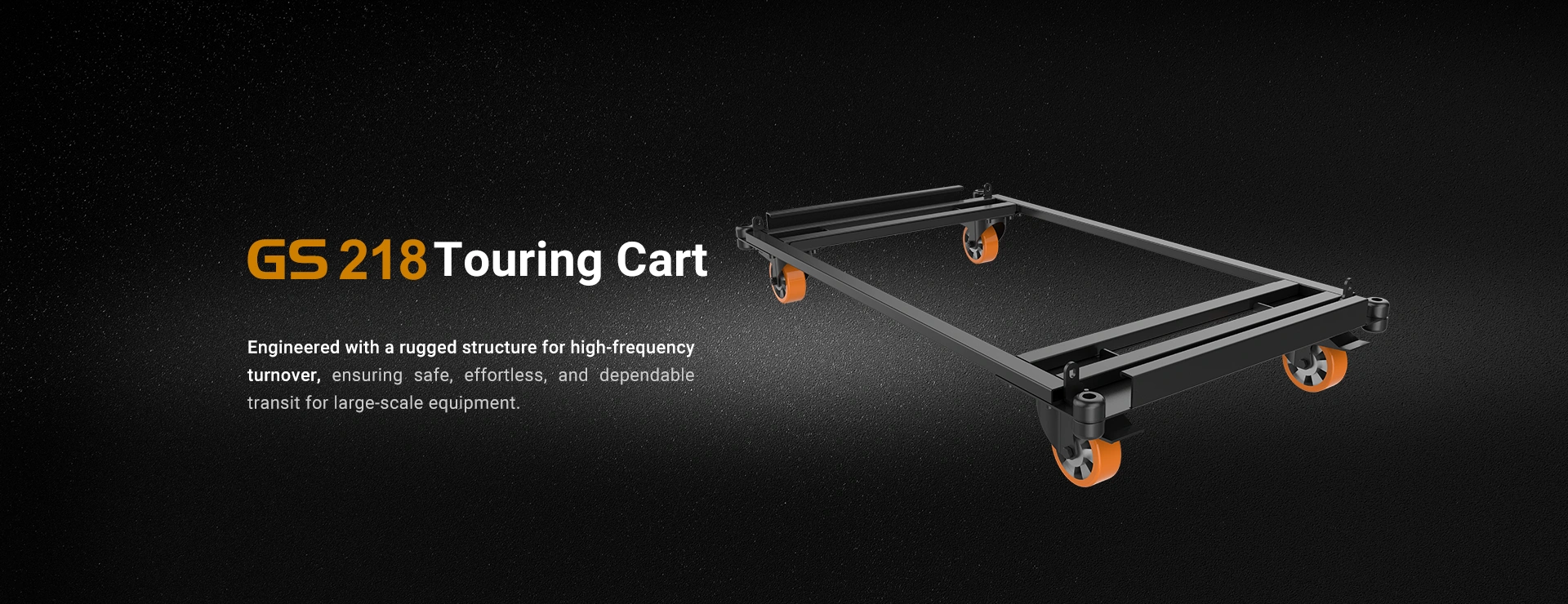

  • GS218 Touring Cart

Applicable Series

  • GS218

Specifications

  • 2 in 1 / 3 in 1

Dimensions (W x H x D)

  • 1430x790x232 mm
    ( 56.3"x31.1"x9.1")

Net Weight (N.W.)

  • 36 kg (79.4 lbs)

Product Code

  • 63583865
