Technical Specification

Product Name

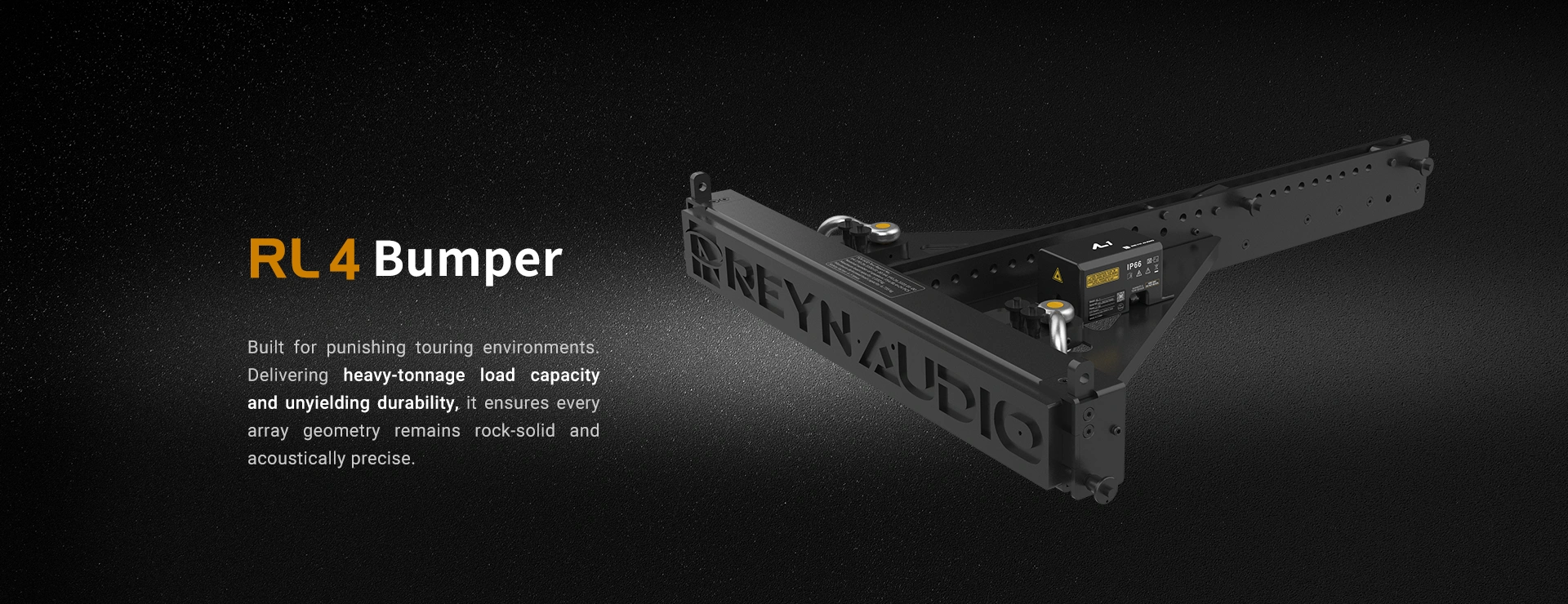

  • RL4 Bumper

Applicable Series

  • RL4、FS4

Specifications

  • Max capacity: 24 pcs RL4
    Max capacity: 24 pcs FS4

WLL (Working Load Limit)

  • 480 kg (1058.2 lbs)

Safety Factor

  • 6.5 times

TÜV SÜD Test Report No.

  • 64.190.26.3101.01-00

Rigging Material

  • Main Structural and crossbar constructed from 304 stainless steel;
    Logo plate: Birch-faced combi-core plywood.

Surface Treatment

  • Main Structural and crossbar constructed from black matte-textured powder coating with 10-year outdoor rating;
    Logo plate: Black, fine-textured two-component polyurea finish.

Dimensions (W x H x D)

  • 591×722×148 mm
    (23.3"x28.4"x5.8")

Net Weight (N.W.)

  • 11 kg (24.3 lbs)

Product Code

  • 63584082

Accessories

  • Quick lock pins (included)
    Product code: Φ8x20mm

    3002003201     		Φ8x40mm

    3002004535
    1/2 Shacke (included)
    Product code:3002003760
    Laser alignment module (Optional)
    AL

    		 AL1

Technical Specification

Product Name

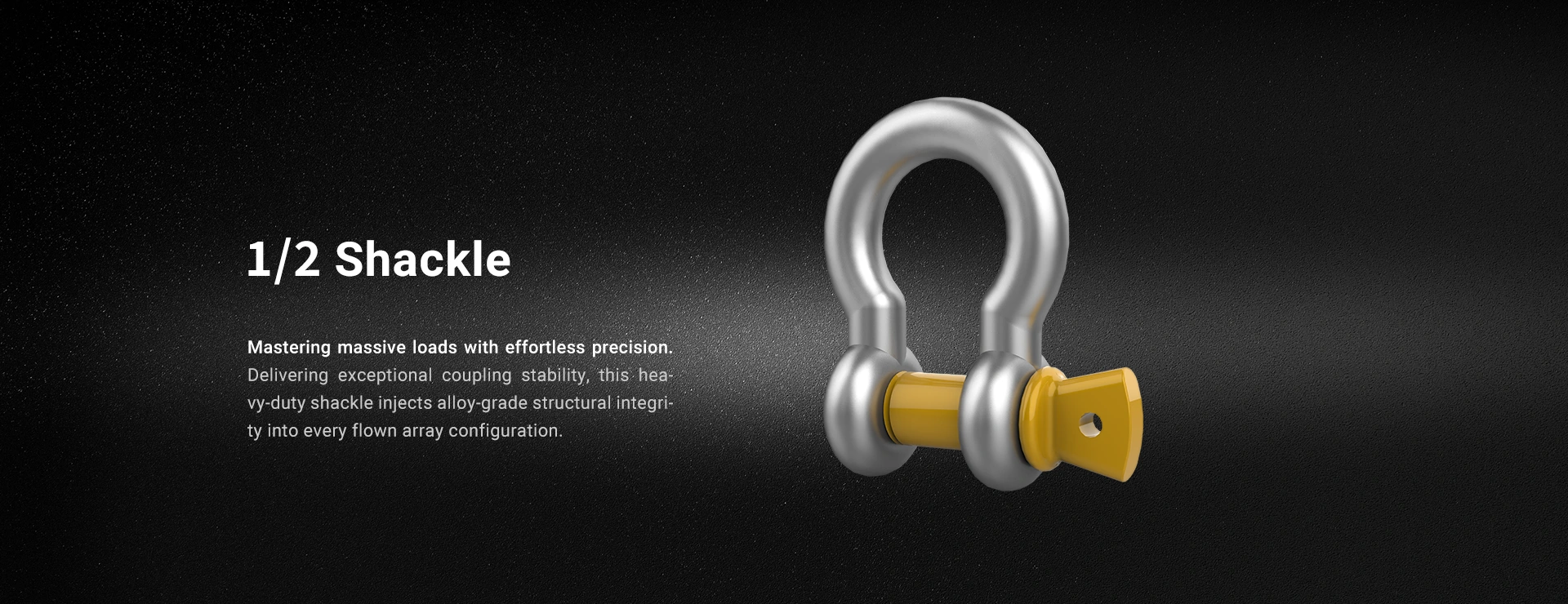

  • 1/2 shackle

Applicable Series

  • RL3、RL4

Specifications

  • American Bow (BW)，
    G-209 high-quality alloystructural steel

WLL (Working Load Limit)

  • 2 t

Safety Factor

  • 6 times

Product Code

  • 3002003760

Technical Specification

Product Name

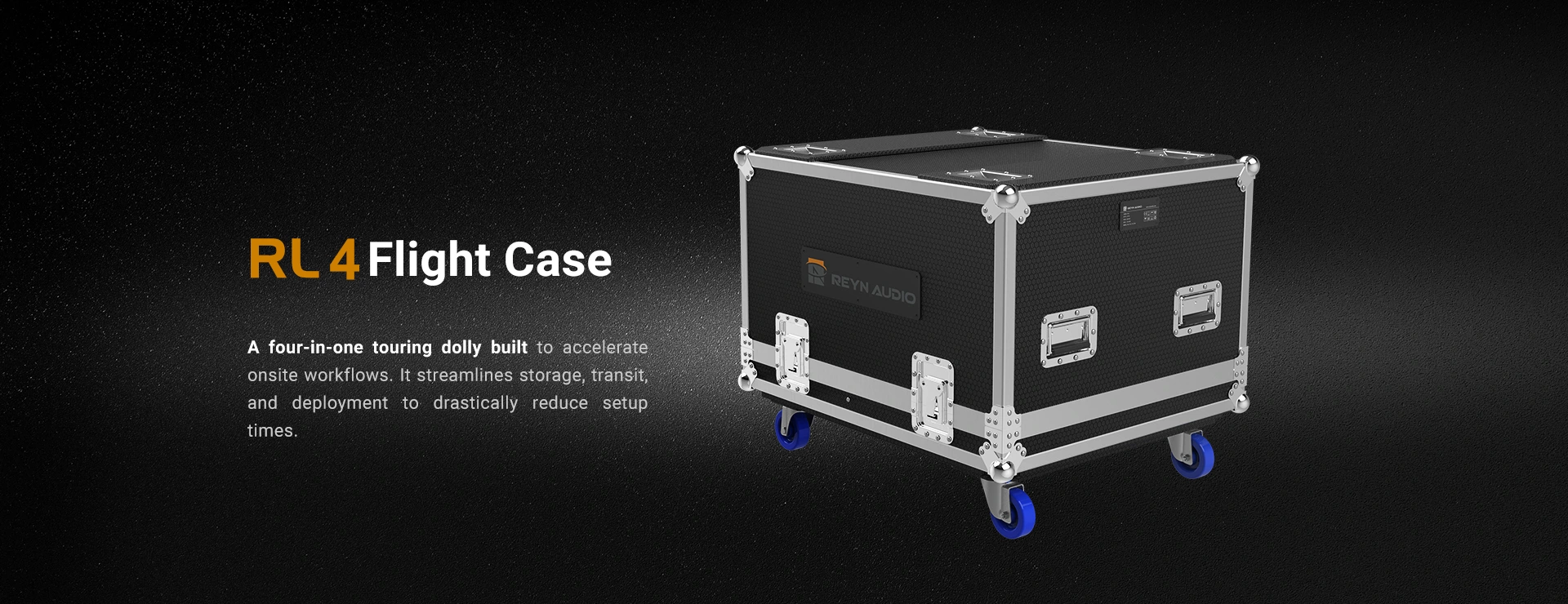

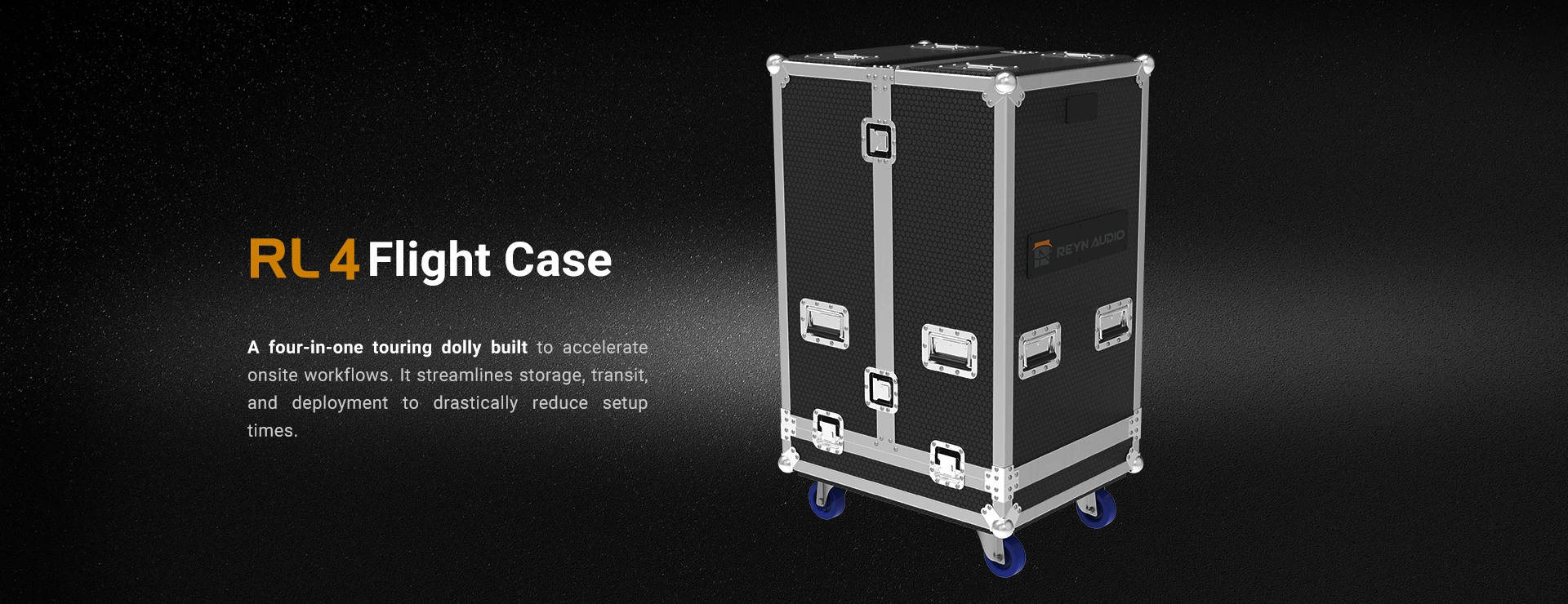

  • RL4 Flight Case

Applicable Series

  • RL4

Specifications

  • 4 in 1

Dimensions (W x H x D)

  • 900x780x735 mm
    (35.4"x30.7"x28.9")

Net Weight (N.W.)

  • 44 kg (97 lbs)

Gross Weight (G.W.)

  • 124 kg (273.4 lbs)

Product Code

  • 3205028056

Technical Specification

Product Name

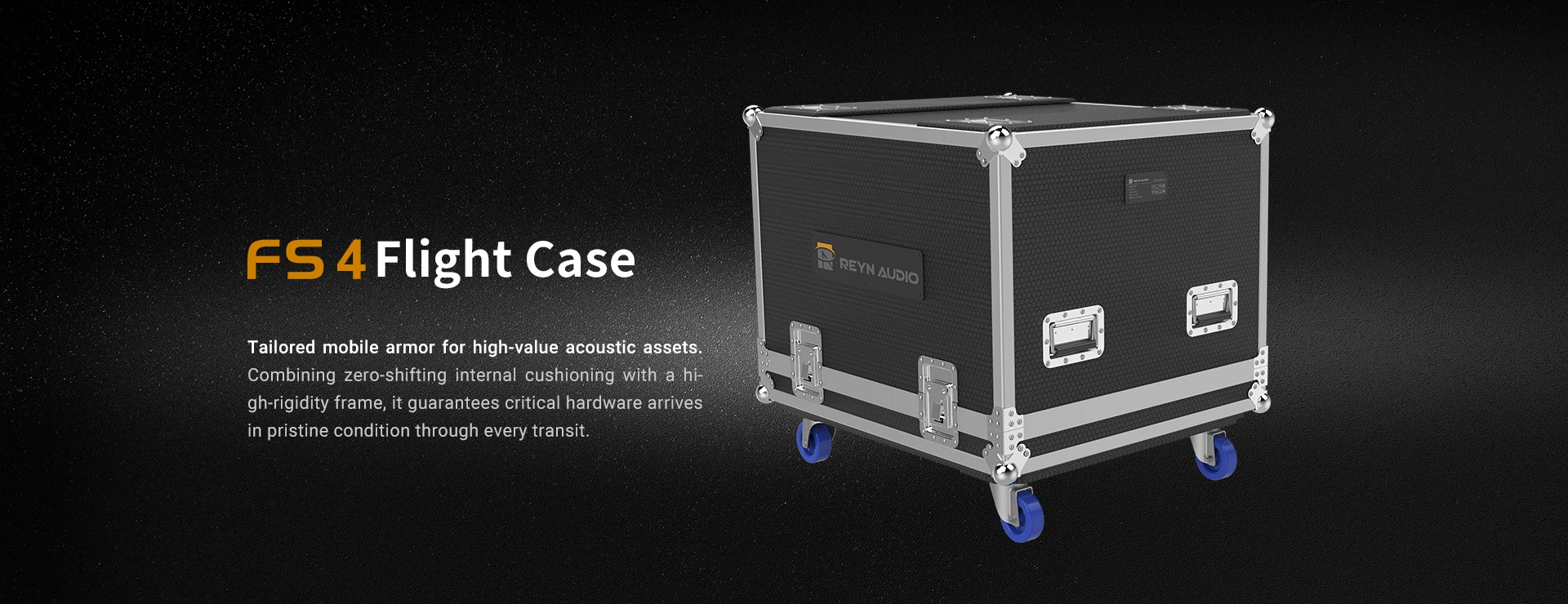

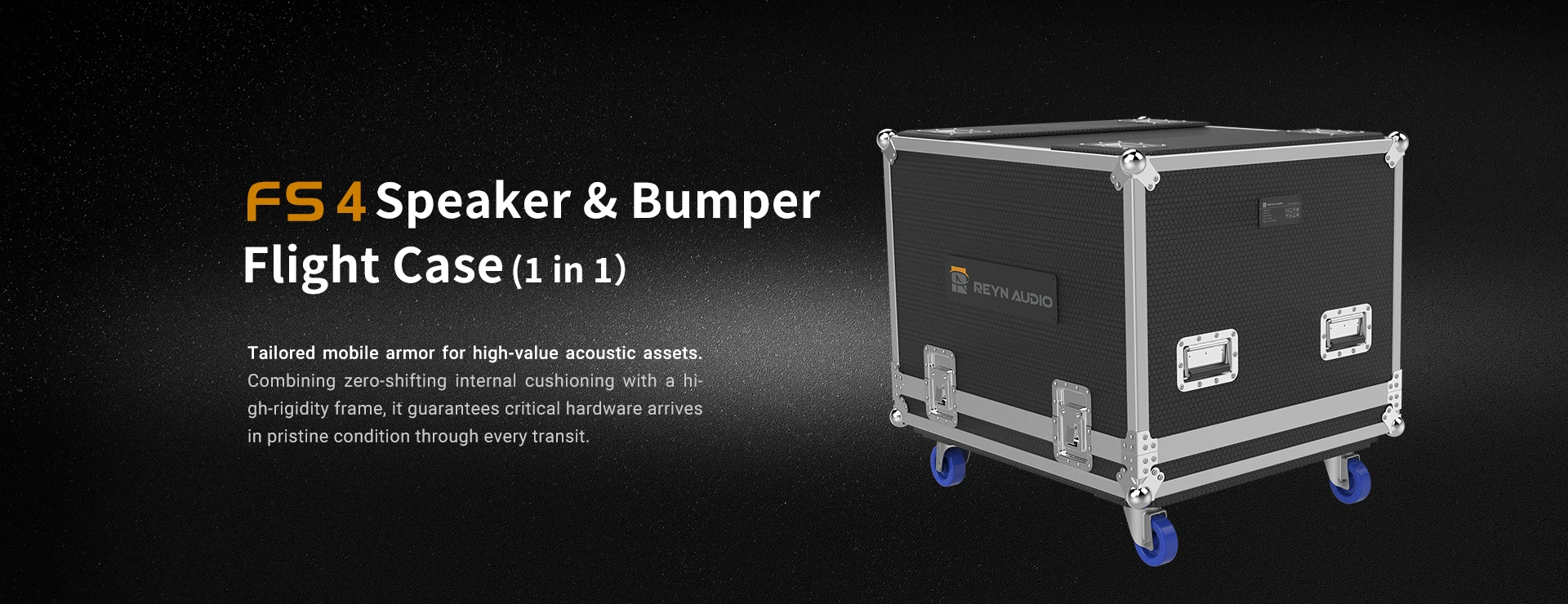

  • FS4 Flight Case

Applicable Series

  • FS4

Specifications

  • 1 in 1

Dimensions (W x H x D)

  • 900x780x835 mm

Net Weight (N.W.)

  • 53 kg （116.8 lbs）

Product Code

  • 3205028055
