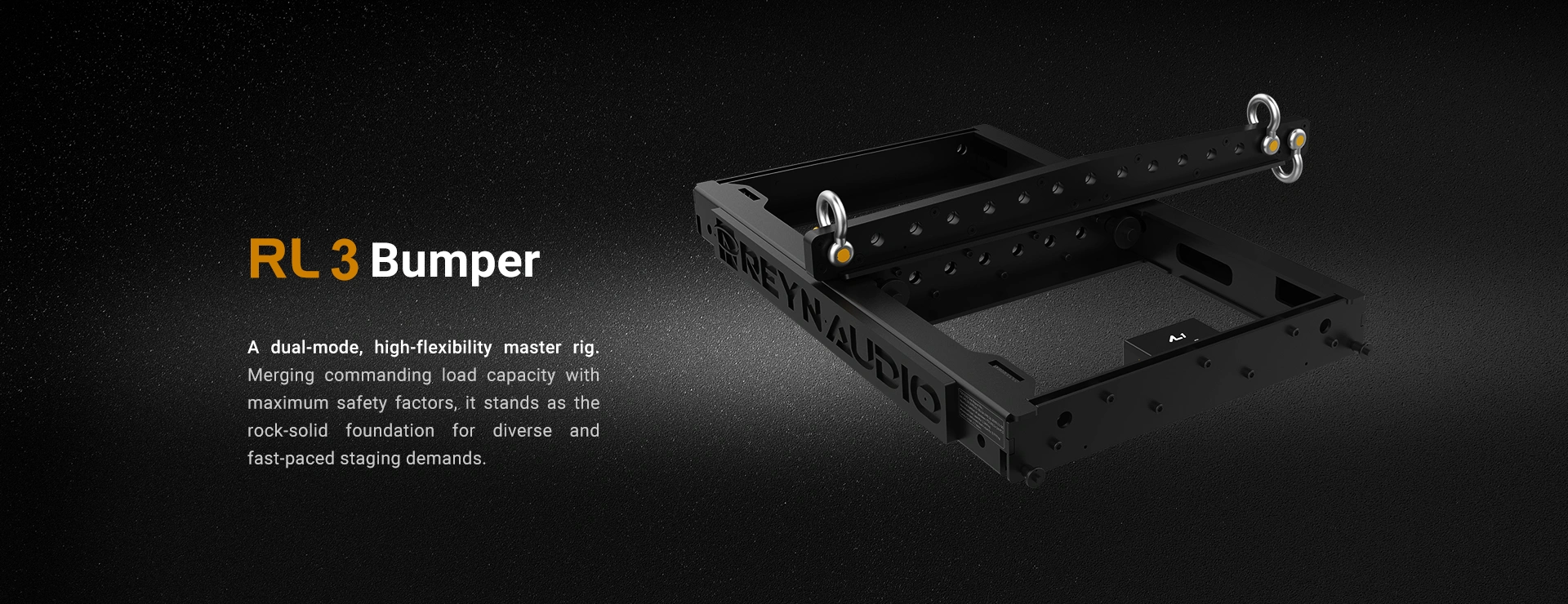

Technical Specification

Product Name

  • RL3 Bumper

Applicable Series

  • RL3、RL3i、FS3

Specifications

  • Max capacity: 24 pcs RL3
    Max capacity: 24 pcs FS3

WLL (Working Load Limit)

  • 1056 kg (2,328 lbs)

Safety Factor

  • 6.5 times

TÜV SÜD Test Report No.

  • 64.190.26.3099.01-00

Rigging Material

  • Main Structural and crossbar constructed from 304 stainless steel;
    Logo plate: Birch-faced combi-core plywood.

Surface Treatment

  • Main Structural and crossbar constructed from black matte-textured powder coating with 10-year outdoor rating;
    Logo plate: Black, fine-textured two-component polyurea finish.

Dimensions (W x H x D)

  • 788×698×158 mm
    (31.0"x27.4"x6.2")

Net Weight (N.W.)

  • 46 kg (101.4 lbs)

Product Code

  • 63584154

Accessories

  • Quick lock pins (included)
    Product code: Φ8x20mm

    3002003201     		Φ16x21mm

    3002004825
    1/2 Shacke (included)
    Product code:3002003760
    Laser alignment module (Optional)
    AL

    		 AL1

Technical Specification

Product Name

  • 1/2 shackle

Applicable Series

  • RL3、RL4

Specifications

  • American Bow (BW)，
    G-209 high-quality alloystructural steel

WLL (Working Load Limit)

  • 2 t

Safety Factor

  • 6 times

Product Code

  • 3002003760

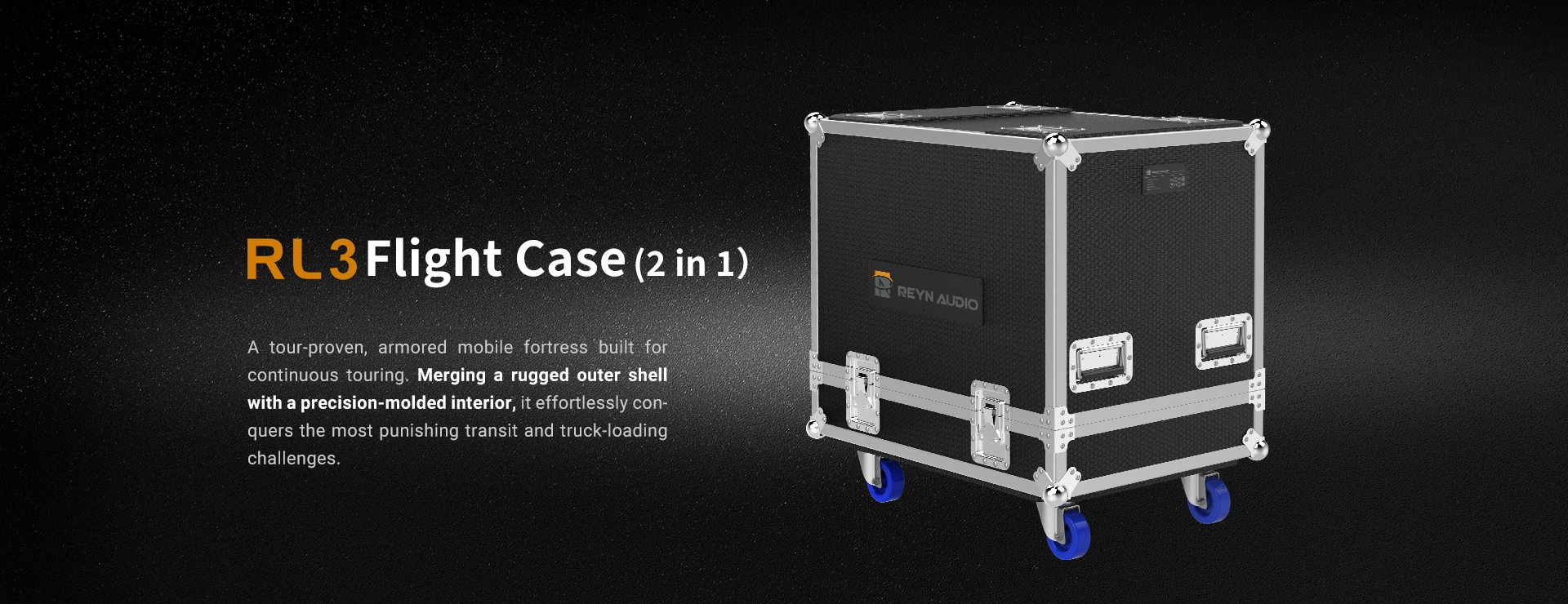

Technical Specification

Product Name

  • RL3 Flight Case

Applicable Series

  • RL3

Specifications

  • 2 in 1

Dimensions (W x H x D)

  • 870x580x880 mm
    (34.3"x22.8"x34.6")

Net Weight (N.W.)

  • 42 kg (92.6 lbs)

Gross Weight (G.W.)

  • 130 kg (286.6 lbs)

Product Code

  • 3205028061

Technical Specification

Product Name

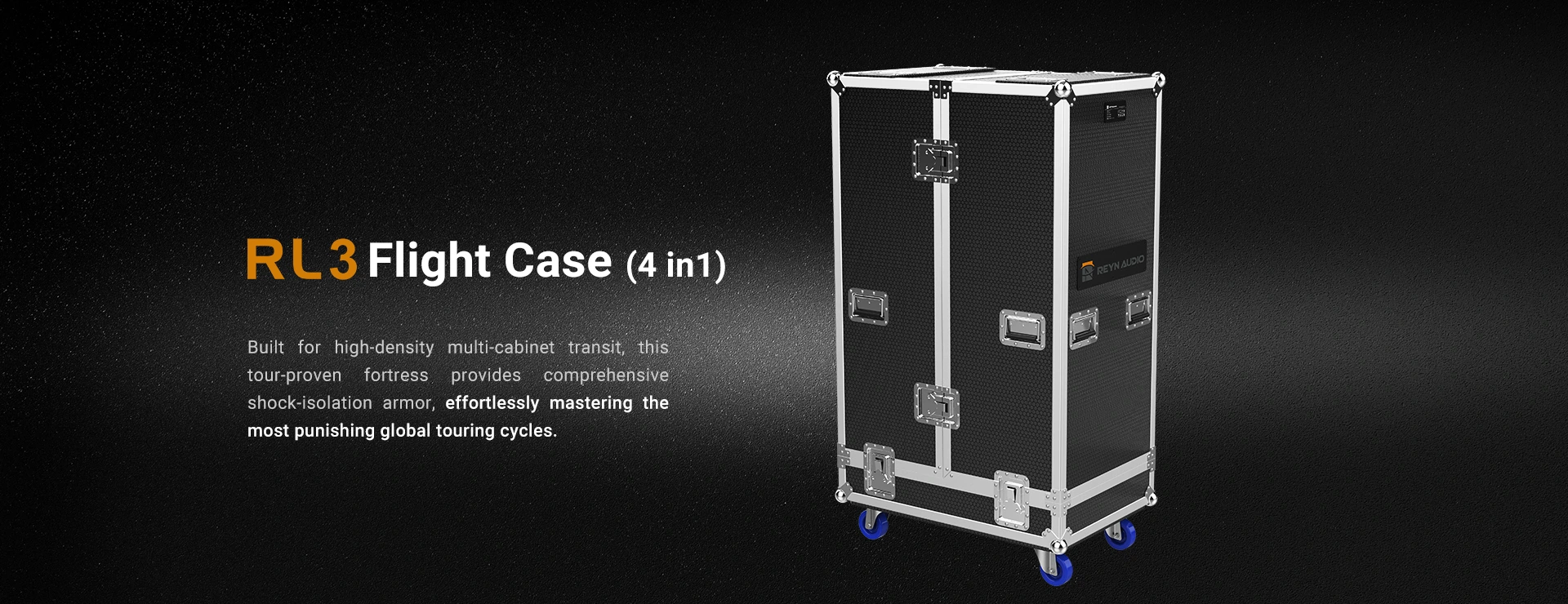

  • RL3 Flight Case

Applicable Series

  • RL3

Specifications

  • 4 in 1

Dimensions (W x H x D)

  • 870x580X1525 mm
    (34.3"×22.8"×60.0")

Net Weight (N.W.)

  • 69 kg (152.1 lbs)

Gross Weight (G.W.)

  • 245 kg (540.1 lbs)

Product Code

  • 3205028072

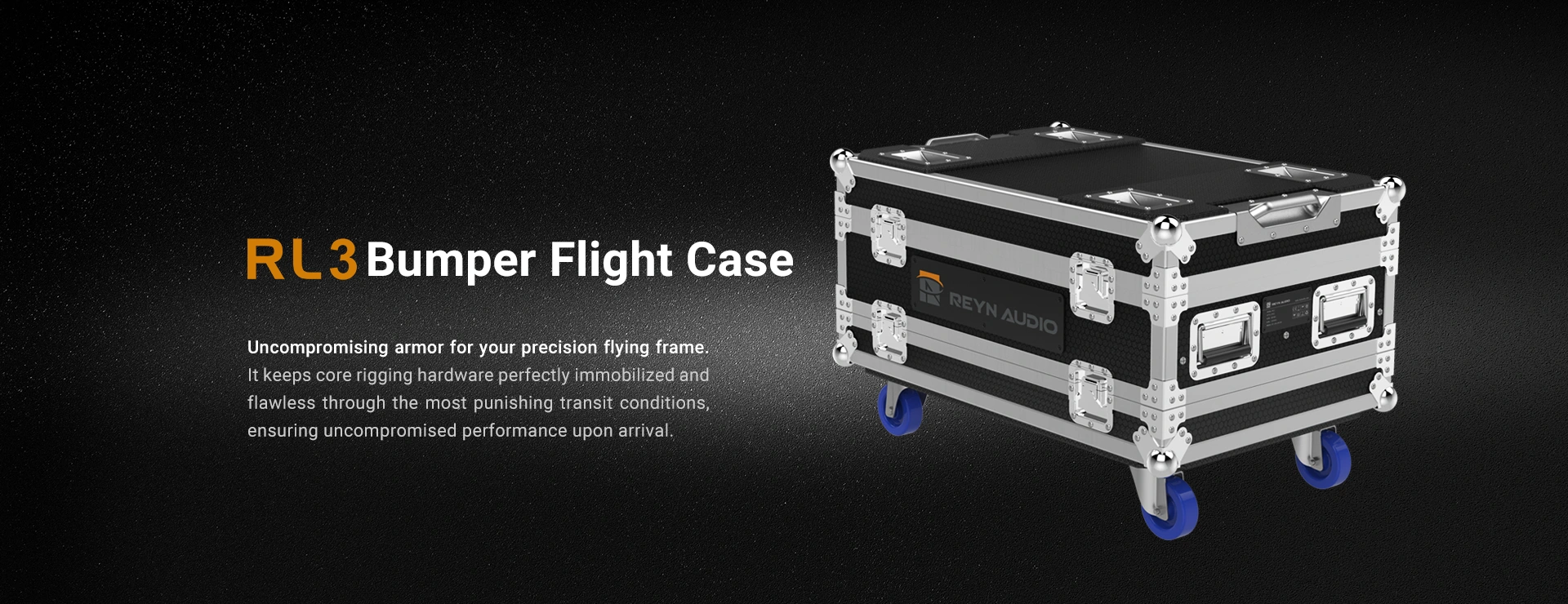

Technical Specification

Product Name

  • RL3 Bumper Flight Case

Applicable Series

  • RL3

Specifications

  • 2 RL3 Bumper

Dimensions (W x H x D)

  • 870x580x545 mm
    (34.3"x22.8"x21.5")

Net Weight (N.W.)

  • 40 kg (88.2 lbs)

Gross Weight (G.W.)

  • 132 kg (291.0 lbs)

Product Code

  • 3205028066

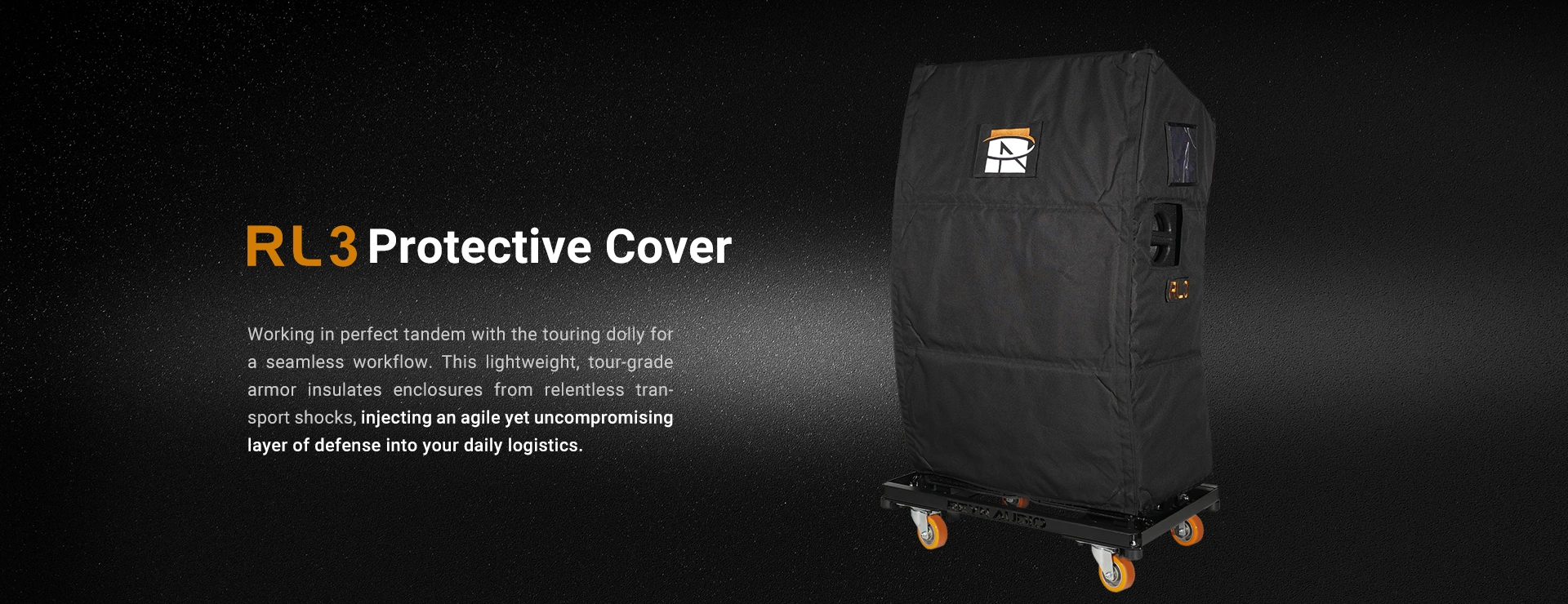

Technical Specification

Product Name

  • RL3 Protective Cover

Applicable Series

  • RL3

Specifications

  • 4 in 1

Dimensions (W x H x D)

  • 790x480x1266 mm
    (31.1"x18.9"x49.8")

Net Weight (N.W.)

  • 3 kg (6.6 lbs)

Product Code

  • 3202000605

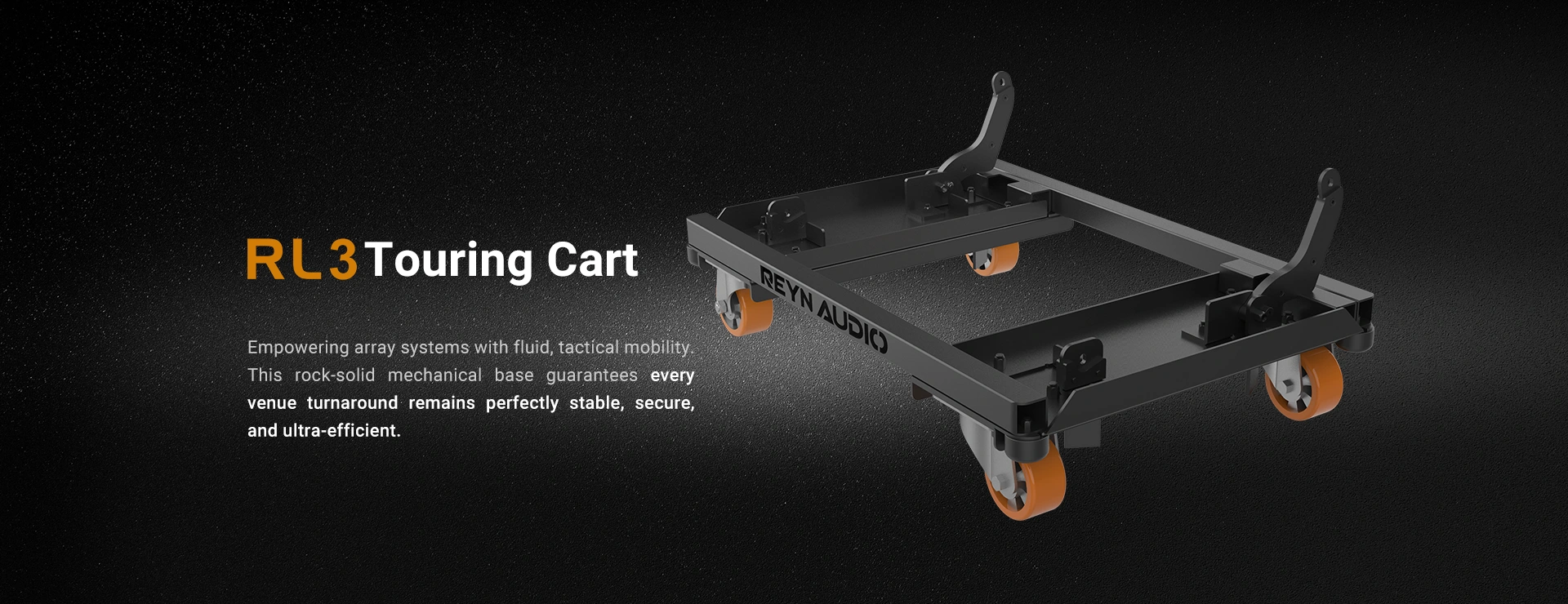

Technical Specification

Product Name

  • RL3 Touring Cart

Applicable Series

  • RL3

Specifications

  • 4 in 1

Dimensions (W x H x D)

  • 870x584x235 mm
    (31.6"x25.3"x9.3")

Net Weight (N.W.)

  • 54 kg (119 lbs)

Product Code

  • 63584200

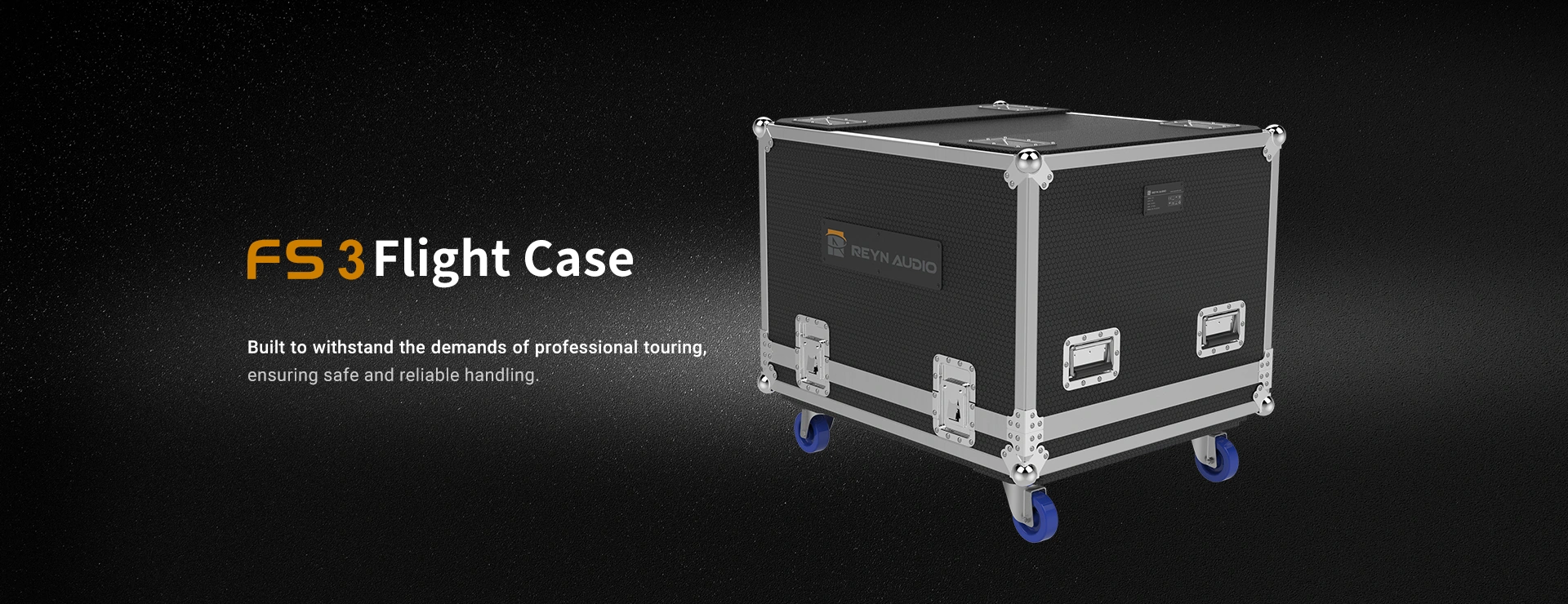

Technical Specification

Product Name

  • FS3 Flight Case

Applicable Series

  • FS3

Specifications

  • 1 in 1

Dimensions (W x H x D)

  • 900x780x800 mm

Net Weight (N.W.)

  • 55 kg (121.3 lbs)

Gross Weight (G.W.)

  • 100 kg (220.5 lbs)

Product Code

  • 3205028052

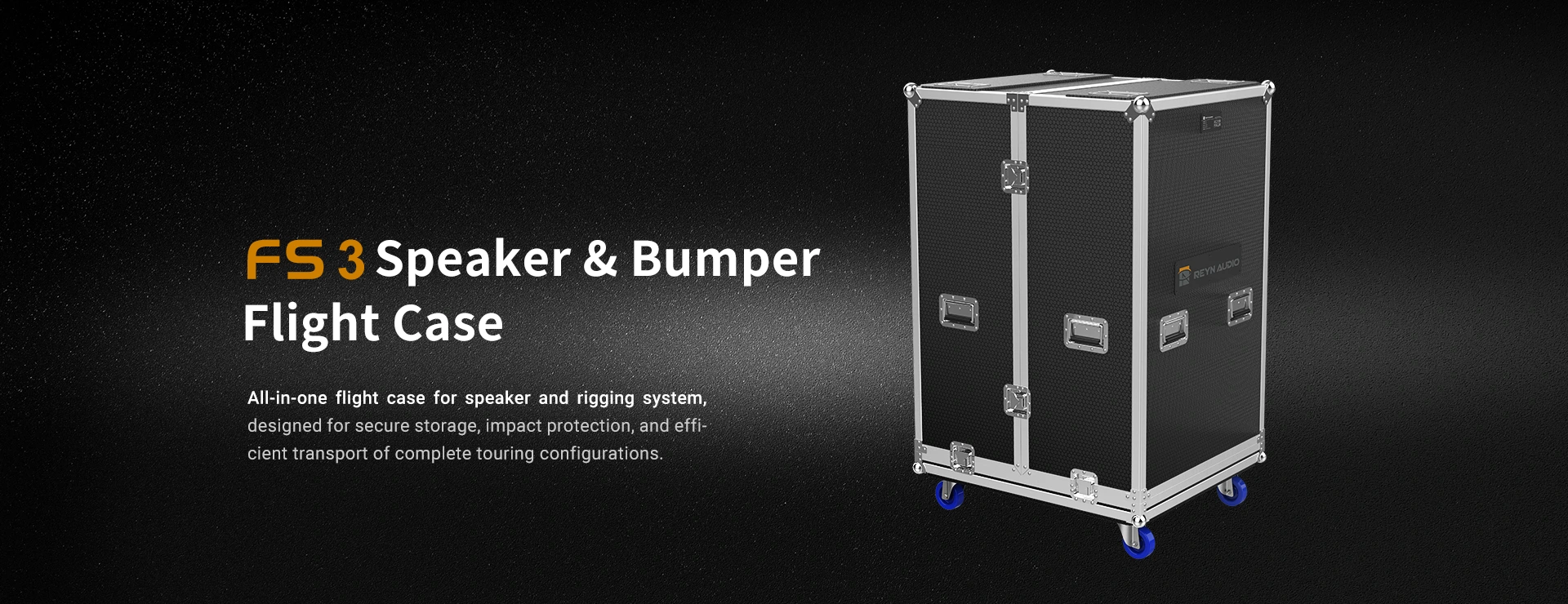

Technical Specification

Product Name

  • FS3 Speaker & Bumper Flight Case

Applicable Series

  • FS3

Specifications

  • 2 pieces FS3, and 1 pieces FS3 Bumper

Dimensions (W x H x D)

  • 910x780x1425 mm
    (35.8"x30.7"x56.1")

Net Weight (N.W.)

  • 76 kg (167.6 lbs)

Gross Weight (G.W.)

  • 188 kg (414.5 lbs)

Product Code

  • 3205028073

Technical Specification

Product Name

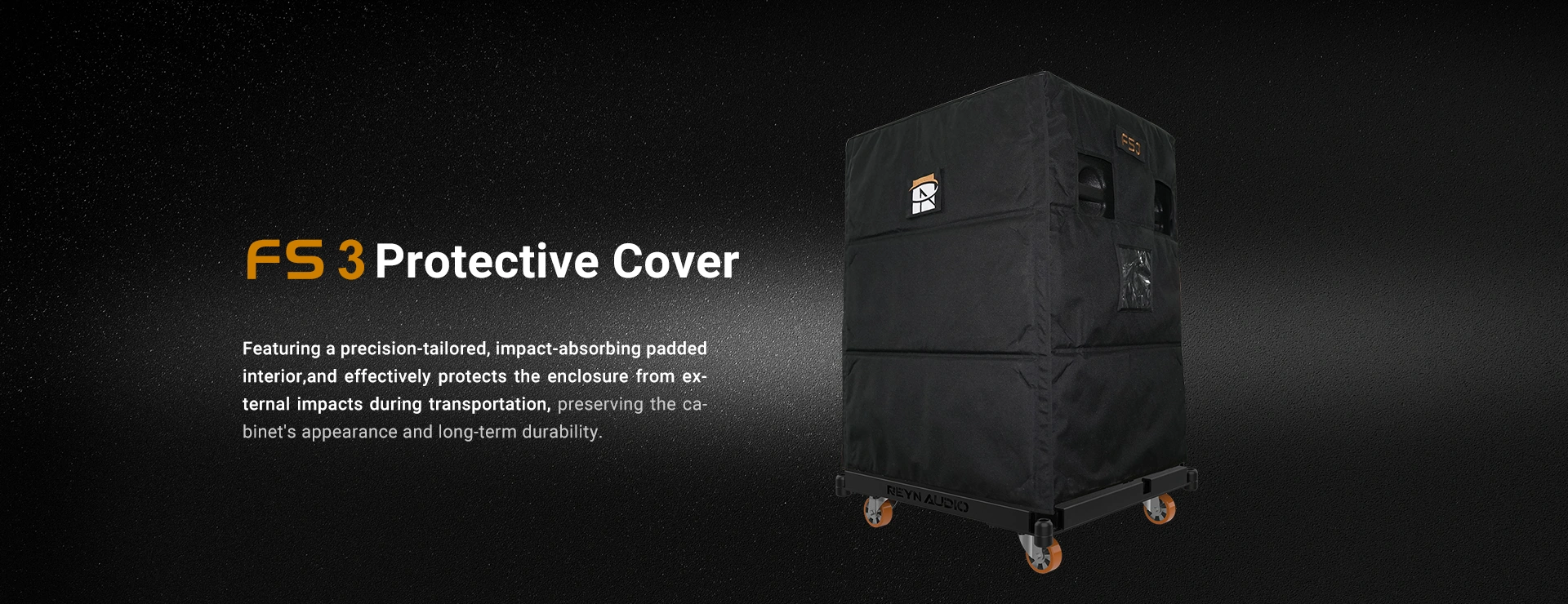

  • FS3 Protective Cover

Applicable Series

  • FS3

Specifications

  • 2 in 1

Dimensions (W x H x D)

  • 800x680x1000 mm
    (31.5"x26.8"x39.4")

Net Weight (N.W.)

  • 3 kg (6.6 lbs)

Product Code

  • 3202000597

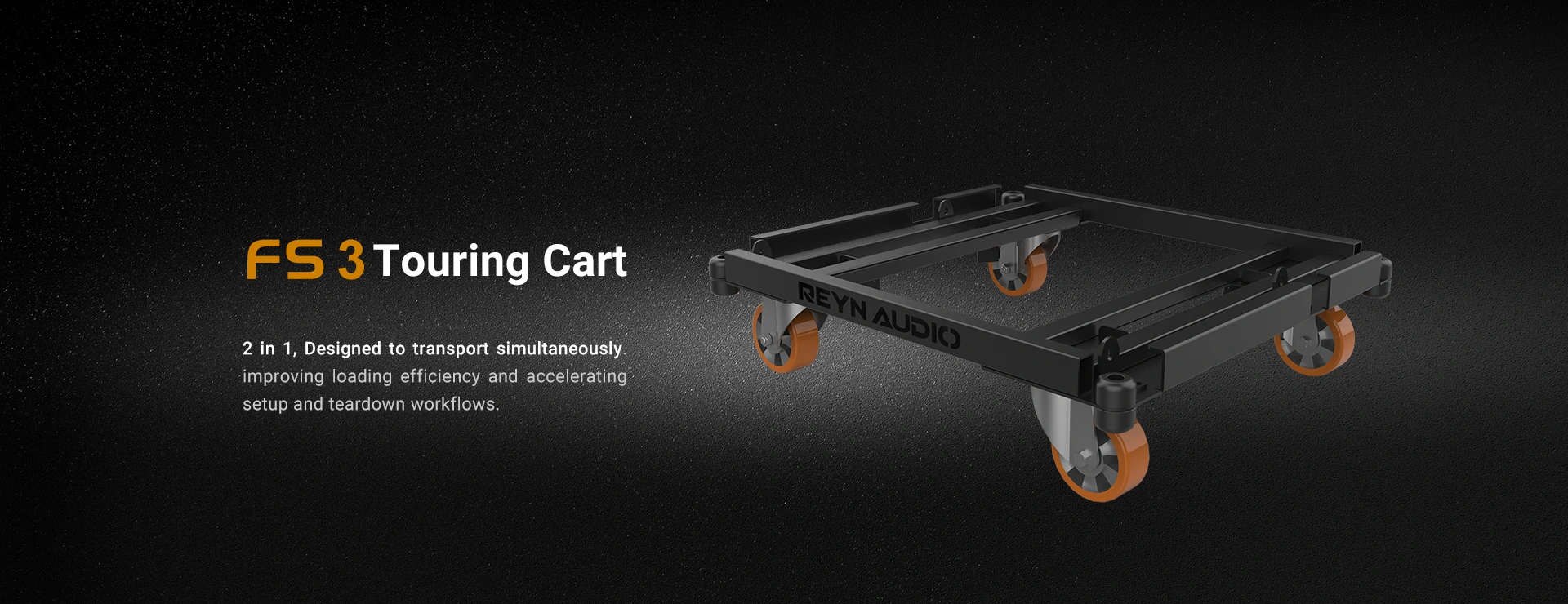

Technical Specification

Product Name

  • FS3 Touring Cart

Applicable Series

  • FS3

Specifications

  • 2 in 1

Dimensions (W x H x D)

  • 809x730x252mm
    (31.9 "x28.7 "x9.9")

Net Weight (N.W.)

  • 26Kg (57.3 lbs)

Product Code

  • 63584182
