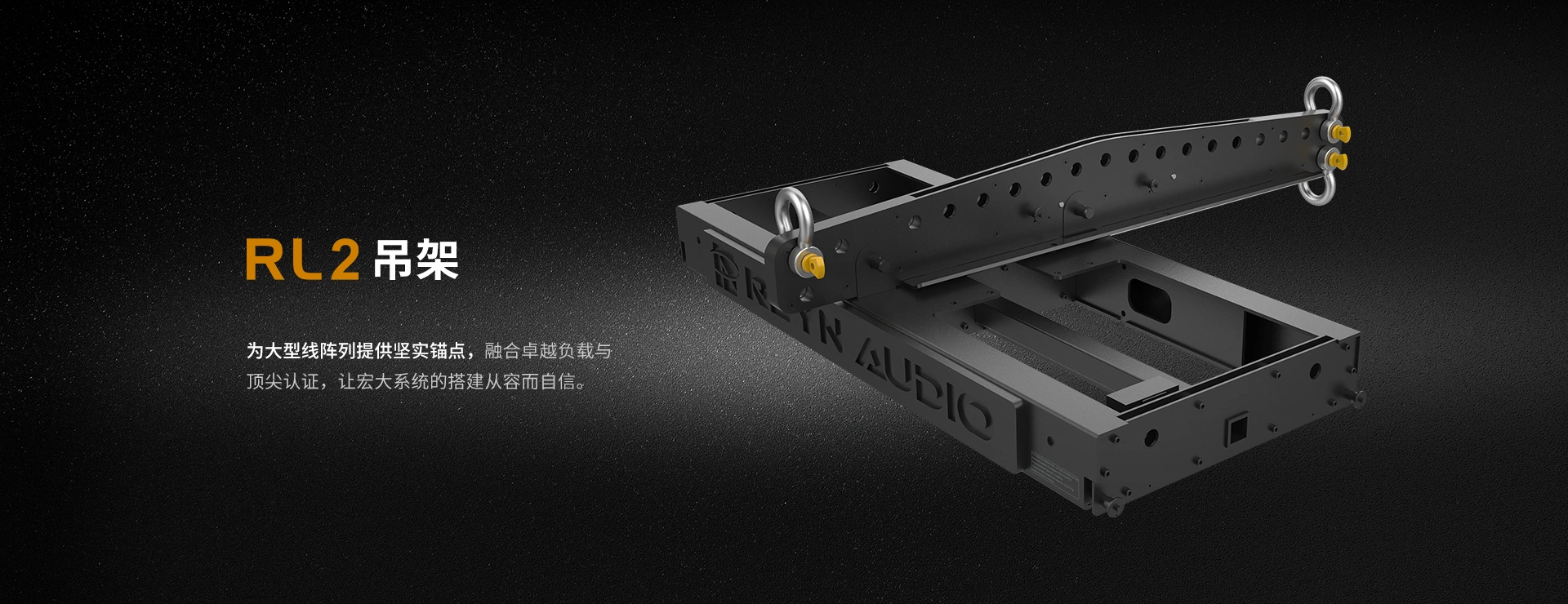

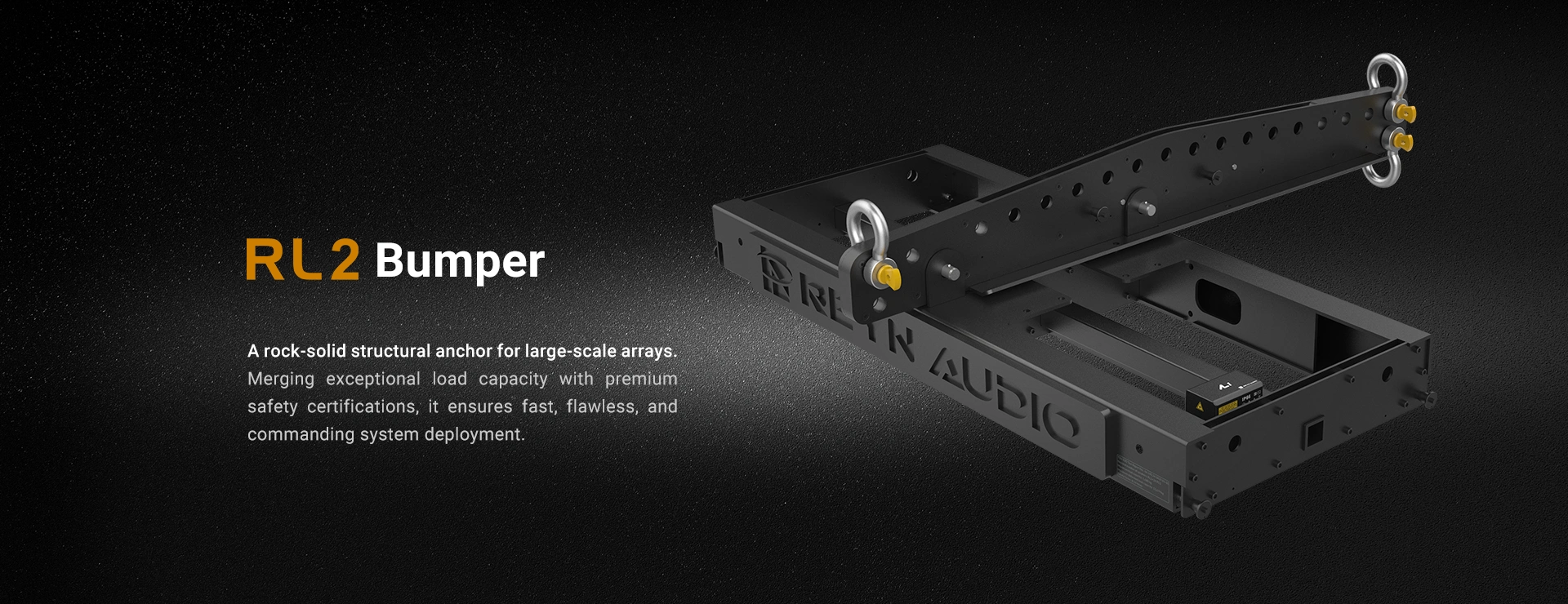

Technical Specification

Product Name

  • RL2 Bumper

Applicable Series

  • RL2、RL2i

Specifications

  • Max capacity: 24 pcs RL2

WLL (Working Load Limit)

  • 1680 kg (3703.8 lbs)

Safety Factor

  • 8.14 times

TÜV SÜD Test Report No.

  • 64.190.24.0429.01-01

Rigging Material

  • Main Structural and crossbar constructed from 304 stainless steel;
    Logo plate: Birch-faced combi-core plywood.

Surface Treatment

  • Main Structural and crossbar constructed from black matte-textured powder coating with 10-year outdoor rating;
    Logo plate: Black, fine-textured two-component polyurea finish.

Dimensions (W x H x D)

  • 1212x498x263 mm
    (47.7"x19.6"x10.4")

Net Weight (N.W.)

  • 71 kg (156.5 lbs)

Product Code

  • 63583494

Accessories

  • Quick lock pins (included)
    Product code: Φ10x22mm

    3002003200     		Φ10x40.5mm

    3002003918     		Φ19x44.5mm

    3002002455
    3/4 Shacke (included)
    Product code: 3002001924
    Tri-Frame (included)
    Product code: 63584212
    Laser alignment module (Optional)
    AL

    		 AL1

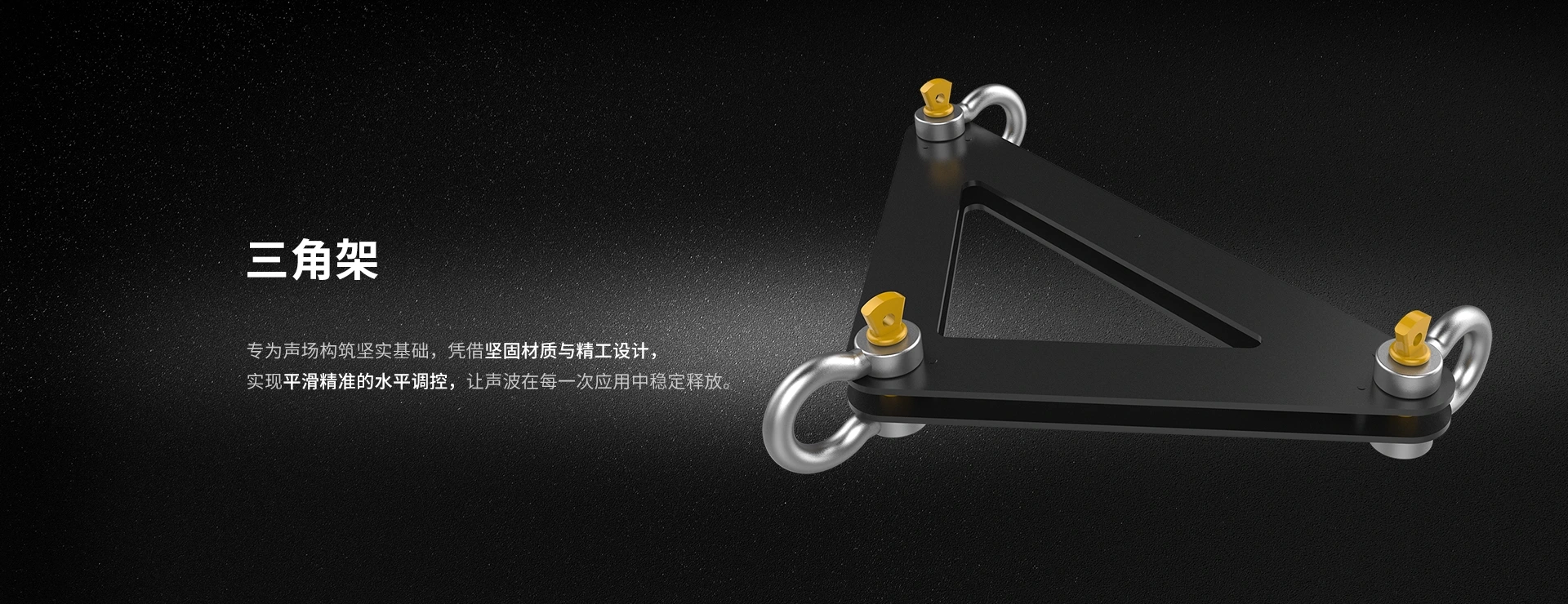

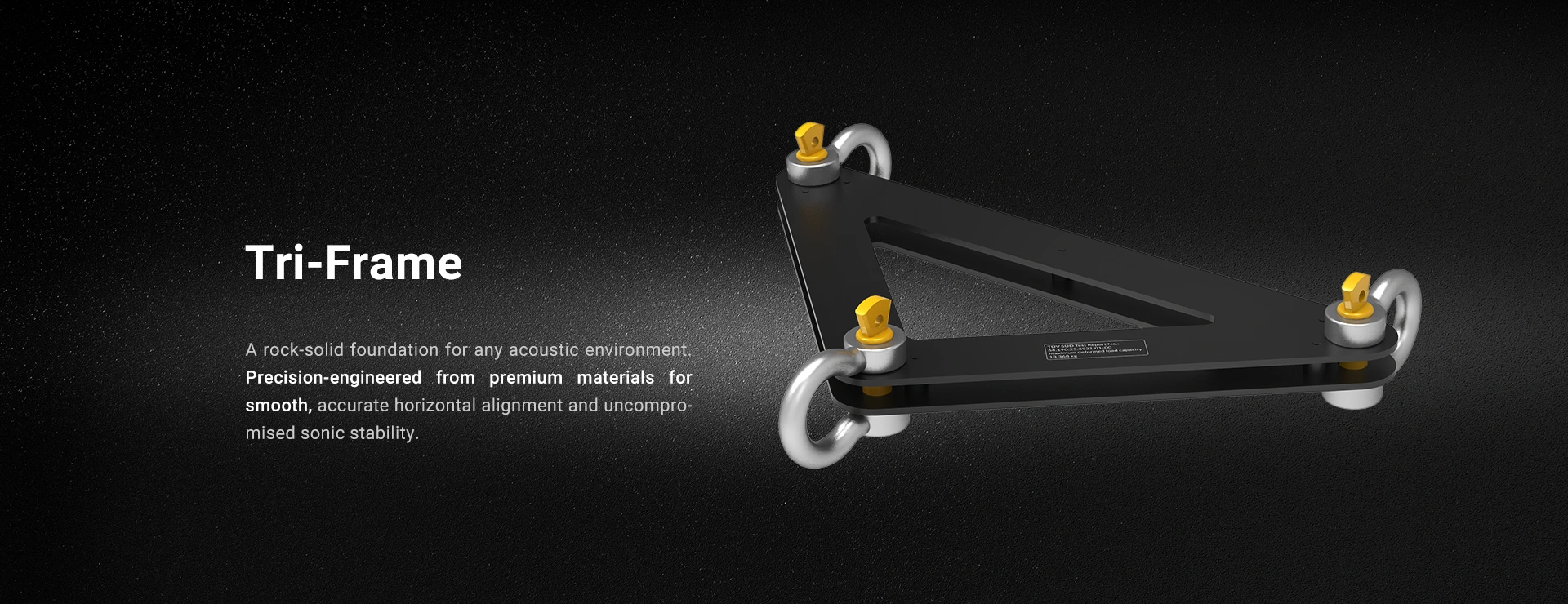

Technical Specification

Product Name

  • Tri-Frame

Applicable Series

  • All RL line array series

Specifications

  • Adjust the horizontal angle ofthe line array±10°

WLL (Working Load Limit)

  • 2,350 kg (5180.9 lbs)

Safety Factor

  • 5.8 times

TÜV SÜD Test Report No.

  • 64.190.25.3931.01-00

Surface Treatment

  • Black matte-textured powder coating with 10-year outdoor rating

Rigging Material

  • Main frame 304 stainless steel

Dimensions (W x H x D)

  • 606x304x105 mm
    (23.9″x12.0″x4.1″)

Net Weight (N.W.)

  • 10 kg (22 lbs)

Product Code

  • 63584212

Accessories

  • 3/4 Shackle
    Product code：3002001924

Technical Specification

Product Name

  • 3/4 Shackle

Applicable Series

  • RL1、RL2、RL15、GS218

Specifications

  • American Bow (BW),
    G-209 high-quality alloystructural steel

WLL (Working Load Limit)

  • 4.75 t

Safety Factor

  • 6 times

CE Certification

  • PPU2508-16

Product Code

  • 3002001924

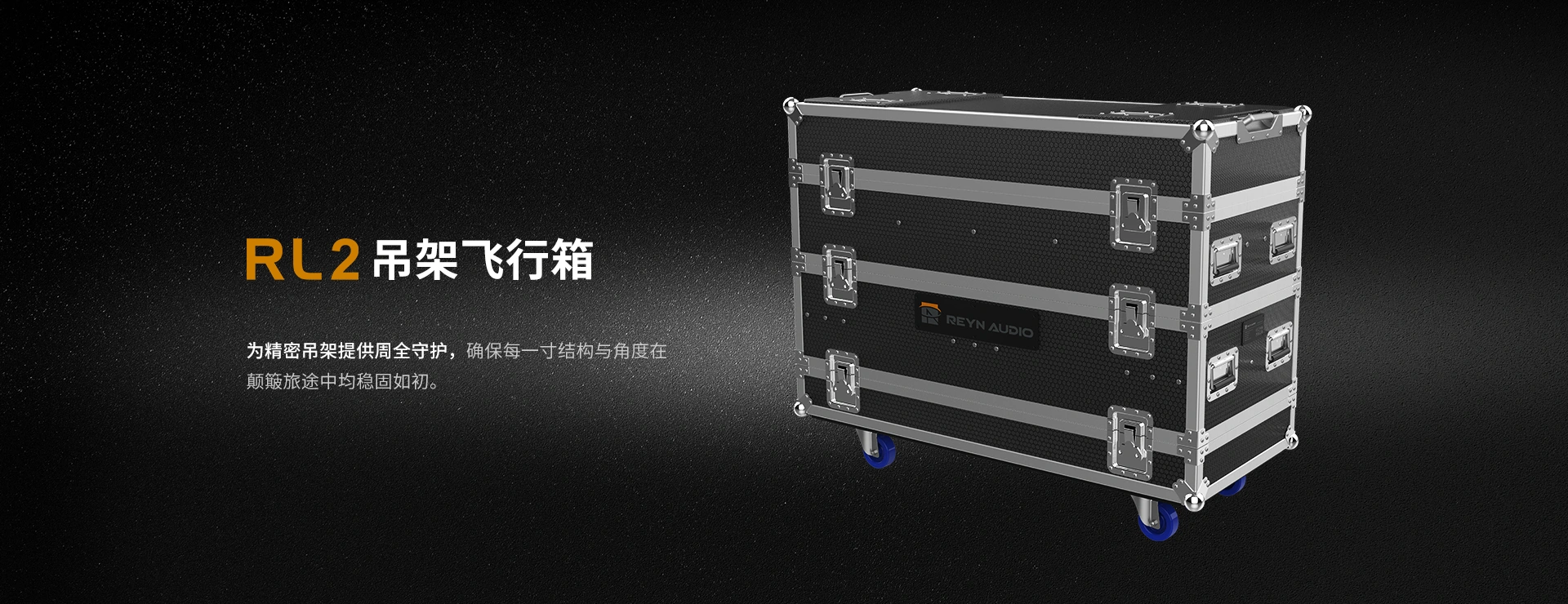

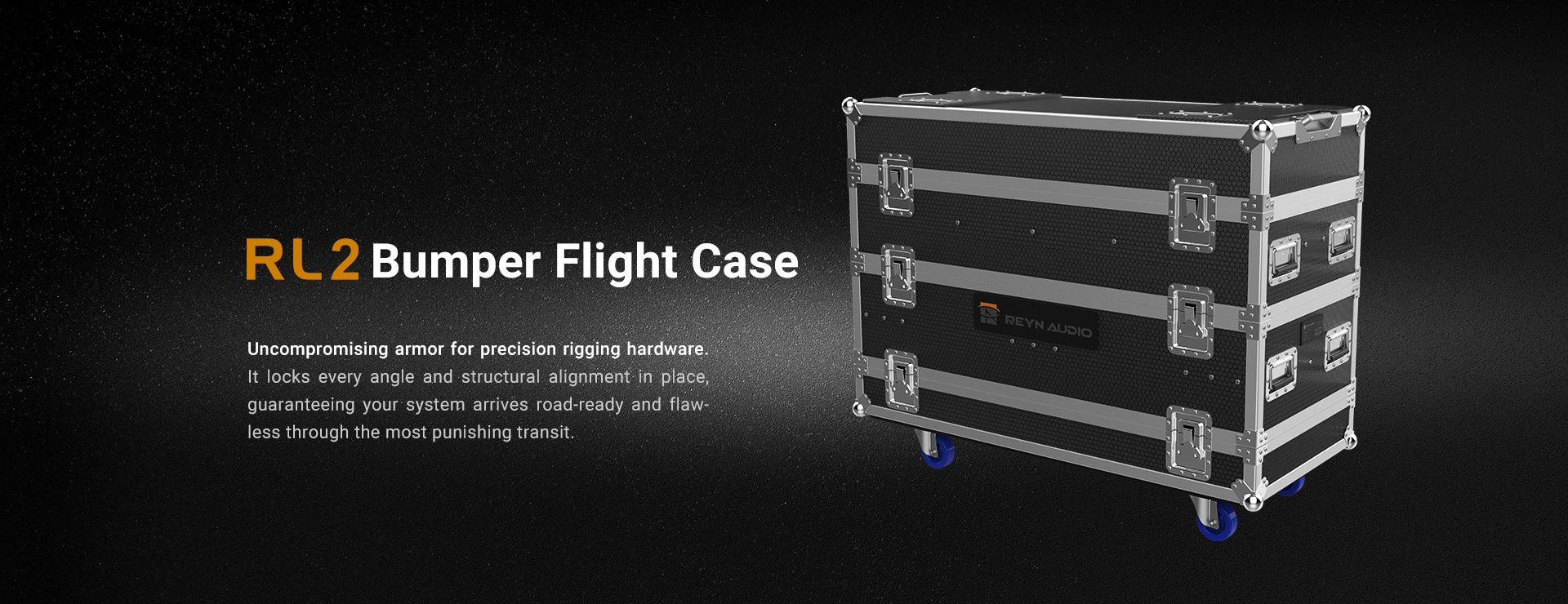

Technical Specification

Product Name

  • RL2 Bumper Flight Case

Applicable Series

  • RL2

Specifications

  • 2 RL2 Bumpers
    and 2 Tri-Frames

Dimensions (W x H x D)

  • 1320x580x1070 mm
    (52.0"x22.8"x42.1")

Net Weight (N.W.)

  • 87 kg (191.8 lbs)

Gross Weight (G.W.)

  • 249 kg (549.0 lbs)

Product Code

  • 3205028058

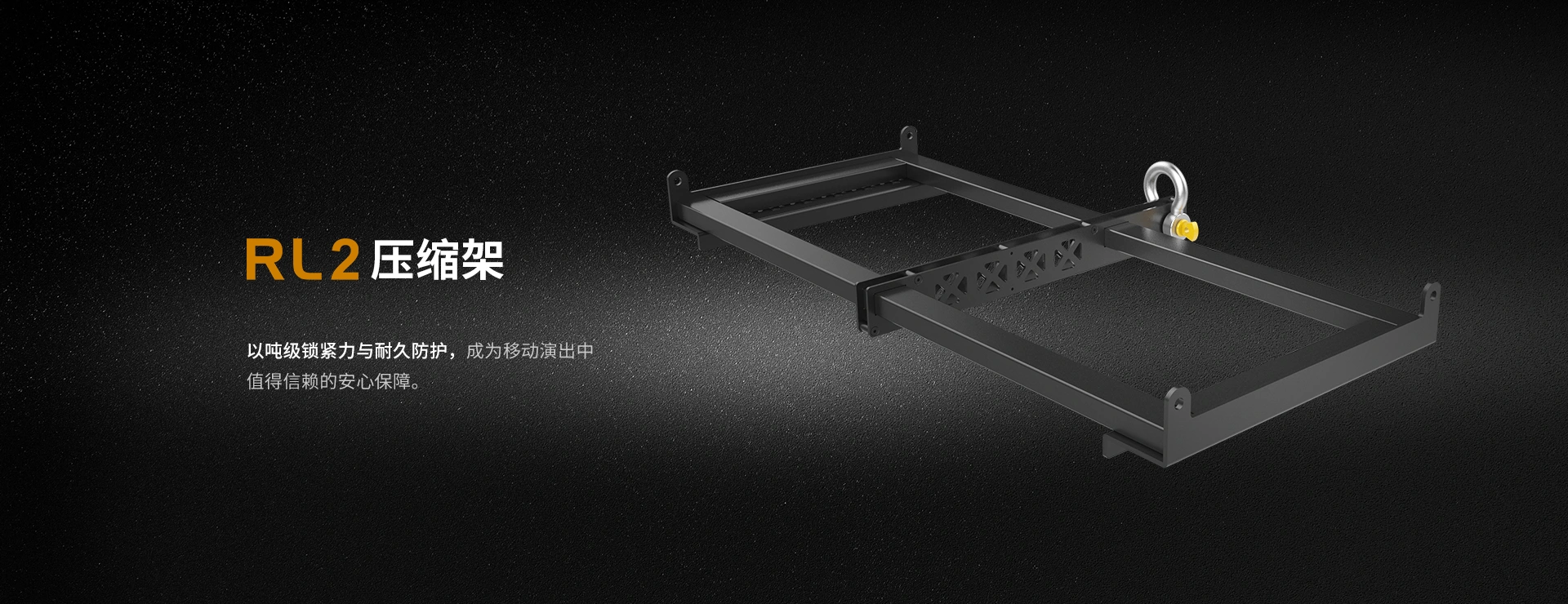

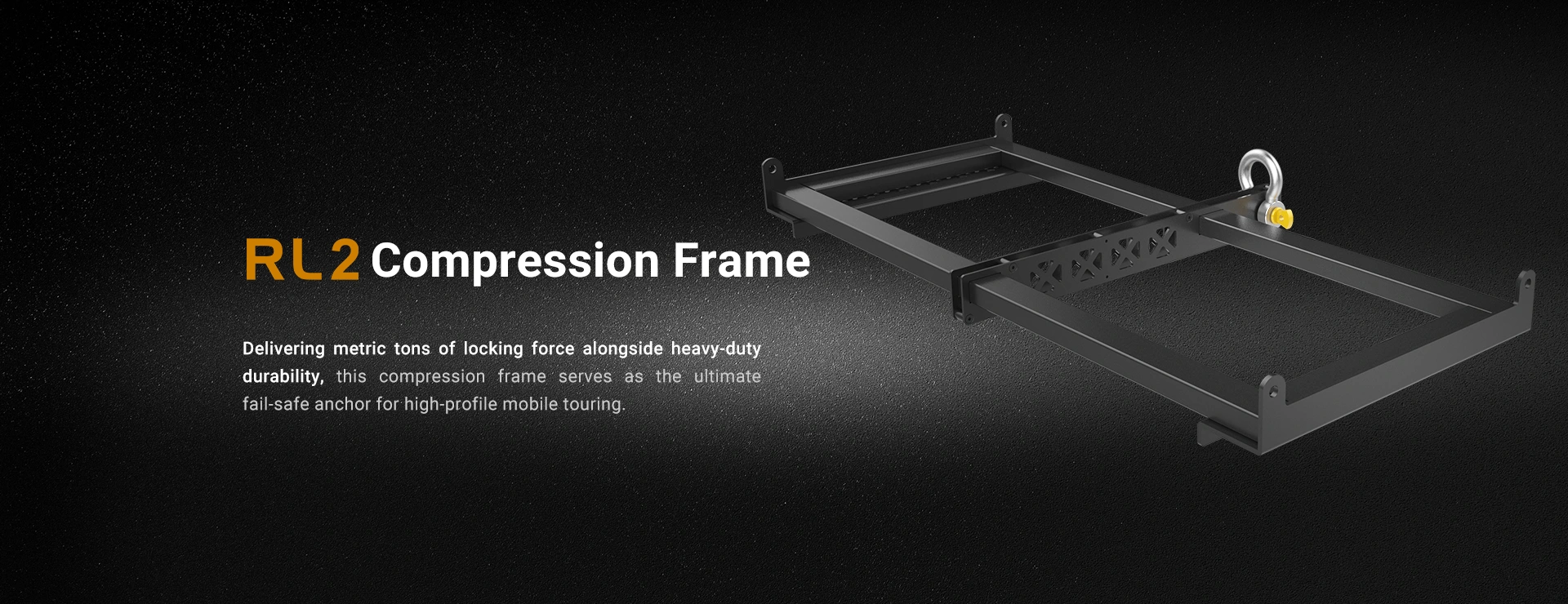

Technical Specification

Product Name

  • RL2 Compression Frame

Applicable Series

  • RL2

Specifications

  • Applicable 1 ton

Rigging Material

  • Main Structural: 304 stainless steel

Surface Treatment

  • Black matte-textured powder coating with 10-year outdoor rating

Dimensions (W x H x D)

  • 1118×600×110 mm
    (44.0"x23.6"x4.3")

Net Weight (N.W.)

  • 18 kg (39.7 lbs)

Product Code

  • 63583508

Accessories

  • 3/4 shackle
    Product code: 3002001924

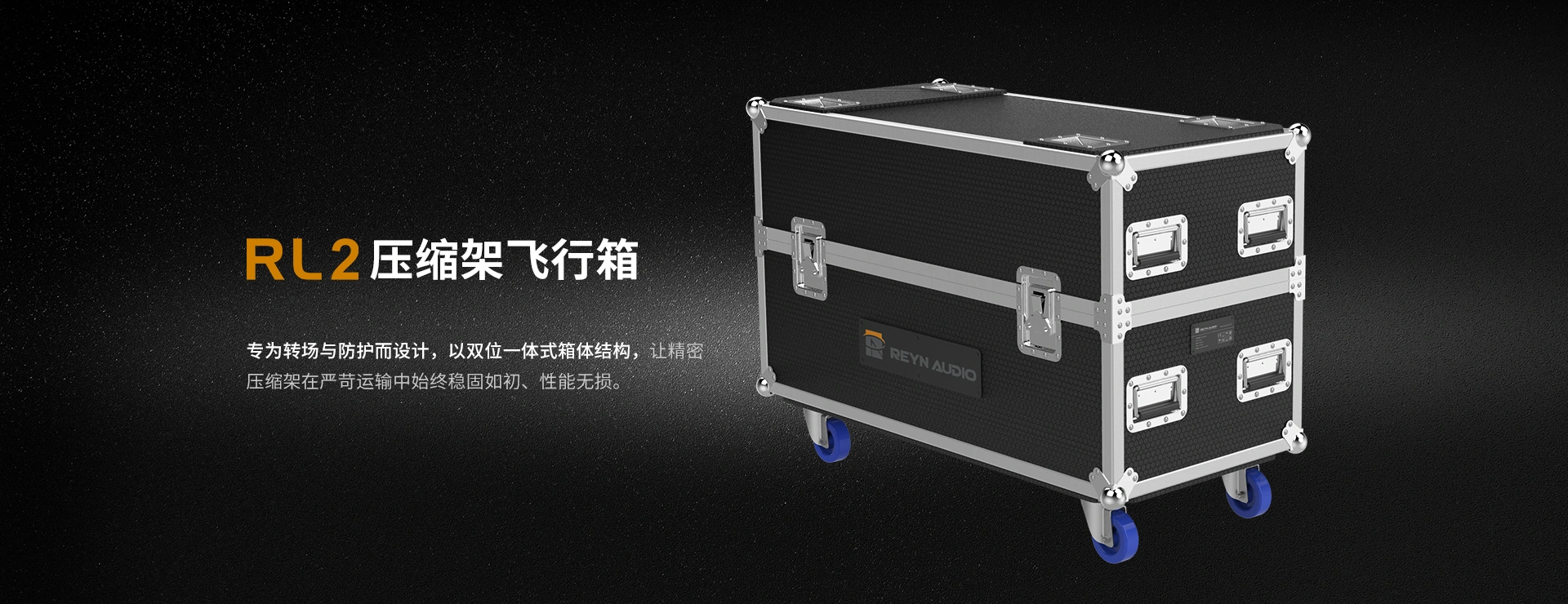

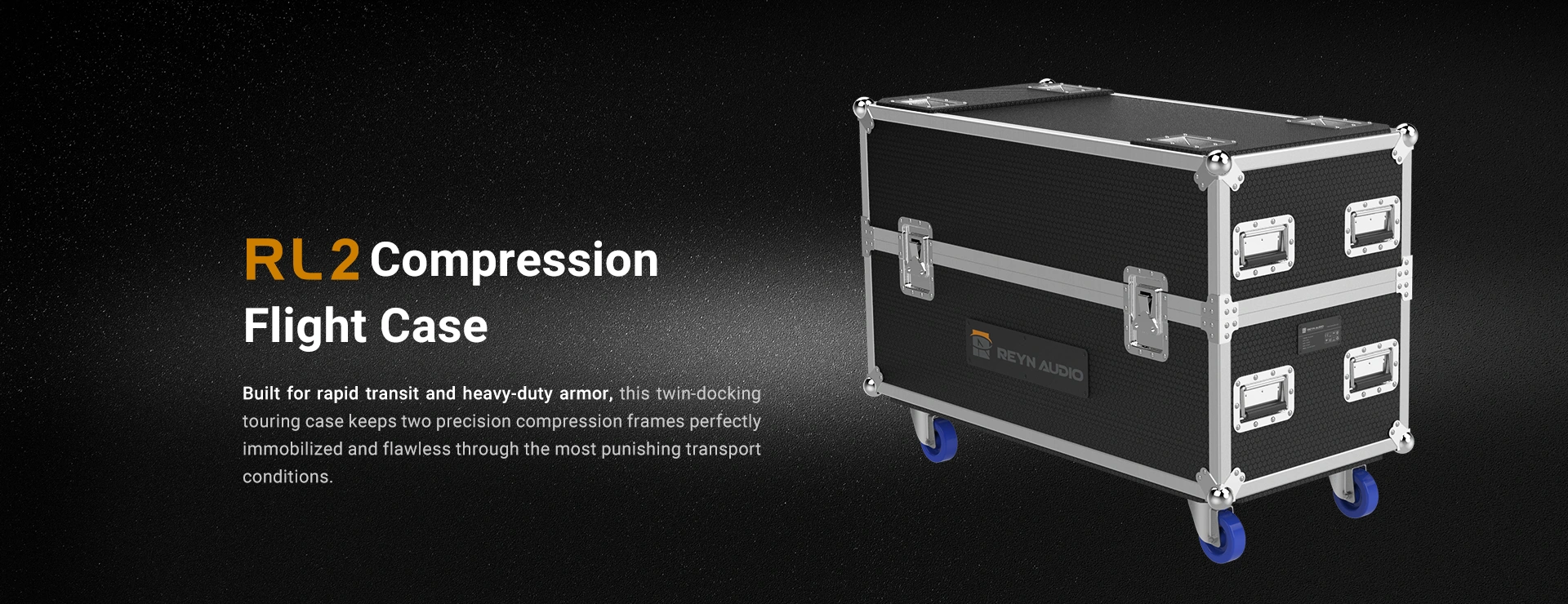

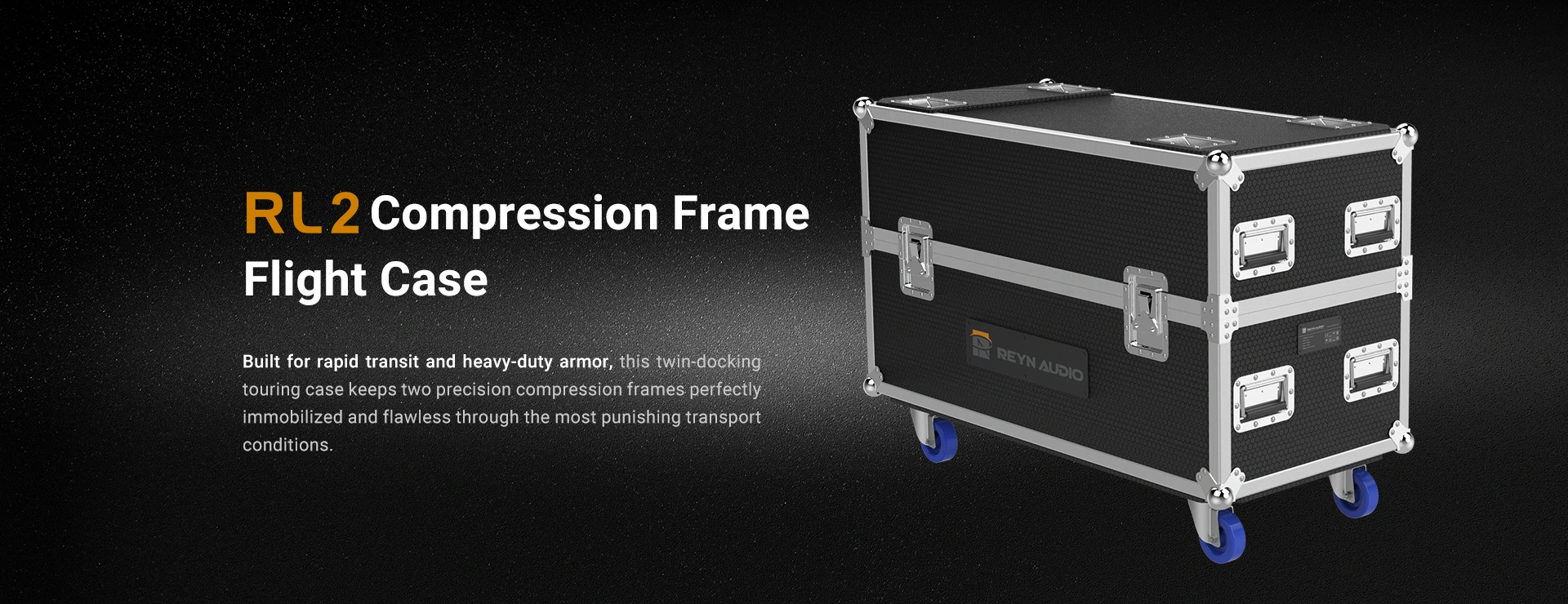

Technical Specification

Product Name

  • RL2 Compression Frame Case

Applicable Series

  • RL2

Specifications

  • 2 RL2 Compression Frame

Dimensions (W x H x D)

  • 1170x550x815 mm
    (46.1"x21.7"x32.1")

Net Weight (N.W.)

  • 53 kg (146.8 lbs)

Gross Weight (G.W.)

  • 89 kg (196.2 lbs)

Product Code

  • 3205028059

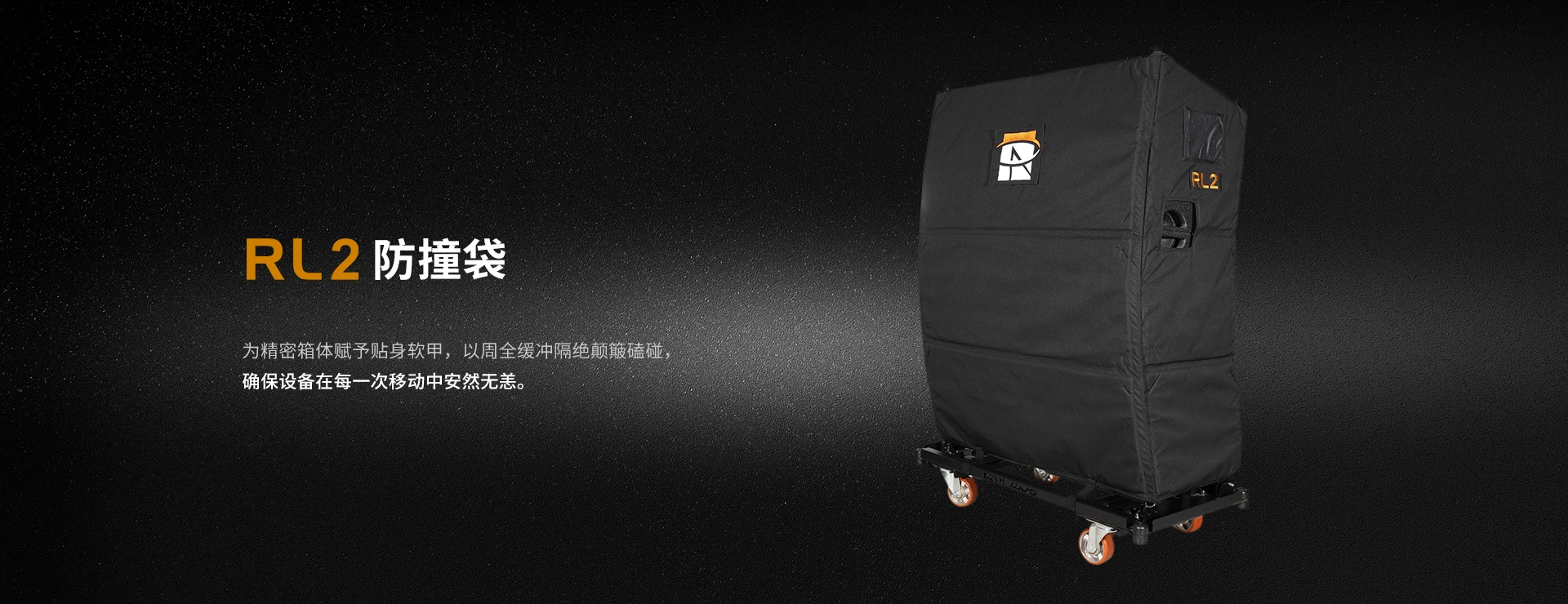

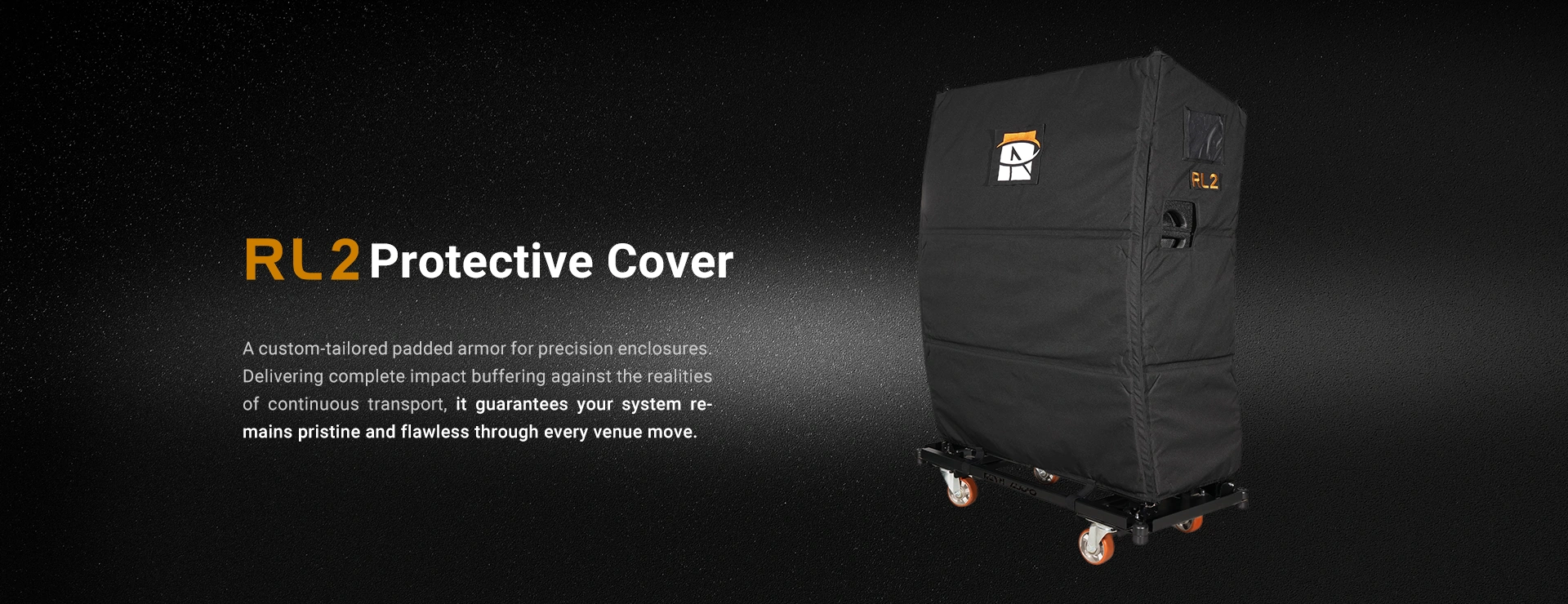

Technical Specification

Product Name

  • RL2 Protective Cover

Applicable Series

  • RL2

Specifications

  • 4 in 1

Dimensions (W x H x D)

  • 1190x490x1445 mm
    (46.9"x19.3"x56.9")

Net Weight (N.W.)

  • 6 kg (13.2 lbs)

Product Code

  • 3202000594

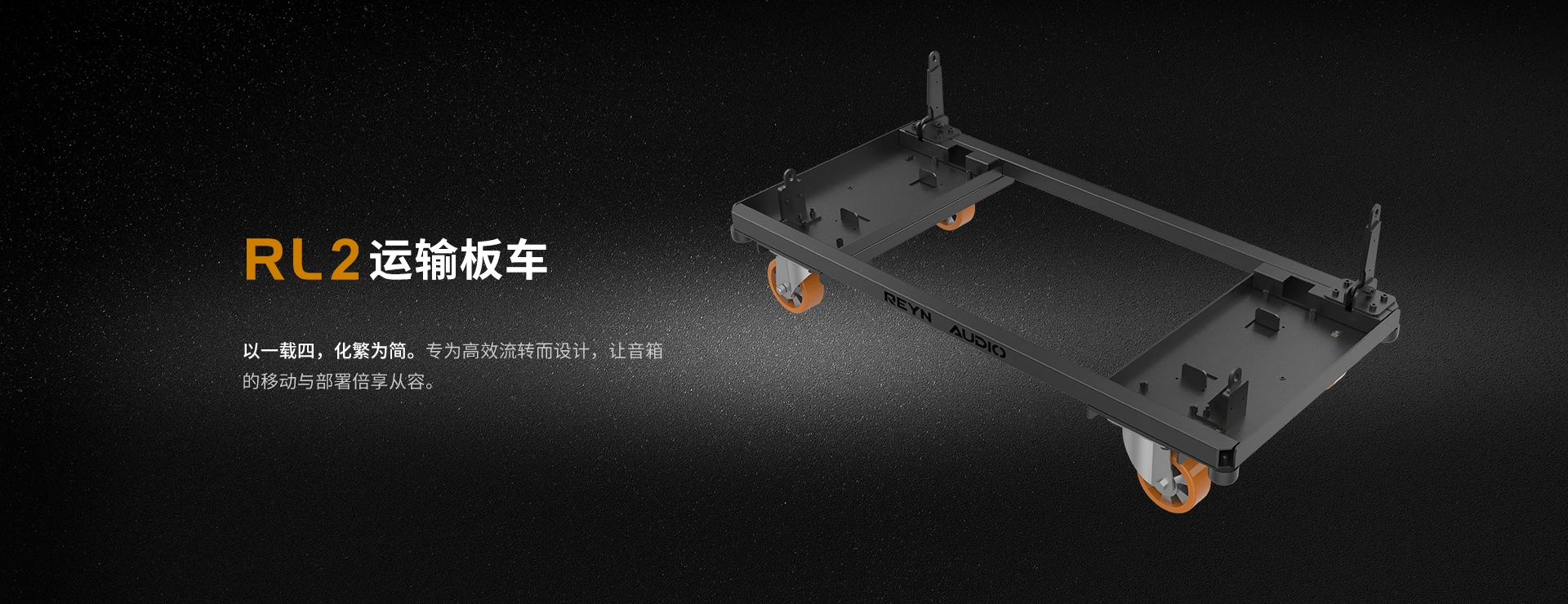

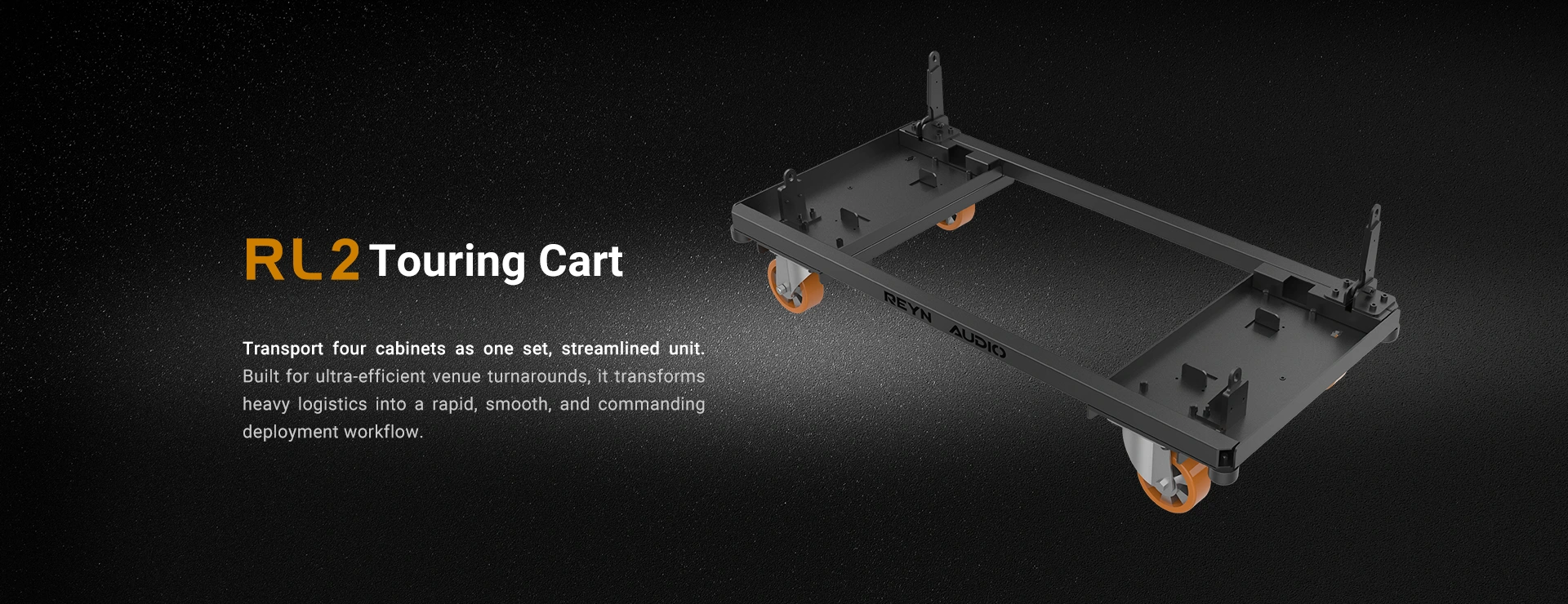

Technical Specification

Product Name

  • RL2 Touring Cart

Applicable Series

  • RL2

Specifications

  • 4 in 1

Dimensions (W x H x D)

  • 1266x584x274 mm
    (49.8"x23.0"x10.8")

Net Weight (N.W.)

  • 55 kg (121.2 lbs)

Product Code

  • 63583864

Accessories

  • RL2 Tour Cart Stand (optional)

    Product code: 63583904
