Technical Specification

Product Name

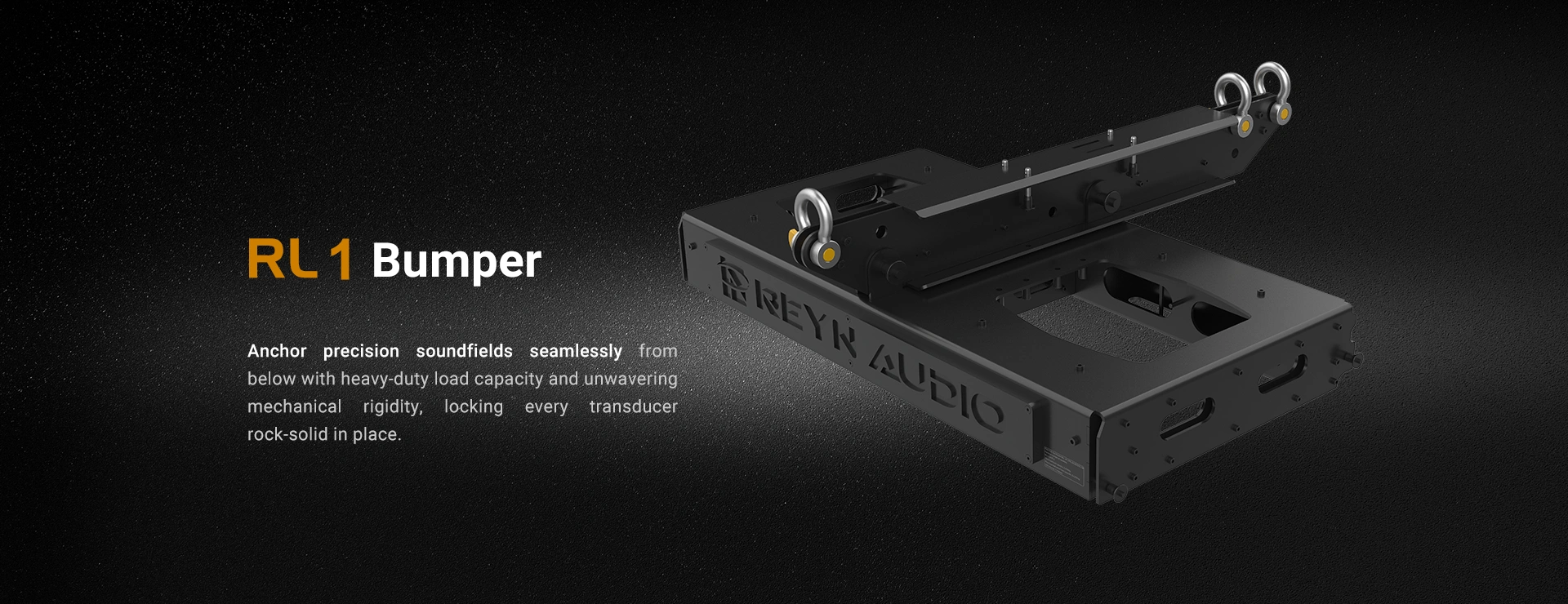

  • RL1 Bumper

Applicable Series

  • RL1

Specifications

  • Max capacity: 24 pcs RL1

Rigging Material

  • Main Structural and crossbar constructed from 304 stainless steel;
    Logo plate: Birch-faced combi-core plywood.

Surface Treatment

  • Main Structural and crossbar constructed from black matte-textured powder coating with 10-year outdoor rating;
    Logo plate: Black, fine-textured two-component polyurea finish.

Dimensions (W x H x D)

  • 1196×611×283 mm
    (47.0"x24.0"x11.1")

Net Weight (N.W.)

  • 92 kg (202.8 lbs)

WLL (Working Load Limit)

  • 2448 kg

Safety Factor

  • 5.4倍

TÜV SÜD Test Report No.

  • 64.190.24.0023.01-00

Product Code

  • 12313100207276

Accessories

  • Quick lock pins (included)
    Product code: Φ12x25mm

    3002004452     		Φ10x40.5mm

    3002003918     		Φ19x44.5mm

    3002002455
    3/4 Shacke (included)
    Product code: 3002001924
    Tri-Frame (included)
    Product code: 63584212

Technical Specification

Product Name

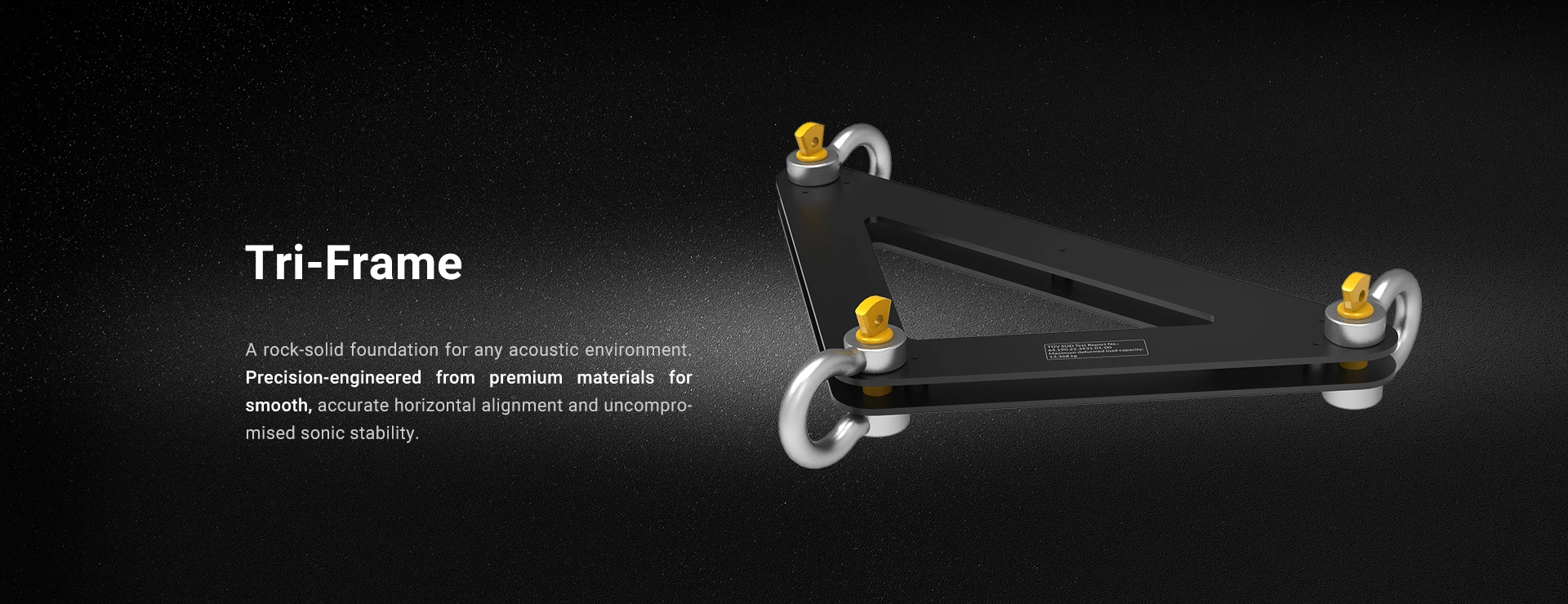

  • Tri-Frame

Applicable Series

  • All RL line array series

Specifications

  • Adjust the horizontal angle ofthe line array±10°

WLL (Working Load Limit)

  • 2,350 kg (5180.9 lbs)

Safety Factor

  • 5.8 times

TÜV SÜD Test Report No.

  • 64.190.25.3931.01-00

Surface Treatment

  • Black matte-textured powder coating with 10-year outdoor rating

Rigging Material

  • Main frame 304 stainless steel

Dimensions (W x H x D)

  • 606x304x105 mm
    (23.9″x12.0″x4.1″)

Net Weight (N.W.)

  • 10 kg (22 lbs)

Product Code

  • 63584212

Accessories

  • 3/4 Shackle
    Product code：3002001924

Technical Specification

Product Name

  • 3/4 Shackle

Applicable Series

  • RL1、RL2、RL15、GS218

Specifications

  • American Bow (BW),
    G-209 high-quality alloystructural steel

WLL (Working Load Limit)

  • 4.75 t

Safety Factor

  • 6 times

CE Certification

  • PPU2508-16

Product Code

  • 3002001924

Technical Specification

Product Name

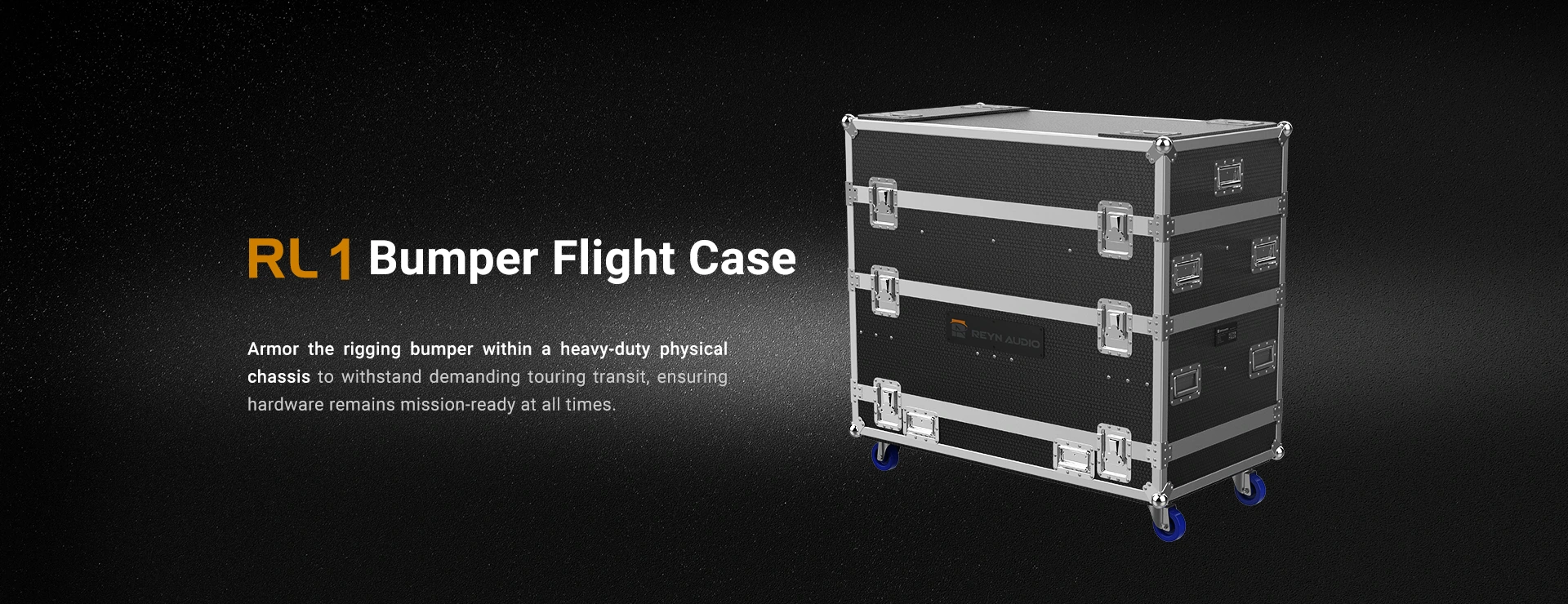

  • RL1 Bumper Flight Case

Applicable Series

  • RL1

Specifications

  • 2 RL1 Bumpers
    and 2 Tri-Frames

Dimensions (W x H x D)

  • 1279x671x1223 mm
    (50.4"x26.4"x48.1")

Net Weight (N.W.)

  • 97 kg (213.8 lbs)

Gross Weight (G.W.)

  • 301 kg (663.6 lbs)

Product Code

  • 3205028015-A

Technical Specification

Product Name

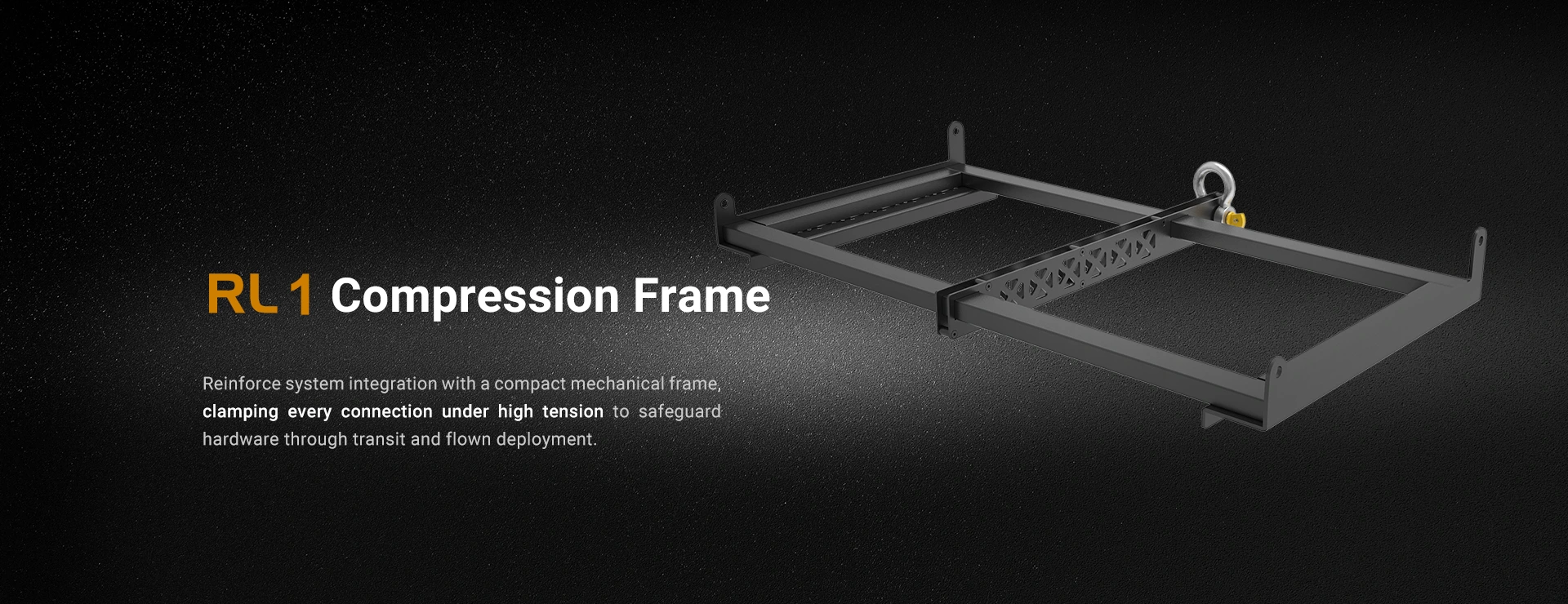

  • RL1 Compression Frame

Applicable Series

  • RL1

Specifications

  • Applicable 1 ton

Rigging Material

  • Main Structural: 304 stainless steel

Surface Treatment

  • Black matte-textured powder coating with 10-year outdoor rating

Dimensions (W x H x D)

  • 1118×705×147 mm

Net Weight (N.W.)

  • 21 kg (46.2 lbs)

Product Code

  • 63583507

Technical Specification

Product Name

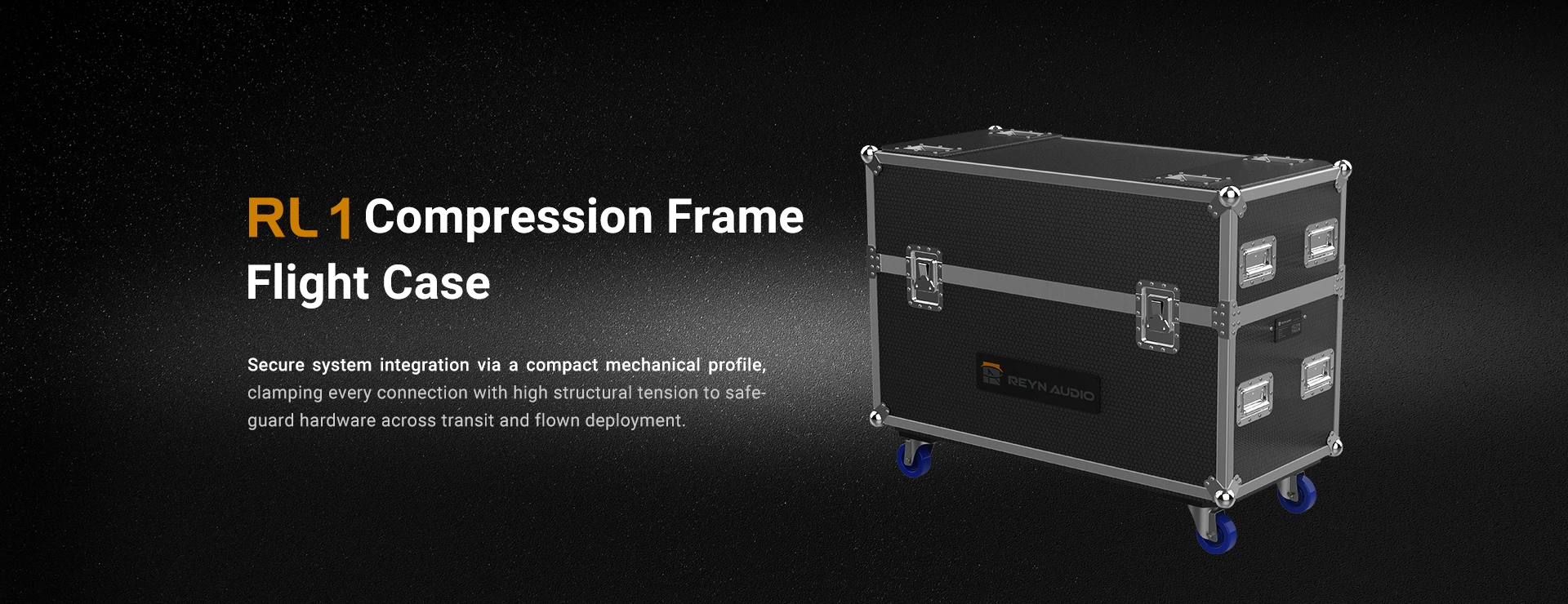

  • RL1 Compression Frame Case

Applicable Series

  • RL1

Specifications

  • 2 RL1 Compression Frame
    2 hoist

Dimensions (W x H x D)

  • 1170x550x920 mm
    (46.0"x21.7"x36.2")

Net Weight (N.W.)

  • 55 kg (121.3 lbs)

Gross Weight (G.W.)

  • 97 kg (213.8 lbs)

Product Code

  • 3205028040

Technical Specification

Product Name

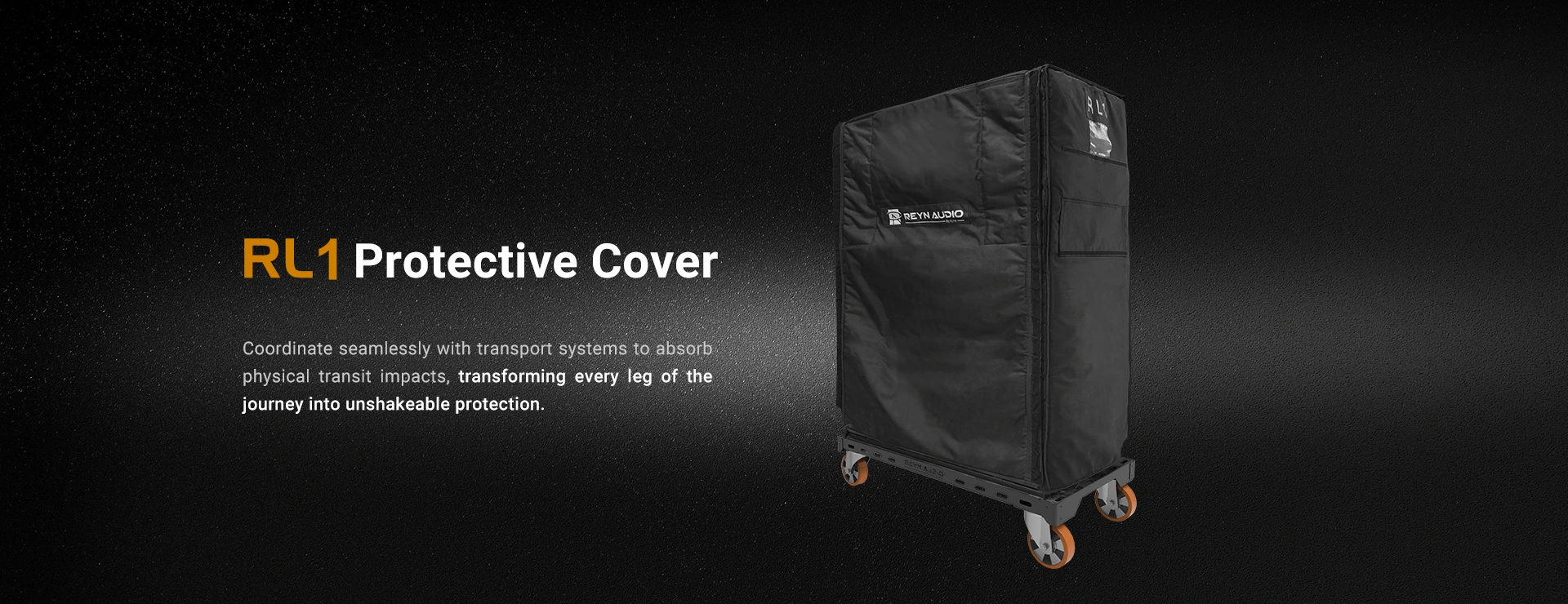

  • RL1 Protective Cover

Applicable Series

  • RL1

Specifications

  • 4 in 1

Dimensions (W x H x D)

  • 1200x600x1420 mm
    (47.2"x23.6"x55.9")

Net Weight (N.W.)

  • 8 kg (17.6 lbs)

Product Code

  • 3202002024

Technical Specification

Product Name

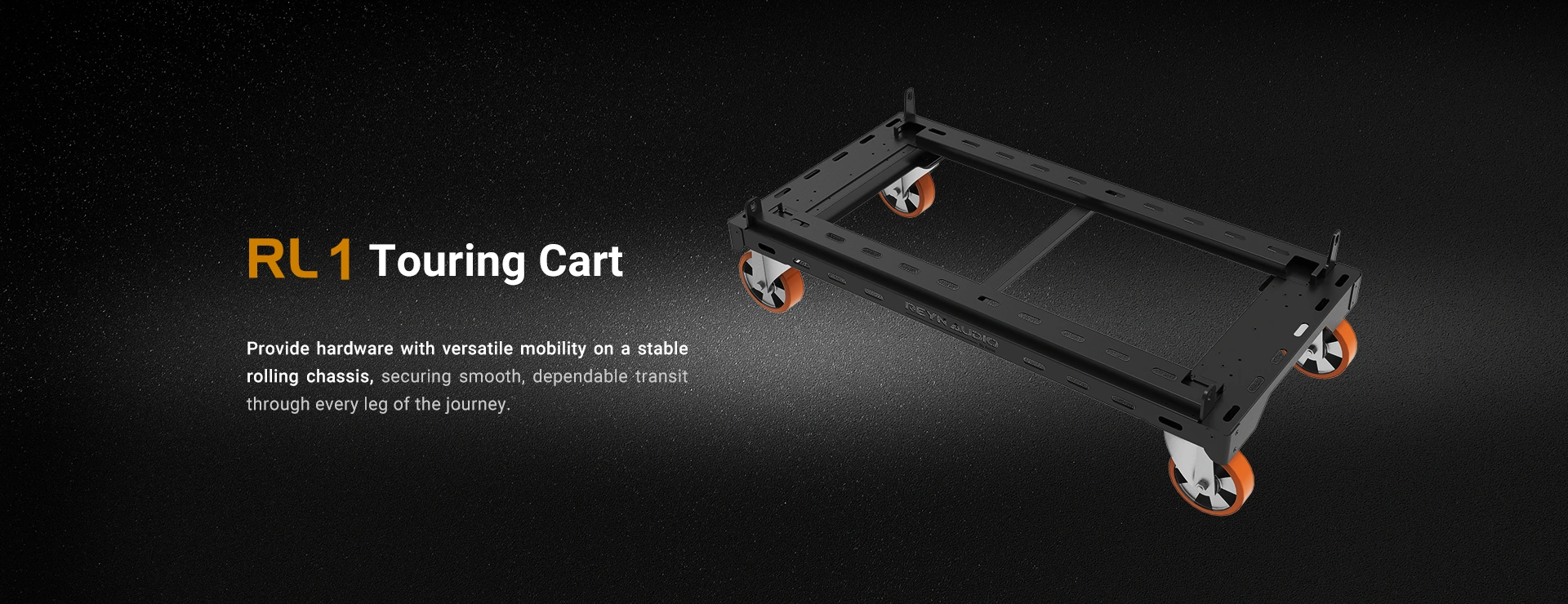

  • RL1 Touring Cart

Applicable Series

  • RL1

Specifications

  • 4 in 1

Dimensions (W x H x D)

  • 1234x608x344 mm
    (48.6"x23.9"x13.5")

Net Weight (N.W.)

  • 37 kg (81.6 lbs)

Product Code

  • 12313100201959
