Technical Specification

Product Name

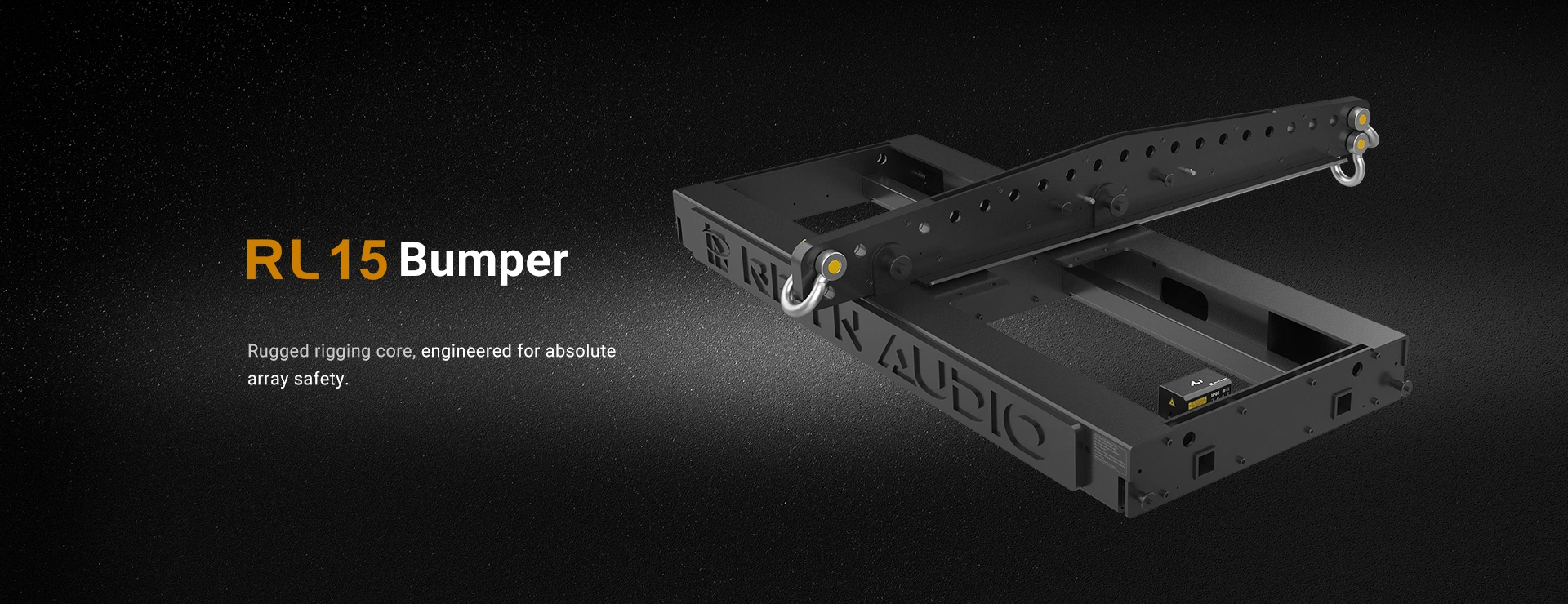

  • RL15 Bumper

Applicable Series

  • RL15、RL15i

Specifications

  • Max capacity: 24 pcs RL15

WLL (Working Load Limit)

  • 2,350 kg (5.180.9 lbs)

Safety Factor

  • 5.8 times

TÜV SÜD Test Report No.

  • 64.190.24.0765.01-00

Rigging Material

  • Main Structural and crossbar constructed from 304 stainless steel;
    Logo plate: Birch-faced combi-core plywood.

Surface Treatment

  • Main Structural and crossbar constructed from black matte-textured powder coating with 10-year outdoor rating;
    Logo plate: Black, fine-textured two-component polyurea finish.

Dimensions (W x H x D)

  • 1377x574x265 mm
    (54.2″x22.6″x10.4″)

Net Weight (N.W.)

  • 105 kg (231.5 lbs)

Product Code

  • 63583483

Accessories

  • Quick lock pins (included)
    Product code: Φ12x25mm

    3002002439     		Φ10x40.5mm

    3002003918     		Φ19x44.5mm

    3002002455
    3/4 Shacke (included)
    Product code: 3002001924
    Tri-Frame (included)
    Product code: 63584212
    Laser alignment module (Optional)
    AL

    		 AL1

Technical Specification

Product Name

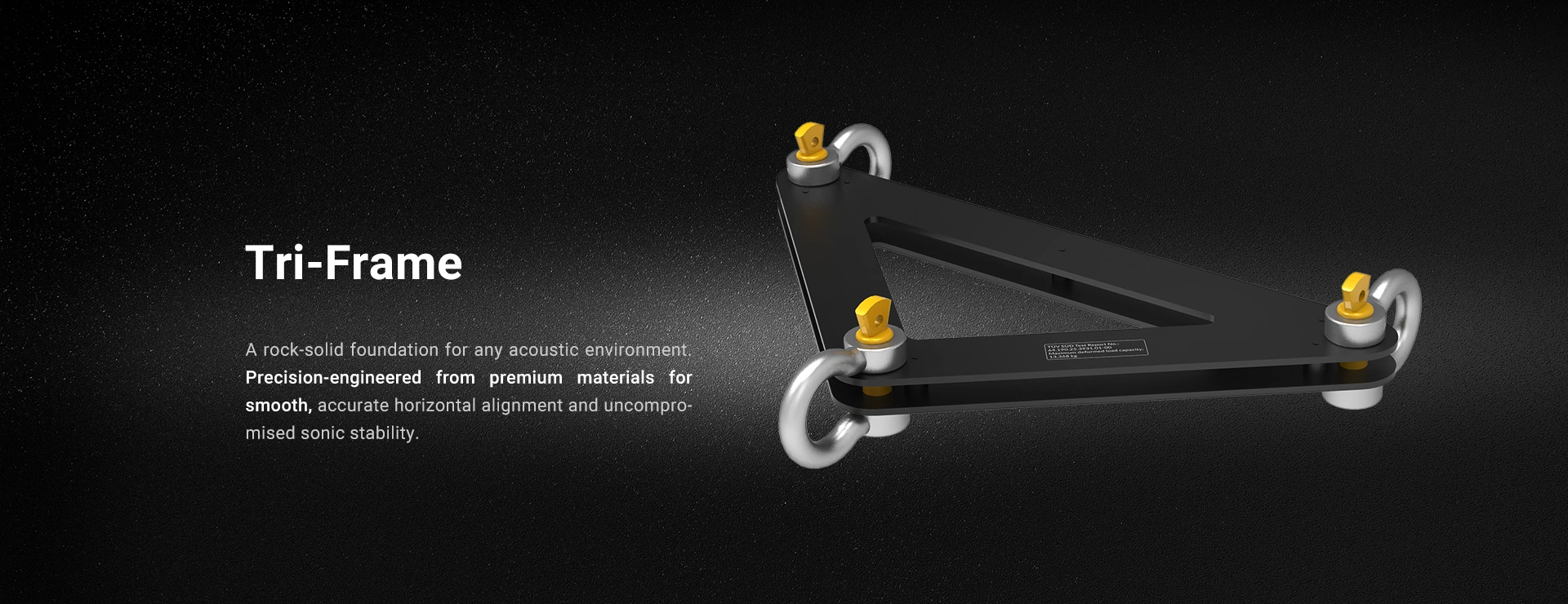

  • Tri-Frame

Applicable Series

  • All RL Line Array Series

Specifications

  • Adjust the horizontal angle ofthe line array±10°

WLL (Working Load Limit)

  • 2,350 kg (5180.9 lbs)

Safety Factor

  • 5.8 times

TÜV SÜD Test Report No.

  • 64.190.25.3931.01-00

Surface Treatment

  • Black matte-textured powder coating with 10-year outdoor rating

Rigging Material

  • Main frame 304 stainless steel

Dimensions (W x H x D)

  • 606x304x105 mm
    (23.9″x12.0″x4.1″)

Net Weight (N.W.)

  • 10 kg (22 lbs)

Product Code

  • 63584212

Accessories

  • 3/4 Shackle
    Product code：3002001924

Technical Specification

Product Name

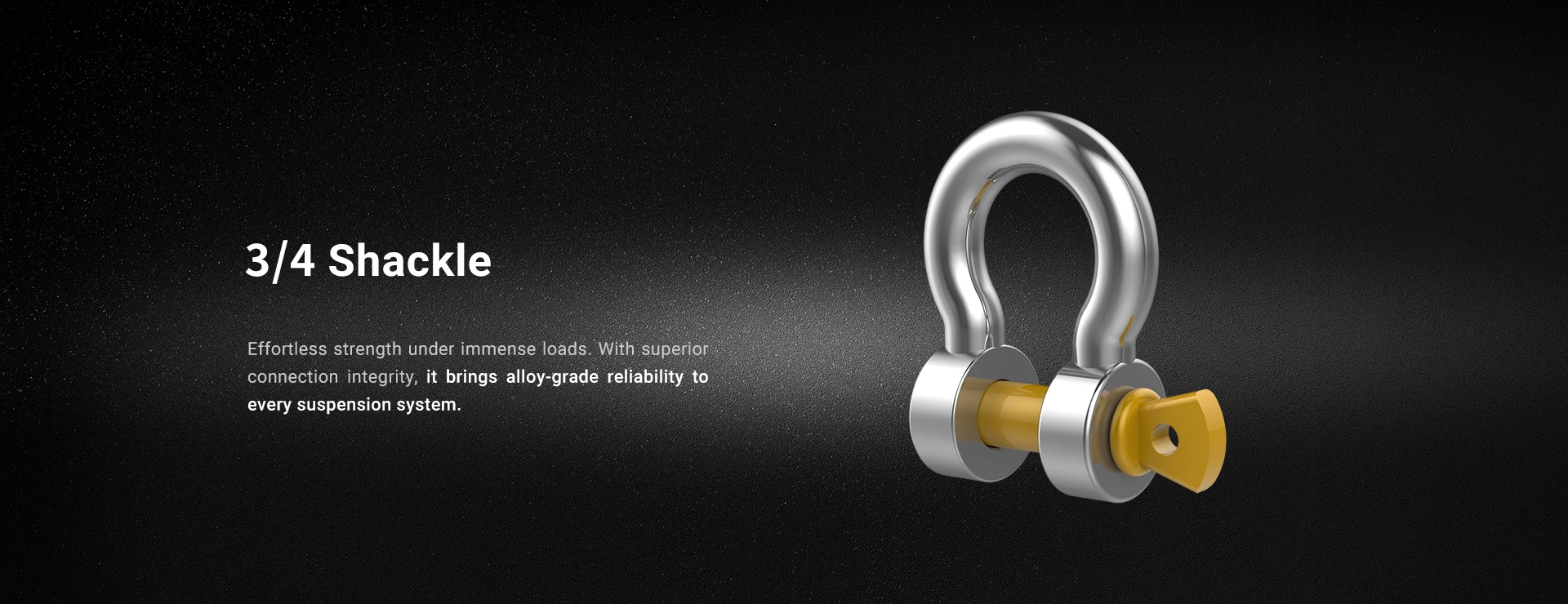

  • 3/4 Shackle

Applicable Series

  • RL1、RL2、RL15、GS218

Specifications

  • American Bow (BW),
    G-209 high-quality alloystructural steel

WLL (Working Load Limit)

  • 4.75 t

Safety Factor

  • 6 times

CE Certification

  • PPU2508-16

Product Code

  • 3002001924

Technical Specification

Product Name

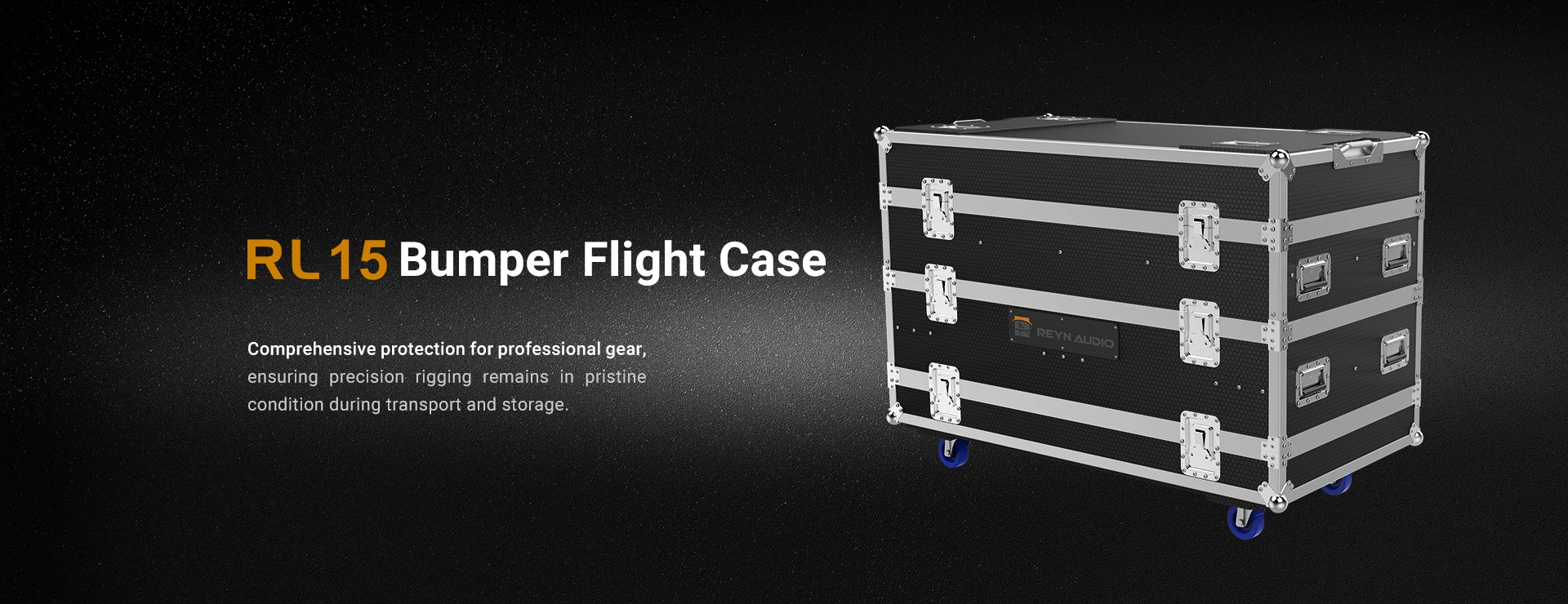

  • RL15 Bumper Flight Case

Applicable Series

  • RL15

Specifications

  • 2 RL15 Bumpers
    and 2 tri plates

Dimensions (W x H x D)

  • 1445x750x1069 mm
    (56.9″x29.5″x42.1″)

Net Weight (N.W.)

  • 110 kg (242.5 lbs)

Gross Weight (G.W.)

  • 340 kg (749.6 lbs)

Product Code

  • 3205028057

Technical Specification

Product Name

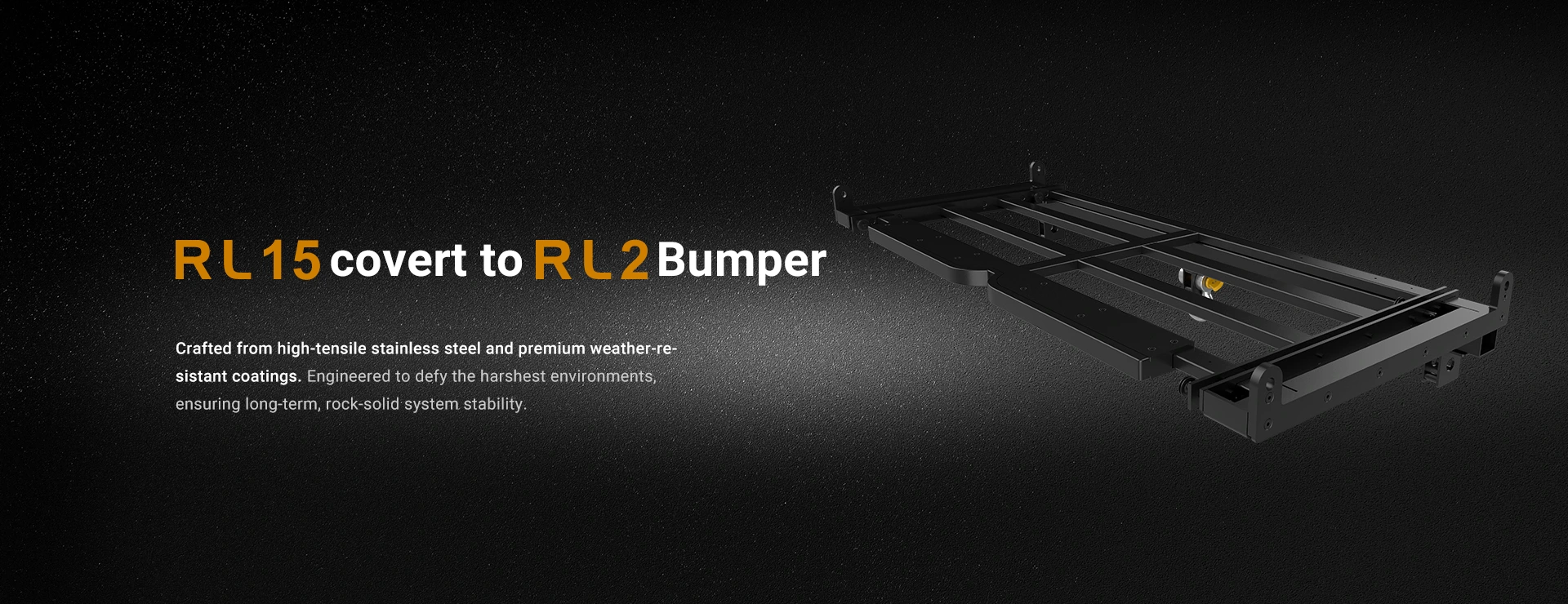

  • RL15 covert to RL2 Bumper

Applicable Series

  • RL15 、RL2

Specifications

  • Max capacity: 12 pcs RL2

WLL (Working Load Limit)

  • 840 kg (1,851.9lbs)

Safety Factor

  • 6.5 times

TÜV SÜD Test Report No.

  • 64.190.24.5068.01-00

Rigging Material

  • Main Structural and crossbar constructed from 304 stainless steel
    Logo plate: Birch-faced combi-core plywood.

Surface Treatment

  • Main Structural constructed from black matte-textured powder coating with 10-year outdoor rating
    Logo plate: Black, fine-textured two-component polyurea finish.

Dimensions (W x H x D)

  • 1306×562×202 mm
    (51.4″x22.1″x8.0″)

Net Weight (N.W.)

  • 24 kg (52.9 lbs)

Product Code

  • 63583600

Accessories

  • Shackle
    Product code：3002001924

Technical Specification

Product Name

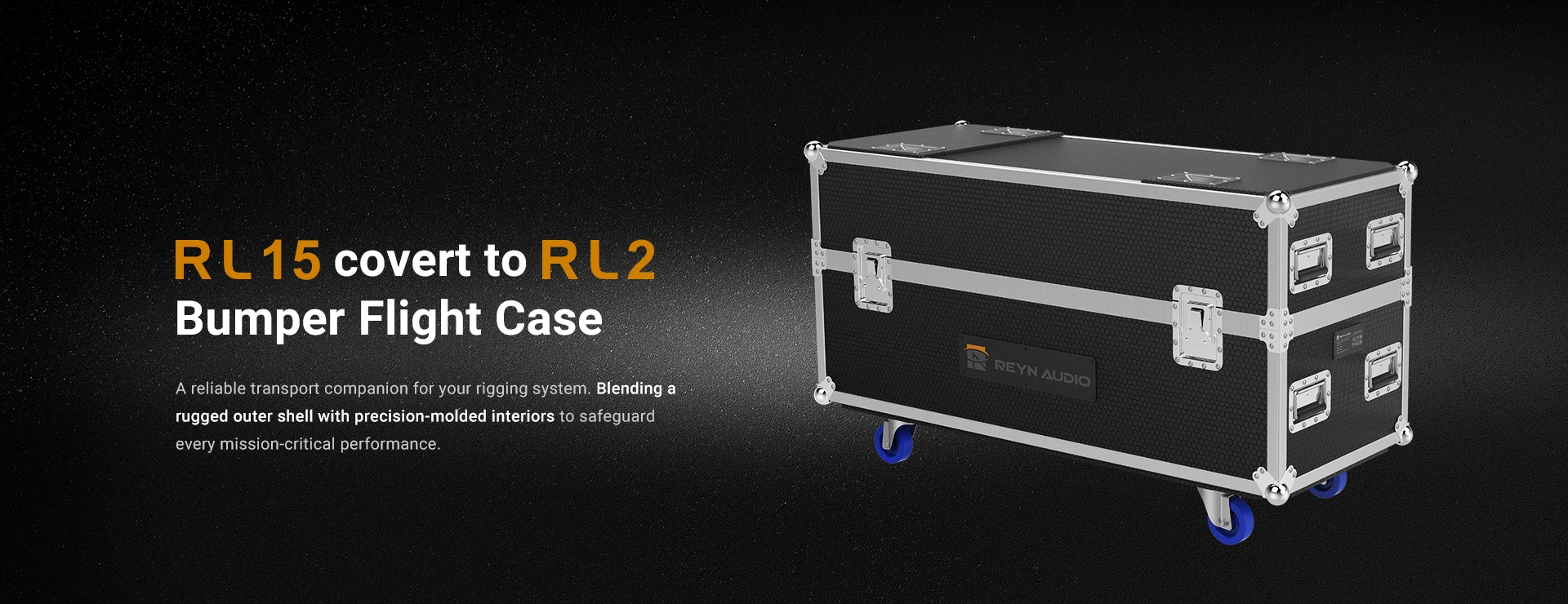

  • RL15 covert to RL2 Bumper Flight Case

Applicable Series

  • RL15、RL2

Specifications

  • 2 RL15 to RL2 Bumpers
    and 2 hoists

Dimensions (W x H x D)

  • 1365x550x785 mm
    （53.7"x21.7"x30.9 ″)

Net Weight (N.W.)

  • 56 kg (123.5 lbs)

Gross Weight (G.W.)

  • 104 kg (229.3 lbs)

Product Code

  • 3205028065

Technical Specification

Product Name

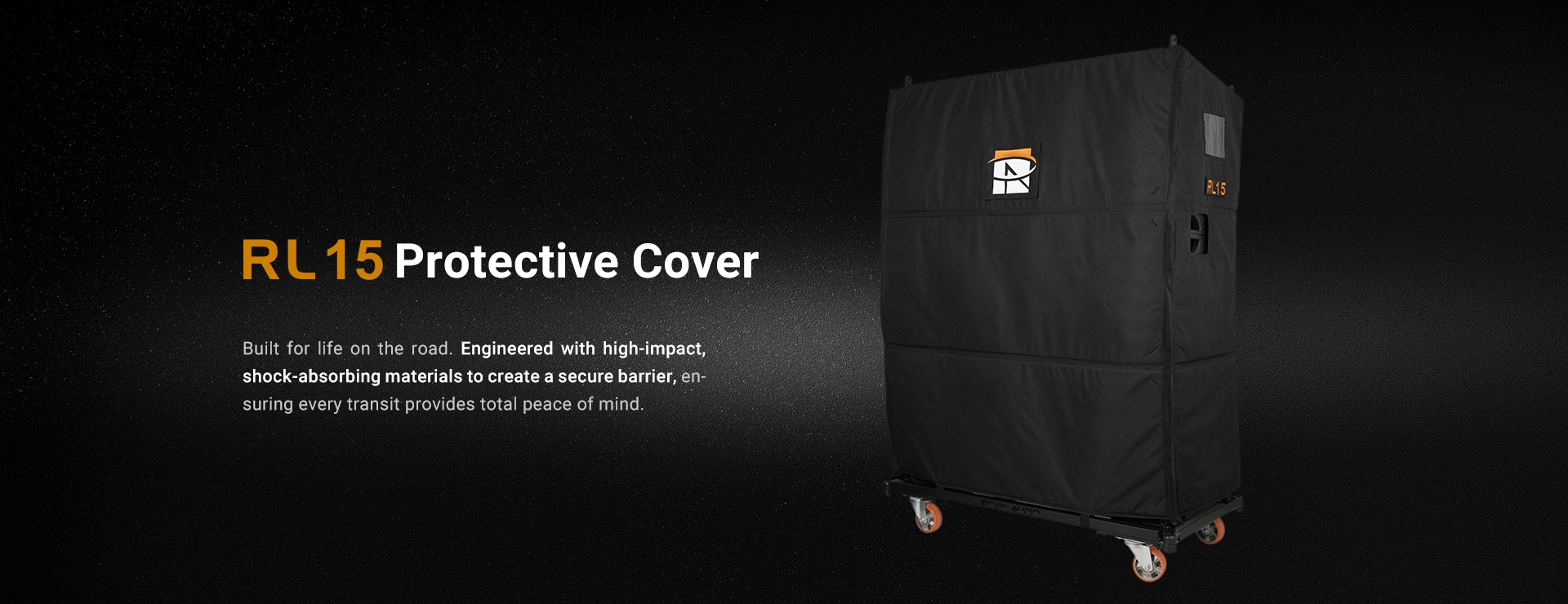

  • RL15 Protective Cover

Applicable Series

  • RL15

Specifications

  • 4 in 1

Dimensions (W x H x D)

  • 1384x570x1704 mm
    (54.5″x22.4″x67.1″)

Net Weight (N.W.)

  • 6 kg (13.2 lbs)

Product Code

  • 3202000593

Technical Specification

Product Name

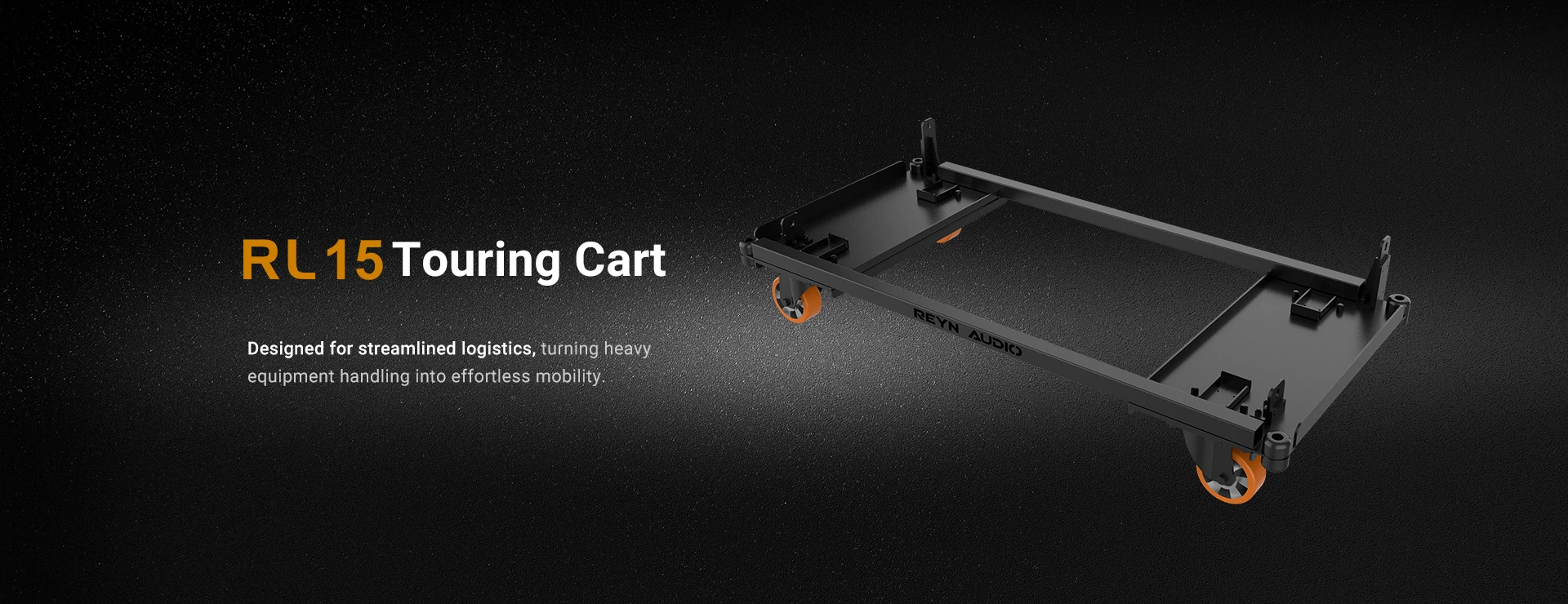

  • RL15 Touring Cart

Applicable Series

  • RL15

Specifications

  • 4 in 1

Dimensions (W x H x D)

  • 1436x337x654 mm
    (56.5″x13.2″x25.7″)

Net Weight (N.W.)

  • 53 kg (116.8 lbs)

Product Code

  • 63583484
